Oilfield Pumping Unit Efficient Oil Sucker Rod Pumps

Name: Oilfield Pumping Unit Efficient Oil Sucker Rod Pumps
SKU: XN3J-MMV7-E23M
Price: 910.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 910.00 910.0 USD $ 910.00

Minimum order quantity: 1 Units

Key attributes

View all

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000

Place of origin

China, Henan

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

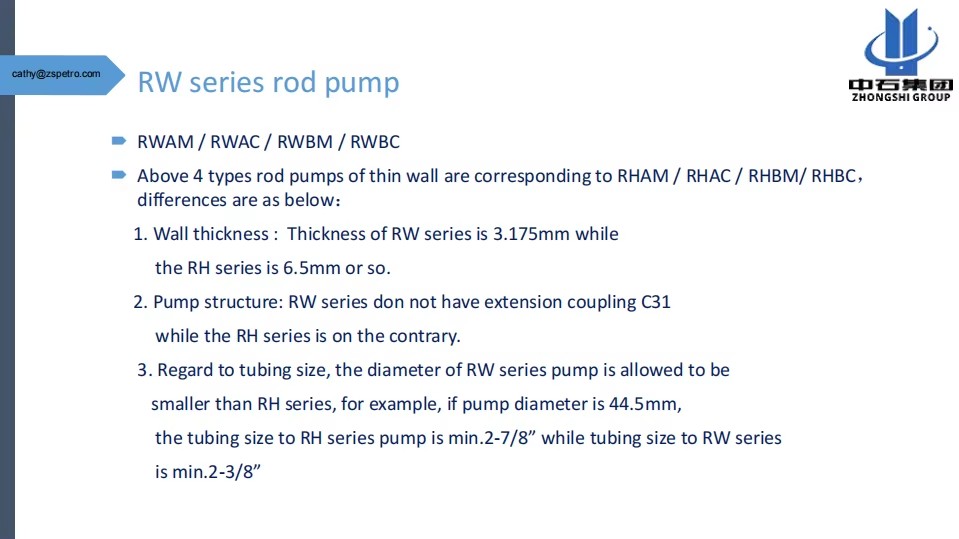

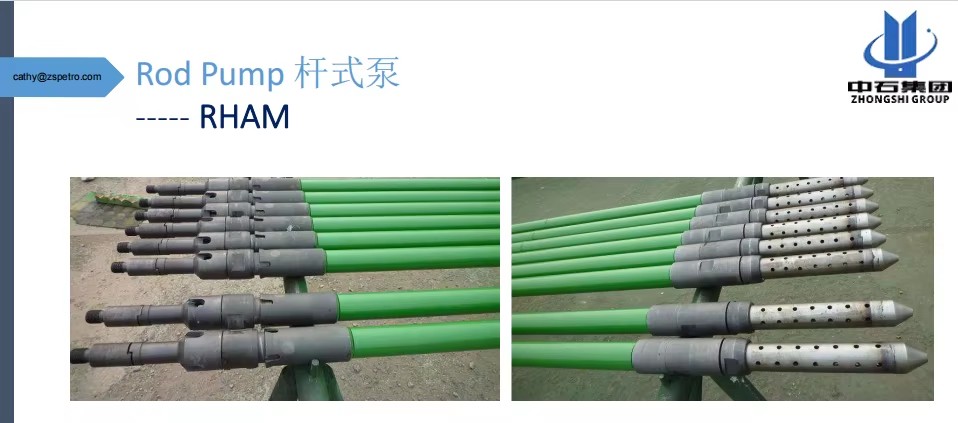

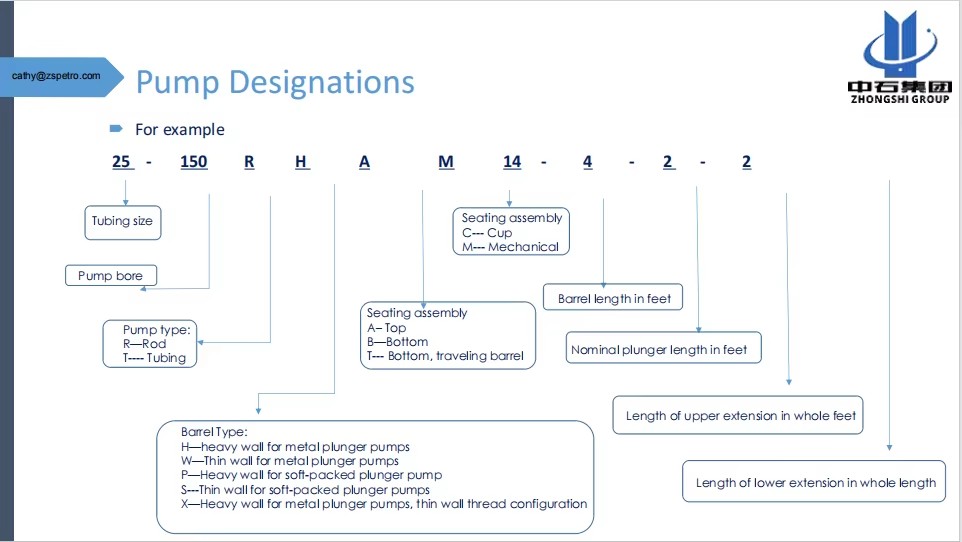

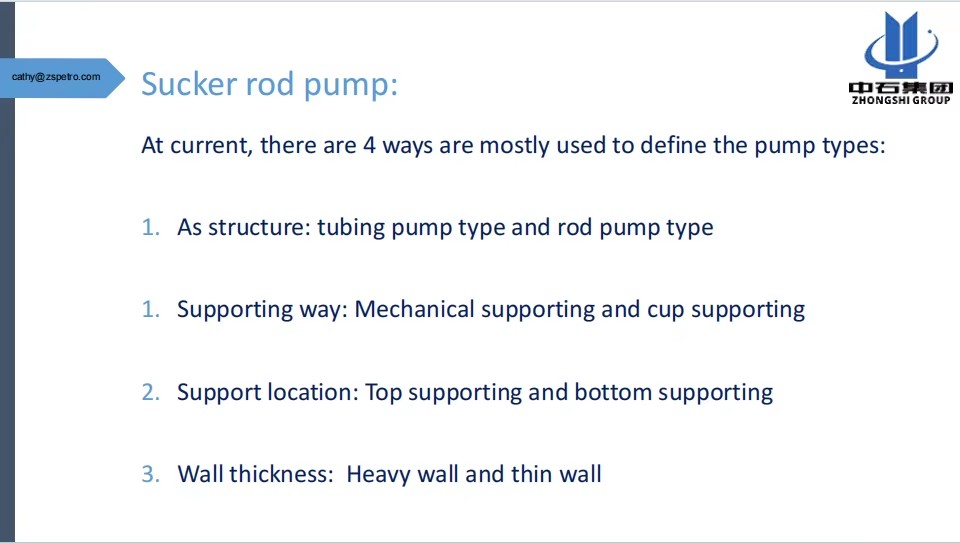

API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

Model	Nominal Dia. mm(in)	Plunger Length m(ft)	Stroke m	Pump Constant m3/d	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	¾
25-125TH	32(1.25)	0.6-7.3	1.14	¾
20-150TH	38(1.50)	0.6-7.3	1.64	¾
25-150TH	38(1.50)	0.6-7.3	1.64	¾
20-175TH	44(1.75)	0.6-7.3	2.24	¾
25-175TH	44(1.75)	0.6-7.3	2.24	¾
25-225TH	57(2.25)	0.6-7.3	3.69	¾
30-275TH	70(2.75)	0.6-7.3	5.50	?
35-325TH	83(3.25)	0.6-7.3	7.70	?
40-375TH	95(3.75)	0.6-7.3	10.26	1

Main parts process and material: Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).

Barrels shall be additionally inspected, with a frequency of 100 %, according to the following

Barrel inside surface finish shall be visually inspected on all barrels per manufacturer’s specifications.

The inside diameter sealing surface of barrels shall be inspected with appropriate equipment, and in such a manner, that assures the specified tolerances are maintained through the entire length of the barrel.

Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).

Ball and seat assemblies shall be additionally inspected, with a frequency of 100 %, according to the following

All ball and seat assemblies shall be vacuum tested, with dry sealing surfaces, at 19 in. (483 mm) Hg minimum vacuum with no leakage for a minimum of

3 seconds after vacuum source is isolated. Ball shall be randomly rotated in the seat during the test.

Q: What is your requirements and specifications?

Q

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance.

* 30% down payment through T/T within 2days after signing the contract.

* 70% balanced payment after inspection before delivery from factory by T/T.

* We also accept order on line throught

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Oilfield Pumping Unit Efficient Oil Sucker Rod Pumps

Open URL

Price

$ 910.00

Oilfield Pumping Unit Efficient Oil Sucker Rod Pumps product image

Product information

Attributes

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000

Place of origin

China, Henan

Weight

90 kg(198.42lb)

Model number (Specification)

RHA

Certification

API 11AX

Application

Oilfield Equipment

Model

RHA20-150

MOQ

1set

Delivery Time

Within 5 days

Stroke

Long Stoke

Unit weight

100

Barrel

B12

Oil Well

Deep

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

NON
