Product description

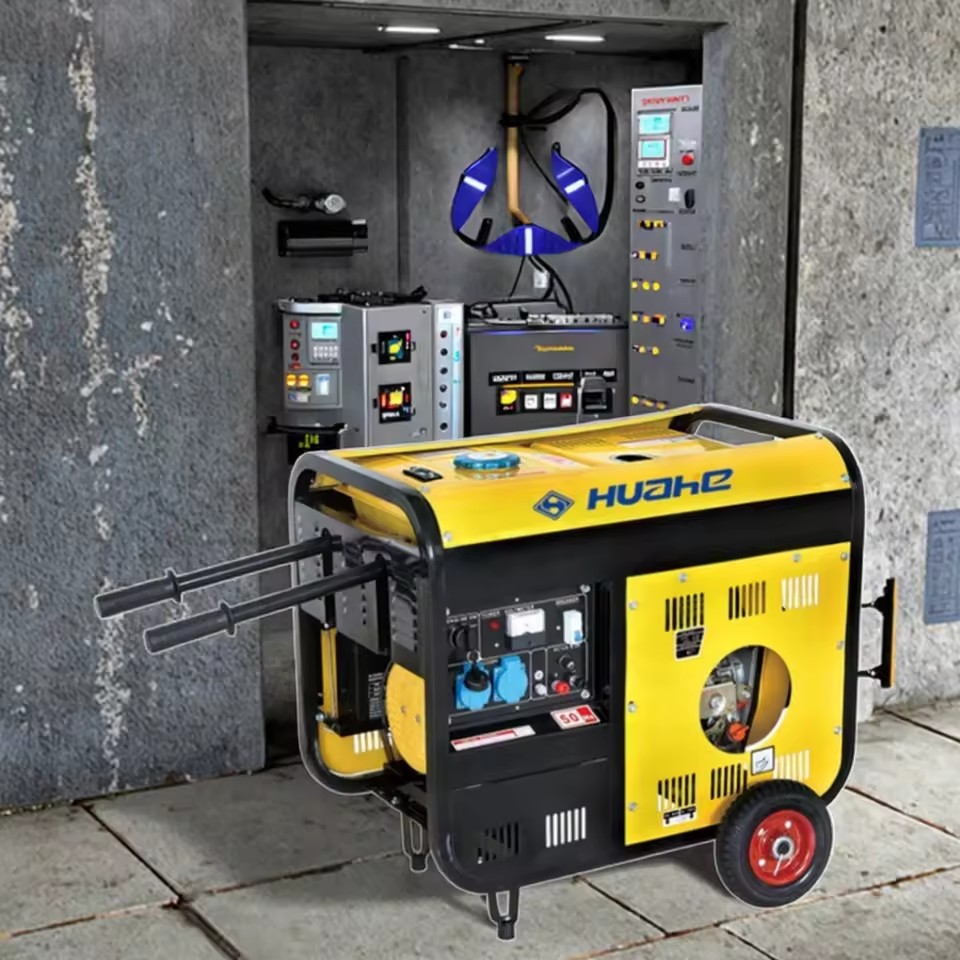

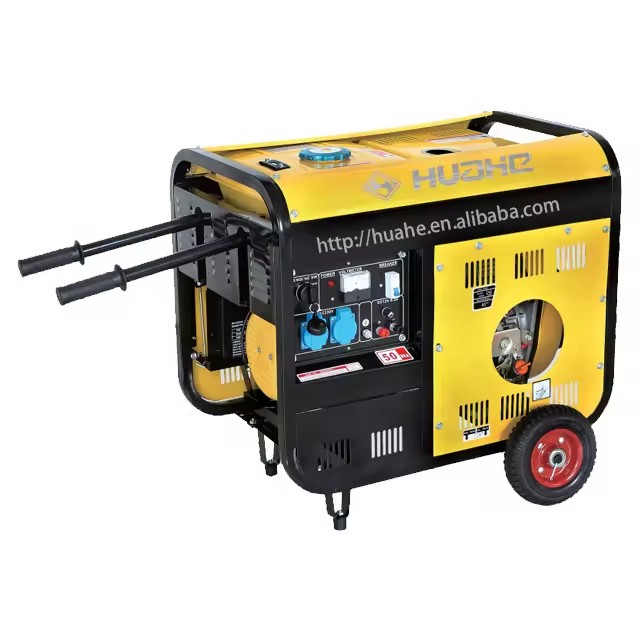

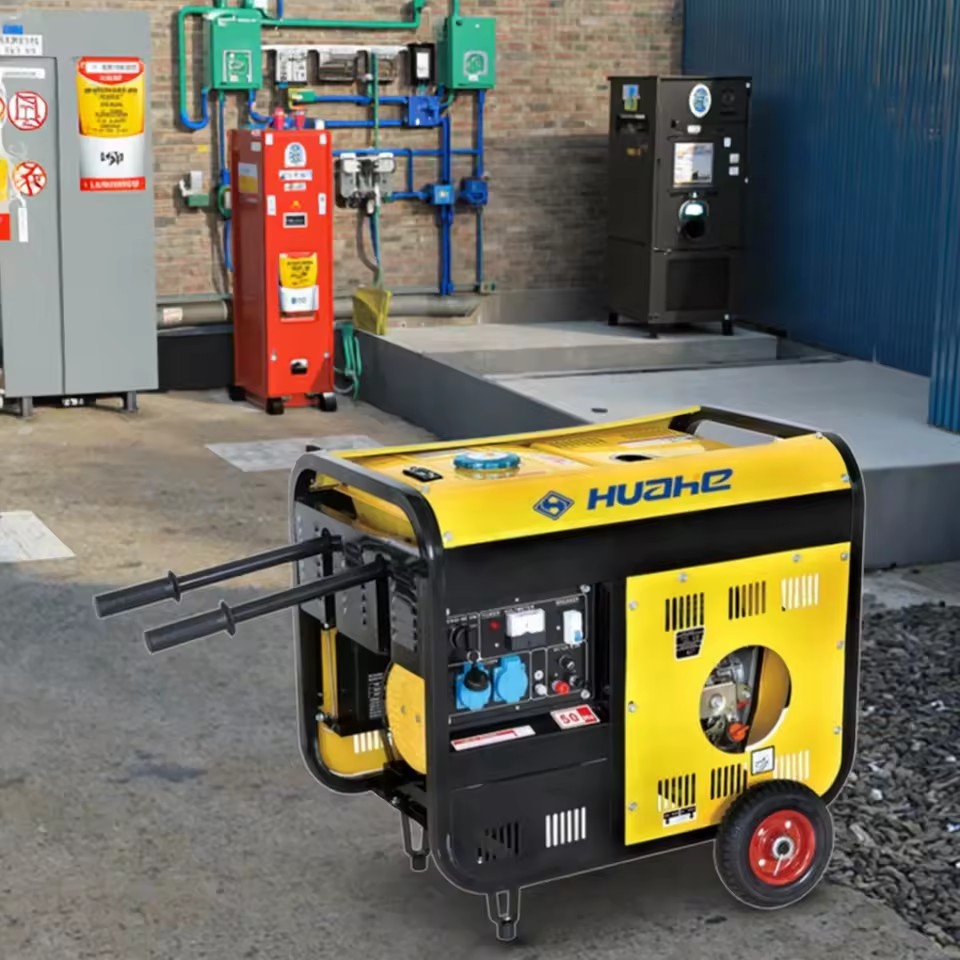

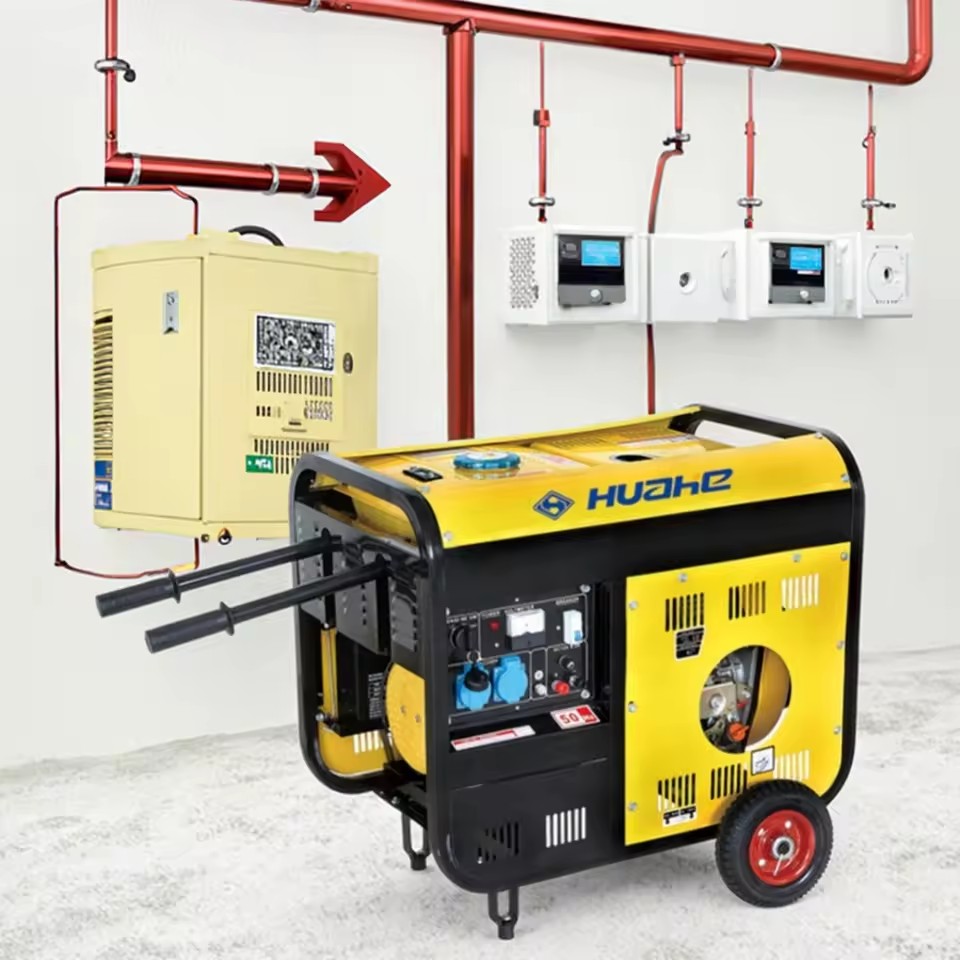

(5GF)Air-cooled diesel engine power 5KVA 5KW electric diesel generator

Features

01. Low fuel consumption

02. ultra-low-noise

03. Convenient in operation

04. Long run time - up to 12.5 hours

05. Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod

06. Oil alert:Oil level under the level line,the engine stops working automatically

07. Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment

08. Fuel meter:Show the varietal of fuel accurately

09. Can be widely used in highways, railways, airports, factories, hospitals, and much more

10. CE,ISO9001:2000 certification approved

11. One year or 500 hours warranty

12. Patent design, unique appearance and function

Specifications for this diesel generator

Model	Economical type
5GF
Generator	Type	Revolving field type 2 pole generator
Frequency (Hz)	50	60
Cont. Output (KW)	4.2	5
Voltage (A.C)(V)	230	240 (120)
Current (A.C)(A)	18.3	20.8 (41.7)
Engine speed (r/min)	3000	3600
Phase	Single phase
Power factor (COSΦ)	1
Excitation system	Controlled constant self-excitation
D.C output V/A	12V/8.3A
Operation capacity	12 hour constant operation
Coupling pattern	Straight shaft coupling
Model	186FG
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
Displacement cc ()	406(24.78)
Max. output (KW/rpm)	6.6	7.35
Cont. output (KW/rpm)	5.9	6.6
Starting system	Recoil start/ Electric start
Governor system	Centrifugal weight system
Fuel	Diesel light fuel (BS-AL or equivalent)
Fuel tank capacity (L)	5.5L
Lube oil capacity (L)	1.65
Bore×Stroke	86×70
Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	85
Dimension (L×W×H) (mm)	745×480×615
Dry weight (kg)	95

Tell us your detailed requirement, to recommend you the right generator model

International certificates approved

Each gasoline generator set is wrapped in poly bag, then into carton. With Owners Manual in it

Standard colorful carton is available, ready for retail

Our Services

Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.

Three reasons for choosing

1 kva -720kva gasoline generator

Professional generator manufactrurer with R&D capacity

Reliable quality, reasonable price, desirable service

Tell us your demand, provide what you want

Wlcome to

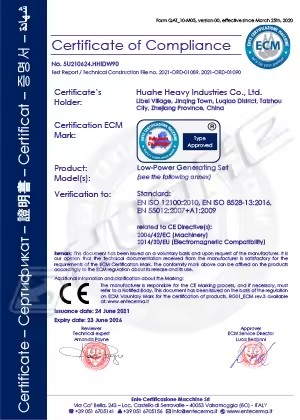

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 160 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Frequency

50Hz

Rated voltage

220V

Cooling System Type

Air Cooling System

Rated current

7.4A

Speed

3600rpm

Starting System

Recoil Start

Place of origin

Zhejiang, China

Application

Industrial, residential, Commercial

Model number (Specification)

5GF

Color

Customerization

Keyword

Generators Prices

Phase

1 Phase/3 Phase

Cooling Method

Air Cooled Diesel Generator Set

Fuel Tank Capacity

12 hour constant self-excitation

Starting Method

DC 12V Electric Start

Engine type

4 Cycle

Warranty time

1 Yrs

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Output Type

AC Single Phase

Rated Power (Product option)

5kw(6.71hp)

Certifications & Compliance

Lead time

30 days

Minimum order

160 Units
