Drilling Machine Water Well Drilling Rigs Mud Pump Driven Water Well Drilling Rig for Sale

Available for enquiry 0.0 · 0 reviews
USD

$ 14,970.00 14970.0 USD $ 14,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.25m, 10-130m
Drilling Diameter
90-75
Power Type
Diesel
Voltage
220V/380V
Product description

1.. Features of QG-130YY hydraulic water well drilling rig

1.53*59 drilling rod adopted, high rigidity and strong delivery torque

2.The machine is equipped with national patent technology-taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance

3.For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch

4.Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions

5.We are the first one to equip mud pump with the flow 160L/min, so that it will save cost and also make the machine compact

2.. Application of QG130YY hydraulic water well drilling rig

Drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, sub-grade grouting hole drilling and direct grouting, Civil wells and earth temperature central air-conditioner etc.

Specification of QG-130YY hydraulic water well drilling rig

QG-130YY model drilling rig specification

Specifications
Unity machine parameter
Drilling depth10- 130m
Maximum open hole caliber26 0mm
End hole caliber75mm
Drill rod caliber50mm
Drilling angle90~ 75
Drill weight (No include power)510 560kg
Unity machine dimensions2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed142, 285, 570r/min
Spindle stroke450mm
Hoist
Max.single line hoisting capacity960kg
Single line lifting speed0.41, 0.82, 1.64m/s
Tightrope caliber27m
Mud pump of QG-130YY model drilling rig
TypeHorizontal single urn twin-action
Displacement95/77L/min
Diesle engines11 10 model 18 HP
Electric motorY160M—4 11kw 1440r/min
Maximum pressure1.2Mpa
Work pressure0.7Mpa
Water inlet caliber30mm
Water to exit caliber25mm
Triangle conveyer beltB1575mm

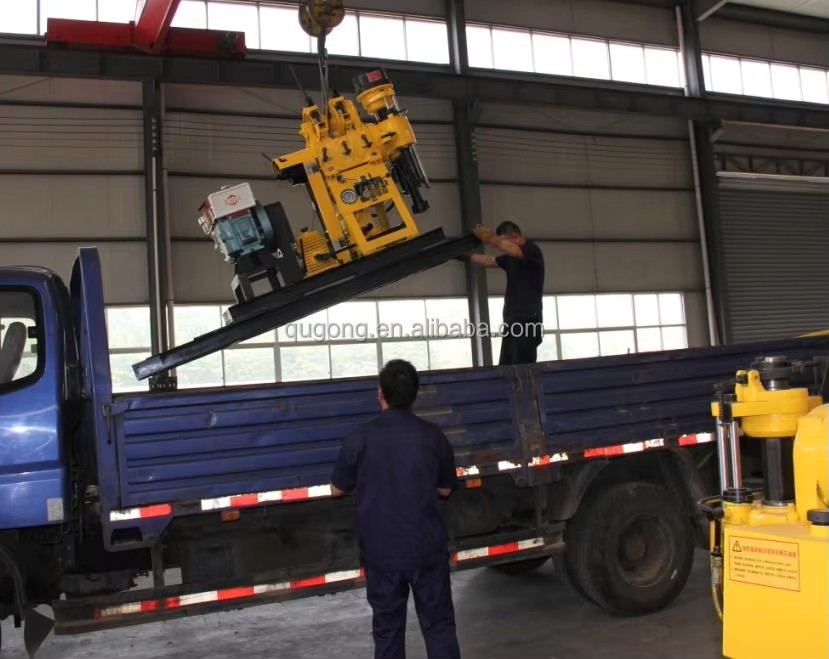

Pictures of delivering goods

Customer cases

At the

Description images

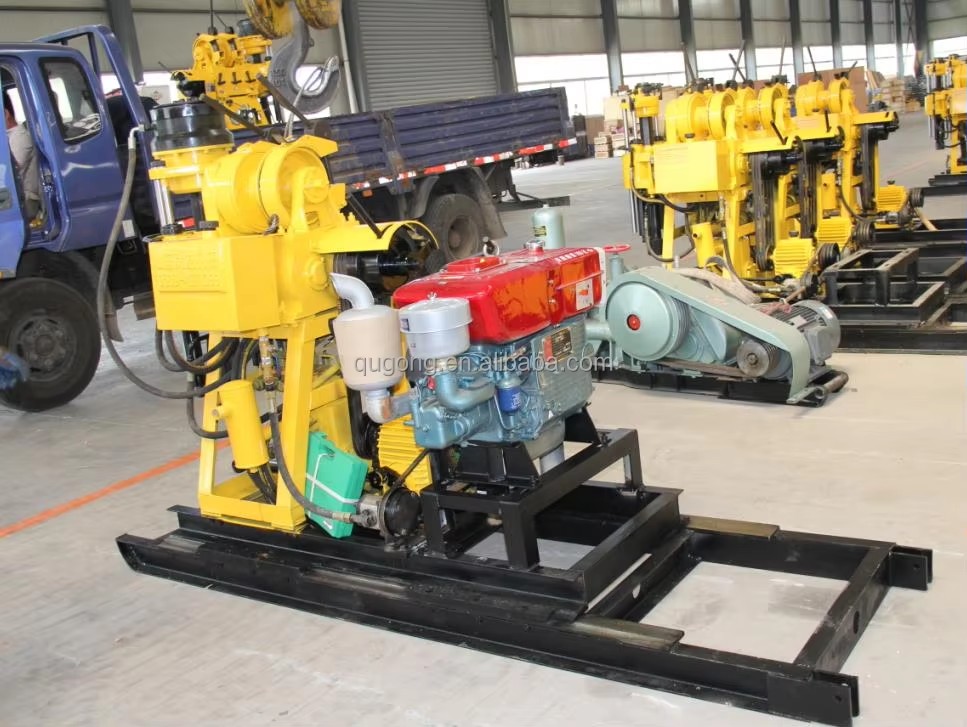

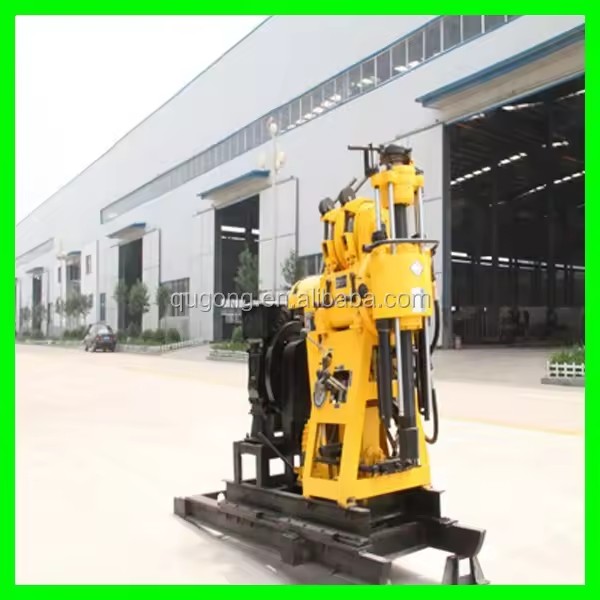

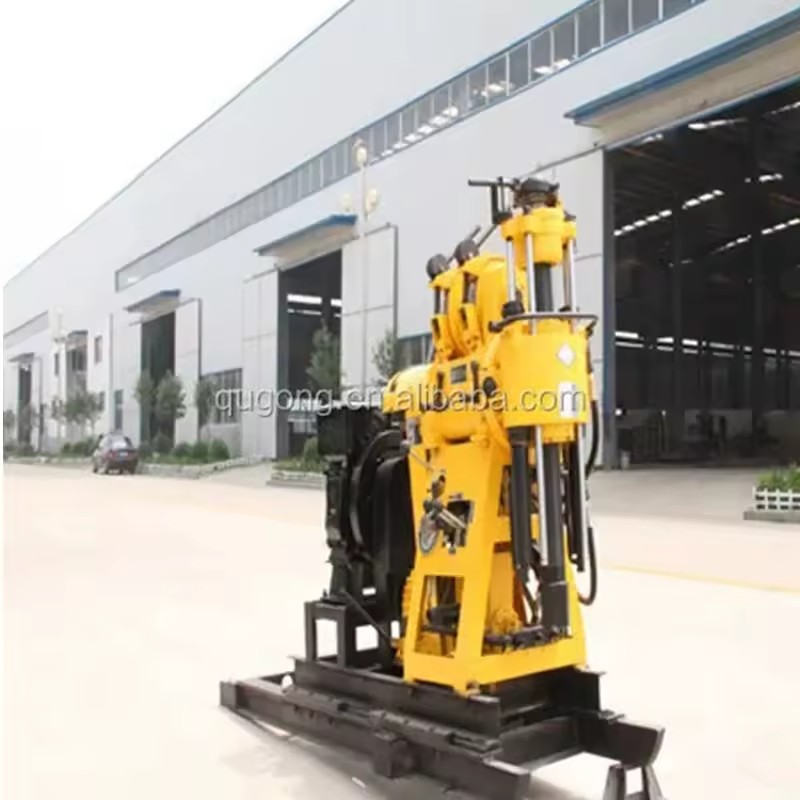

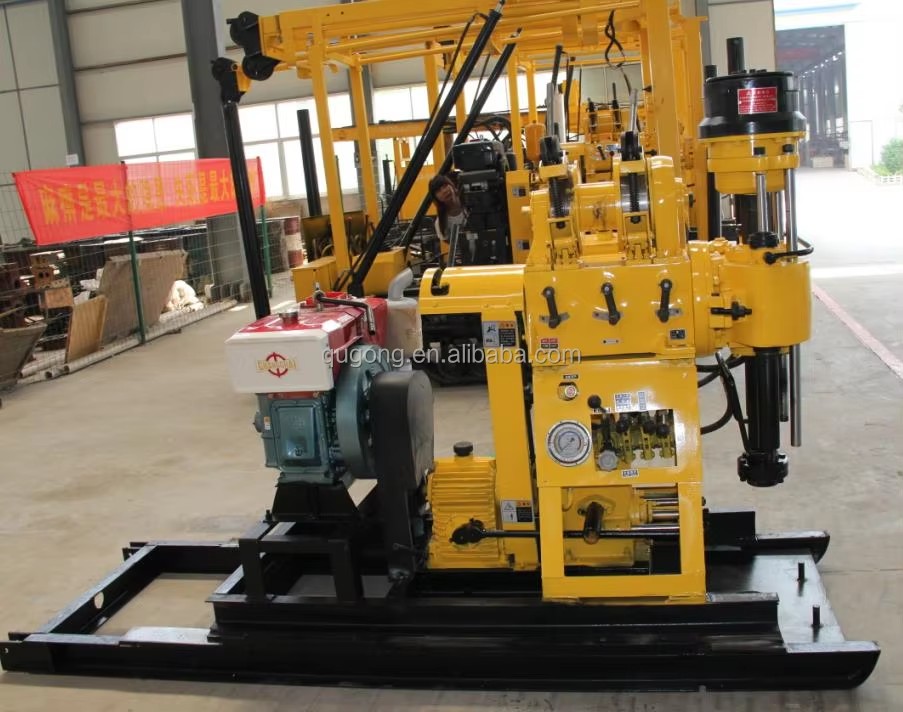

Drilling Machine Water Well Drilling Rigs Mud Pump Driven Water Well Drilling Rig for Sale
Drilling Machine Water Well Drilling Rigs Mud Pump Driven Water Well Drilling Rig for Sale
Drilling Machine Water Well Drilling Rigs Mud Pump Driven Water Well Drilling Rig for Sale
Drilling Machine Water Well Drilling Rigs Mud Pump Driven Water Well Drilling Rig for Sale
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    Lead time will be confirmed with your quotation.

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.25m, 10-130m
Drilling Diameter
90-75
Power Type
Diesel
Voltage
220V/380V
Core components
Gear
Warranty
1year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Shandong
Weight
1470 KG(3240.80lb)
Dimension (L*W*H)
2500*1300*1300mm/2500*900*1300mm
Mobility
portable
Max. Dia.hole
260mm
End hole caliber
75mm
Drill angle
90-75
Spindle speed
142 285 570r/min
Splindle torque
960N.m
Name
mini drill set for water well drilling rig
Packaging Details
ternational export standard package 2.Plywood package 3.As you require
Port of dispatch
Qingdao, ShangHai, tianjin, ningbo, any port of China
Selling Units
Single item
Single package size
250X130X130 cm
Single gross weight
1470.000 kg
Supply Ability
100 sets per Month
Model number
QG-130YY
Power (W) (Product option)
11kw(14.75hp)
Minimum order
1 Units
