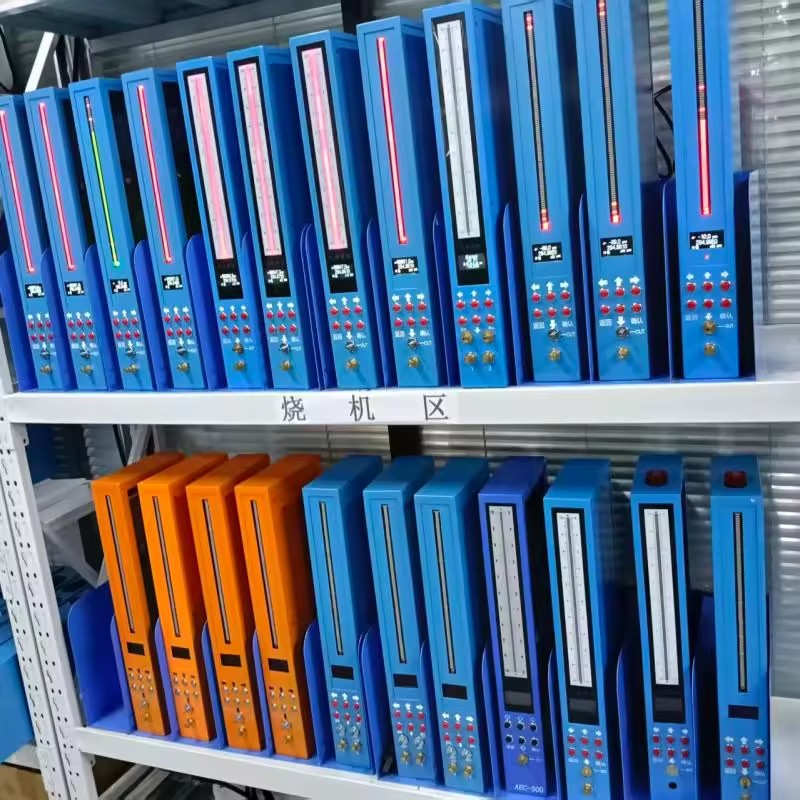

Mass Production Single Channel Air Micrometer 0.1μm for New Energy Auto Chassis Parts Inspection Device

Available for enquiry 0.0 · 0 reviews
USD

$ 880.00 880.0 USD $ 880.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Warranty
1 Year
Customized support
OEM, ODM
Place of origin
China, Henan
Color
Blue, /other
Power
25
Material
Steel
Product description

Highlights at a glance

  • Main Features
  • 1, High precision and high stability, resolution up to 0.1μm, no need to boot warm up.
  • 2, Three-color light column automatic conversion instructions.
  • 3, Highlight LCD screen display, full-angle visual and clear and bright.
  • 4. Simultaneous display of detection dimensions, relative values and values..
  • 5, Chinese menu operation, display rich, intuitive, simple operation.
  • 6, Can be equipped with any shape from diameter 0.3 mm to 2.0 mm nozzle hole gas probe.
  • 7, Software can choose ± 5μm, ± 10μm, ± 25μm, ± 50μm each range.
  • 8, Can store 800 measurement data, power loss is not lost and can be queried.
  • 9, Can set up ten sets of procedures for a variety of specifications measurement.
  • 10. The range of magnification adjustment is large, which can prolong the life of the probe more than 50%.

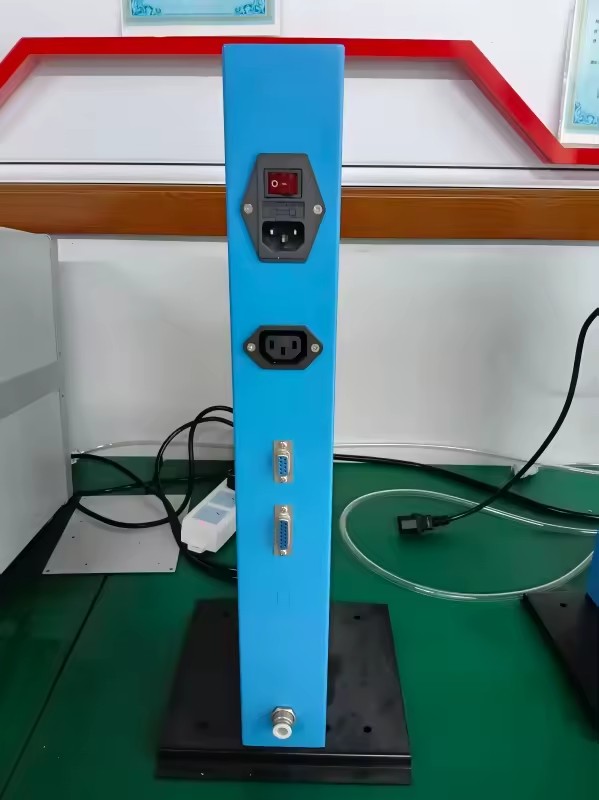

  • 11, Input and output: Optical isolation IO input and output interface.
  • 12, With RS 232 or RS 485 communication.
  • 13, Can be customized special features.
  • 14, Can be customized ± 100μm large-scale type
  • .15, Durable: the instrument as a whole is good sealing, not afraid of oil and water vapor.
  • 16, Can delay automatically save and send test data.
    • Frequently asked questions

    Our fully automated electronic-column pneumatic measuring instrument is built for precise measurement of high-voltage die-casting parts for new energy vehicles. Measurement error is held within 1/10 of the tolerance, with accuracy up to ±1 μm. The result comes from deep know-how in airflow-path design, sensor selection, and data-processing algorithms delivering stable, reliable data even in complex workshop environments.

    We deliver proven inspection solutions for high-voltage die-casting core parts,e.g., transmission cases, motor end covers. We measure dimensions (holes, shafts, distances, heights, depths) and form tolerances (roundness, cylindricity, parallelism, perpendicularity, coaxiality, position). We tailor detailed plans to your 2D/3D drawings, covering all key control points. Our extensive case history ensures we fully understand the process difficulties and inspection priorities for such parts.

    Based on real-time data collection, our SPC workstation auto-uploads every measurement. It generates live control charts such as X-R, X-s, P charts,and triggers immediate alarms if data exceeds limits or shows abnormal trends, detecting fixture wear or parameter drift early. This shifts QC from "post-inspection"to "prevention-first."The system also generates CPK/PPK reports, trend analyses, histograms, and Pareto charts to meet all process capability and continuous improvement needs.

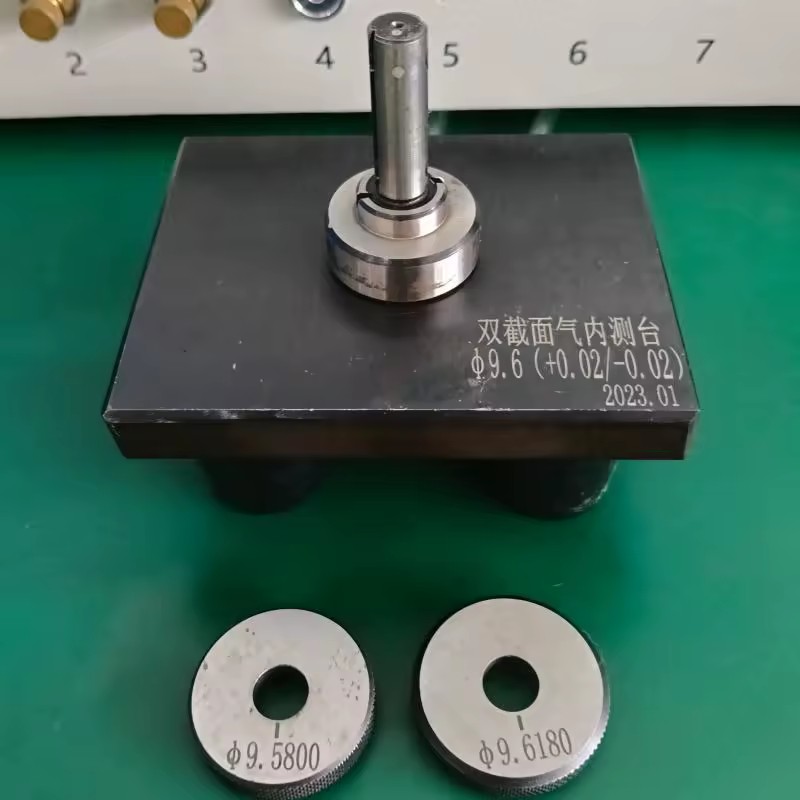

    Our fully automated equipment is renowned for long-term stability. Core components, like pneumatic measuring heads, use premium bearing steel with precise heat treatment, reaching HRC60 hardness for exceptional wear resistance and extended service life. Its simple, reliable structure minimizes wear parts, ensuring a low failure rate and competitive maintenance costs. Routine upkeep mainly involves affordable items like air nozzle ring gauges and regular calibration.

    We provide comprehensive after-sales: Free on-site installation/commissioning and systematic training (operation, programming, maintenance). For faults, we offer 2-hour initial tech support; engineers arrive within 24h (local) or 48h (domestic). Our spare parts warehouse ensures rapid supply to maximize uptime. We also conduct regular follow-up visits to assess usage and provide preventive maintenance suggestions.

    Our non-standard inspection equipment uses rigid bases (cast iron/granite) and precision linear guides/servo drives for stability and smooth motion. With wear-resistant positioning pins (HRC60) and error-proofing sensors, FEA optimization and CMM calibration ensure core station repeatability up to ±1μm.
    Description images

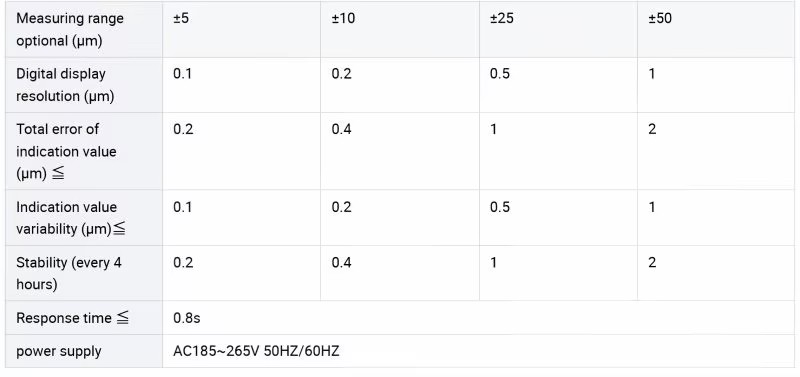

    Product detail

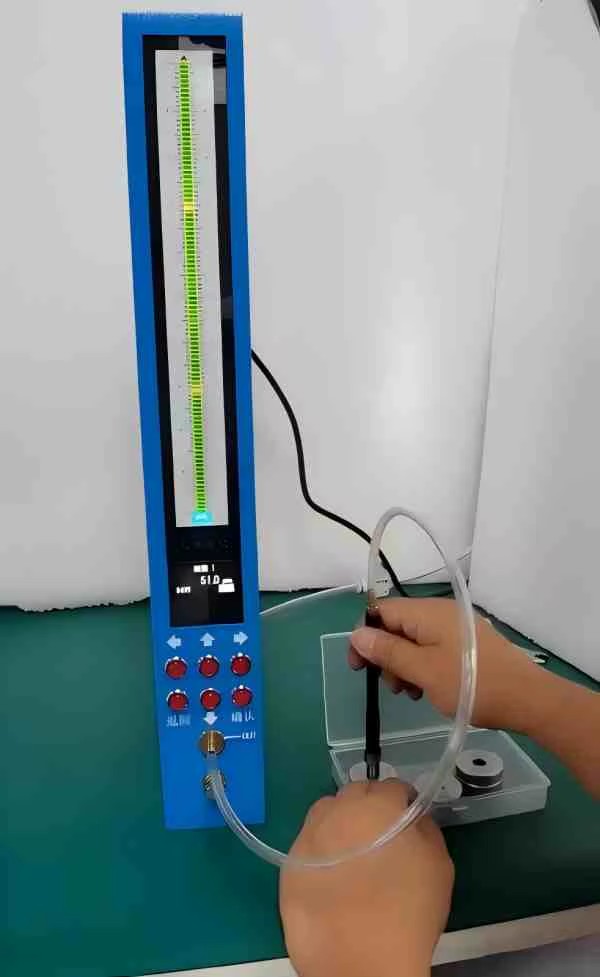

    Product detail

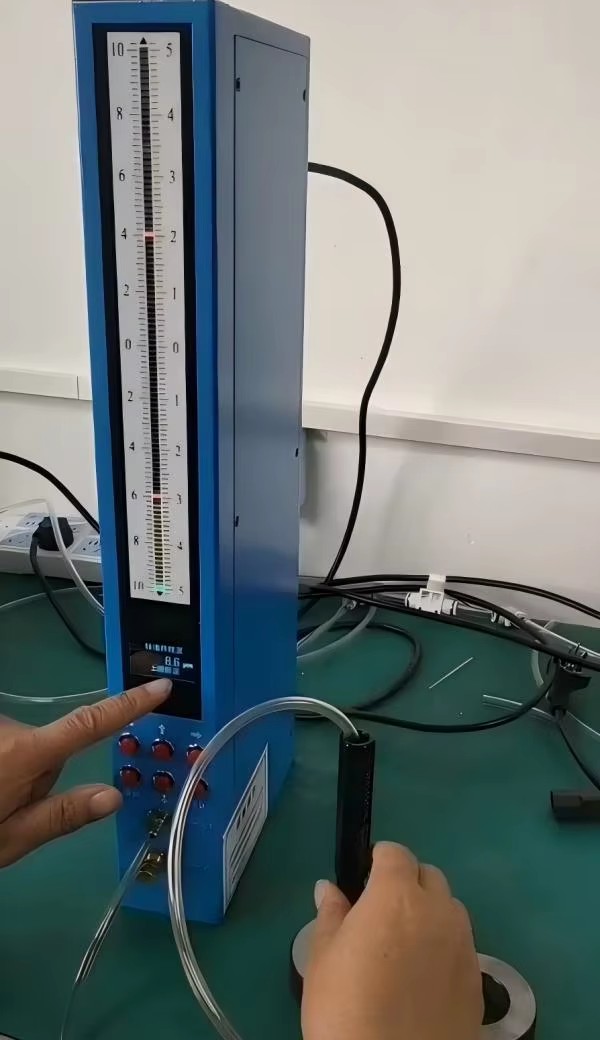

    Product detail

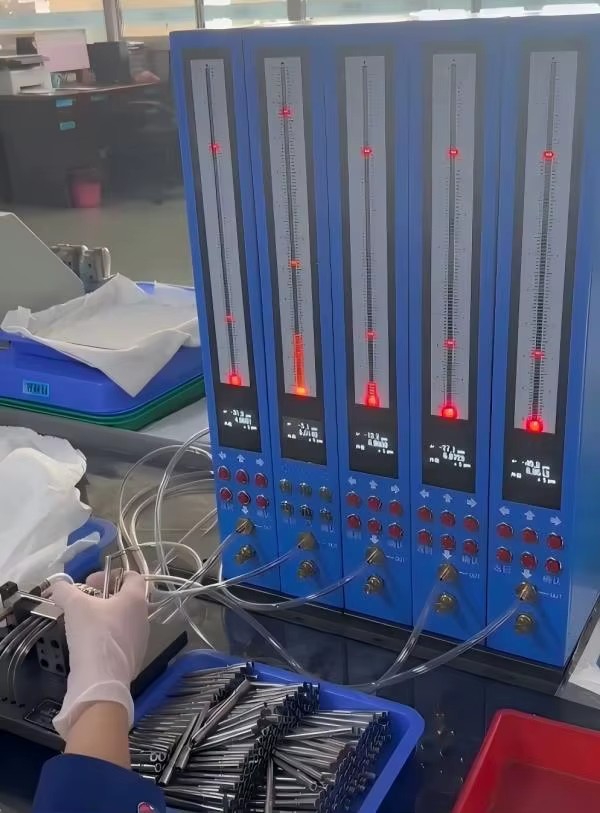

    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Economy · Estimated delivery: Oct 3–Nov 8 (25–61 days)

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 17 fields
    Warranty
    1 Year
    Customized support
    OEM, ODM
    Place of origin
    China, Henan
    Color
    Blue, /other
    Power
    25
    Material
    Steel
    Accuracy
    1μm
    Resolution
    0.1μm
    Protection Level
    IP55 Industrial Grade
    Power supply
    AC185~265V 50HZ/60HZ
    Display Type
    LCD Screen
    Data Output
    RS232 / RS485/USB /IO Customized
    Operating temperature
    0~50 °C
    Selling Units
    Single item
    Single package size
    62X7X32 cm
    Single gross weight
    4.800 kg
    Measurement range (Product option)
    ±5±10±25±50
    Lead time
    7 days
    Minimum order
    1 Units
