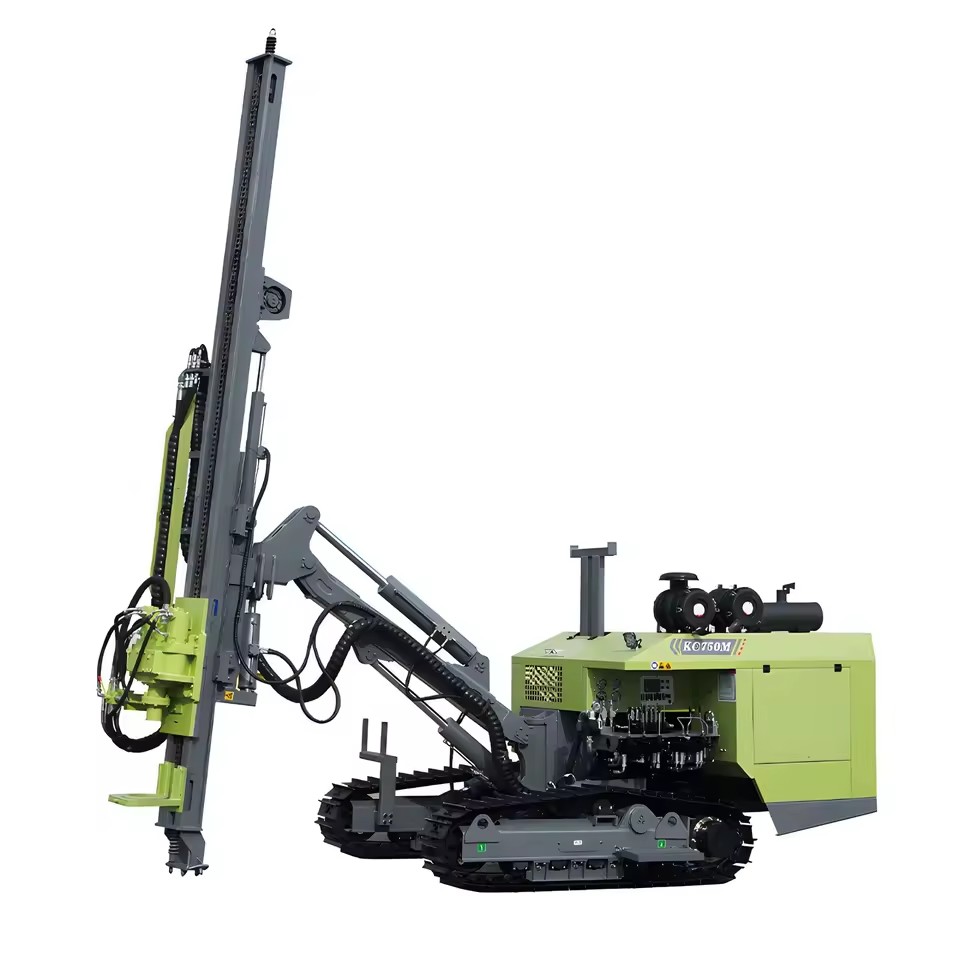

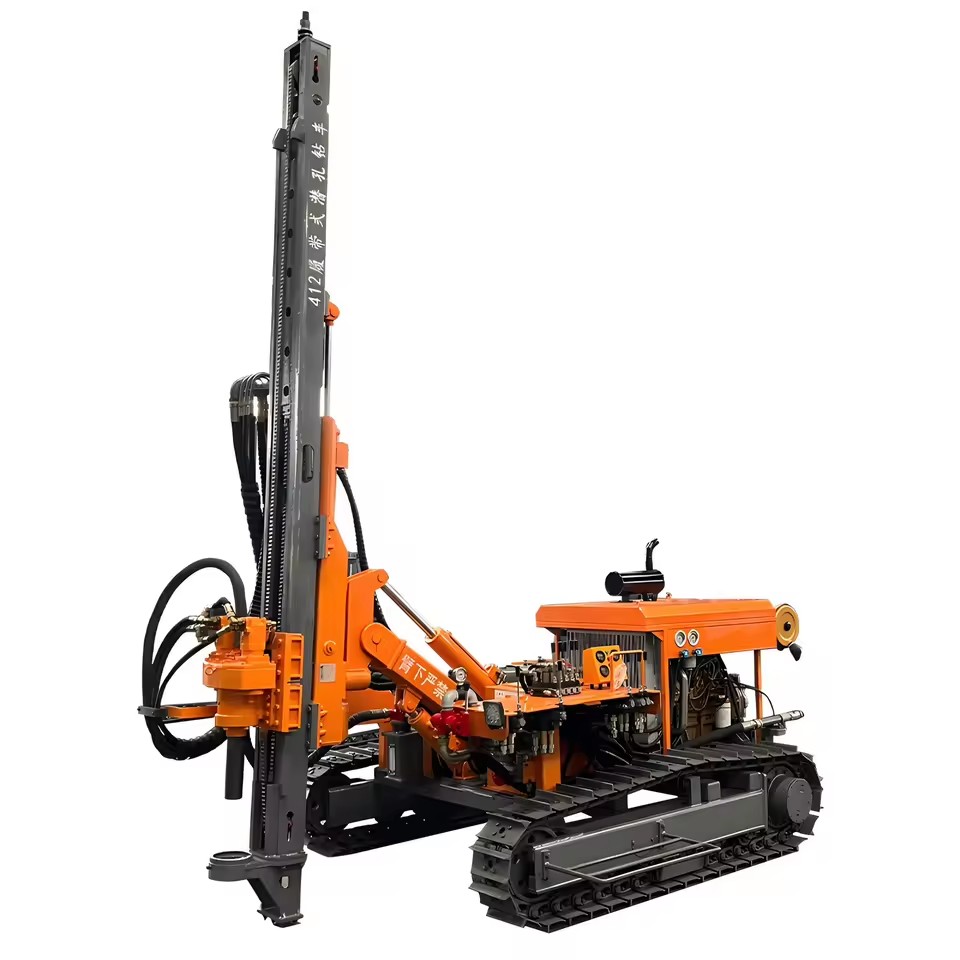

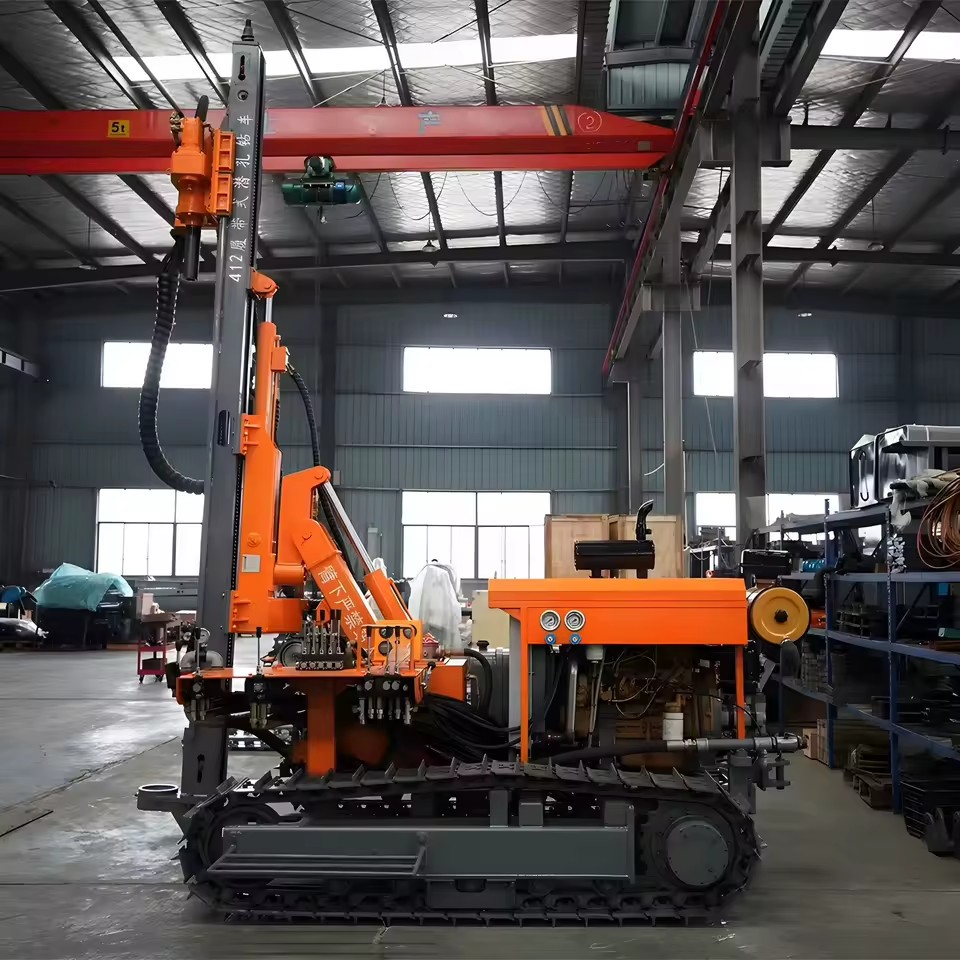

Rotation Impact Drilling 30m Track Separated DTH Surface Drill Rig for Quarry Site Mining

Available for enquiry 0.0 · 0 reviews
USD

$ 11,830.00 11830.0 USD $ 11,830.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Rock Quarrying, Rock Drilling
Type
DTH drilling rig
Drilling Depth
Max.50m, 20m
Drilling Diameter
100 mm(3.94in), 450 mm(17.72in), 90mm(3.54in), 400mm(15.75in), 120mm(4.72in), 260mm(10.24in), 180mm(7.09in)
Power Type
Diesel
Voltage
220V/380V
Product description

Surface Down-The-Hole DTH Drill Rigs

ModelYGS150YGS153YGS180YGS300YGS350
Total Weight5.95T6.3T6.8T8T16T
Walking speed2.5km/h2.5km/h2.2/3.8km/h4km/h 2km/h2.5km/h
Diesel tank capacity85L85L85L225L210L
Shipping size(mm)6500*2110*24006600*2110*25006600*2220*26007600*2350*28007210*2200*2950
Drilling hole diameter90-146mm90-146mm90-152mm90-165mm76-260mm
Power configurationYCD4R22T-80YCD4R22T-80 55kwYC4DK80-T302YC4DK100-T304 73.5kw/2200rpmYCD4R22T-80 132kw/2200rpm
Highest horizontal hole height3.2m3.6m3.25m3.5m3.2m
Description images

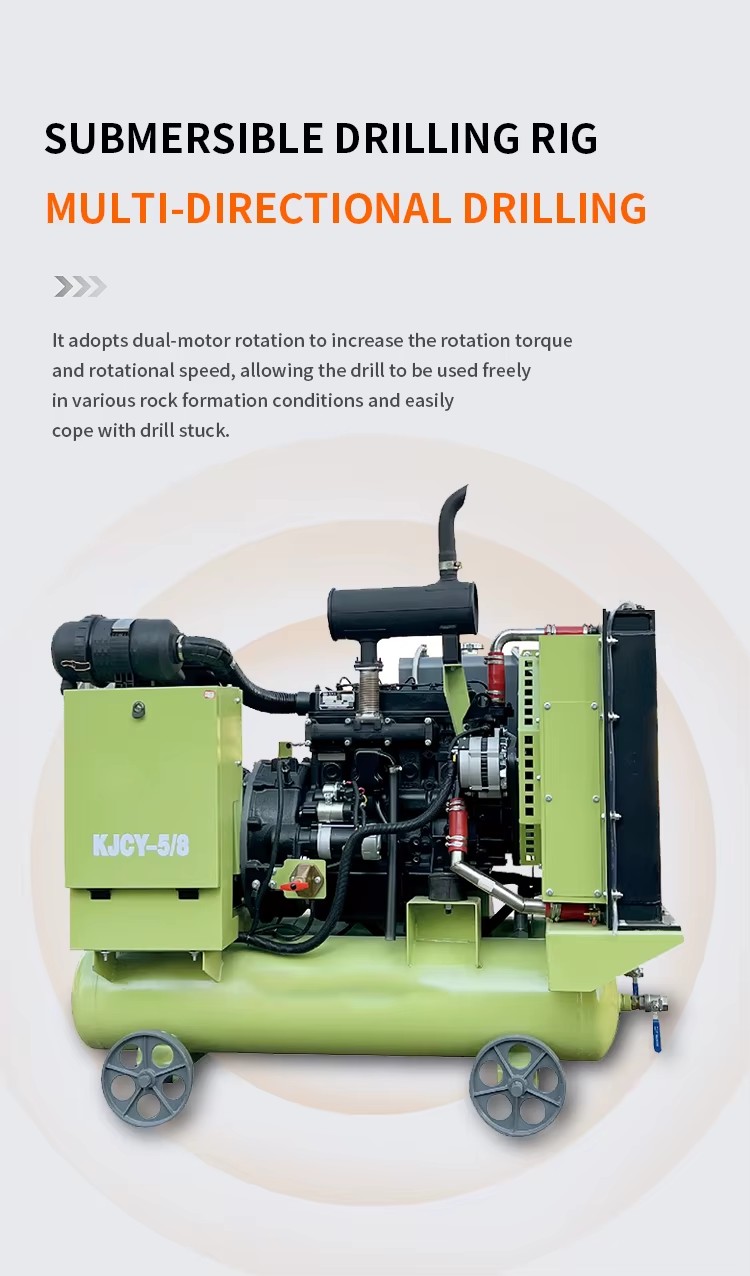

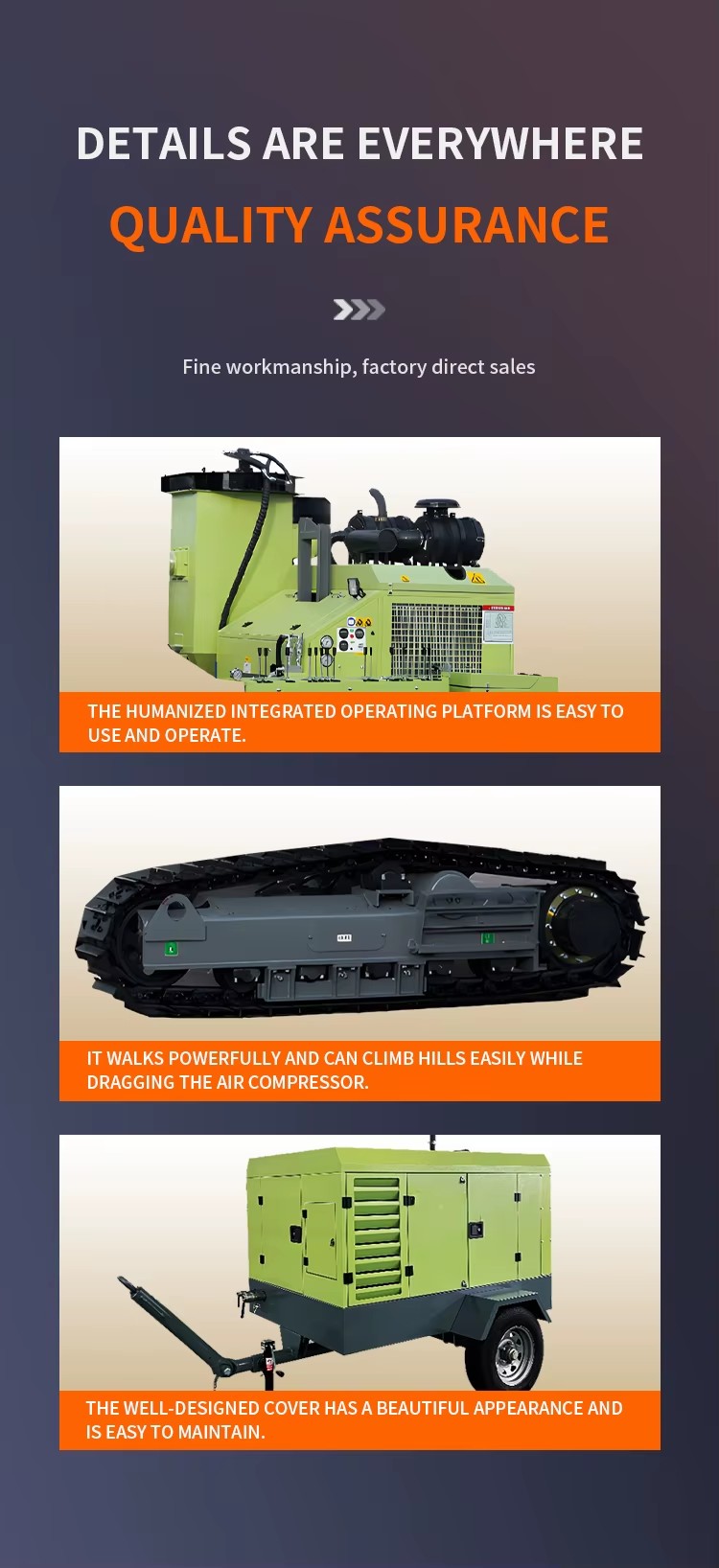

Product detail

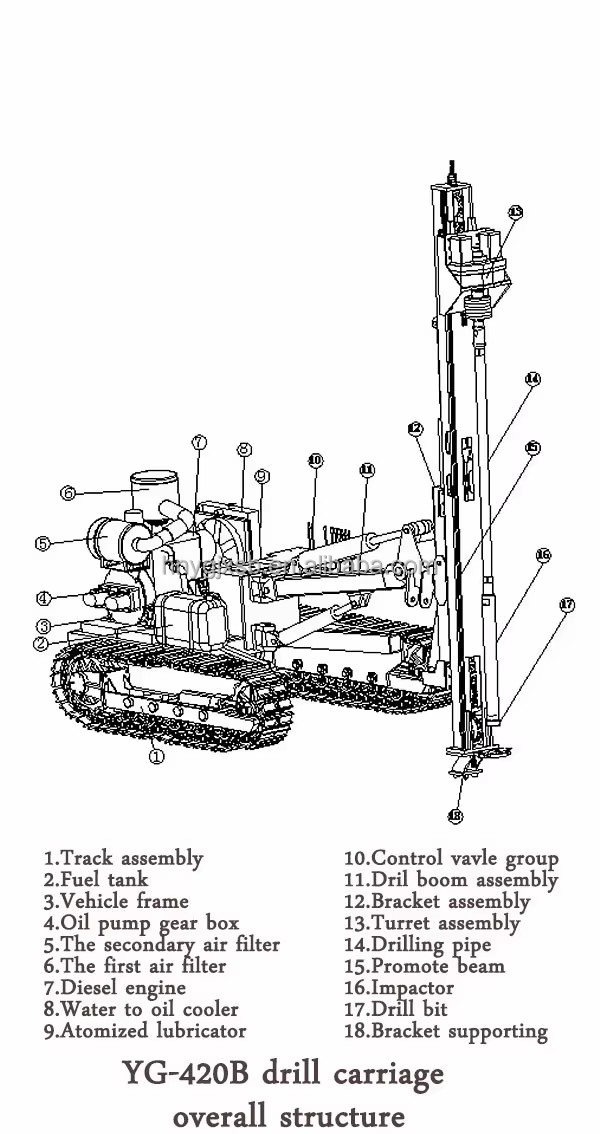

Product detail

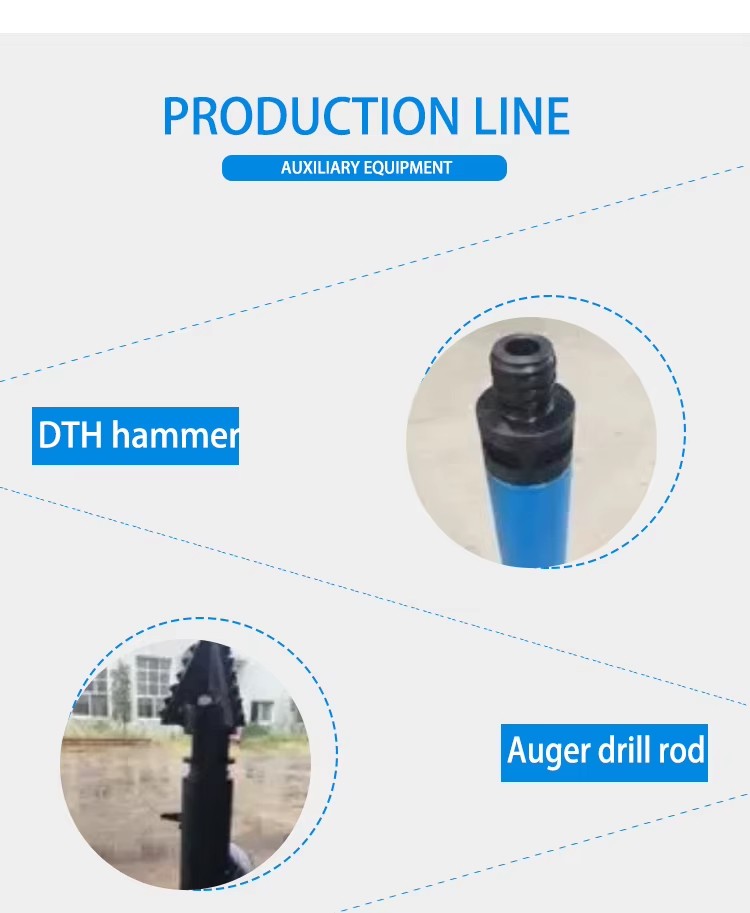

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Usage
Rock Quarrying, Rock Drilling
Type
DTH drilling rig
Drilling Depth
Max.50m, 20m
Drilling Diameter
100 mm(3.94in), 450 mm(17.72in), 90mm(3.54in), 400mm(15.75in), 120mm(4.72in), 260mm(10.24in), 180mm(7.09in)
Power Type
Diesel
Voltage
220V/380V
Core components
Motor, Engine, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Productivity
Place of origin
China, Henan
Weight
11300 KG(24912.24lb)
Dimension (L*W*H)
7567*2500*2900mm(297.91*98.43*114.17in)
Mobility
YES
Feature
pneumatic drilling
Drill pipe size
76*3000mm
Drilling method
DTH Hammer Drilling
Drilling Hole Diameter
110-138mm
Air consumption
16m3/min
Working pressure
18bar
DTH Hammer
4inch
Selling Units
Single item
Model number
YG-101
Power (W) (Product option)
custom
Lead time
15 days
Minimum order
1 Units
