Product video
Certifications CE · RoHS

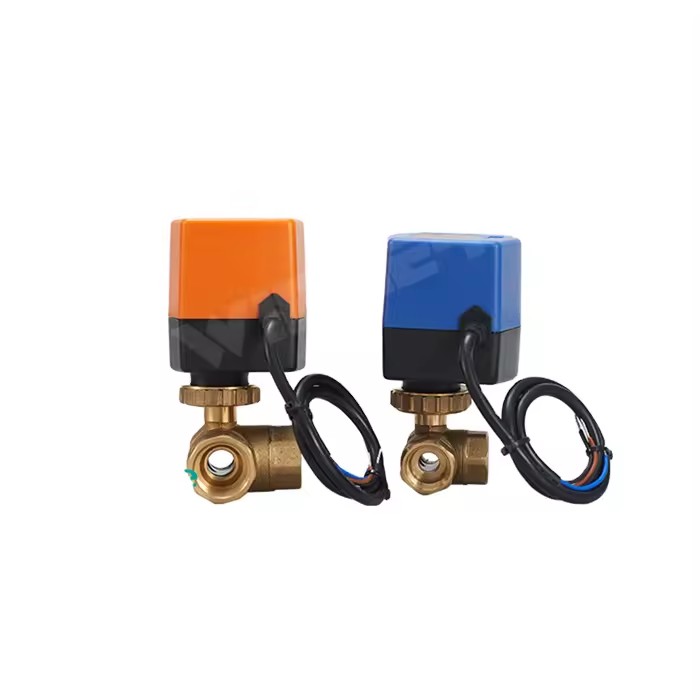

Wra6320a Electric Ball Valves 220VAC Electronic Actuator 3 Way Valve On/off Water Flow Control Motorized Valve

Available for enquiry 0.0 · 0 reviews
USD

$ 50.00 50.0 USD $ 50.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Media
  • Power
  • Port Size
  • Application
  • Temperature of media
  • Structure
  • Customized support
  • Warranty
  • Place of origin
  • Model number (Specification)
  • Standard or Nonstandard
  • Model
  • Certificate
  • Pipe connector
  • On/off time
  • Output Torque
  • Quality Guarantee
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Media
Water
Power
electric, AC220V+/-10%
Port Size
DN15-DN25
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Product description

Description of Motorized Water Valve

m otorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Application of Motorized Water Valve

motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Technical data

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN20 Pipe connector: internal thread

Ambient temp. range: −5…+60°C;0…90%RH

Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: chrome-plated brass Stem: EPDM O-rings

Ball Valve

Model No.Inner Dia.InchKvs(m3/h)Pmax(KPa)Ps(KPa)
W8BV3153-way10mm1/2”8.610001400
W8BV32014mm3/4”2110001400
W8BV32518mm1”2210001400

Actuator

WRA-6320A AC220V±15%, 50/60Hz, on/off

Output torque: > 3.5N.m Angle of rotation: 90°

Protect rank: IP55/IP54 On/off time: 16S

Function ( 3-point or on/off type )

The actuator is controlled by a modulating on/off or 3-point control signal, using r eversible synchronous motor and gear speed reducer drive to fix and lock.

WRA-6320A on/off type

B lack wire is the control wire. Power on: valve open, power off: valve close

Brown wire is connected to the power wire.

Blue wire is connected to the com. Only can be used as on/off type.

Model No.Working VoltageActuator typeOutput torqueConsumptionOn/off timeValve body
WRA-6320A220VAC±15% 50/60Hzon/off3.5N.m5W50Hz:16S 60Hz:12SW8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325

Installation

insert the valve stem to the b o tto m of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve ’ s mounting hole.

WRA-53 Series220v ON/OFF, 3-Point
WRA-63 Series220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series220V/24V ON/OFF, Proportional
WRA3-.. AC Series220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series24V/12V/3V, ON/OFF, Proportional
Certifications & compliance
CE
Complies with EU standards
RoHS
RoHS compliant
Description images
Wra6320a Electric Ball Valves 220VAC Electronic Actuator 3 Way Valve On/off Water Flow Control Motorized Valve
Wra6320a Electric Ball Valves 220VAC Electronic Actuator 3 Way Valve On/off Water Flow Control Motorized Valve
Wra6320a Electric Ball Valves 220VAC Electronic Actuator 3 Way Valve On/off Water Flow Control Motorized Valve
Wra6320a Electric Ball Valves 220VAC Electronic Actuator 3 Way Valve On/off Water Flow Control Motorized Valve
CE
RoHS
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    16 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 24 fields
Media
Water
Power
electric, AC220V+/-10%
Port Size
DN15-DN25
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Customized support
OEM, ODM
Warranty
18 month
Place of origin
China, Hunan
Model number (Specification)
WRA-6320A
Standard or Nonstandard
Standard
Model
WRA6320A
Certificate
CE&ROHS
Pipe connector
internal thread
On/off time
16S
Output Torque
3.5N.m
Quality Guarantee
18 months
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Material (Product option)
Brass
Pressure (Product option)
Medium Pressure
Size (Product option)
1/2 in, 3/4 in, 1 in
Certifications & Compliance
CE, RoHS
Lead time
16 days
Minimum order
1 Units
