Product video
Certifications CE · RoHS

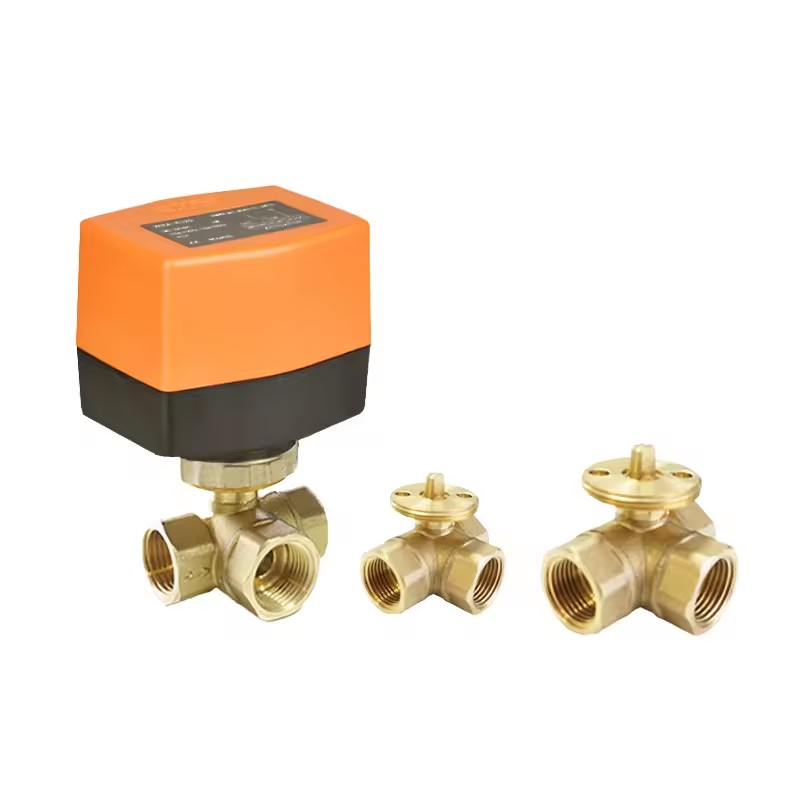

Winvall 12VDC Motor Actuator Electric Water Valves Motorised Control On/off 3 Way Brass Motorized Ball Valve Energy Efficient

Available for enquiry 0.0 · 0 reviews
USD

$ 60.00 60.0 USD $ 60.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Media
  • Power
  • Port Size
  • Application
  • Temperature of media
  • Structure
  • Customized support
  • Place of origin
  • Model number (Specification)
  • Standard or Nonstandard
  • Certificate
  • Actuator motor
  • Power supply
  • Output Torque
  • Power Consumption
  • Running time
  • Pressure grade
  • Protect rank
  • Color
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Media
Water, 50% glycol
Power
Motorized
Port Size
1/2'', 1'', 3/4''
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Product description

Description

motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.

Operational mode motorized ball valve is motor-operated by a type of WRA-42…, and WRA-42…A actuator. The actuator is controlled by a modulating on/off or 3-piont control system and move the ball of the valve, to the opening position dictated by the control signal.

Electric Control Valve 12v Material

PartMaterial
Valve BodyHpb59-1
SealBall: PTFE+EPDM with double O-ring
Stem: PTFE+EPDM with double O-ring
Actuator ShellPC+GF10
Actuator BasePC+GF10
Actuator Revolving ShaftPOM

Valve Body

Valve Body ModelTypeDN(mm)DN(inches)Kvs(m3/h)MediumTemperatureAdmissible pressureClosing Temperature
W8BV3153wayDN151/2"8.2Cool/hot water, 50% glycol2~90 C2.0MPa1400KPa
W8BV320DN203/4"10.8
W8BV325DN251"16

Actuator

Model No.Working Voltage (V)Actuator TypeOutput TorqueConsumptionOn/off TimeValve Body
WRA4212DC12V3-point2 N.m3w2~6sW8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325
WRA4212ADC12VON/OFF

Wiring Diagram

Certifications & compliance
CE
Complies with EU standards
RoHS
RoHS compliant
Description images
Winvall 12VDC Motor Actuator Electric Water Valves Motorised Control On/off 3 Way Brass Motorized Ball Valve Energy Efficient
Winvall 12VDC Motor Actuator Electric Water Valves Motorised Control On/off 3 Way Brass Motorized Ball Valve Energy Efficient
Winvall 12VDC Motor Actuator Electric Water Valves Motorised Control On/off 3 Way Brass Motorized Ball Valve Energy Efficient
Winvall 12VDC Motor Actuator Electric Water Valves Motorised Control On/off 3 Way Brass Motorized Ball Valve Energy Efficient
CE
RoHS
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    16 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Media
Water, 50% glycol
Power
Motorized
Port Size
1/2'', 1'', 3/4''
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Customized support
OEM, ODM
Place of origin
China, Hunan
Model number (Specification)
WRA-4212(A)+W8BV3...
Standard or Nonstandard
Standard
Certificate
CE, RoHS
Actuator motor
DC motor
Power supply
DC12V
Output Torque
4N.m
Power Consumption
<5W
Running time
16S
Pressure grade
PN20
Protect rank
IP54/IP55
Color
various
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Material (Product option)
Brass
Pressure (Product option)
Medium Pressure
Size (Product option)
1/2 in, 3/4 in, 1 in
Certifications & Compliance
CE, RoHS
Lead time
16 days
Minimum order
1 Units
