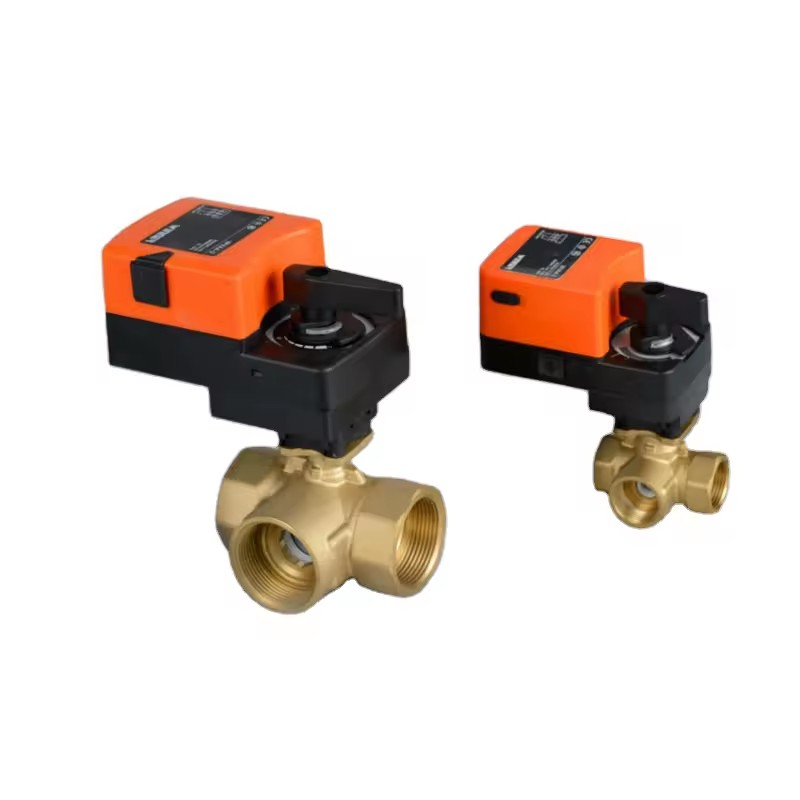

Winvall 0-10v/4-20ma Actuator Electric Water Flow 3 Way Forged Brass Ball Valve Modulating Motorized Control Ball Valves

Available for enquiry 0.0 · 0 reviews
USD

$ 140.00 140.0 USD $ 140.00

Not Available For Sale

Minimum order quantity: 5 Units
  • Application
  • Design Style
  • Warranty
  • After-sale Service
  • Project Solution Capability
  • Model number (Specification)
  • Place of origin
  • Standard or Nonstandard
  • Certificate
  • Power supply
  • Output Torque
  • Power Consumption
  • CONTROL WAY
  • Pipe Connection
  • Waranty
  • OEM
  • Selling Units
  • Single package size
  • Single gross weight
  • Type (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Application
Other
Design Style
Modern
Warranty
1 Year
After-sale Service
Online Technical Support
Project Solution Capability
3D model design
Model number (Specification)
WVA4-3..+WCBS3..
Product description

Description

motorized control ball valve consists of WAV4- … series rotary actuator and W CBS … series ball valve. Equal percentage flo w characteristic guarantees the valve performances of stability.

Electric control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.

Operational mode

control ball valve is motor-operated by a type of W AV4-3 … actuator. The actuator is controlled by a modulating on/off, 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN20 Pipe connector: internal thread

Ambient temp. range: − 5…+60°C; 0…90%RH Size: G1/2 ’’ -G2 ’’

Flow characteristic: equal percentage, on/off

Material

V alve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: stainless steel brass Stem: EPDM

Valve connector: PC Valve spindle: aluminum alloy

Model No.DN(mm)InchKvs(m 3 /h)Pvmax ( M Pa)Ps (KPa)
WCBS315DN151/26.32.5Mpa1400
WCBS320DN203/48.62.5Mpa1400
WCBS325DN251102.5Mpa1400
WCBS332DN3211/4162.5Mpa1400
WCBS340DN4011/2252.5Mpa1400
WCBS350DN502432.5Mpa1400

Actuator

Model No.Working VoltageActuator typeOutput torqueConsumptionValve body
WVA4-30424VAC/DC±15%3-point0-10V6VADN25,DN20,DN15
WVA4-3060(2)-10VDC&(0)4-20mADN50,DN40,DN32
WVA4-310DN50

Connector

WRA-53 Series220v ON/OFF, 3-Point
WRA-63 Series220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series220V/24V ON/OFF, Proportional
WRA3-.. AC Series220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series24V/12V/3V, ON/OFF, Proportional
Certifications & compliance
CE
Complies with EU standards

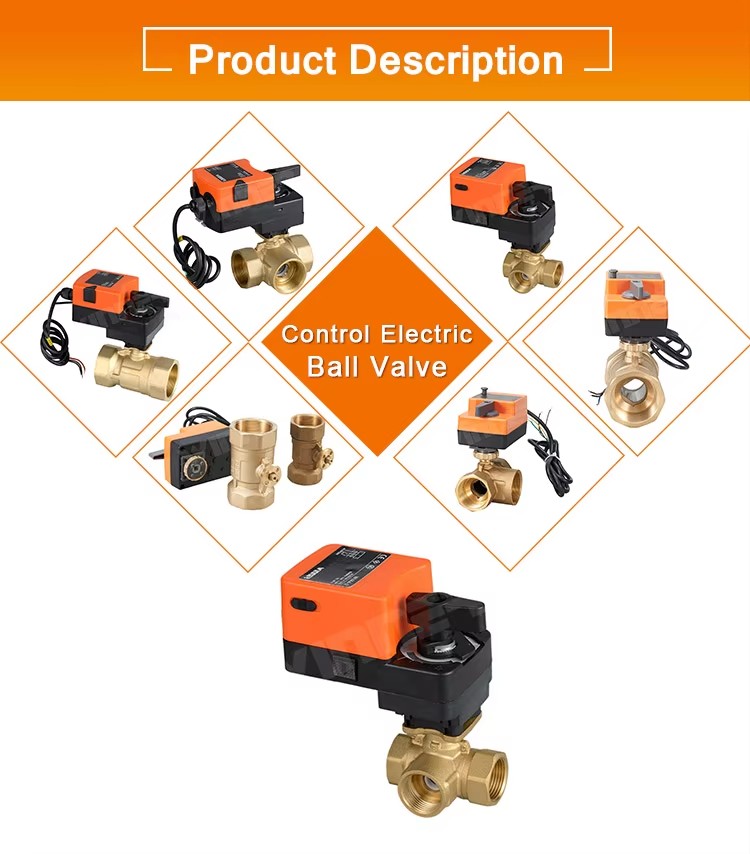

Description images
Winvall 0-10v/4-20ma Actuator Electric Water Flow 3 Way Forged Brass Ball Valve Modulating Motorized Control Ball Valves
Winvall 0-10v/4-20ma Actuator Electric Water Flow 3 Way Forged Brass Ball Valve Modulating Motorized Control Ball Valves
Winvall 0-10v/4-20ma Actuator Electric Water Flow 3 Way Forged Brass Ball Valve Modulating Motorized Control Ball Valves
Winvall 0-10v/4-20ma Actuator Electric Water Flow 3 Way Forged Brass Ball Valve Modulating Motorized Control Ball Valves
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 5 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    16 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Application
Other
Design Style
Modern
Warranty
1 Year
After-sale Service
Online Technical Support
Project Solution Capability
3D model design
Model number (Specification)
WVA4-3..+WCBS3..
Place of origin
China, Hunan
Standard or Nonstandard
Standard
Certificate
CE/ROHS
Power supply
24VAC/DC
Output Torque
4N.m 6N.m 10N.m
Power Consumption
6VA
CONTROL WAY
0-10v/4-20ma
Pipe Connection
G/BSP
Waranty
18 months
OEM
Acceptable
Selling Units
Single item
Single package size
15X12X15 cm
Single gross weight
2.65 kg
Type (Product option)
Other, Air Conditioning, HVAC Systems, Heating
Certifications & Compliance
CE
Lead time
16 days
Minimum order
5 Units
