Name: Wide Range Data Logger Rechargeable Battery Transit-Time Portable Digital Ultrasonic Flowmeter for Water/Liquid/Oil OEM Support
SKU: B2B-33661
Price: 670.0 USD
Availability: PreOrder

Product description

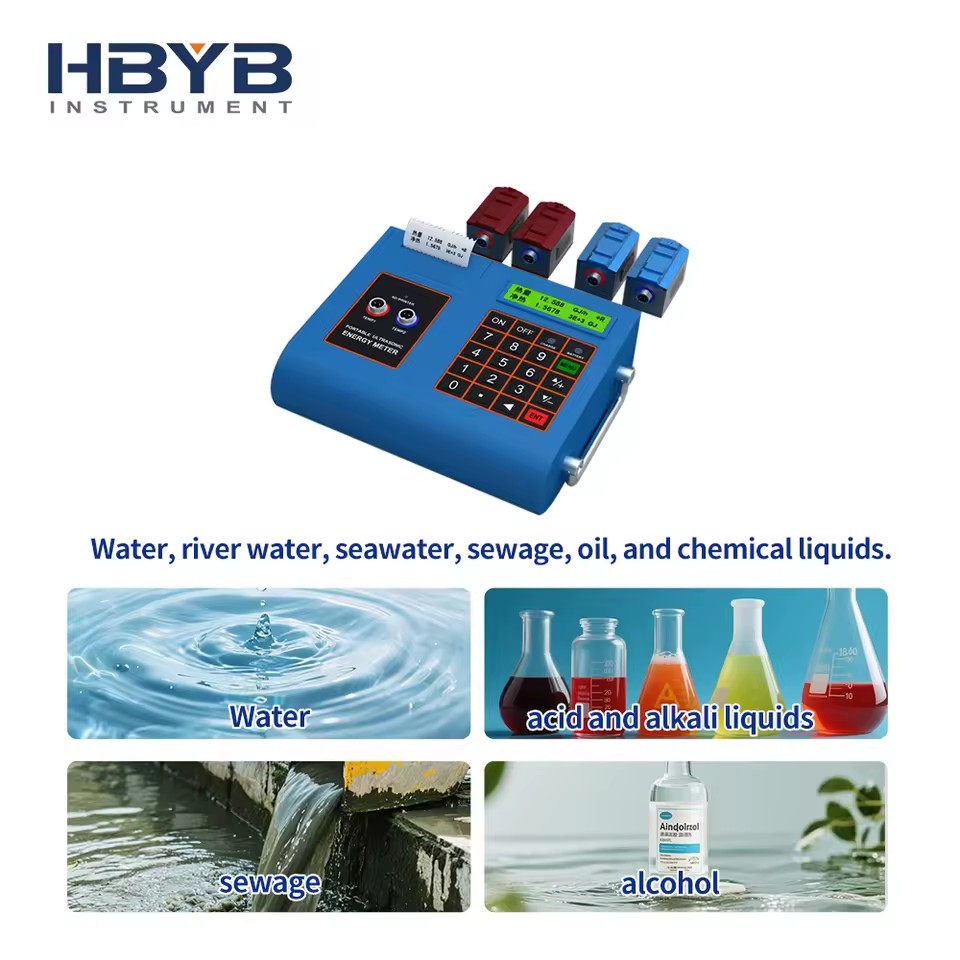

Wide application range for various liquids such as pure water, tap water, circulating water, sewage, diesel, hydraulic oil, alcohol and chemical solvents.

Portable Ultrasonic Flowmeter with DN15 to DN6000 pipes of steel, stainless steel, cast iron, PVC, copper and other materials.

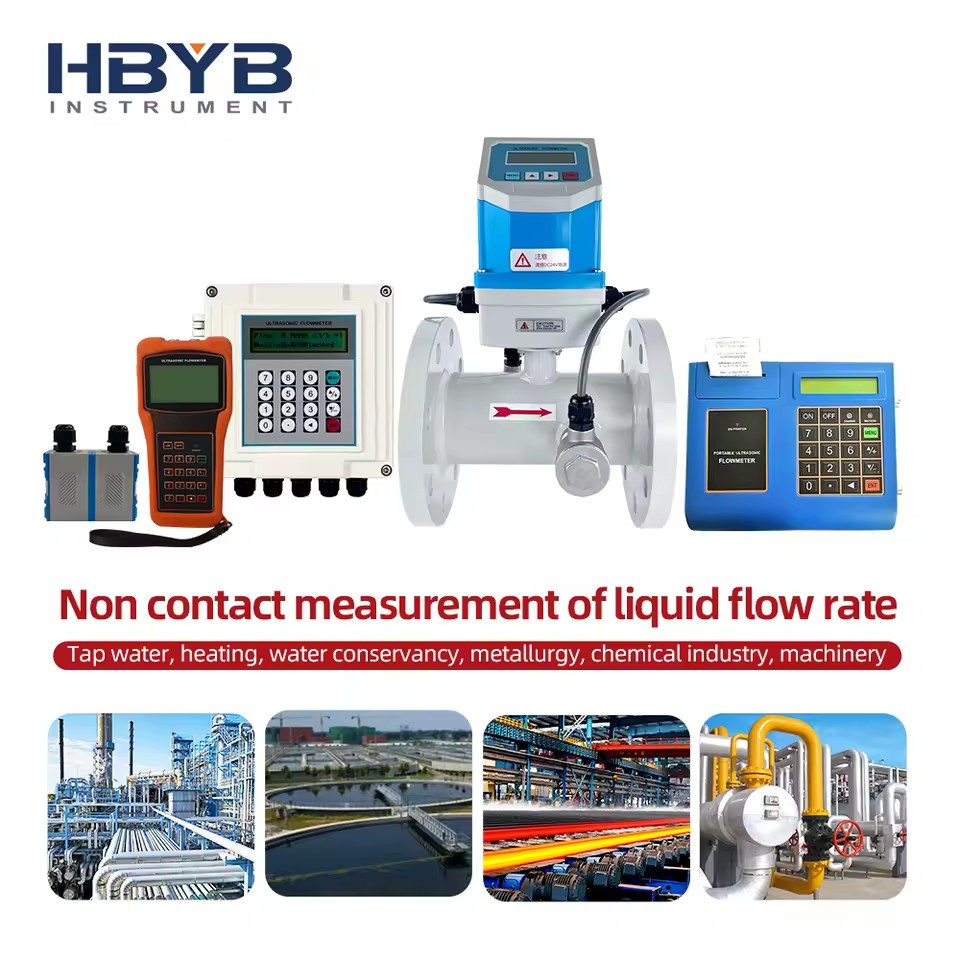

Widely used in water supply companies, petrochemical, thermal heating, metallurgy, energy audit and equipment maintenance.

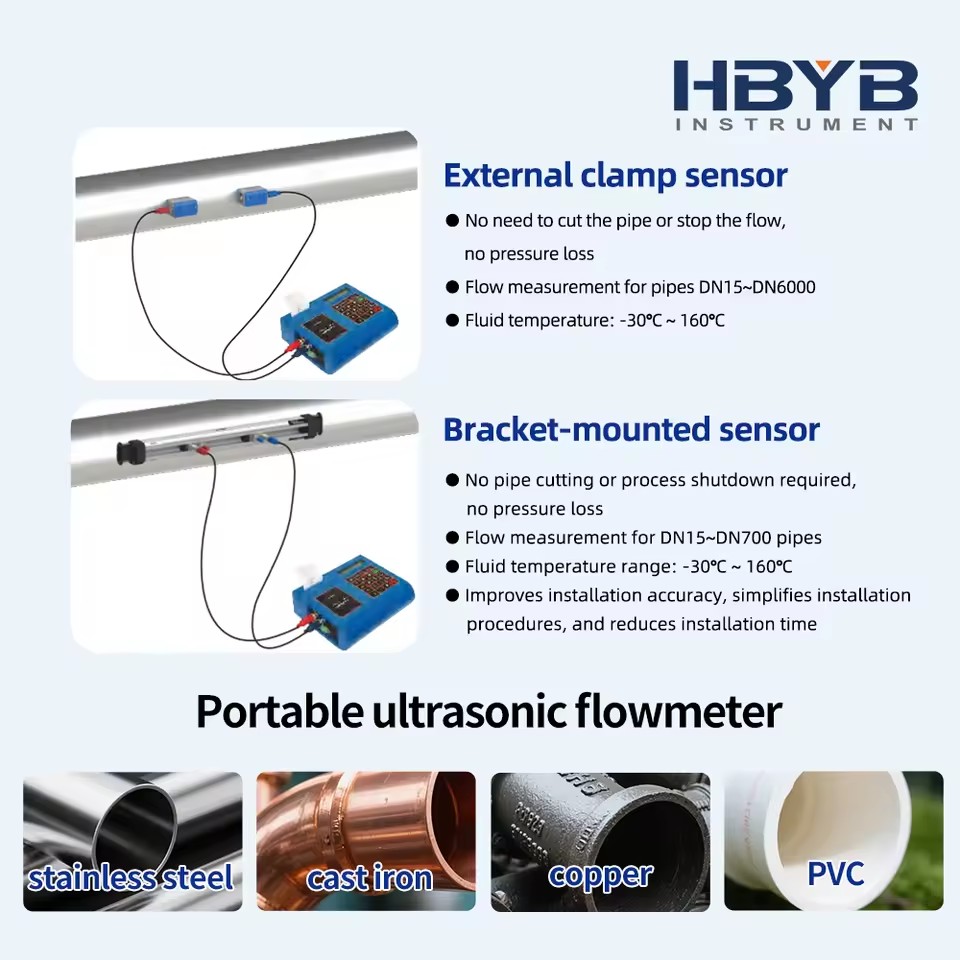

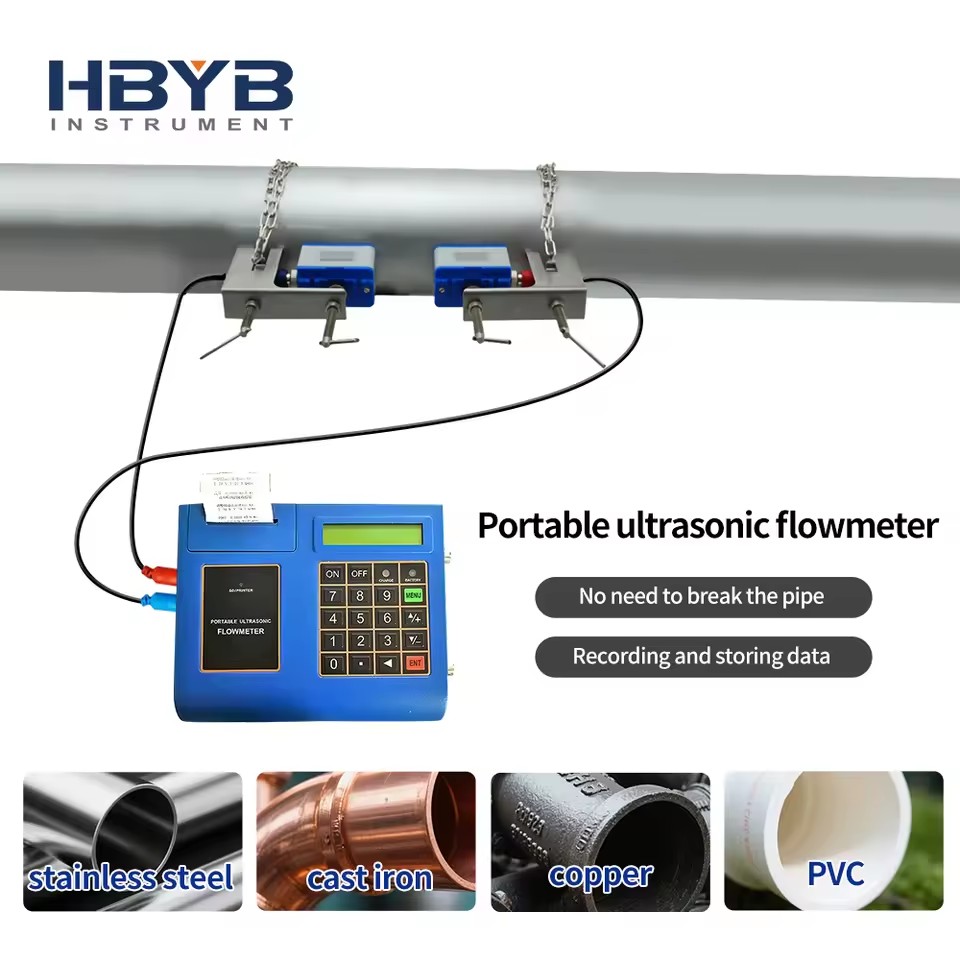

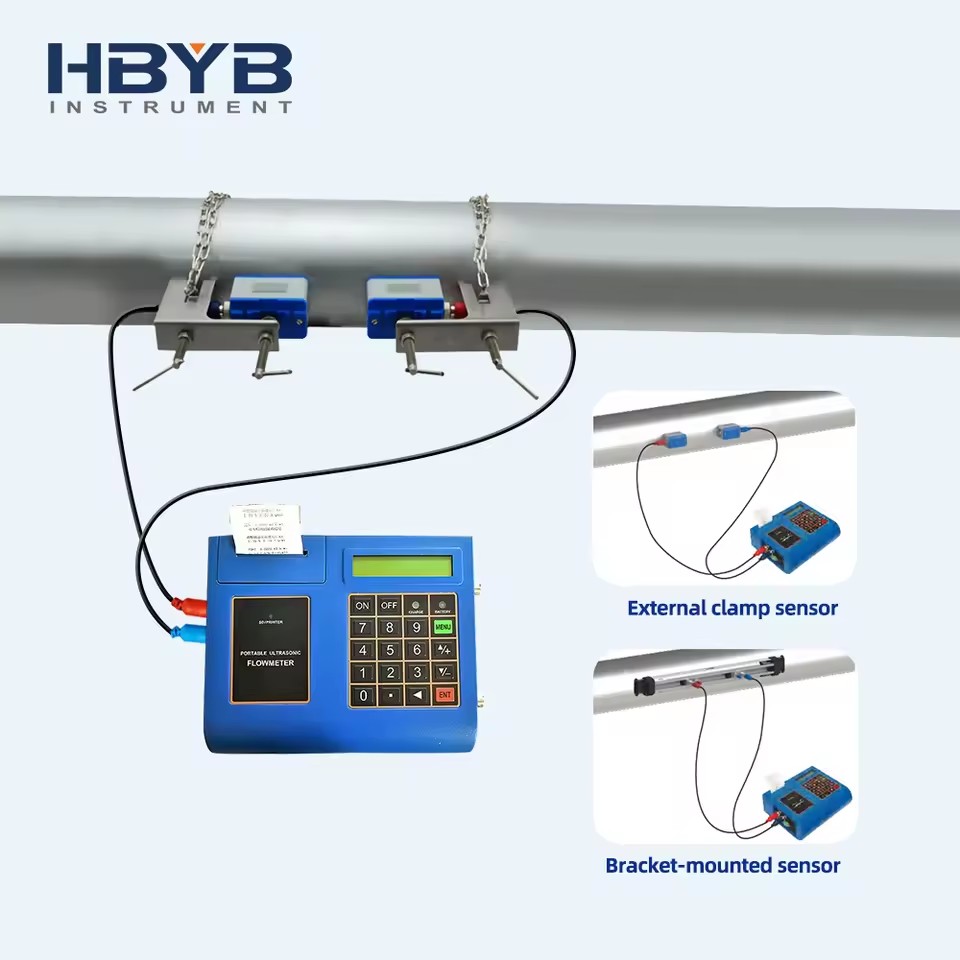

Non-contact clamp-on sensor installation, no need to cut pipes, stop production or drain liquid, realizing zero-loss on-site measurement.

Supports bi-directional flow monitoring, automatically accumulates forward, reverse and net total flow with high reliability.

Large backlit LCD display, clearly showing instantaneous flow, total flow, velocity, signal strength and working status even in dark environments.

Lightweight handheld portable design, easy to carry and operate for field inspection, temporary testing and energy-saving survey.

Wide Range Data Logger Rechargeable Battery Transit-Time Portable Digital Ultrasonic Flowmeter

Item	Performance,specification
Transmitter	Principle	Ultrasonic transit-time principle, Four-byte IEEE754 floating arithmetic
Accuracy	Better than ±1%
Display	LCD display with Chinese, English, Italian language
Output	One OCT pule output(pules width 6-1000ms, Default 200ms)
Data Interface	Isolation of 232 communication interface, can upgrade flowmeter through PC
Pipe Condition	Pipe Material	Steel, Stainless steel, Cast iron, copper, PVC, aluminium, FRP etc.(liner allowed)
Diameter	15~6000mm

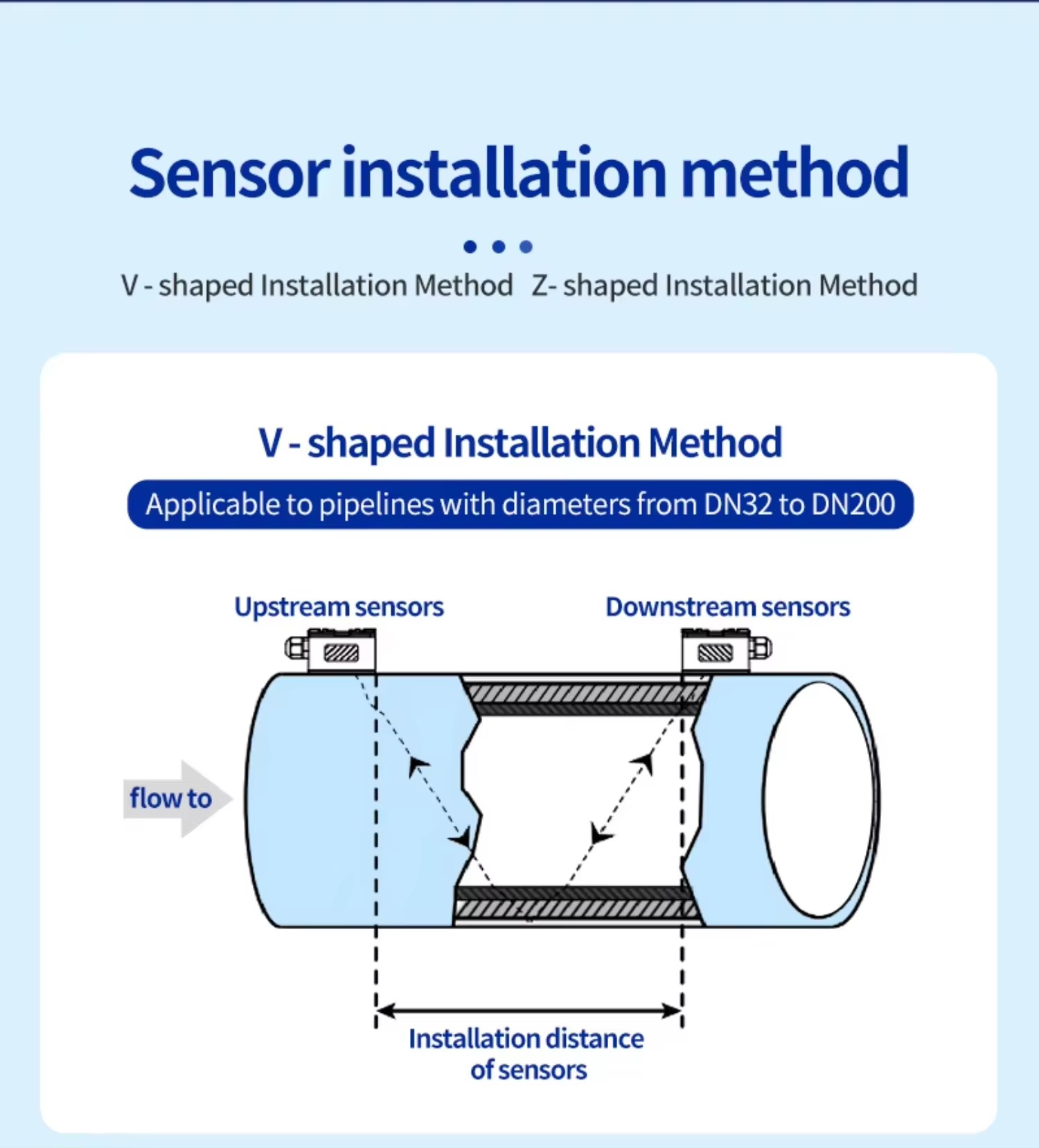

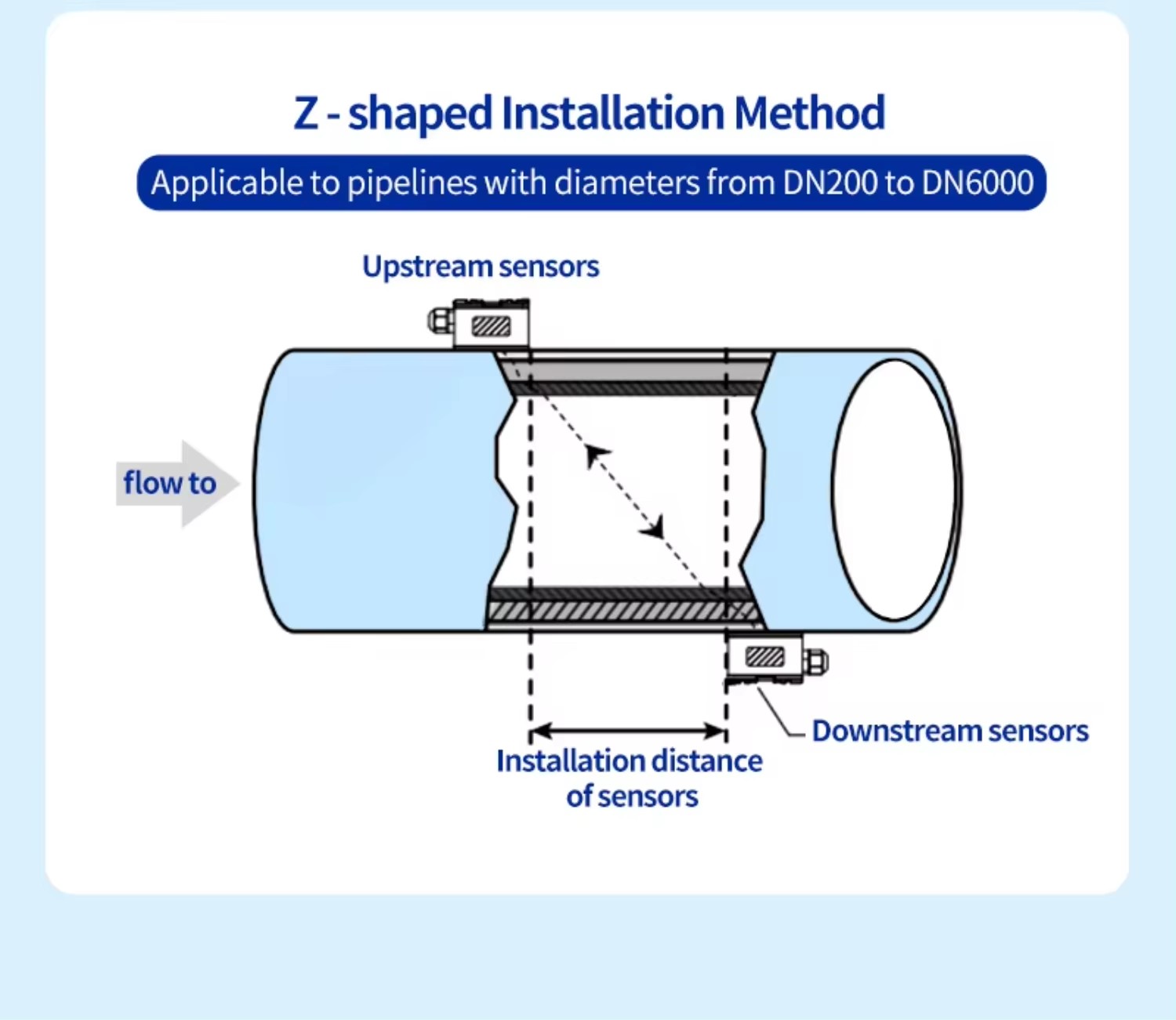

Installation	Upstream 10D,downstream 5D,30D away from the pump outlet(D for diameter)
Medium	Fluid	Water,sea water,acid liquid,beer,alcohol,oil and any other liquid that can spread sonic
Temperature	30~160 ℃
Turbidity	10000ppm and with little bubbles
flow velocity	0~ ±10m/s
Operating Environment	Temperature	Transmitter:-20~60 ℃;Transducer:-30~160 ℃
Humidity	Transmitter:85%RH;transmitter protection grade:IP68;Water Depth<2m
Power	Three internal 1.2V, 2000mAH rechargeable Ni-MH battery. Can work 12 hours fully charged. Can achieve continuous measurement with AC100-240V power adapter
Case Material	Flame retardant ABS
Consumption	1.5W
Weight	Transmitter: 514g

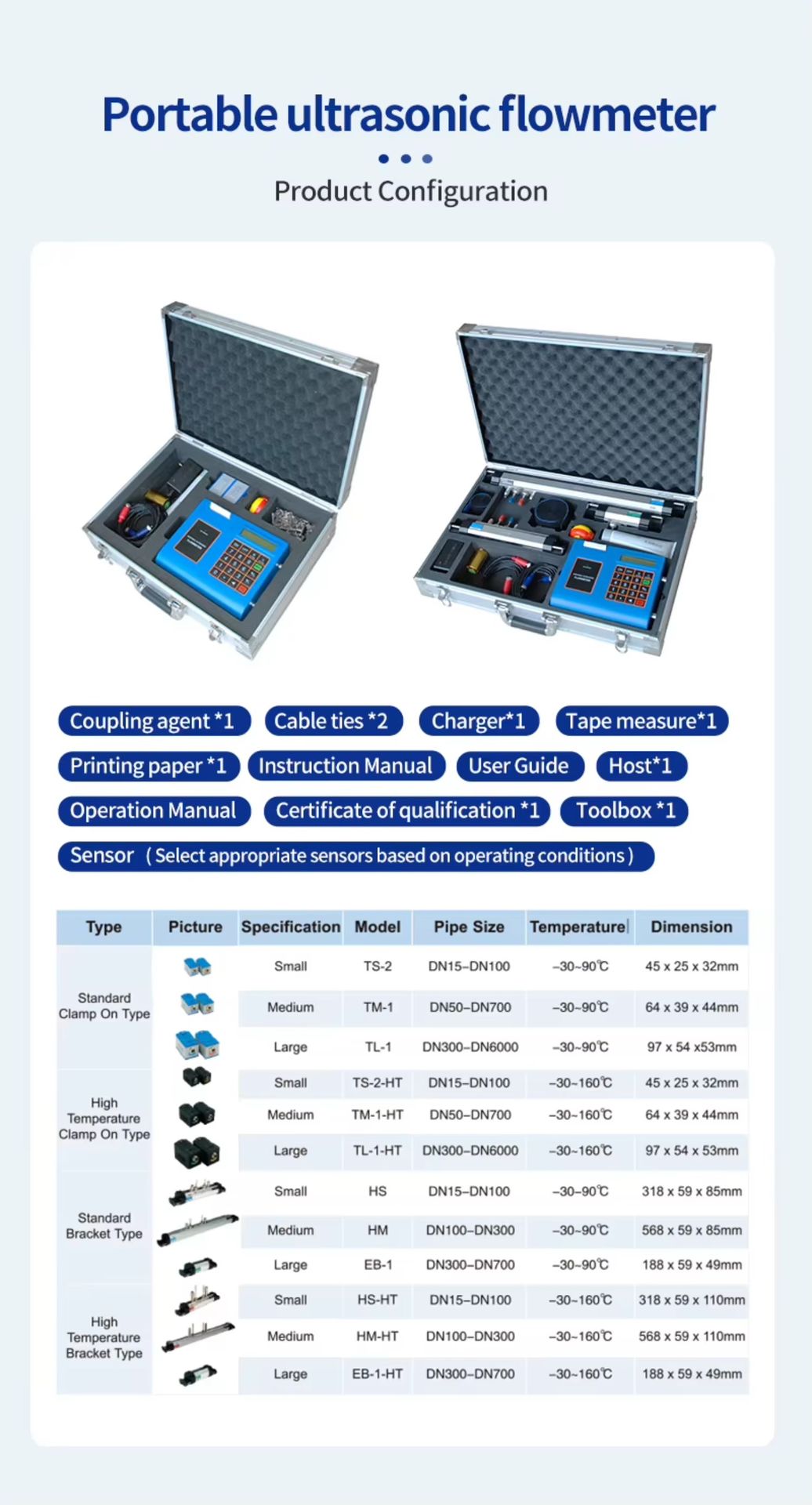

Description images

Wide Range Data Logger Rechargeable Battery Transit-Time Portable Digital Ultrasonic Flowmeter for Water/Liquid/Oil OEM Support

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 41.28 for 2 pieces · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 14 fields

Medium

Water, Oil, Liquid

Type

Variable Area Water Flowmeters, Ultrasonic Flow Meters

Accuracy

+/-1%

Material

Aluminum alloy

Warranty

1 Year

Customized support

OEM, ODM, OBM, Software Reengineering

Measurement Range

0~10m/s

Model number (Specification)

HBPUF

Place of origin

China, Henan

Flow rate

0~10m/s

Selling Units

Single item

Single package size

40X42X40 cm

Single gross weight

12.0 kg

Dn (Product option)

DN50, DN150, DN250, DN200, DN80, DN100, DN1100, DN125, DN2400, DN2600, DN300, DN450, DN600, DN65, DN1600, DN3000, Dn3600, DN3800, DN15-DN6000

Lead time

7 days

Minimum order

2 Units
