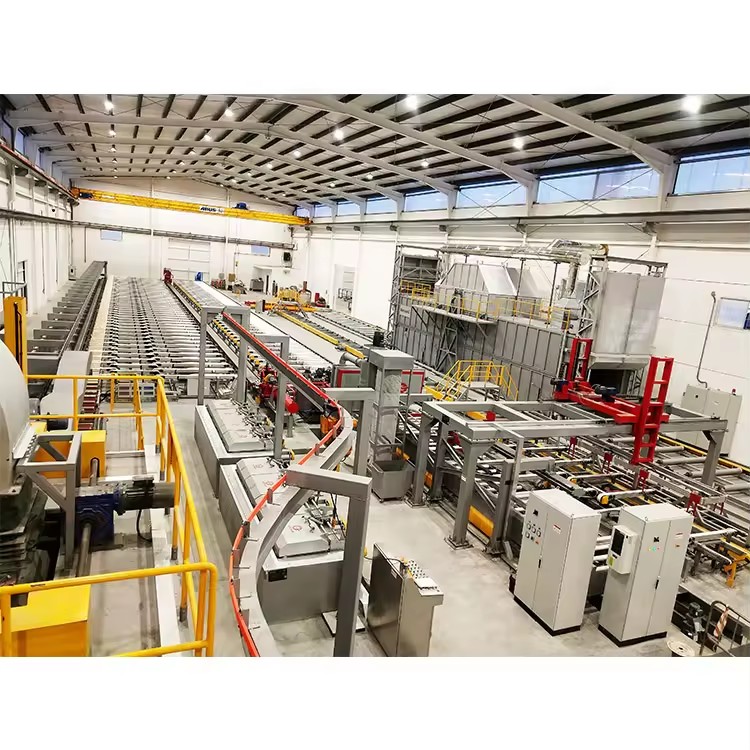

Energy Saving Complete Aluminium Profile Extrusion Press Line Plant

Name: Energy Saving Complete Aluminium Profile Extrusion Press Line Plant
SKU: W9XX-NCZT-RDXV
Price: 400420.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 400,420.00 400420.0 USD $ 400,420.00

Minimum order quantity: 1 Units

Key attributes

View all

Machine type

aluminium extrusion line

Key selling points

Competitive Price

Core components

Engine

Warranty

1 Year, 12months

Machinery test report

Provided

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$100-3,000 / set

General Information
1	Billet diameter	5''
2	Max billet length	650mm

Press basic technical data
1	Norminal Extrusion force	1000MT
2	Working pressure	250 kg/cm2
3	Extrusion speed	0.2 · 15mm/s
4	Main pump	Rexroth
5	Main motors	2 sets of 90KW induction motor
6	Dead cycle	less than 19 seconds
7	Main mechnanical components	standard or as per customer requests
8	PLC, HMI and other electrical components	Siemens or similar brand

Billet heater with hot log shear
1	Billet length	6000mm
2	Max capacity	800 kgs/h
3	Billet storage table	Max 15 pcs
4	Heating mode	direct heating
5	Temperature uniformity	±10 degrees
6	Heating time	25 mins for rapid billet heater/3 hrs for multi-billet heater
7	Hot log shear	300-700mm
8	Billet conveyor to press	to be defined
9	Max heating tempearture	550 degrees
10	Highlight of the furnace	durable and energy saving
11	With optimum airflow design and perfect refractory material

Die oven
1	Heating chamber	dimensions to be confirmed
2	Heating mode	electric heated
3	Energy saving
4	Door	Auto controlled
5	Die quantity per batch	approx 6 pcs
6	Complete built with refractory fiber

Profile handling table
1	Overall dimensions	customized as per customer's requests
2	Belt width	80mm
3	Belt driving	motorized
4	Stretcher	30T, hydraulic controlled
5	Finish saw	High precision, with chip collector
6	Cut-into-length system	manual/auto controlled

Puller
1	Max pulling force	80 kgs
2	Max pulling speed	60m/min
3	Max return speed	180m/min
4	Track length	as per customers' requests
5	Driving unit	frequency motor controlled or servo motor.
6	Puller head	1,2 or 3 as per customer requests
7	Hot saw	cooperate with press working
8	Communication between puller heads	busbar or wifi

Aging oven
1	Max capacity	6 baskets, approx 4-6 tons per batch
2	Basket dimensions	6000800600mm
3	Door lock	pneumatic locked
4	Door	1 or 2 doors as per requests
5	basket carriage	as per customer requests
6	Max profile length	6000mm
7	Temperature uniformity	±5 degrees, after holding 30min
8	Heating time	within 90m
9	Max temperature	250 degrees

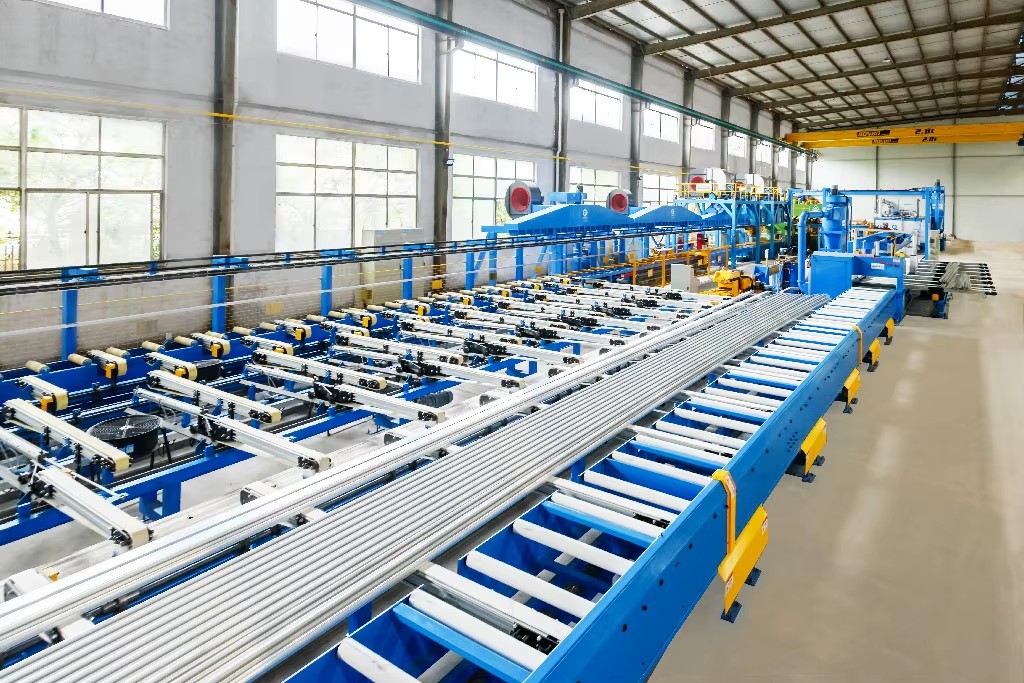

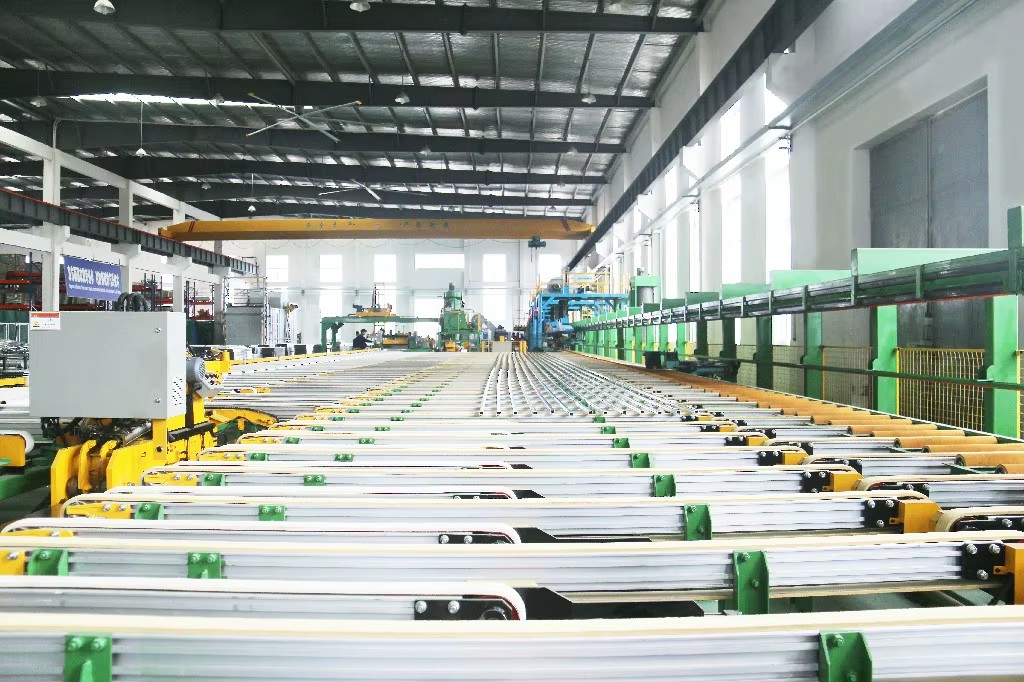

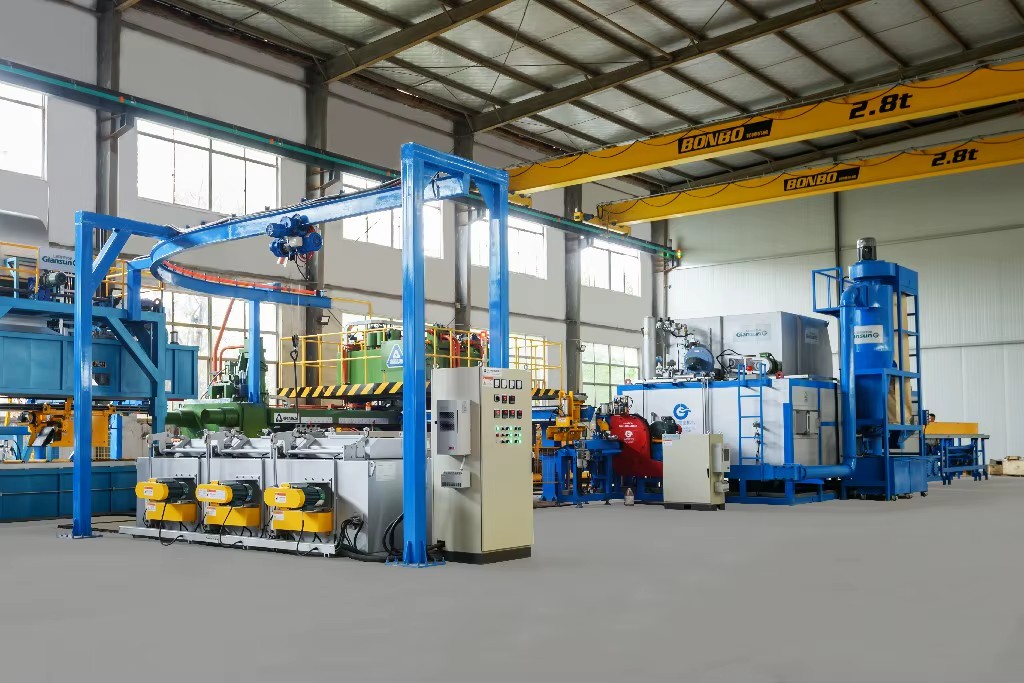

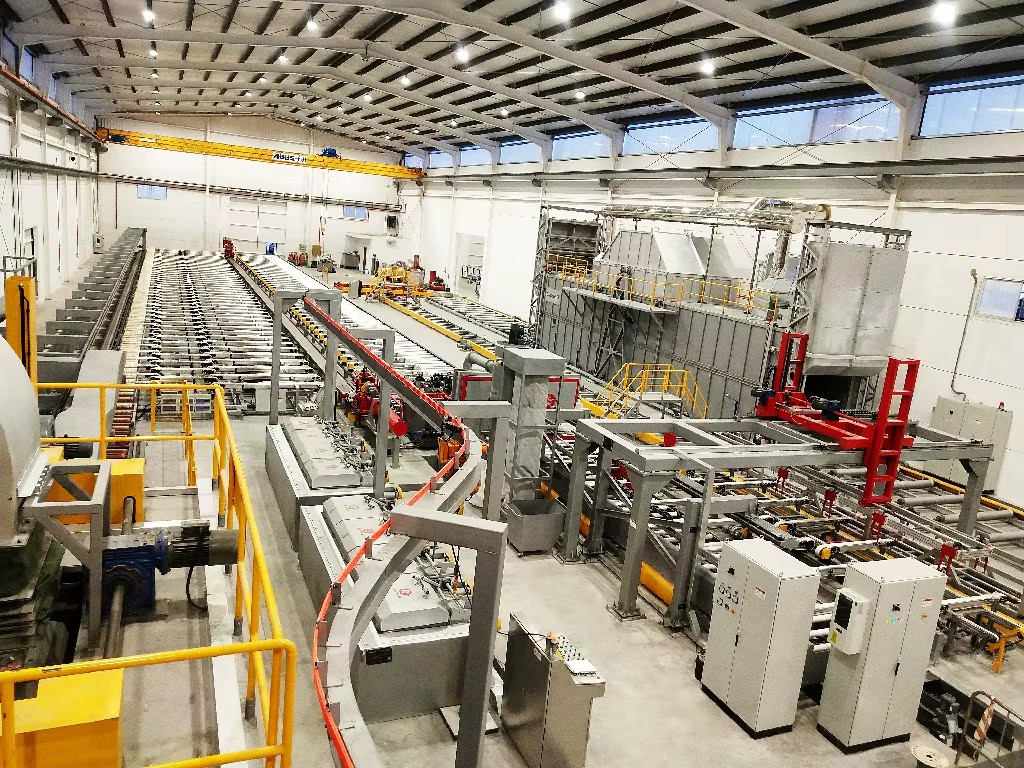

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 15 fields

Machine type

aluminium extrusion line

Key selling points

Competitive Price

Core components

Engine

Warranty

1 Year, 12months

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Jiangsu

Name

Aluminum Extrusion Line

After-sales Service Provided

Engineers available to service machinery overseas

Specification (Specification)

Customized

Packaging Details

common

Port of dispatch

ShangHai

Selling Units

Single item

Supply Ability

100 sets per Year

Model number

Customized

Lead time

30 days

Minimum order

1 Units
