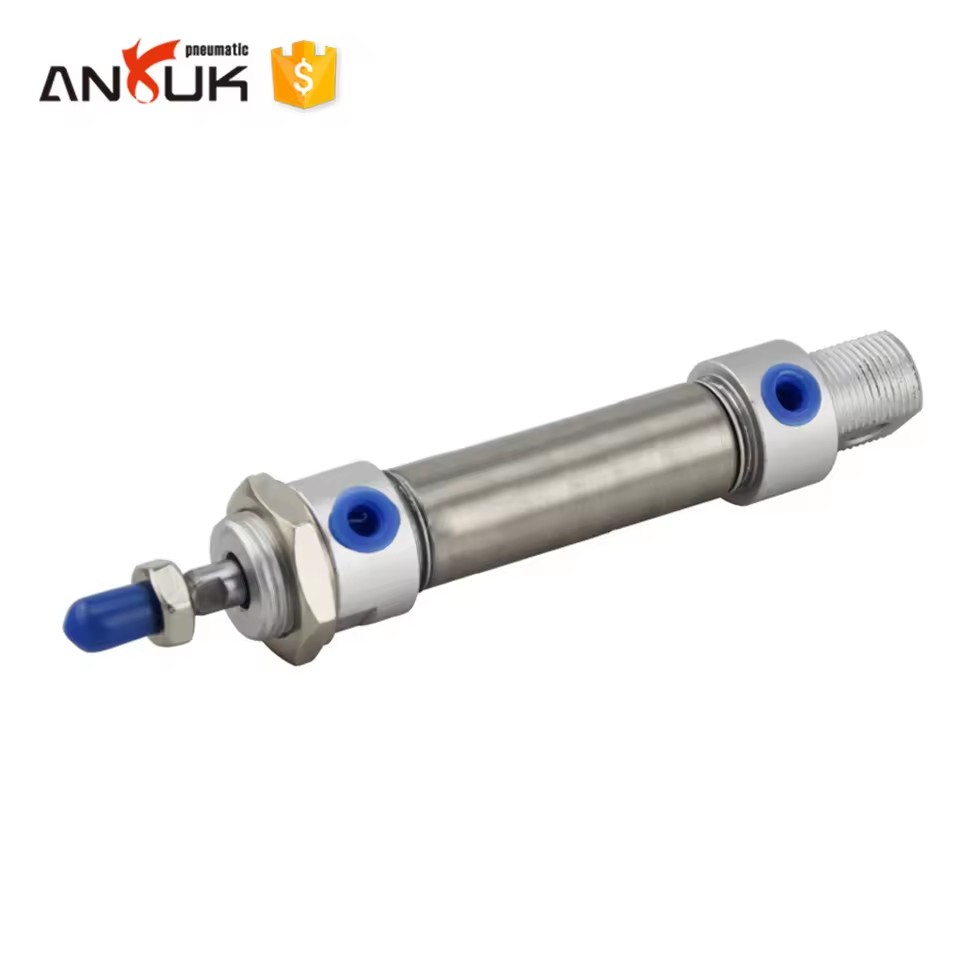

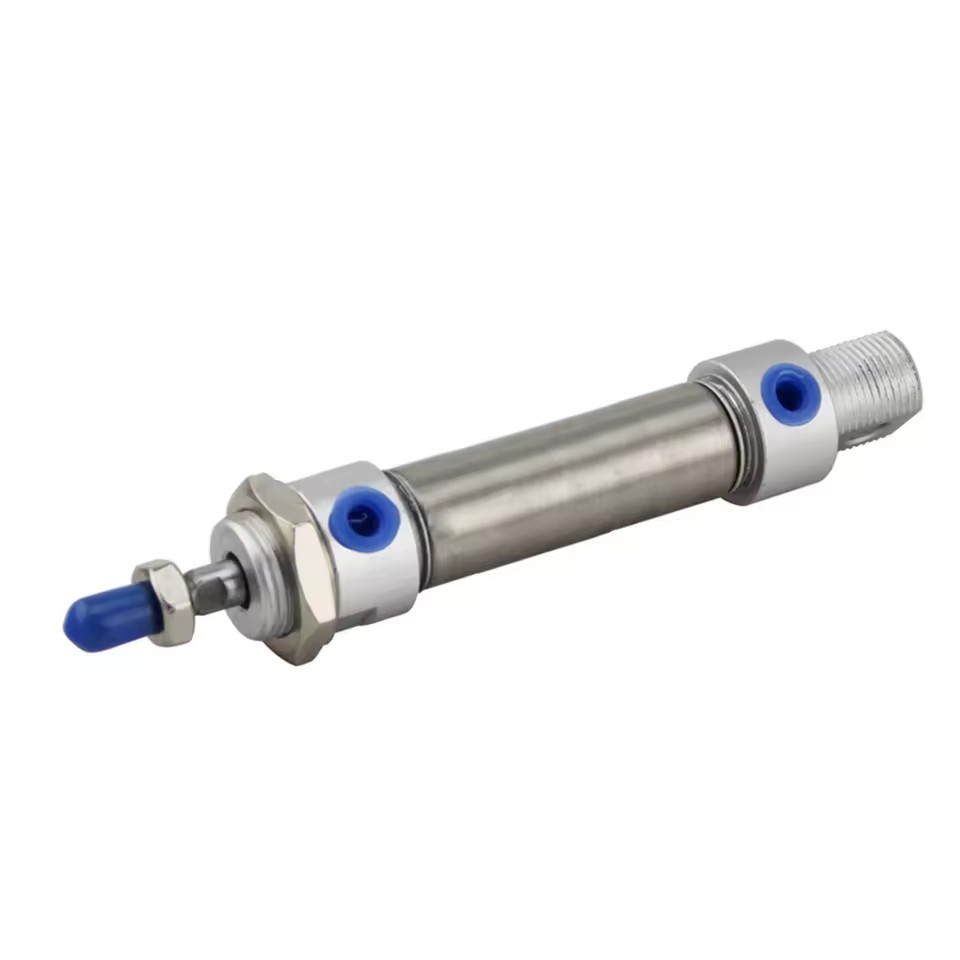

MA type standard double acting mini air pneumatic piston cylinder
Ordering code
| 1.Model | 2.Bore size | 3.Stroke | 4.Magnet | 5.Back cover | 6.Mounting type[Note 1] | 7.Thread type |

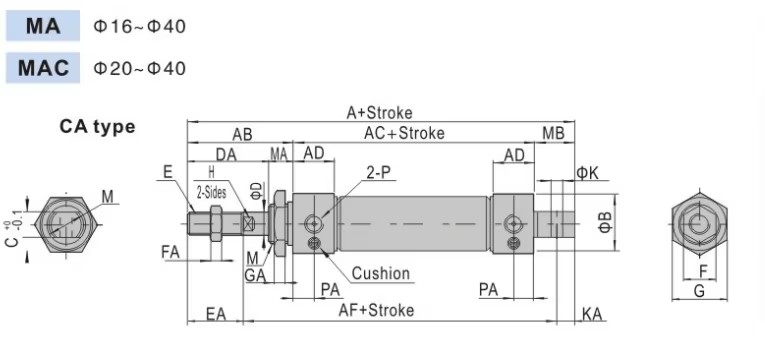

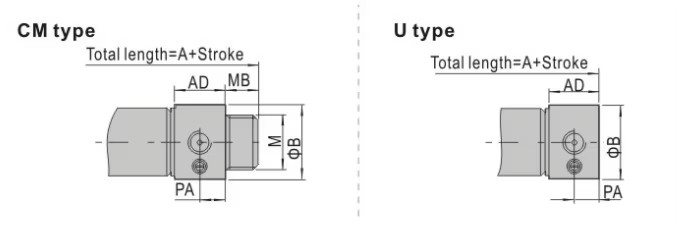

| MA: Mini cylinder (Double acting) | 16 20 25 32 40 | For details, please consult | S: With magnet | CA: Pivot type U: Flat-end type CM: Round-end type | Blank: No accessories FA: FA type SDB: SDB type LB: LB type | Blank: PT G: G T: NPT |
Specification
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Acting type | MSA/MTA | Single acting |
| MA/MAD/MAJ | Double acting |
| MAR | Double acting |
| MAC/MACD/MACJ | Double acting with cushion |
| Fluid | Air(to be filtered by 40 um filter element) |
| Operating pressure | Double acting | 0.15~1.0MPa(22-~145psi)(1.5~10.0bar) |
| Single acting | 0.2~1.0MPa(28-~145psi)(2.0~10.0bar) |
| Proof pressure | 1. 5MPA(215psi)(15bar) |
| Temperature℃ | 20~70 |
| Speed range mm/s | Double acting:30~800 Single acting:50~800 |
| Stroke tolerance | 0~150 >150 |
| Cushion type | MAC/MACD/MACJ Series: Variable cushion; Other series: Bumper |
| Port size [Note 1] | M5*0.8 | 1/8" | 1/4" |

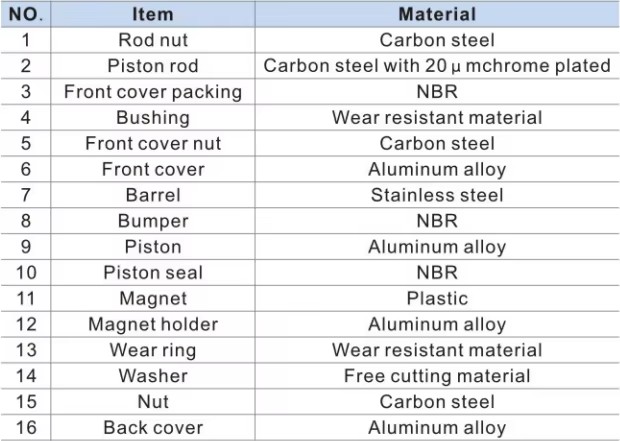

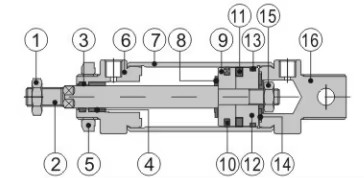

Internal structure
Stainless Steel Mini Cylinder
Cylinder of lightweight materials, reliable sealing of the concept of the development of continuous improvement and hermetically sealed driving system, reduce the energy consumption during the operation of the three decisive factors. They can help customers to avoid the deviation in the calibration, so as to prevent potential leakage. Especially the successful application in the field of food and packaging industry automation.
Q: Can I get some samples? A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost. Q: What's delivery time? A: It usually takes about 3-5 working days for small order and 10-15 days for big order. Q: What's your payment terms? A: We usualle accept all kinds of payment terms.Such as T/T,L/C,Western CanUnion Cash. Q: What's your warranty terms? A: We offer 12 months warranty time. Q: Do you have the products in stovk? A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order. Q: Can I mix different power in one container? A: Yes,Different models can be mixed up in one container,even one order. Q: How does your factory do the quality control? A: Quality is priority,we always attach importance to quality control from the beginning to the end of the prodution.Every product will be fully assembled and carefully tested before
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: What's your payment terms?
A: We usualle accept all kinds of payment terms.Such as T/T,L/C,Western CanUnion Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Do you have the products in stovk?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the prodution.Every product will be fully assembled and carefully tested before
Q: I would like to know if you have a partner for export?
A: Yes, have the right to export and can sell product all over the world.
Q: How can I trust you?
A: Wenzhouangrui is honesty and loyalty.
