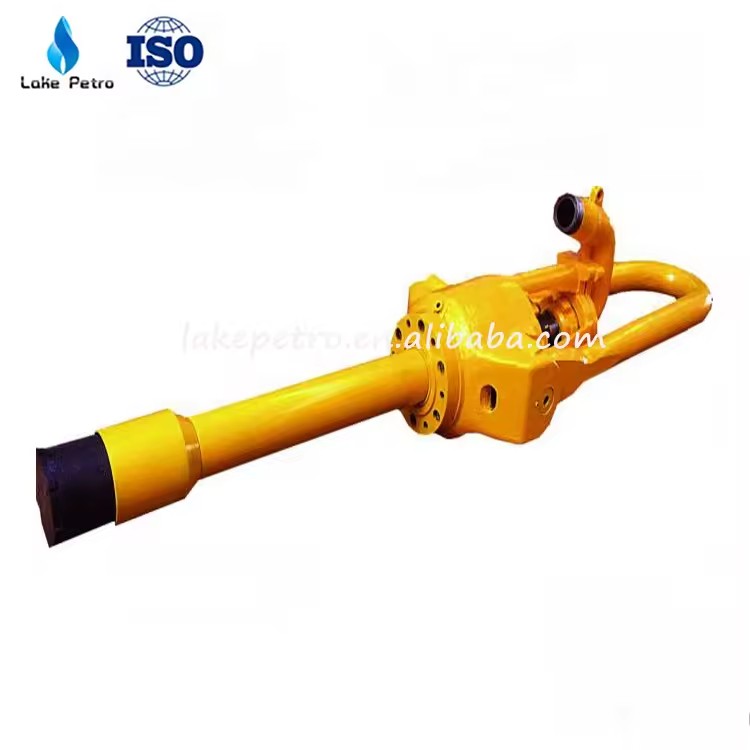

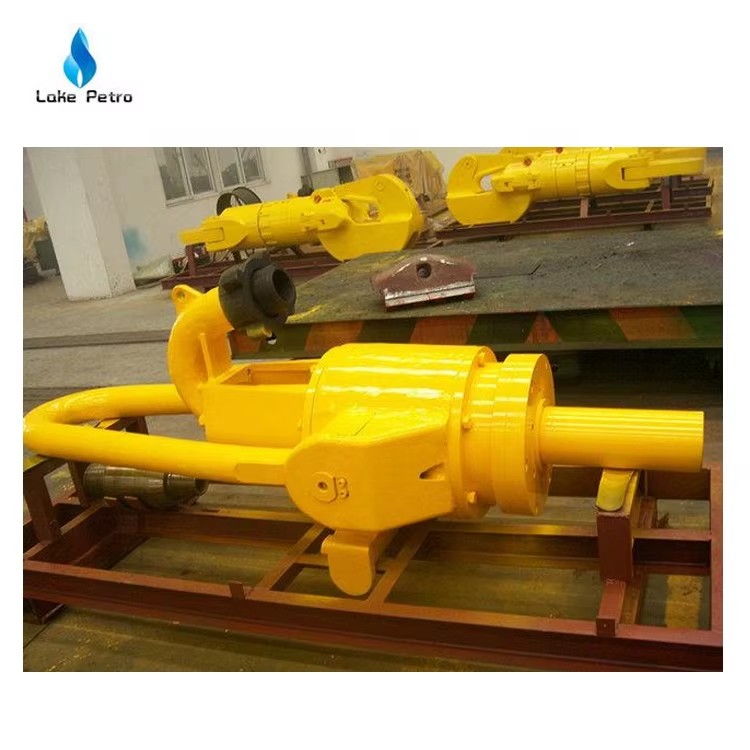

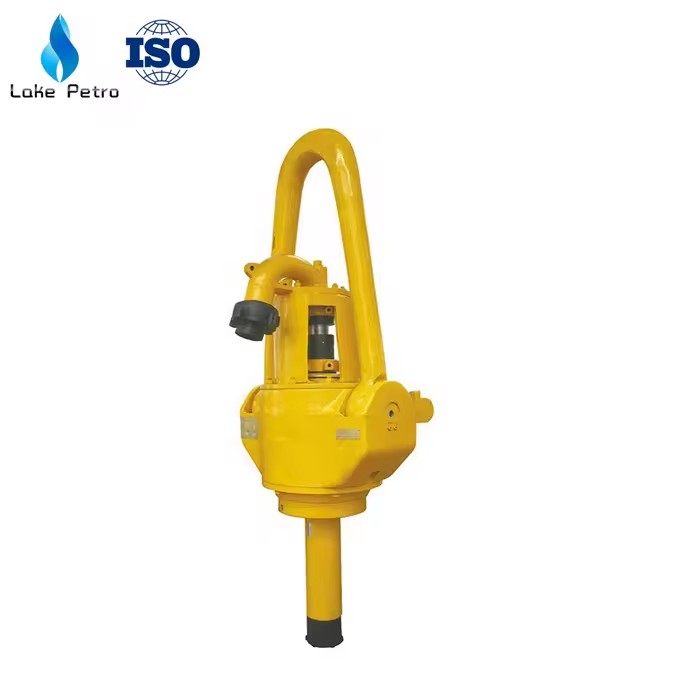

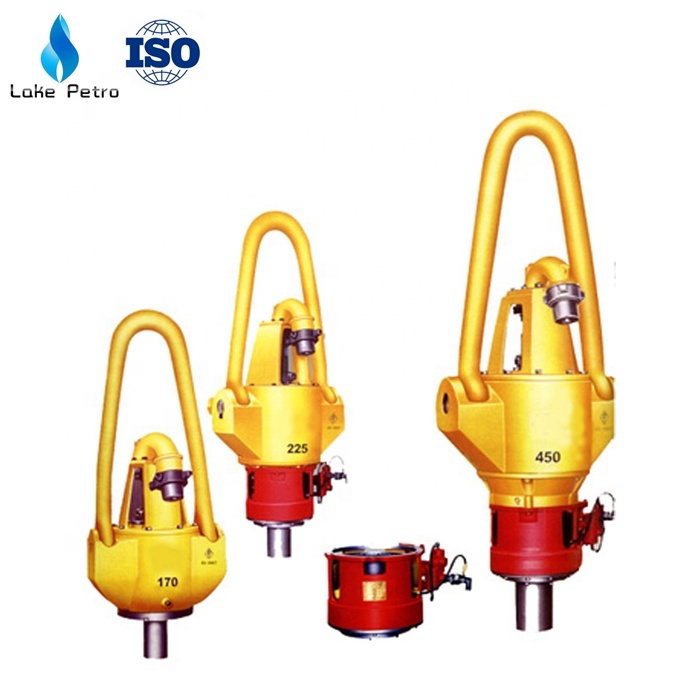

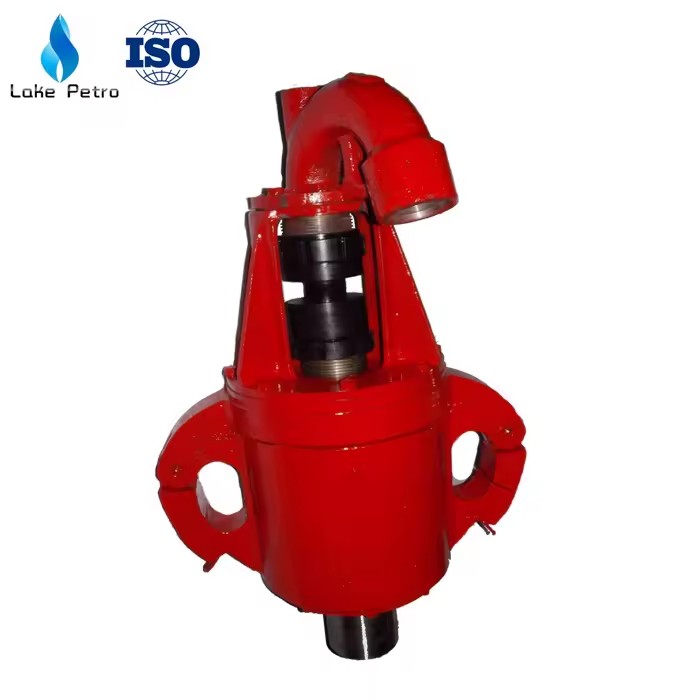

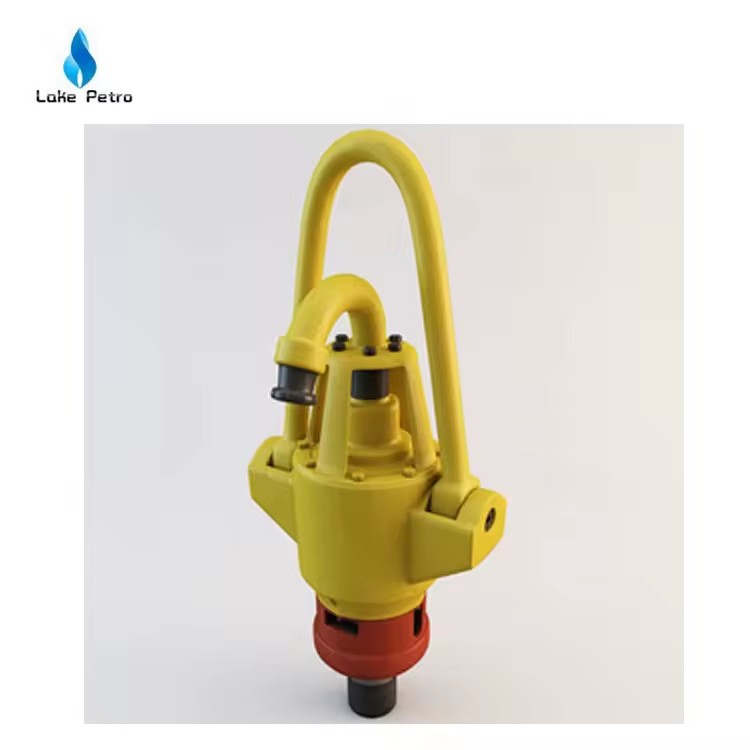

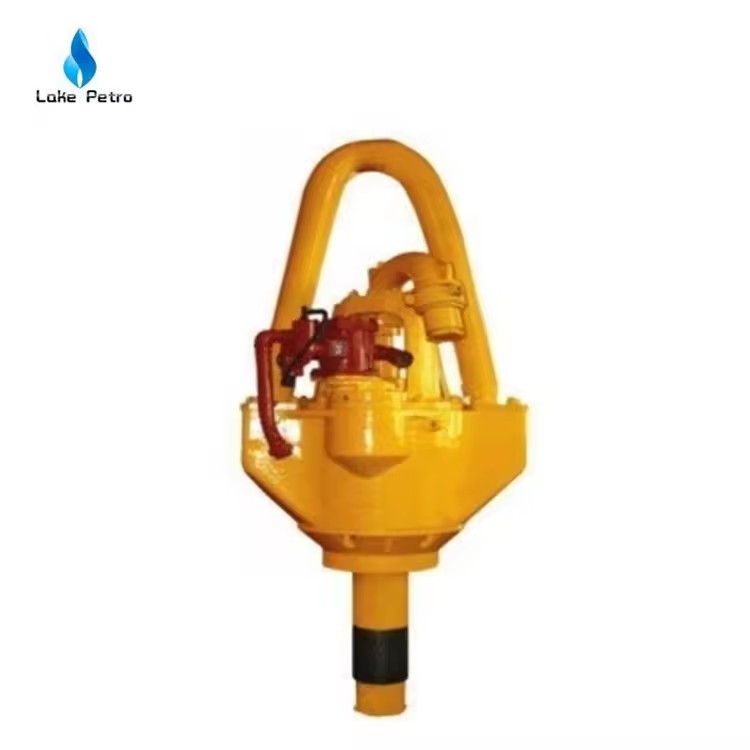

Water Swivel for d rilling: The swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, gooseneck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The swivel bail is hung on the hook. Gooseneck and rotary hose can be connected by REG thread connection or union connection.
| Model | SL135 | SL225 | SL450 | SL585 | |
| Max. static load kN(lbs) | 1350 | 2250 | 4500 | 5850 | |
| Max. Rotary speed (r/min) | 300 | 300 | 300 | 300 | |
| Max. working pressure(Mpa) | 35 | 35 | 35 | 35 | |
| Hook Clearance (mm) | 495 | 540 | 549 | 584 | |
| Center Pipe Diameter (mm) | 64 | 75 | 75 | 75 API 8A/8C SL-450 Rolling Swivel | |
| bore of stem mm(in) | 752 15/16 | 752 15/16 | 752 15/16 | 752 15/16 | |
| Connection Screw Thread | Connect to Center Pipe API | REG 4 1/2,LH | REG 6 5/8,LH | REG 7 5/8,LH | REG 4 1/2,LH |
| Connect to Kelly API | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | |
| Model of air motor | FMS-20 | FMS-20 | FMS-20 | FMS-20 | |
| Rated speed r/min | 2800 | 2800 | 2800 | 2800 | |
| Power kW | 14.7 | 14.7 | 14.7 | 14.7 | |
| Rated pressure MPa | 0.6 | 0.6 | 0.6 | 0.6 | |
| Air consume volume m3/min | 17free air | 17free air | 17free air | 17free air | |
| Rated spinning speed r/min | 92 | 92 | 92 | 92 | |
| Max. spinning torque N·m | 3000 | 3000 | 3000 | 3000 | |
| Overall dimension mm(in) | Length | 2505 | 2880 | 3015 | 3115 |
| Width | 758 | 1046 | 1096 | 1143 | |
| Height | 840 | 1065 | 1065 | 990 | |
| Masskg(kg) | 1341 | 2570 | 3060 | 4000 |
