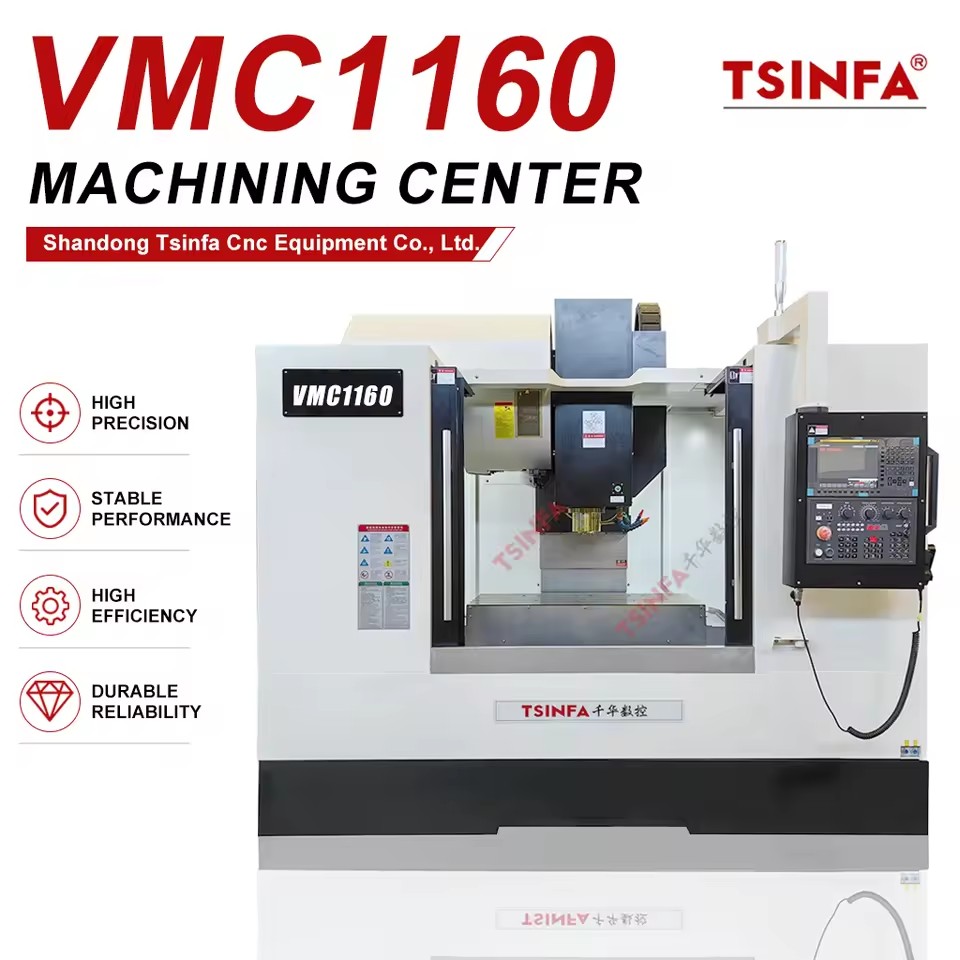

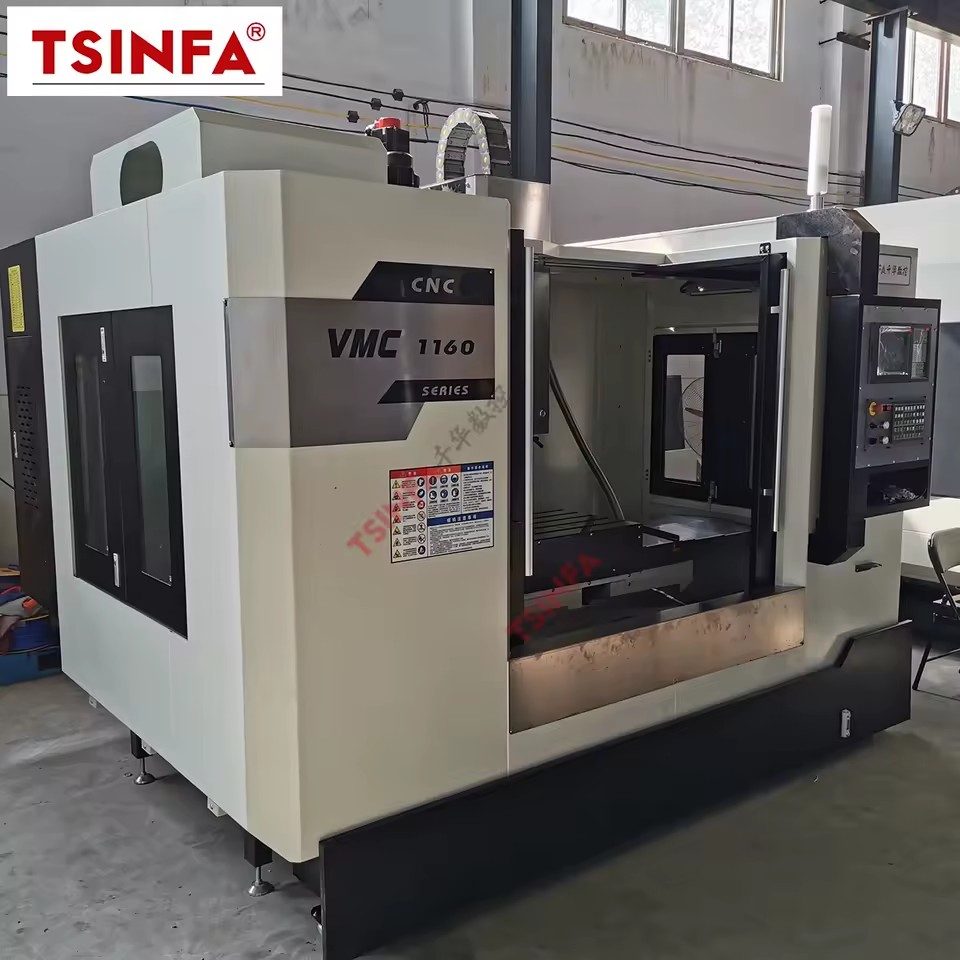

Name: VMC1160 Vertical CNC Machining Center 1100mm Travel BT40 Spindle Precision Milling Machine for Hardware Parts
SKU: B2B-69613
Price: 51590.0 USD
Availability: PreOrder

Product description

Mold Processing Application: Designed for injection molds, completing core milling and surface finishing in one setup. Ra1.6 surface finish significantly reduces subsequent polishing processes.

Automotive Manufacturing Application: Excels in auto engine blocks and flanges. 5mm depth of cut in one pass with flatness error ≤0.005mm, ensuring zero rework for automotive manufacturing.

Valve Machinery Application: Ideal for batch production of valves, flanges, and petroleum parts. Multi-process integration ensures high dimensional consistency for general machinery factories.

Aviation Aluminum Application: Optimized for high-speed light cutting of aviation aluminum. Paired with 12000rpm spindle, it ensures smooth chip evacuation and flawless surface finish.

Cost Efficiency Advantage: Priced at 60% of imported equivalents with 50% lower maintenance costs. Over 20,000 hours of trouble-free operation significantly shortens the ROI period.

Specification	Unit	VMC850	VMC855	VMC1160	VMC 1370

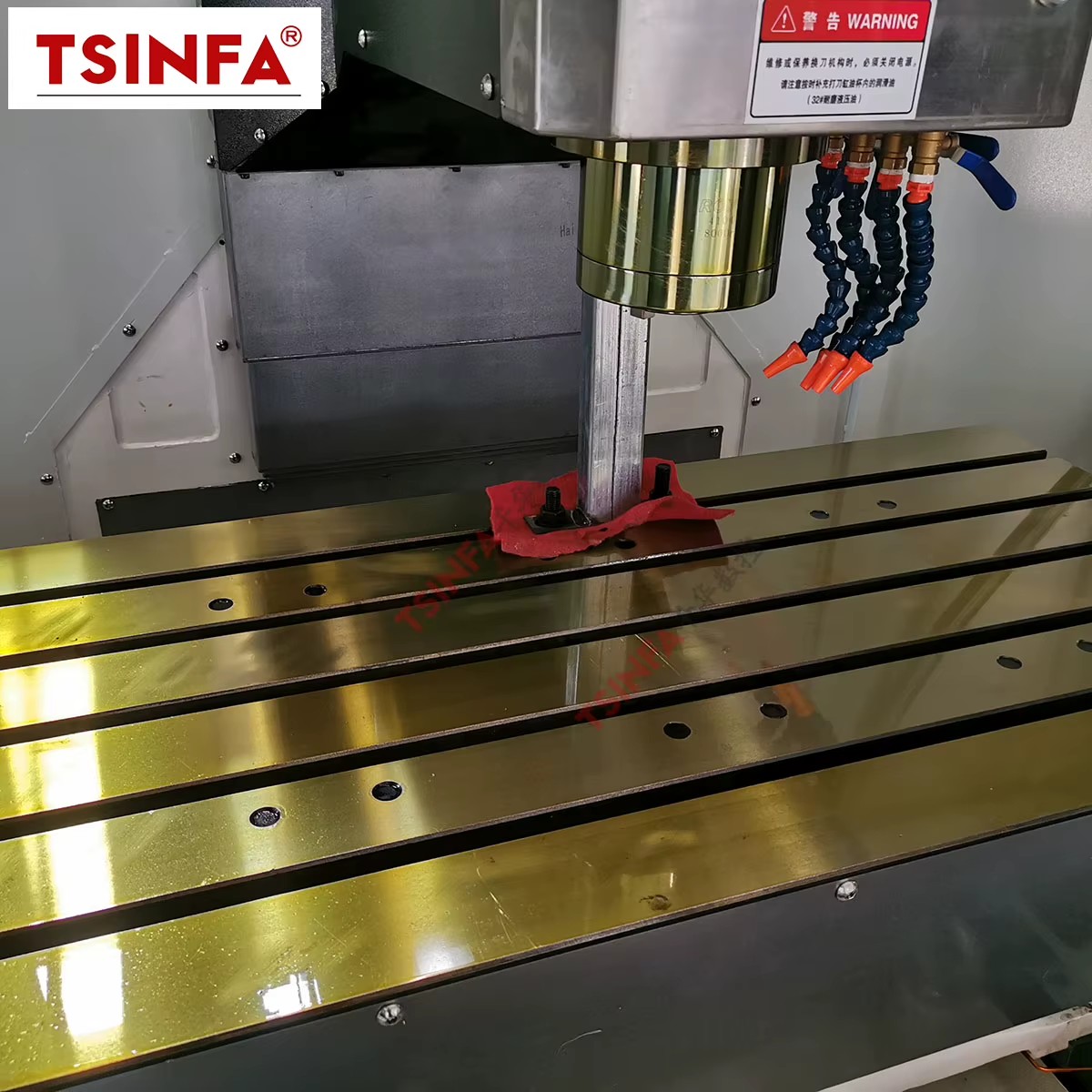

Table size	mm	1000*500	1000×550	1200x600	1400x700
T-solt(NO.×width)	mm	5*18	5×18	5×18	5×18
Max. table load	kg	500	500	600	1000

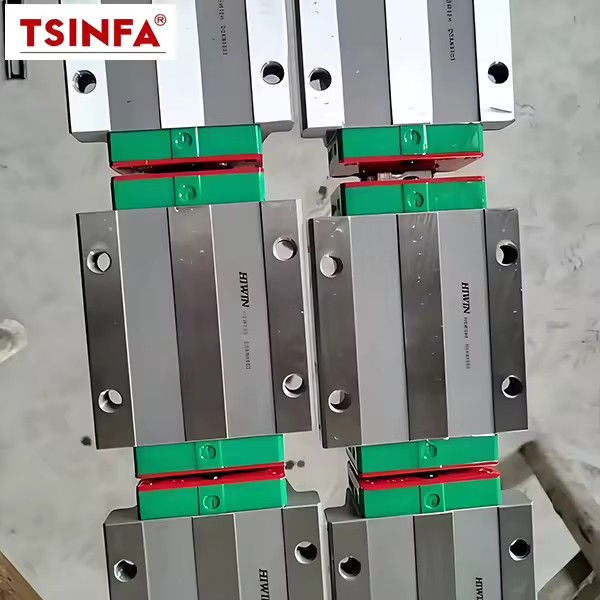

Guide rail type	X/Y/Z linear Guideway	X/Y/Z Linear Guideway	X/Y/Z Linear Guideway	X/Y/Z Linear Guideway
X/Y/Z axis travel	mm	800500500	800550550	1100×600×600	1300×700×700
Distance from spindle nose to worktable	mm	120-620	120-670	120-720	100-780
Distance from spindle center to column	mm	570	580	645	760
Spindle taper	BT40	BT40	BT40	BT40
Spindle speed	rpm	8000	8000	8000	8000
Spindle motor	kw	7.5	7.5	11	15
X/Y/Z axis motor	nm	15/15/22	15/15/22	18/18/27	23/23/27
X/Y/Z axis rapid feed speed	m/min	48/48/48	48/48/48	36/36/36	24/24/18

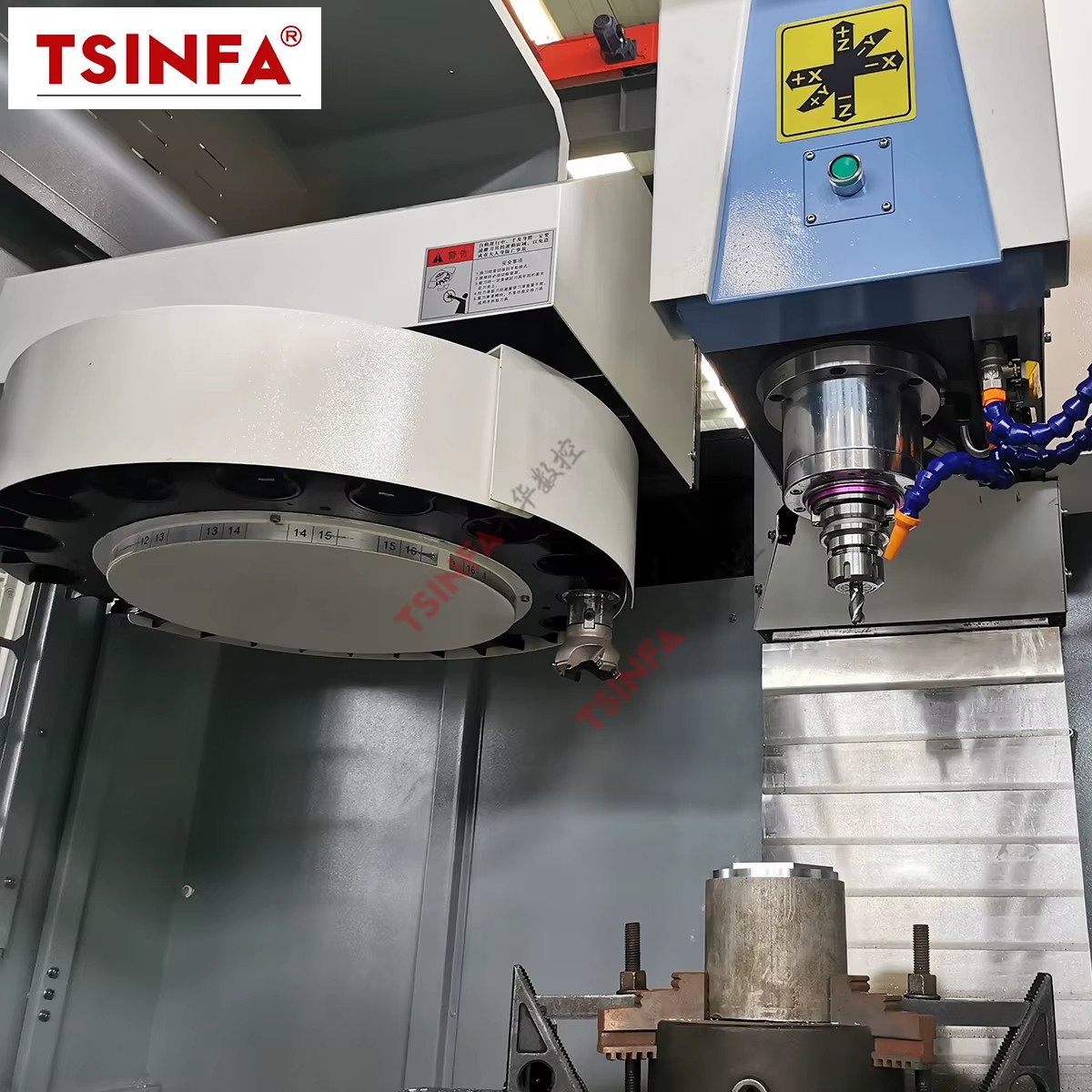

Magazine type	Disc	Disc	Disc	Disc
Magazine Hole Taper	BT40-24	BT40-24	BT40-24	BT40-24
Positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005
Repositioning accuracy	mm	±0.004	±0.004	±0.004	±0.004
Overall size(L×W×H)	mm	2600x2360x2400	2650×2100×3030	3300x2550x2800	3800x2600x2950
Machine weight	T	4.8	5.2	6T	9T

Specification	Unit	VMC 640	VMC 650
Table size	mm	800*320	800*400
Max. table load	kg	350	400
X/Y/Z table travel	mm	600400450	650400500
Numbers,width	mm	3*14	3*16
Spindle nose to table surface	mm	130-570	130-600
Spindle center to Column surface	mm	400	470
Spindle taper	BT40	BT40
Spindle speed	r.p.m	6000 (optional:8000)	8000
Main motor	kw	3.7	5.5
Table rapid feed speed	m/min	18/18/18	24/24/20
Cutting feed speed	mm	10000	10000
Three axis servo motor torque	NM	6/6/10	6/6/10
Positioning accuracy	mm	±0.006	±0.006
Repeat position accuracy	mm	±0.005	±0.005
Net weight	kg	2500	3000
Overall dimension(L×W×H)	mm	220019002500	220019002500

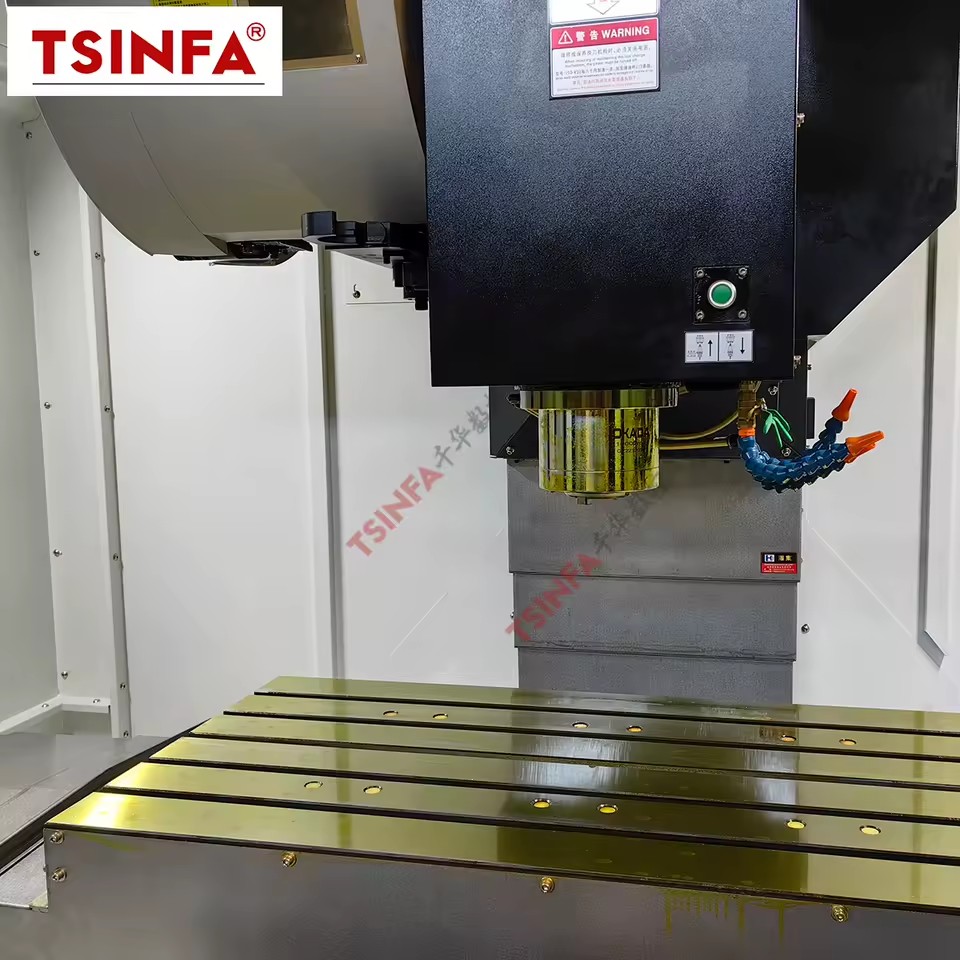

Workbench

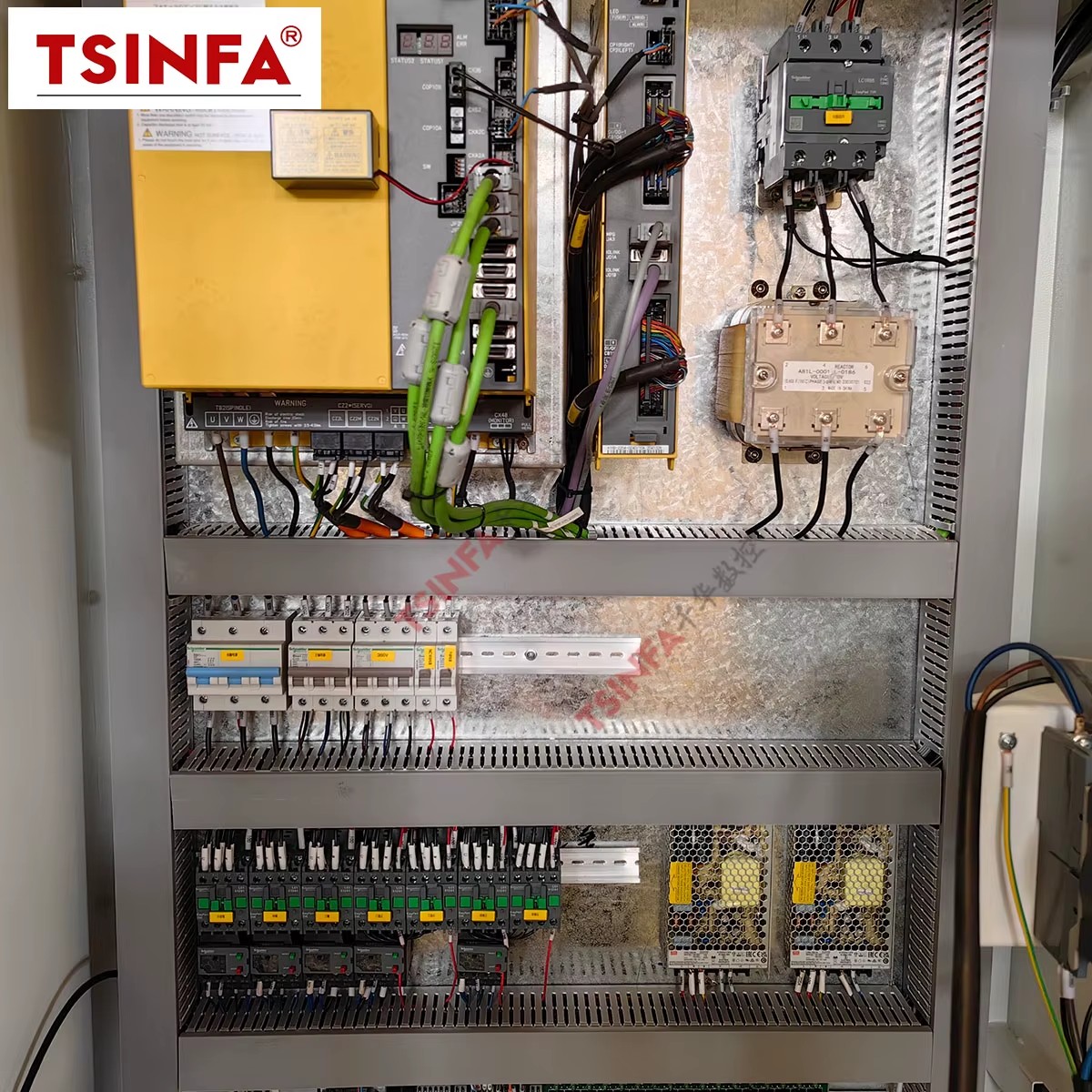

ELECTRICAL COMPONENTS

Certifications & compliance

Complies with EU standards

Description images

VMC1160 Vertical CNC Machining Center 1100mm Travel BT40 Spindle Precision Milling Machine for Hardware Parts

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 32 fields

Type

Vertical

Table travel (x) (mm)

1000

Table travel (y) (mm)

600

Table travel (z) (mm)

600

Repeatability (x/y/z) (mm)

0.004

Positioning accuracy

0.005

Spindle taper

BT40

No. of Spindles

Single

Tool magazine capacity

CNC control system

Mitsubishi

Machining capacity

Heavy Duty

Voltage

220v, 380V/400V

Table size

1200*600

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Min. time of tool change(s)

Key selling points

High Productivity

Weight (t)

7.5

Max. table load(kg)

600

Place of origin

China, Shandong

Dimension(L*W*H)

3300*2550*2800 mm

Range of spindle speed

10 - 8000

Rapid feed speed

10 - 36000

Machine type

CNC Vertical Machining Center

Color

Customized Option

CNC Controller

Fanuc Siemens Syntec KND GSK

Selling Units

Single item

Model number

VMC1160

Spindle motor power

11kw

Number of axes (Product option)

3, 4, 5

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
