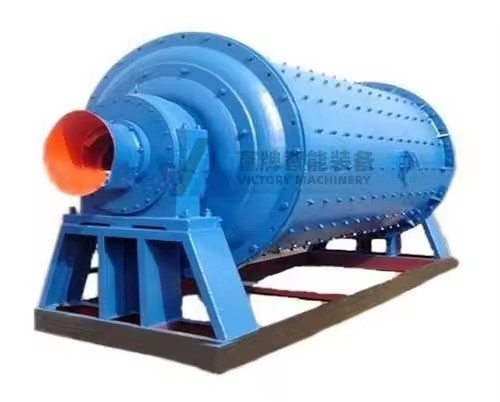

MQG ball mill that is lattice ball mill, the following is its detailed introduction

Working principle: the motor through the reducer drives the bridge device to drive the cylinder rotary, the grinding body in the inertia of centrifugal force attached to the mill cylinder wall liner plate surface together with the rotary, after reaching a certain height in the gravity and centrifugal force under the action of the drop, the cylinder material crushed. At the same time, the grinding body will also produce sliding and rolling, so that the grinding body, lining plate and the material to be milled between the grinding effect, the material in the impact of crushing and grinding at the same time, by the feed end and the discharge end of the material itself, the height difference between the material surface, from the feed end of the discharge end of the slow flow, complete the milling operation.

Structural composition

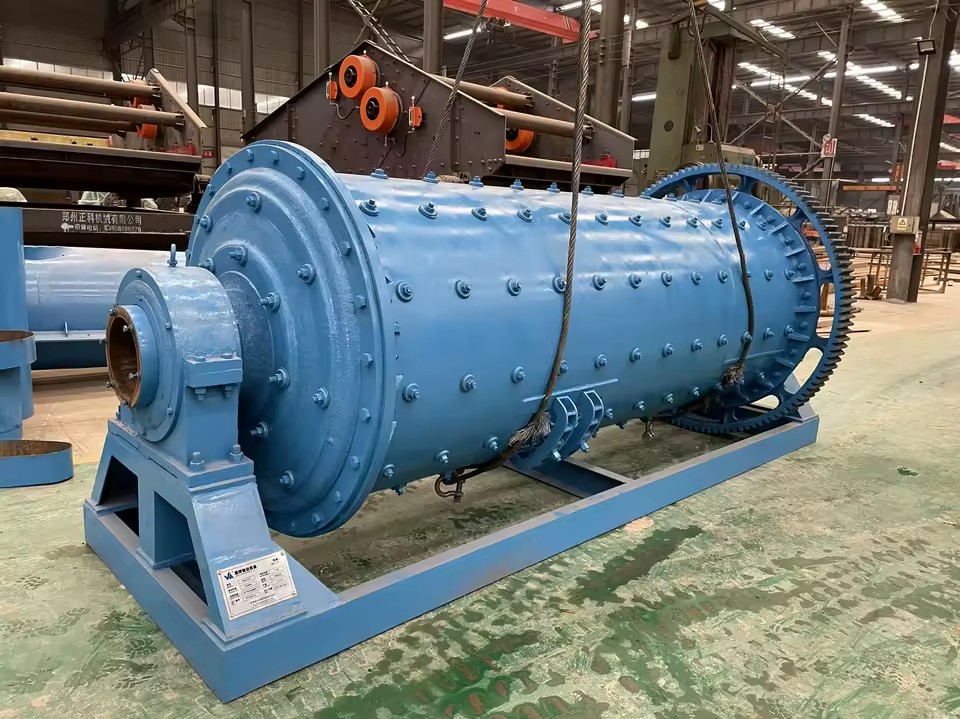

Cylinder: carrying materials and steel balls, through the rotation of the steel ball and material friction, collision to grind materials.

Lining plate: embedded in the cylinder, protect the cylinder from material and ball impact, avoid cylinder deformation, and at the same time have a pulling effect on the material, saving energy consumption, improve processing capacity.

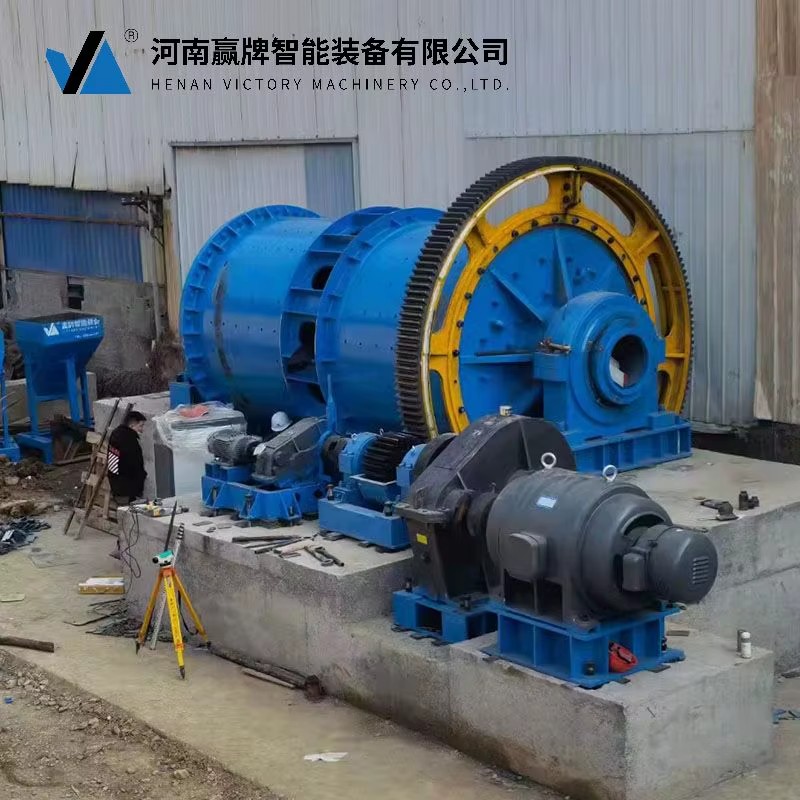

Transmission system: It is composed of triangle belt, motor, reducer, pulley, etc., which provides power for the rotation of ball mill.

Main bearing: generally consists of shaft tile, bearing seat, lubrication and cooling system to ensure the stable operation of the ball mill.

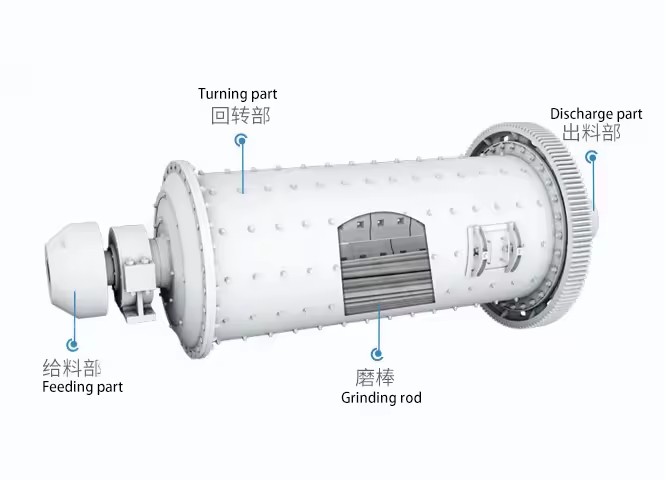

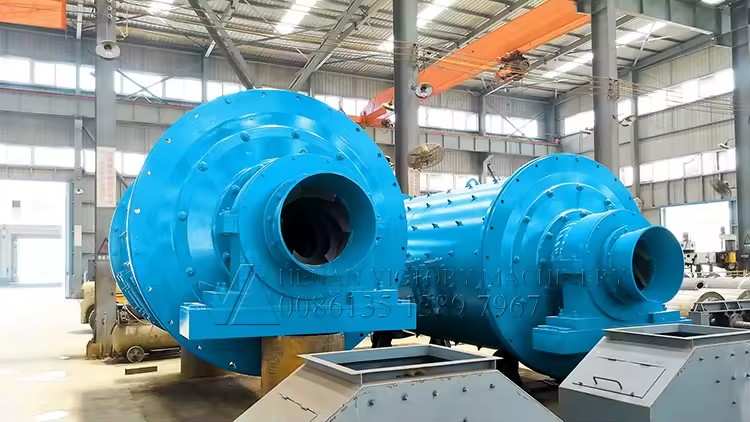

Feeding end and discharging end: The material is fed from the feeding end by feeding equipment, so that it is ground in the cylinder, and the finely ground material is discharged from the discharging end, which is equipped with a checker plate for forced ore discharge.

Advantages

High grinding efficiency: increase the lattice plate, discharge cone and other devices at the end of the mill, change the discharging method, the material is more fluent, can timely eliminate fine-grained materials, and effectively avoid the phenomenon of over-grinding, compared with the overflow type discharging method, the grinding efficiency is higher.

Strong adaptability: strong adaptability to the fluctuation of physical properties of materials (such as particle size, moisture, hardness, etc.).

Good product quality: uniform particle size, easy to adjust the granularity, high qualification rate.

Large production capacity: large crushing ratio, can be adapted to different conditions of operational needs, and good sealing performance, less metal consumption per unit of product.

Low energy consumption: reasonable structural design, such as the use of wave-type liner or groove-type ring liner, etc., to increase the contact surface of the ball ore, strengthen the grinding effect, reduce energy consumption.

Easy maintenance: compact structure, some models are equipped with jacking device, which is convenient for maintenance; lubrication device is oil mist lubrication, which ensures reliable lubrication of large and small gears; gas clutch is used for flexible startup, which brings convenience for maintenance and startup.

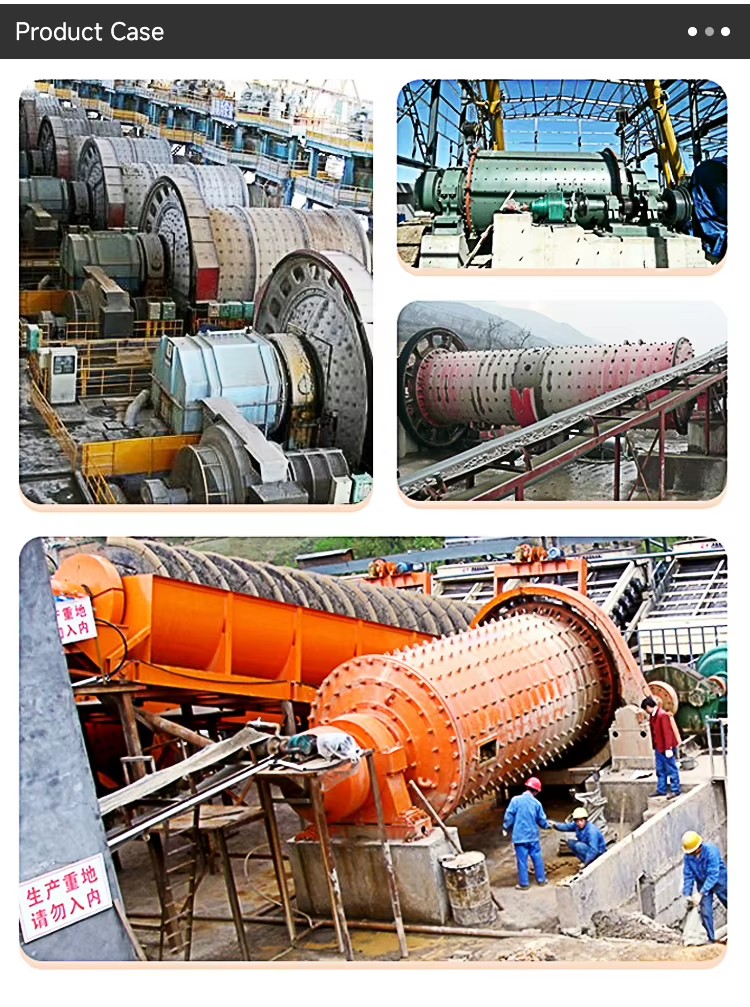

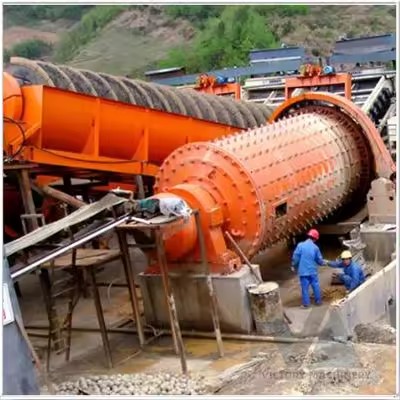

Scope of application: Widely used in electric power, building materials, metallurgy, chemical industry, non-metallic and other industries, mainly used for cement plant raw material grinding, can also be used for grinding various ores and other grindable materials, especially suitable for metal ore, non-metallic ore grinding operations, in the large and medium-sized beneficiation plant is more widely used.

Specification parameters: the cylinder diameter range is generally between 900mm - 4500mm, length specifications are diverse, common 900 × 1800 - 3200 × 13000 (m), etc., different specifications of the ball mill capacity, loading of balls, motor power, speed and other parameters are different. For example, the ball loading capacity of MQG2.4×8 meter ball mill is 24t, the production capacity is 8-110t/h, the motor power is different according to the specific manufacturers and configurations, and the rotating speed is between 15-25RPM.
