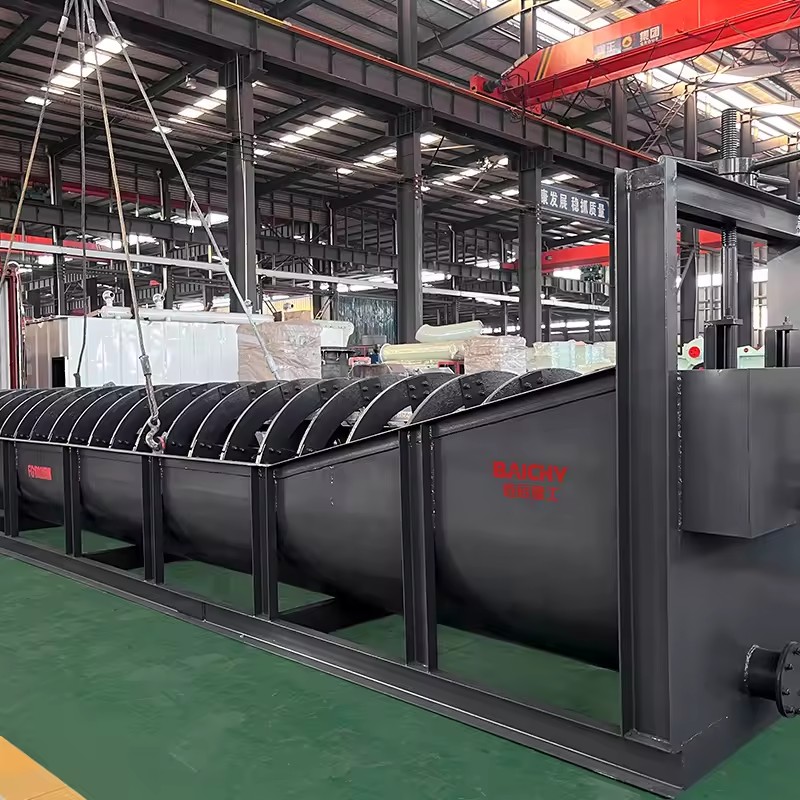

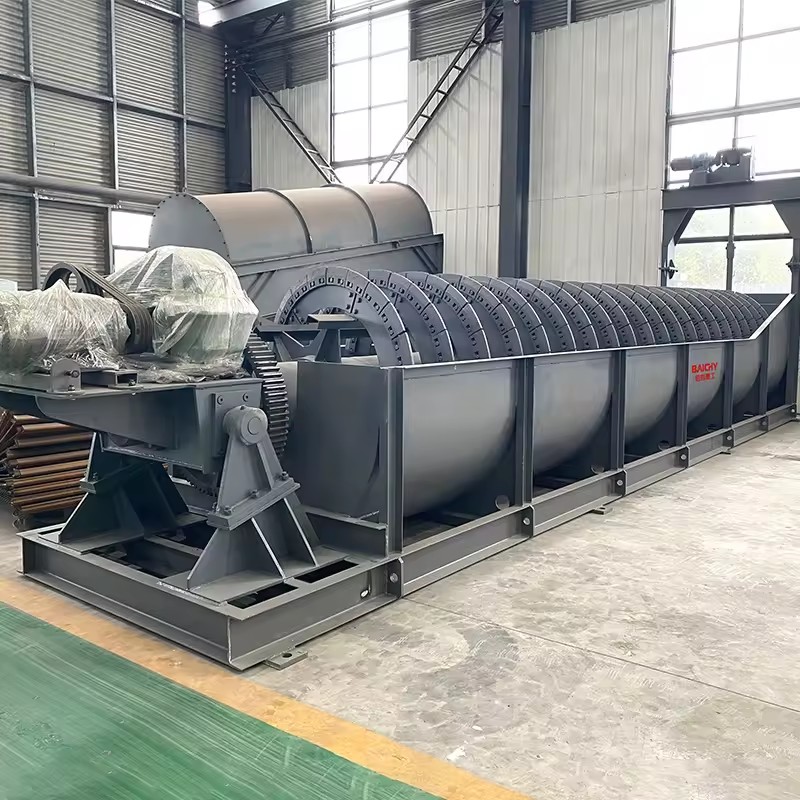

Spiral Sand Washing Machine
This XL Series Screw Sand Washer plays a vital role in gold ore processing, specifically for ore desliming and fine gold recovery from tailings. Gold ores often contain substantial primary slime and secondary clays that severely hinder subsequent gravity separation, flotation, or cyanide leaching. Through intensive scrubbing and rising water classification, this washer efficiently separates and removes fine muddy fractions, notably improving feed ore grade. Additionally, for gold tailings ponds or historical tailings, it functions as a rougher preconcentration device, recovering valuable residual gold at extremely low cost, maximizing resource utilization.
Key Advantages
1. Efficient Desliming Boosts Processing Metrics Intensive scrubbing breaks clay-particle bonds, while rising water carries away suspended slime. This reduces feed mud content, creating optimal conditions for subsequent separation stages.
2. Fine Gold Preconcentration & Resource Recovery Leveraging gold's high specific gravity, fine gold particles preferentially settle and are screw-conveyed to concentrate discharge, achieving low-cost preliminary enrichment of residual gold in tailings.
3. Wear-Resistant Design for Abrasive Slurry Blades of high-chromium alloy and tank lined with rubber or wear plates withstand prolonged erosion from high-hardness slurry, ensuring stable operation in demanding mine environments.
Working Principle
The washer operates on the principle of gravity sedimentation and mechanical conveying. Installed at an incline, the motor drives the spiral shaft via a reducer. Material enters the water-filled tank where the spiral blades agitate and roll the sand, removing impurities through friction. Light impurities (clay/fines) overflow with water, while clean sand is conveyed upward for dewatering, achieving washing, grading, and dewatering in one unit.

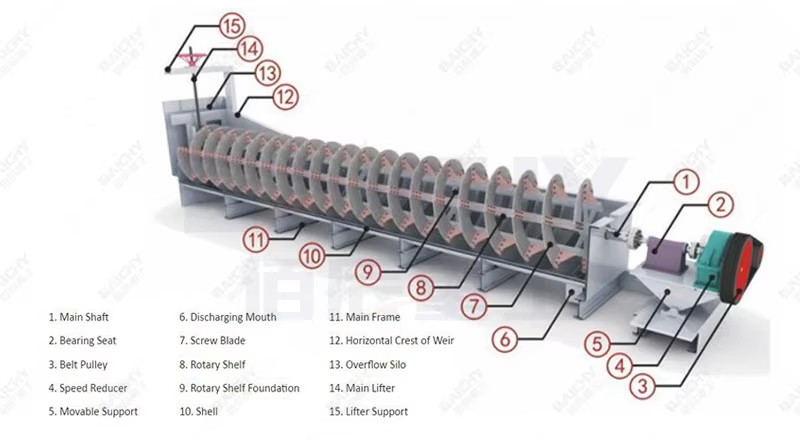

Core Components

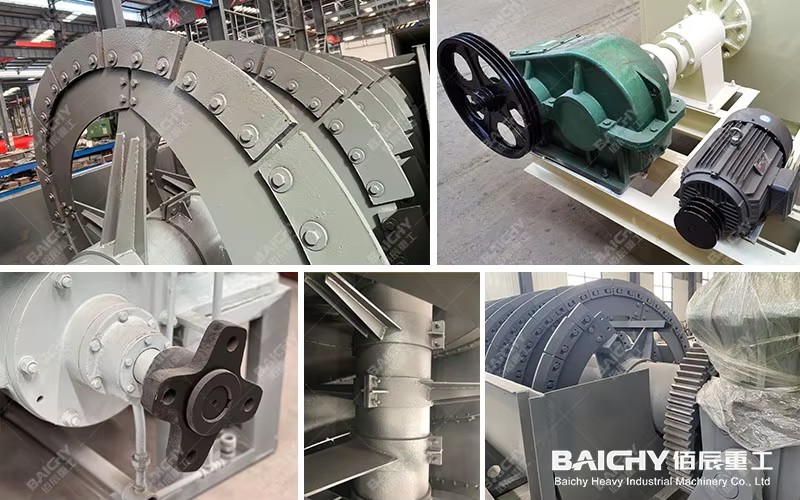

Washing tank is a welded heavy-duty steel plate with a semi-circular bottom; main spiral shaft consists of a hollow shaft and wear-resistant spiral blades; drive unit includes motor, pulley, and reducer to rotate the shaft; support frame provides robust stability; adjustable weir plate governs the washing and classification process.
Technical Parameters
| Model | Spirals Number (pcs) | Screw Diameter (mm) | Sink Length (mm) | Capacity (t/h) | Motor Power (kw) |
| XL920-7.5m | 1 | Ø920 | 7500 | 40-60 | 11 |
| 2XL920-7.5m | 2 | Ø920 | 7500 | 90-120 | 11×2 |
| XL1120-7.5m | 1 | Ø1120 | 7500 | 40-120 | 18.5 |
| 2XL1120-7.5m | 2 | Ø1120 | 7500 | 80-240 | 18.5×2 |
| XL1500-9m | 1 | Ø1500 | 9000 | 100-170 | 22 |
| 2XL1500-9m | 2 | Ø1500 | 9000 | 200-280 | 22×2 |
Applicable Materials & Applications
Suitable for washing 0–30mm materials: Machine-made Sand: Crushed limestone, granite, basalt, etc. Natural Sand: River sand, lake sand, weathered sand. Others: Slag, tailings, recycled aggregates from construction waste.
Application Fields
Large-scale Aggregate Plants: Final washing and grading of machine-made sand. Mines & Mineral Processing: Washing and recovery of tailings sand. Building Materials & Cement: Producing high-quality sand for concrete. Hydropower & Road Construction: Supplying sand for hydraulic concrete and asphalt.
Globally Verified: Chosen for Trust
We are honored that the reliability and outstanding value have earned the long-term trust of numerous clients worldwide. Feedback from customers across different countries and projects—from large-scale mining to green recycling operations—consistently verifies its stable performance in efficiency, durability, and output quality. This tangible recognition drives our continuous improvement. Please be assured that choosing us means opting for a highly efficient solution proven in practice. We look forward to partnering with you and supporting your project's success with our professional equipment.
Perfect after-sales service
Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
To prevent the rights and interests of customers from being infringed, Industry reminds customers: please contact
Quality Commitment & Global Service
All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.
About Customer Visits
Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.
Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete
