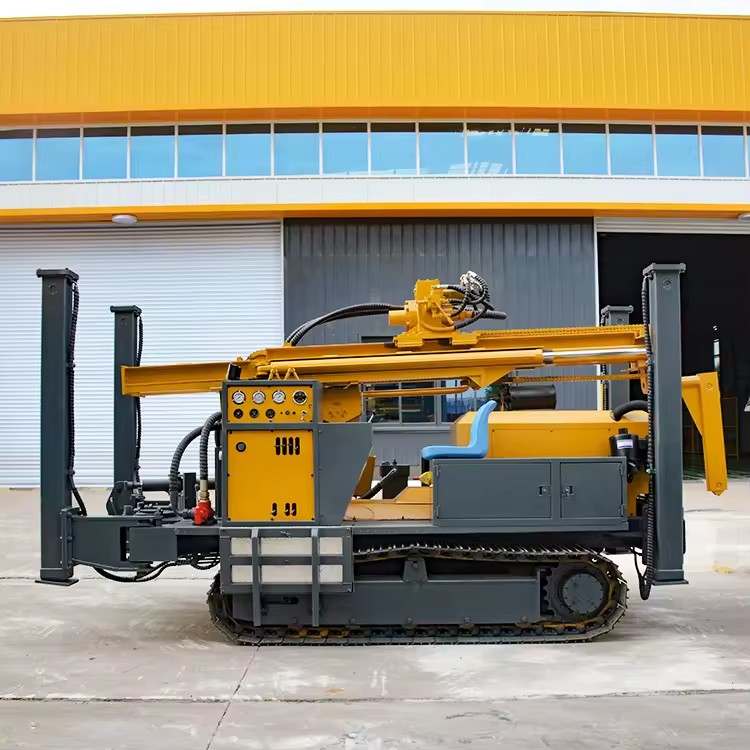

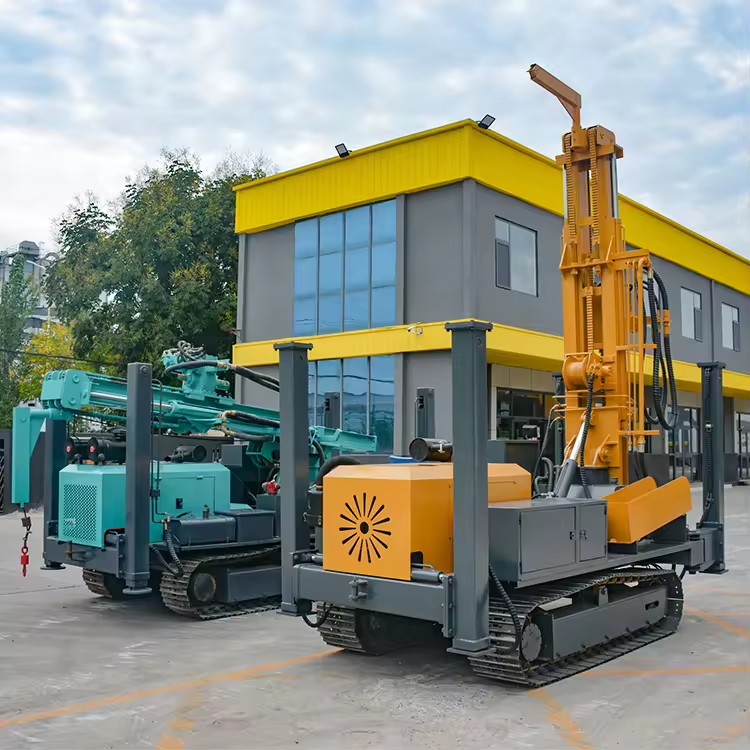

Drilling Rig Diesel-Powered Water Well Drilling Rig the Optimal Equipment for Drilling in Rock and Sandy Formations

Product details

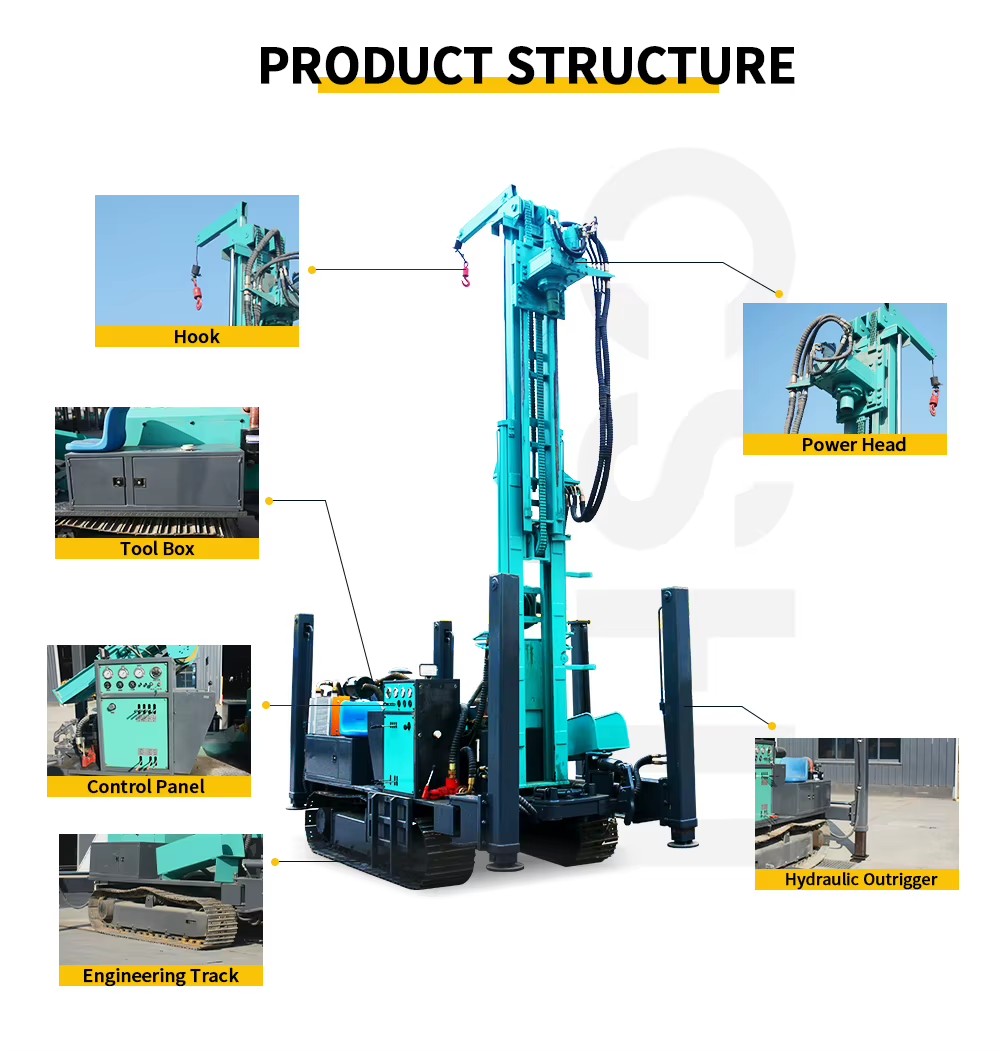

Water well drilling rig is a light, efficient and multifunctional drilling equipment. It is mainly used for drilling water wells, agricultural irrigation wells and other wells, especially for water projects in mountainous areas and rock formations. The drilling rig adopts new hydraulic technology, equipped with large torque hydraulic rotation motors and a large-diameter hydraulic cylinder for propulsion and lifting. It is equipped with ordinary alloy drill bits and other drilling tools for rotary drilling; conventional ball tooth drill bits are used in hard rock formations for impact rotary drilling and high-speed hole formation. In unstable formations such as gravel layer, workers can use DTH hammer with following casing.

1. Adopting advanced Down-the-Hole (DTH) impact technology, the impactor is placed directly at the bottom of the hole, delivering impact energy straight to the drill bit with minimal energy loss. Drilling speed reaches 20-40 meters per hour, far exceeding traditional rotary drilling rigs. Combined with high-torque hydraulic motor rotation and large-diameter hydraulic cylinder feed, it can easily penetrate hard rock formations such as granite and limestone.

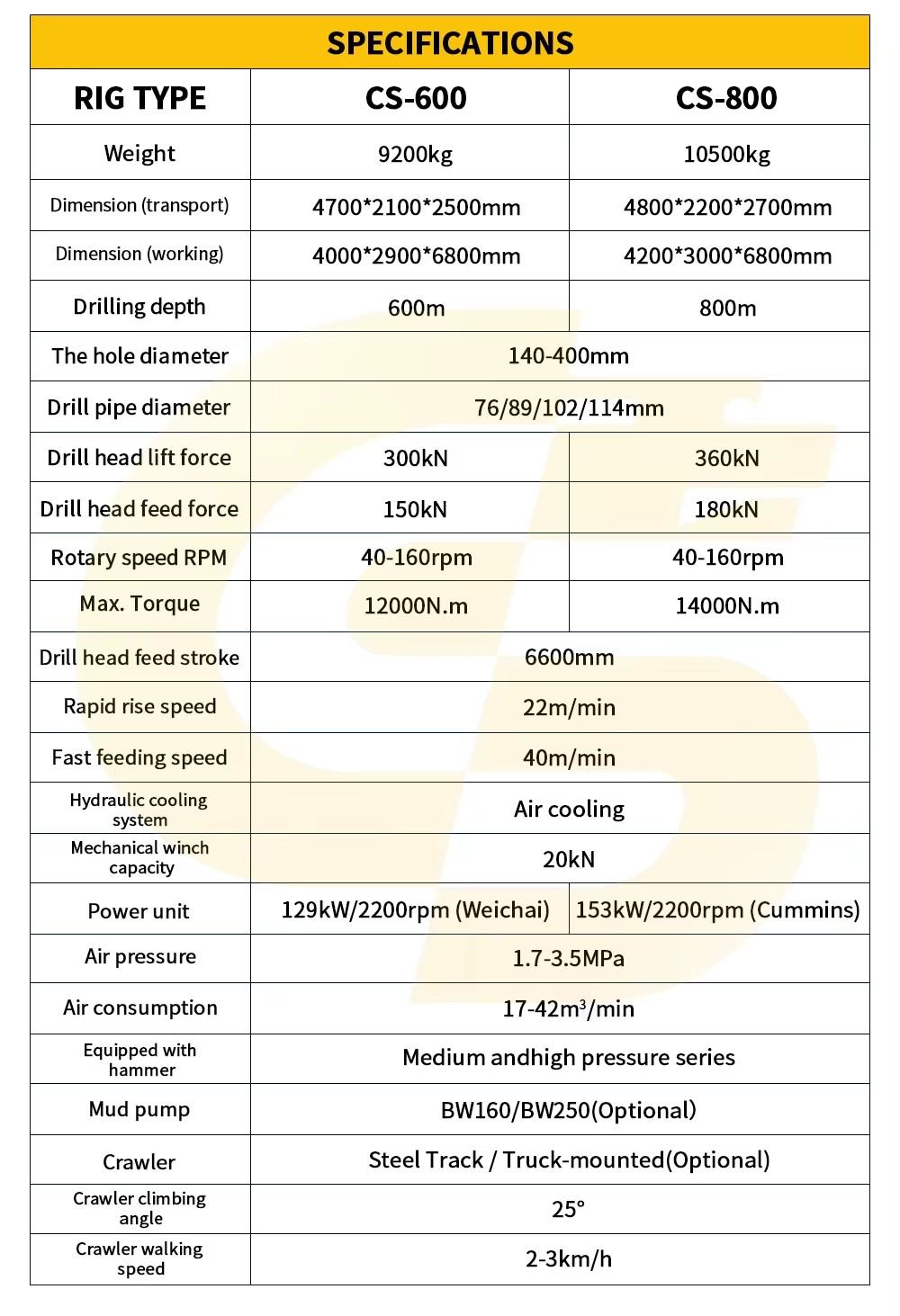

2. Drilling diameter ranges from 110mm to 400mm, with drilling depth options from 200m to 800m, meeting diverse construction needs from shallow farm irrigation wells to deep geothermal exploration wells. Equipped with casing driver, it ensures safe drilling in unstable formations such as loose layers and gravel beds.

3. In addition to water well drilling, the rig can also be used for geothermal well drilling, environmental monitoring wells, mining exploration, subgrade drilling, and other engineering applications. Optional drilling tools including DTH hammers, mud pumps, foam pumps, and various bit combinations are available to adapt to different geological conditions.
