Product video
Certifications CE · EAC · ATEX

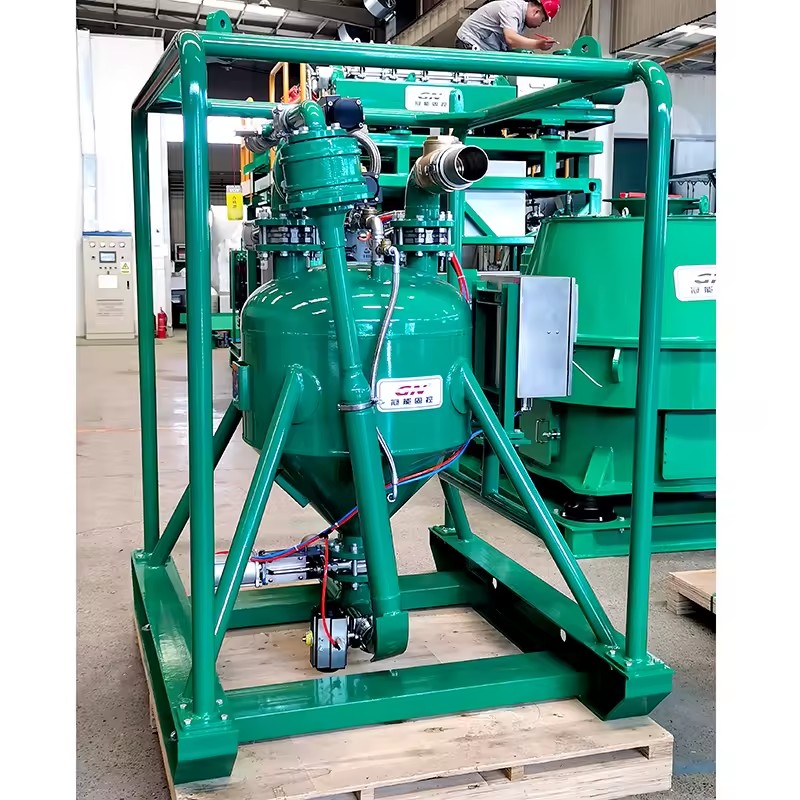

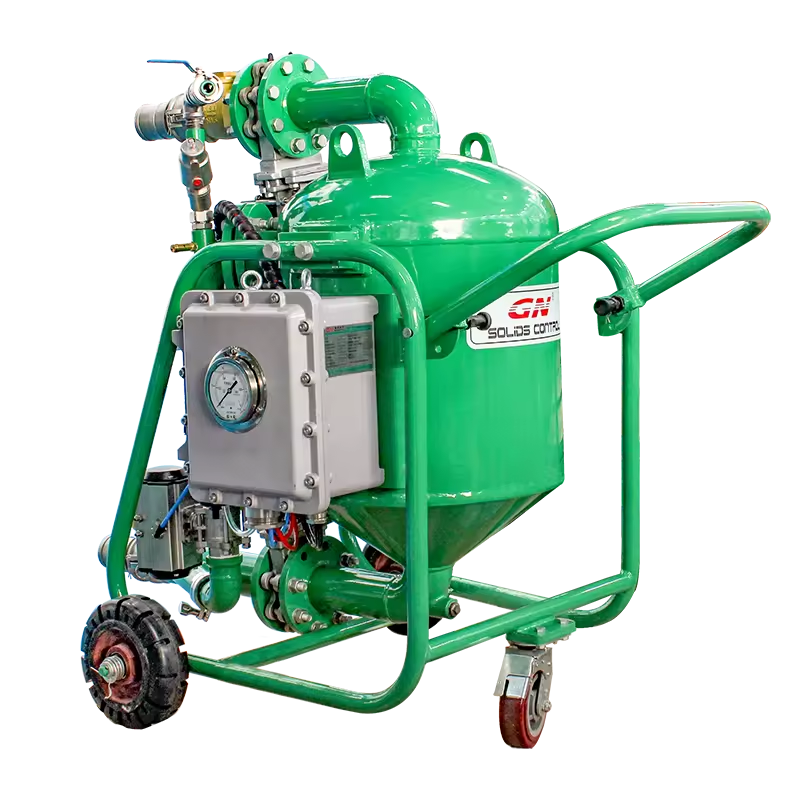

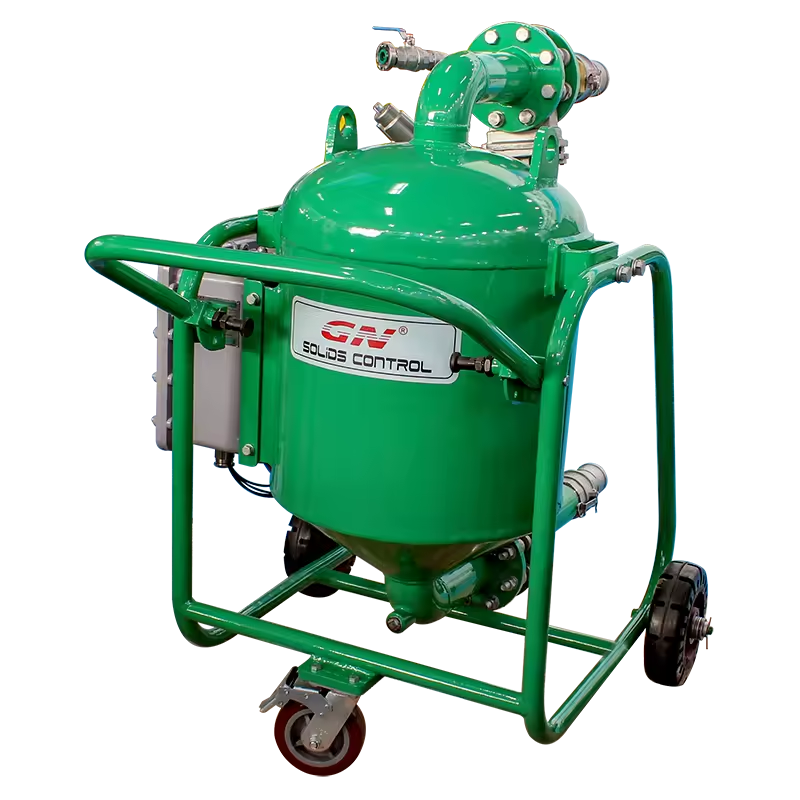

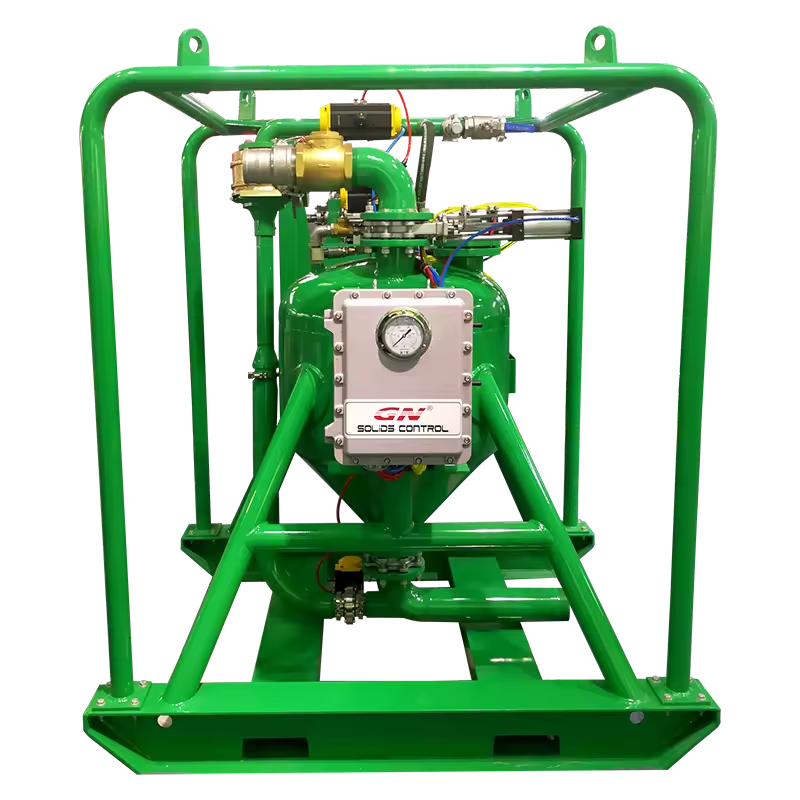

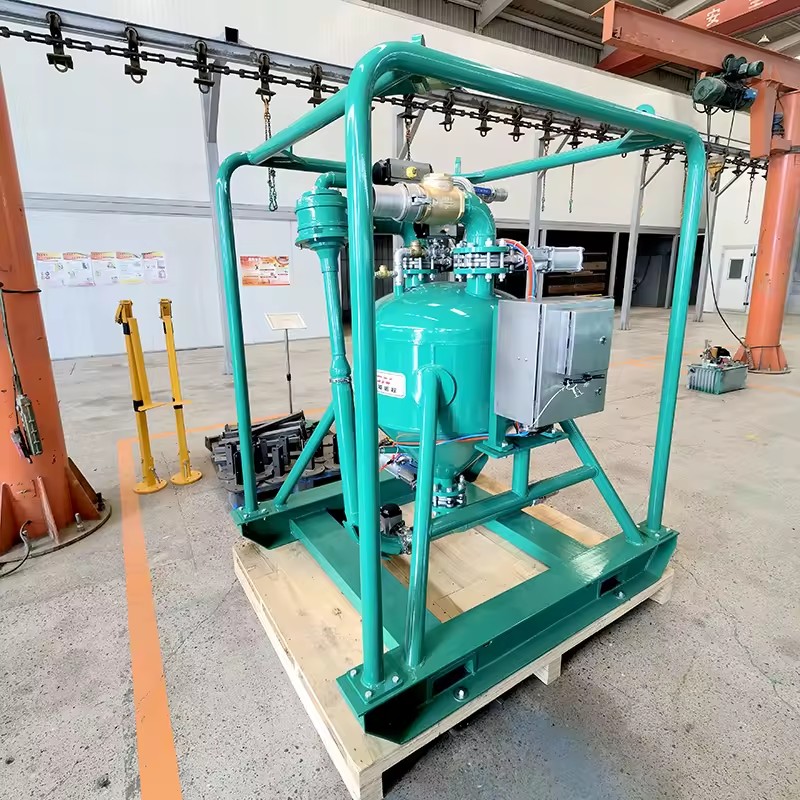

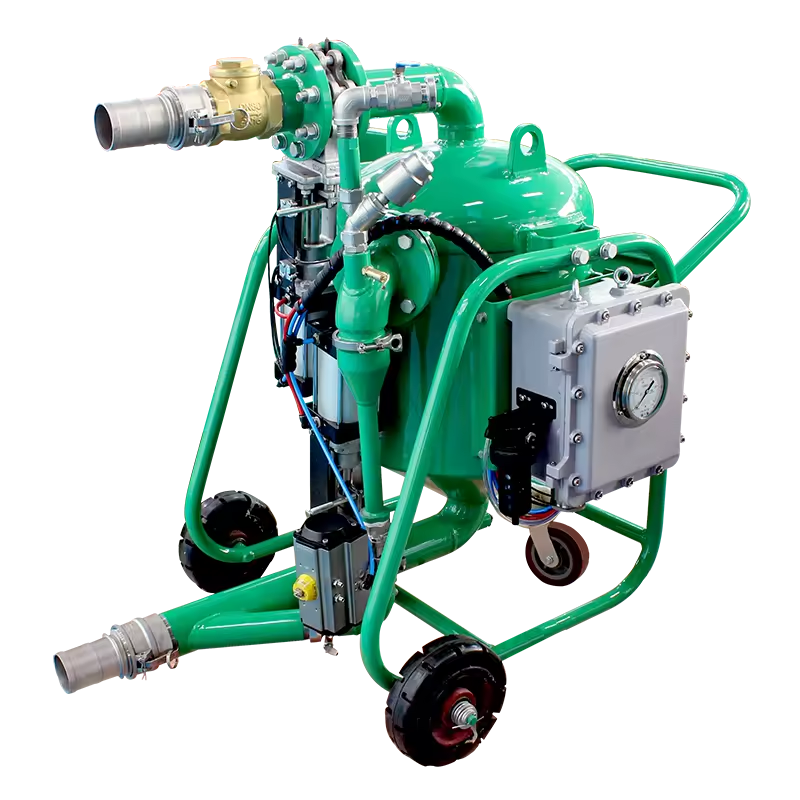

Vacuum Pump for Drilling Fluid Solid Control System Mud Tank Waste Transfer Slurry Suction Equipment

Available for enquiry 0.0 · 0 reviews
USD

$ 12,830.00 12830.0 USD $ 12,830.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Weight (kg)
  • Place of origin
  • Keyword
  • Applicable Industries
  • Application
  • Capacity
  • Material
  • Certificate
  • After-sales Service Provided
  • Advantage
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Weight (kg)
320
Place of origin
China, Hebei
Keyword
Solids and Liquids Pump
Product description

Sludge vacuum pump, also named as solids transfer pump. It is a pneumatic slurry transfer vacuum pump for liquid, slurry, and solids transfer.

Since it’s a high vacuum loading solids transfer pump, it can be used at tough environmental for solids or sludge transfer with high working performance and less maintenance.

The pump can transfer material with high gravity and high density, with dry solids material or slurry with solids content max. up to 80%.

GNSP 40 Solids Vacuum Pump

GNSP 20 Solids Vacuum Pump

GNSP 10 Solids Vacuum Pump

ItemGNSP-40BGNSP-20BGNSP-10B
Max Capacity40m³/h20m³/h10m³/h
Inlet/Outlet Size4”(114mm)4”(114mm)3”(89mm)
Vacuum Degree85Kpa/25 inch HG
Max Suction Distance50m
Max Discharge Distance1000m500m500m
Max Solids Content80%
Max Solids Size75mm50mm50mm
Pressure Request550-785Kpa550-690Kpa550-690Kpa
Air Demand17m³/min8m³/min4.3m³/min
Weight892kg386kg320kg
Dimension L*W*H1690×1468×1983mm1421×900×1448mm1283×800×1370mm

The above specification and parameters for reference only.

Group Pumps of combination of 2 or 4 vacuum pumps are available for higher flowrate,with just one suction and one discharge.

  • Waste mud and waste solids discharged from shale shaker, mud cleaner and centrifuge transfer
  • Drilling mud transfer
  • Waste pit cleaning
  • Hazardous waste recovery
  • Oil sludge, tank bottoms residual removal and transfer
  • Barge holdings and vessel bottom clean out
  • Bulk tank and silo transfer of material
  • Sand; Course, fine, conventional and frac sand
  • Diatomaceous earth
  • Animal waste etc.
    • Certifications & compliance
    CE
    Complies with EU standards
    ATEX
    Explosion-Proof Safety
    EAC
    **market access**
    Description images
    CE
    ATEX
    EAC
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      45 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 18 fields
    Machinery test report
    Provided
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Weight (kg)
    320
    Place of origin
    China, Hebei
    Keyword
    Solids and Liquids Pump
    Applicable Industries
    Construction works
    Application
    Mining Equipment
    Capacity
    40m3/h
    Material
    Carbon Steel
    Certificate
    CE ISO
    After-sales Service Provided
    Online Support
    Advantage
    High Working Effiency
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    GNSP05B, GNSP10B, GNSP20B, GNSP40B
    Certifications & Compliance
    CE, EAC, ATEX
    Lead time
    45 days
    Minimum order
    1 Units
