Product video

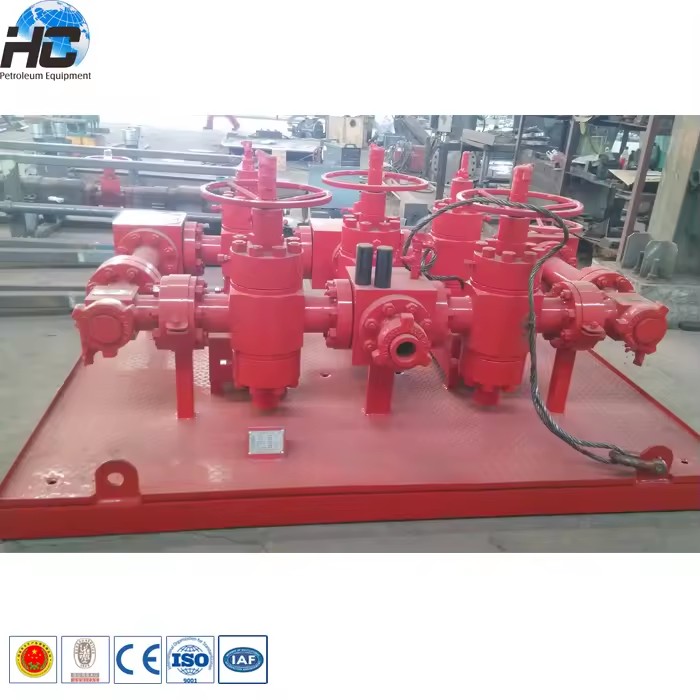

Choke Manifold Wellhead Equipment / Oil Drilling Equipment / Hydraulic Kill and Choke Manifold

Available for enquiry 0.0 · 0 reviews
USD

$ 47,860.00 47860.0 USD $ 47,860.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Throttling
Power Type
Gasoline
Voltage
220v
Machinery test report
Provided
Warranty
1 Year
Core components
Pressure Vessel
Product description

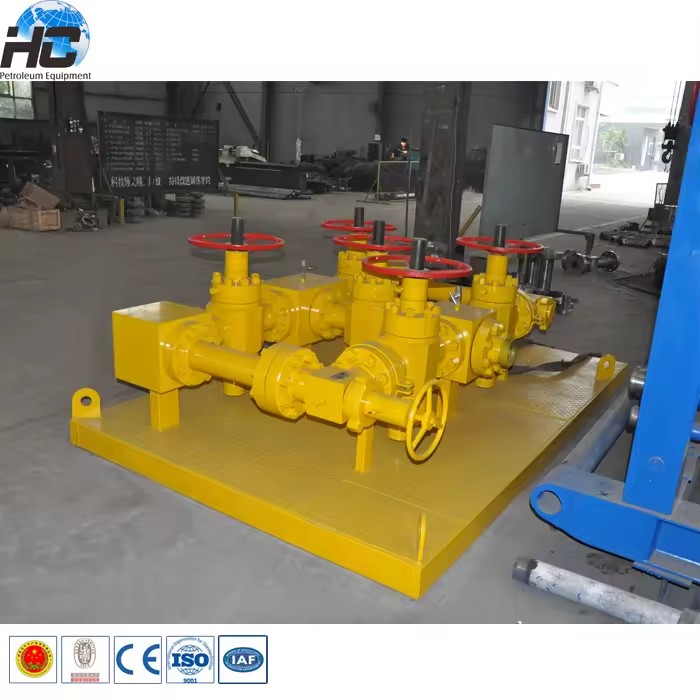

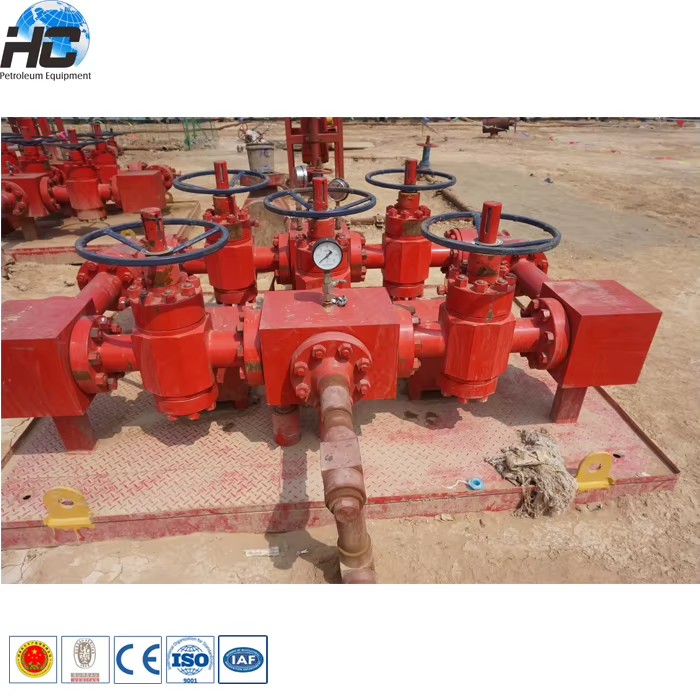

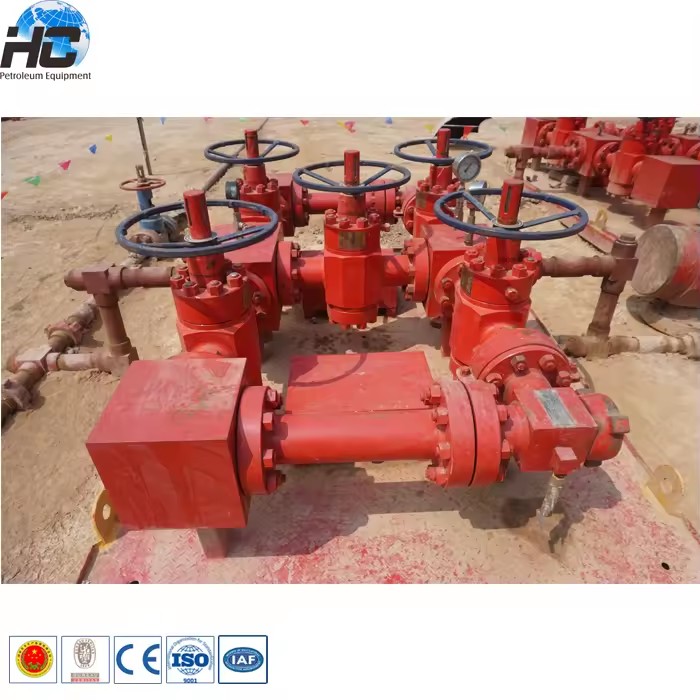

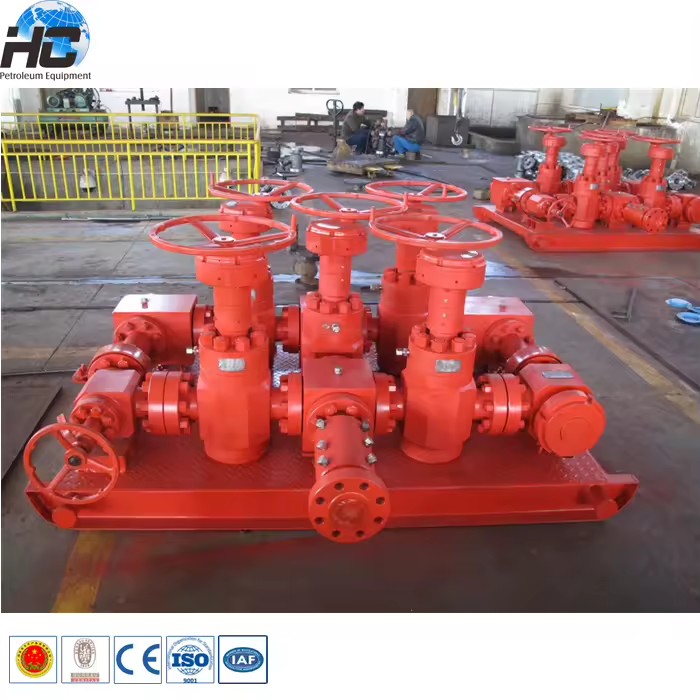

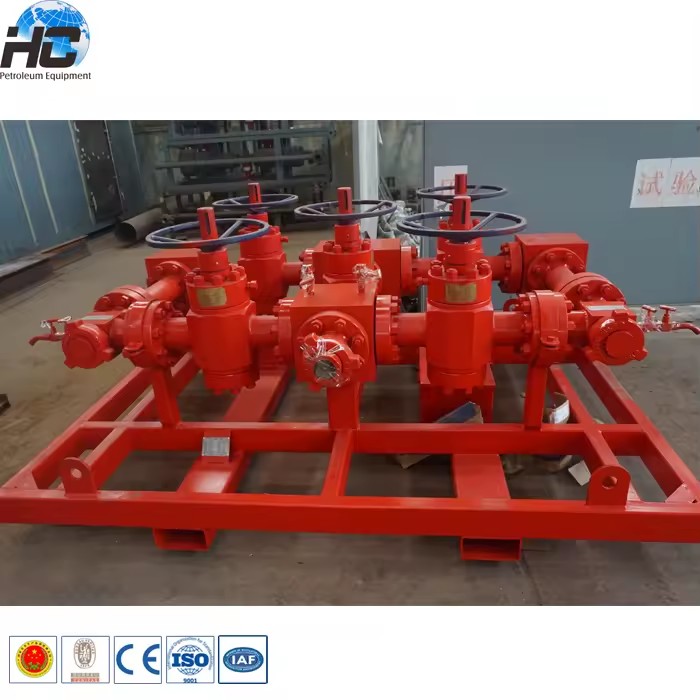

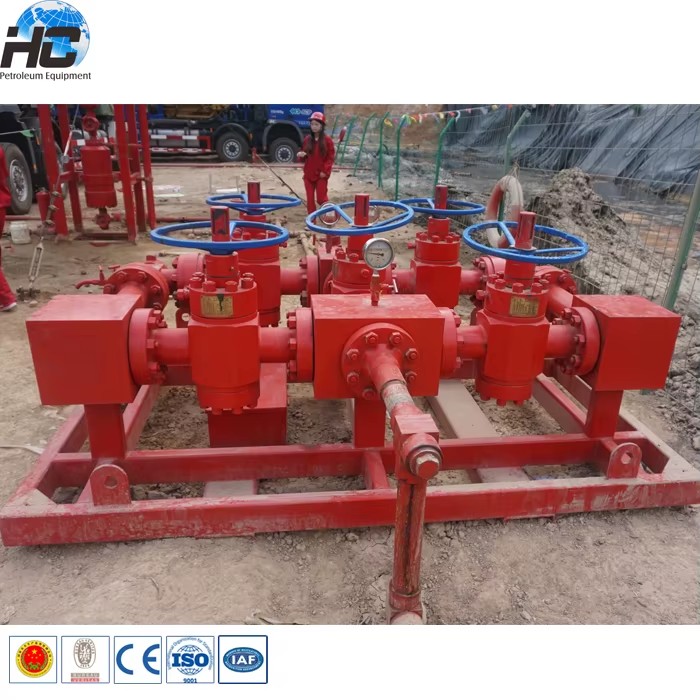

Choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold

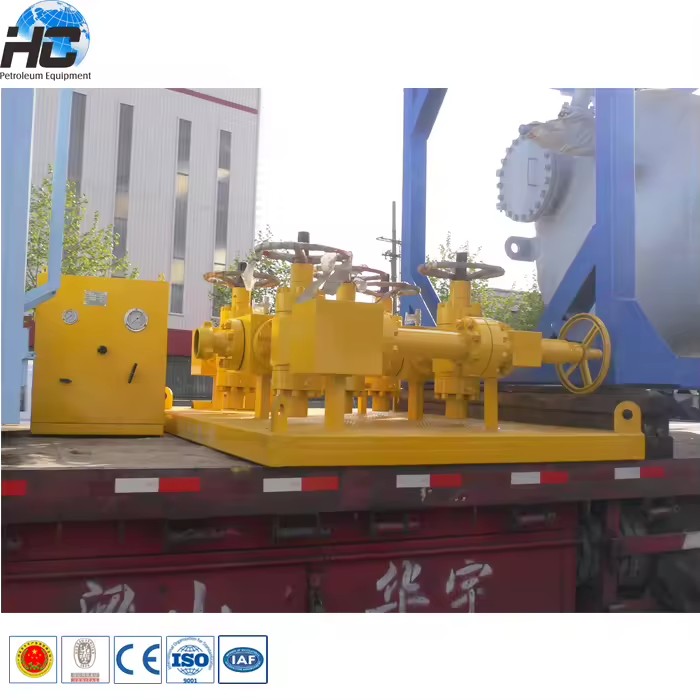

Choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.

The thchnical paramerers about our choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold

Pressure35MPa(5000psi)70M P a (10000psi)105M P a (15000psi)
ColorBlueYellowRed
ModelJG/S52-35JG/S78-70JG/S78-105
Design Pressure35MPa70MPa105MPa
Weight2530kg(5578lb)3580kg(7892.5lb)4630kg(10260lb)
Dimension(L×W×H)1802×1339×680mm2516×1824×799mm3270×2371×1038.7mm
Material LevelEEEEEE
Product specification levelPRL3PRL3PRL3
Working TemperaturePU(-29℃~121℃)PU(-29℃~121℃)PU(-29℃~121℃)
Product performance levelPR1PR1PR1
NozzleFixed and adjustable nozzleFixed and adjustable nozzleFixed and adjustable nozzle
CharacteristicsFive gate designFive gate designFive gate design
work mediumMud,oil and drilling fluidMud,oil and drilling fluidMud,oil and drilling fluid
Connection typeFlangeFlangeFlange

Main features of our choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold as below

ntrol the well fluid flow

2.Built-in Cameron style gate valves which can be redressed on pipeline

3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke

4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection

tal-to-metal, double seal to ensure reliability in harsh environments

6.15000psi adjustable nozzle adopts gear handle,which can reduce the operating torque

Any question or interest about our choke manifold, please don't hesitate to contact with us. It's our honor to help and support your business.

Just send your inquiry in the textbox below!

Description images
Choke Manifold Wellhead Equipment / Oil Drilling Equipment / Hydraulic Kill and Choke Manifold
Choke Manifold Wellhead Equipment / Oil Drilling Equipment / Hydraulic Kill and Choke Manifold
Choke Manifold Wellhead Equipment / Oil Drilling Equipment / Hydraulic Kill and Choke Manifold
Choke Manifold Wellhead Equipment / Oil Drilling Equipment / Hydraulic Kill and Choke Manifold
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Type
Throttling
Power Type
Gasoline
Voltage
220v
Machinery test report
Provided
Warranty
1 Year
Core components
Pressure Vessel
Video outgoing-inspection
Provided
Place of origin
China, Henan
Weight
200 kg(440.92lb), 2530kg(5578lb)
Dimension (L*W*H)
1802*1339*680mm(70.94*52.72*26.77in)
Name
Choke manifold wellhead equipment / oil drilling equipment
Model
JG/S52-35
Product Specification Level
PRL3
Design Pressure
35Mpa
Material Level
EE
Dimension
1802*1339*680mm
Product performance level
PR1
Characteristics
Five gate design
Working temperature
PU(-29°C~121°C)
Packaging Details
Packing of our oil choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold: 1.Nude packing. 2.Standards wooden box, practical sizes according to product size. 3.According to the requirements of your packaging a custom fit
Port of dispatch
QING DAO PORT
Selling Units
Single item
Supply Ability
30 units per Month drilling manifold
Power (W) (Product option)
100W(0.13hp)
Model number
JG/S52-35
Lead time
30 days
Minimum order
1 Units
