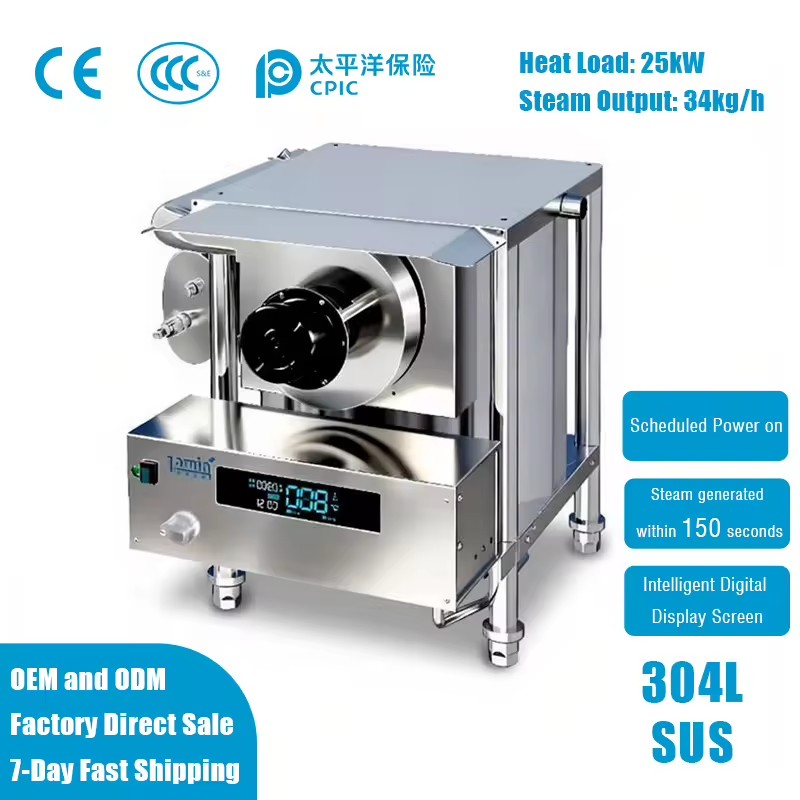

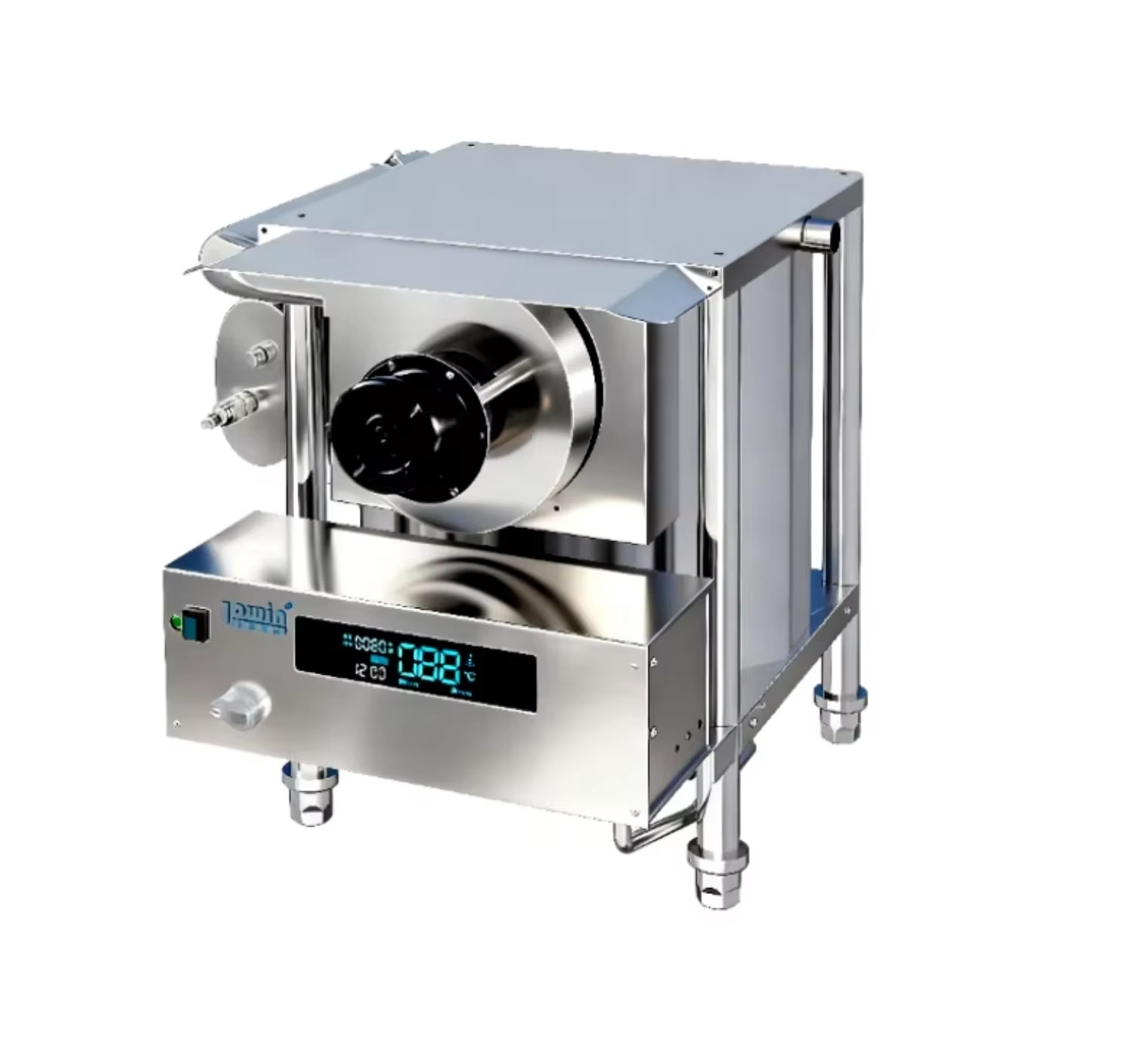

Name: Undercounter Gas Steam Generator Unit 25KW 34kg/h with 304 Stainless Steel Heat Exchanger Energy Saving 30%-50% for Food Plant
SKU: B2B-72179
Price: 830.0 USD
Availability: PreOrder

Product description

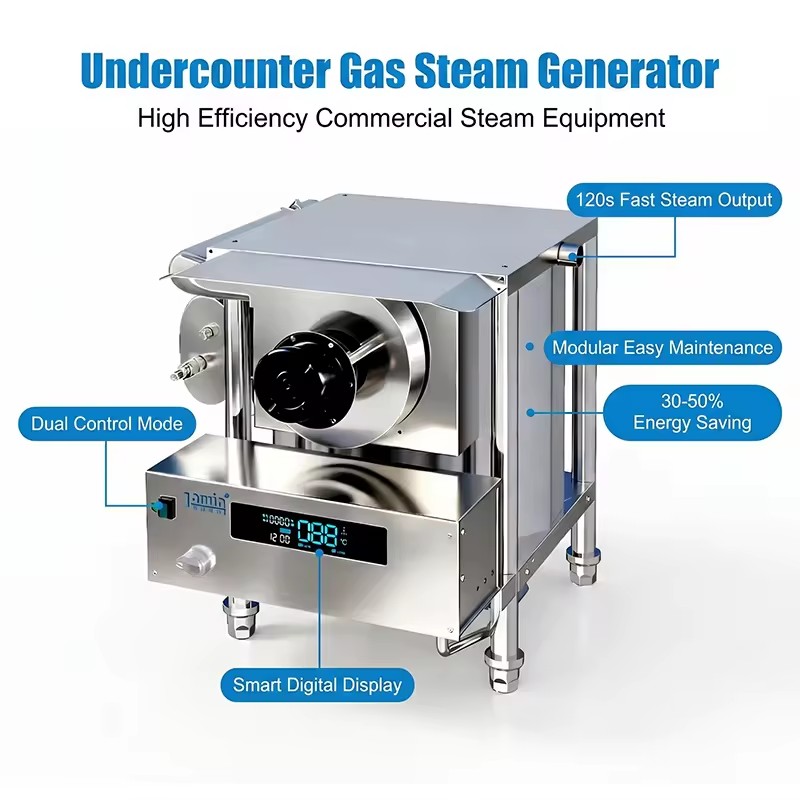

Smart Control and Easy Operation: Features one-touch start, auto-ignition, and auto water fill. The intuitive new-gen panel allows seamless switching between manual and auto modes.

Fast Steam Output: Generates continuous steam in just 120 seconds from cold water start.

Eco-Friendly and Low Noise: Utilizes natural draft combustion with CO emissions at only 5% of the national standard, reducing noise by 60% compared to traditional forced-draft models.

Premium 304L Stainless Steel: Constructed entirely of stainless steel, with the inner tank and heat exchanger made of corrosion-resistant 304L stainless steel. Features robotic welding for superior durability.

Comprehensive Safety System: Equipped with an advanced pressure control system and multiple protections (dry-boiling, flameout, anti-backdraft, etc.). Any faults will trigger an instant pop-up alert on the display.

Products Name	Under-Cabinet Gas Steam Generator Assembly
Model	J-ZQYG25	J-ZQYG60	J-ZQYG80	J-ZQYG100	J-ZQYG120
Fuel Type	LPG / LNG	LPG / LNG	LPG / LNG	LPG / LNG	LPG / LNG
Rated Gas Pressure (Pa)	2800 / 2000	2800 / 2000	2800 / 2000	2800 / 2000	2800 / 2000
Effective Capacity (L)	≤29	≤29	≤29	≤29	≤29
Steam Generation Time (s)	120-150	120-150	120-150	120-150	120-150
Ignition Method	Smart Pulse Ignition	Smart Pulse Ignition	Smart Pulse Ignition	Smart Pulse Ignition	Smart Pulse Ignition
Applicable Water Pressure (MPa)	0.15~0.4	0.15~0.4	0.15~0.4	0.15~0.4	0.15~0.4
Rated Voltage	AC220V / 50Hz	AC220V / 50Hz	AC220V / 50Hz	AC220V / 50Hz	AC220V / 50Hz
Steam Outlet Specification	DN25 M	DN25 M	DN25 M	DN25 M	DN25 M
Water Inlet Specification	DN15 M	DN15 M	DN15 M	DN15 M	DN15 M
Gas Inlet Specification	DN15 M	DN15 M	DN15 M	DN15 M	DN15 M
Drain Port Specification	DN25 M	DN25 M	DN25 M	DN25 M	DN25 M
Exhaust Pipe Diameter (mm)	φ50	φ50	φ50	φ50	φ50
Rated Electrical Power (W)	90	120	120	120	120
Steam Temperature (℃)	100-110	100-110	100-110	100-110	100-110
Rated Heat Load (kW)	25	40	50	60	70
Steam Output (kg/h)	34	55	70	80	90
LPG Consumption (kg/h)	2	3.2	4	4.8	5.6
Natural Gas Consumption (m³/h)	4	4	5	6	7
Dimensions (LWH, mm)	420x480x550	600×700×600	600×700×600	680×780×600	680×780×600
Packaging Method	Honeycomb Carton	Honeycomb Carton	Honeycomb Carton	Honeycomb Carton	Honeycomb Carton
Net Weight (kg)	30	45	47	55	56

Certifications & compliance

CCC(2)

Flame Retardant Material

Complies with EU standards

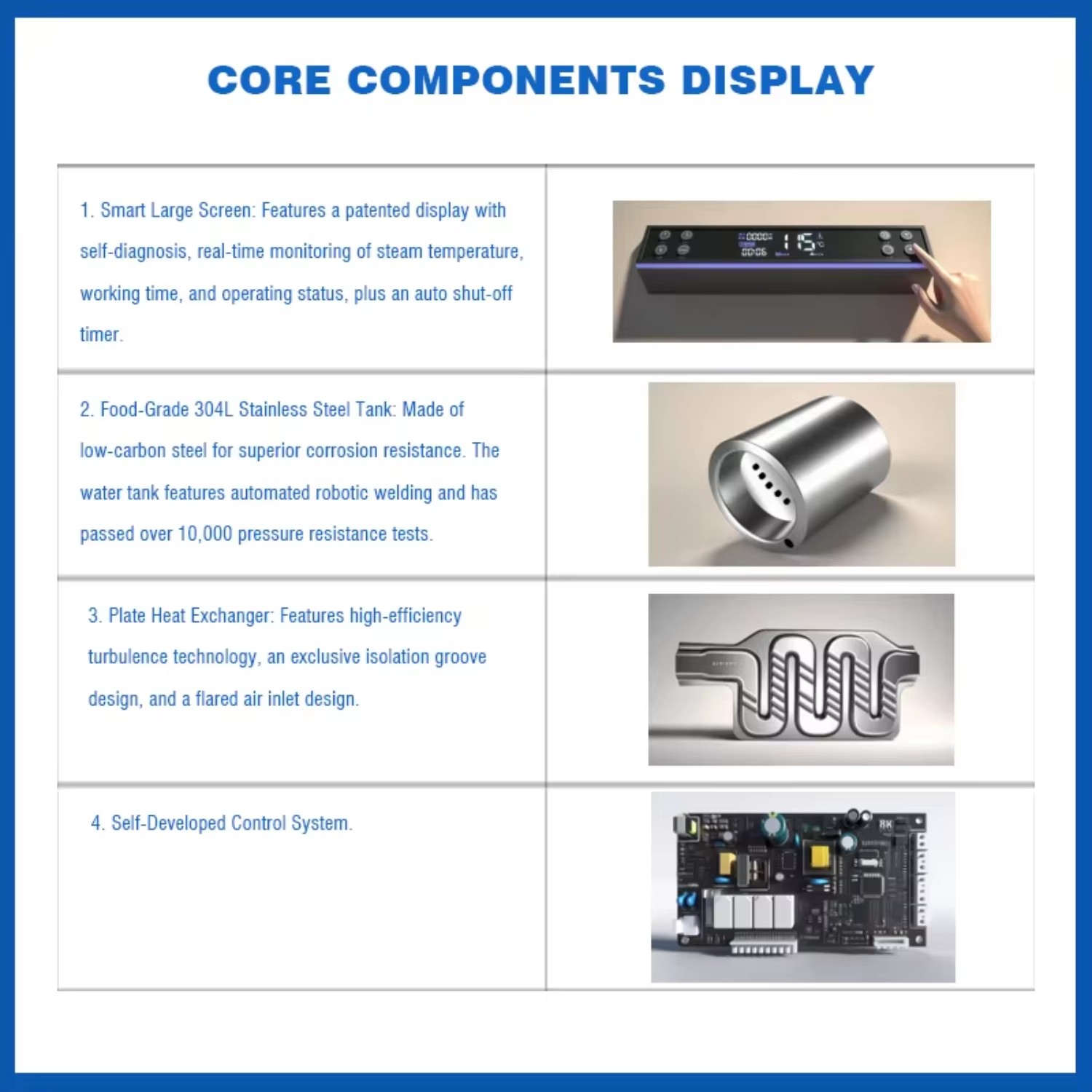

Description images

Undercounter Gas Steam Generator Unit 25KW 34kg/h with 304 Stainless Steel Heat Exchanger Energy Saving 30%-50% for Food Plant

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 169.00 for 1 set · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Power Source Type

Gas

Cooking Method

Steaming

Power (W)

25KW(33.53hp)

Material

304 stainless steel, Stainless Steel (Grade 304)

Features

Easy cleaning, Energy Saving Mode, Steam Injection, Remote Monitoring, Digital Display & Touchscreen, Temperature Control (±1°C), Timer Function, Self-Cleaning Function

Warranty

1 Year

Warranty Type

Parts Warranty

Fuel Type

Natural Gas (NG)

Gas type

Natural Gas, Gas, Natural Gas and liquefied petroleum gas

Weight(kg)

Model number (Specification)

J-ZQYG25

Dimension (L*W*H)

420x480x550 mm(16.54x18.90x21.65in)

Product Keywords

gas steam generator, Steam Generator Assembly

Core Technology

High Efficiency Rapid Steam Generation

Control Interface

Intelligent Digital Computer Control Panel

Installation type

Easy Wall-Mounted / Floor Standing

Steam Output (kg/h)

Steam Temperature

100-110°C

Application

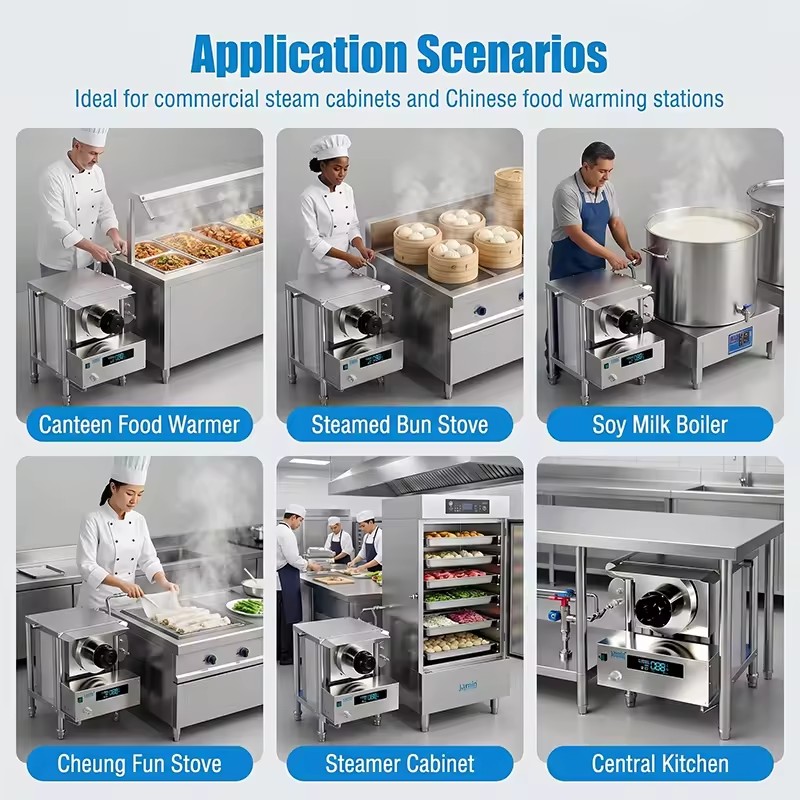

Catering Canteen/Kitchenware Factory Supporting Facilities

Certification

CE, CCC

Selling Units

Single item

Single package size

52X100X150 cm

Single gross weight

36.000 kg

Voltage (Product option)

220V

Machinery capacity (Product option)

Heat load: 25kw Steam output: 34kg/h, Heat load: 40kw Steam output: 55kg/h, Heat load: 50kw Steam output: 70kg/h, Heat load: 60kw Steam output: 80kg/h

Certifications & Compliance

CE, CCC(2)

Lead time

7 days

Minimum order

1 Units
