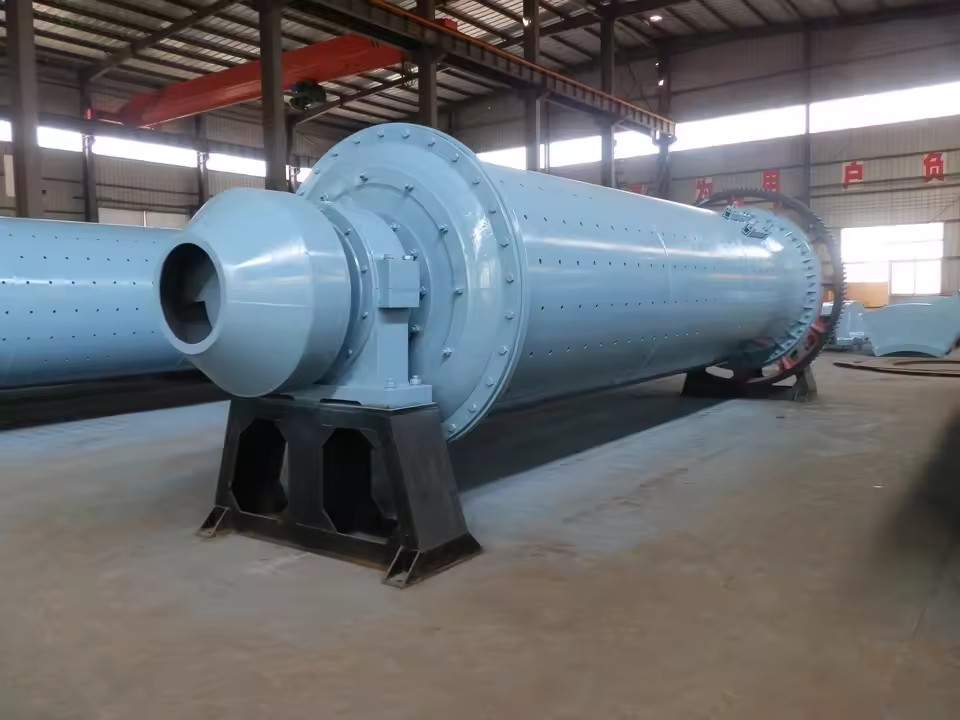

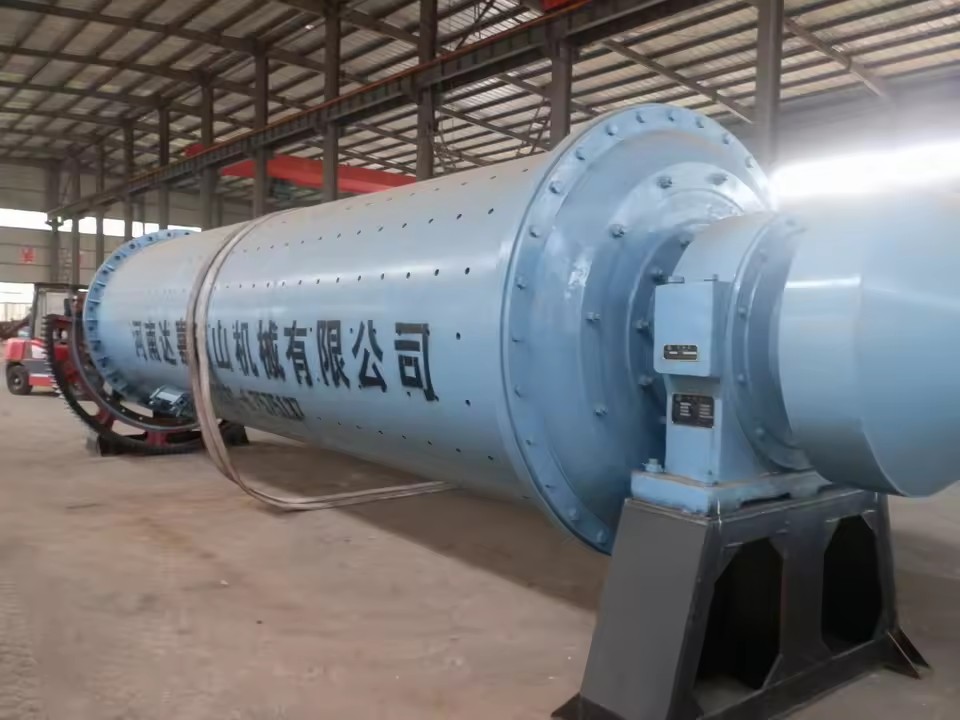

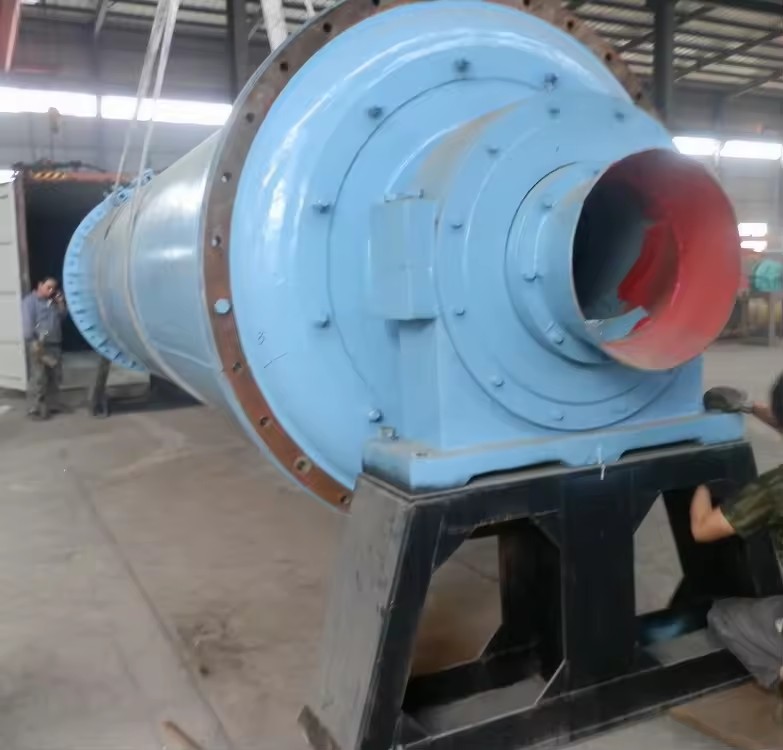

Energy Saving Ball Mill Grinding Line

high-efficiency energy-saving ball mill is a new type of equipment that has been modified on the basis of the traditional ball mill. It is widely used in the production industries such as cement, silicate, new building materials, refractory materials, fertilizers, metal beneficiation and glass ceramics.

Capacity 20-180t/h

Power 90-3300kw

Diameter Φ1.5-Φ4.0 m

Raw Materials Cement, slag, steel slag, nickel slag, coal and various mineral ores

Working Principle

energy-saving ball mill is working, the torque is transmitted to the ball mill girth gear and pinion by the motor and the reducer, to make the ball mill cylinder rotate. Due to the joint action of the rotating ball mill cylinder and the cylinder liner, a part of the steel balls (or other grinding medium) rise to a certain height, and make free-falling motion to produce impact force, which hits the material in the cylinder, and the rest of the steel balls mixing with the material perform the sag movement to generate friction, and collide the material during the rotation of the cylinder, the material is ground to a certain degree of fineness, and the coarse material continuously enters from the feeding port. Due to the fluidity of the material, the fine material after grinding is discharged from the discharging port.

Technical Details

Features

energy-saving ball mill equipment introduced advanced technology, and is featured with low energy consumption, high output, and fully.

The main advantages are as follows

1. Uniform particle size, large production capacity and high processing precision.

2. Adopt the new wear-resistant lining, the life of the wearing parts is greatly improved, to reduce operating costs.

3. Simple process, easy operation, low maintenance cost, and the stable operation.

4. Wide application range, strong processing capacity, and obvious advantages in continuous operation.

5. High yield, durable, reliable performance, good wear resistance, and can be freely adjusted according to needs.
