Tin Processing Plant Ore Mining Machinery with Pump As Core Component

Available for enquiry 0.0 · 0 reviews
USD

$ 2,050.00 2050.0 USD $ 2,050.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Key selling points
  • Production Capacity
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Capacity
  • Feeding size
  • Weight (kg )
  • Material
  • Lateral Obliquity
  • Installation
  • Whole line machine
  • Sample test
  • Visit factory
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number

This combination is unavailable.

Key attributes

View all
Type
Gravity Separator
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
energy conservation
Product description

Mining gravity separator processing line spiral chute Mineral spiral concentrator machinery spiral chute

Spiral concentrator is

The product is made of the fiberglass lined with wear-resistant resin and emery cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

Spiral concentrator Technical Specifications

Specification5LL-20005LL-15005LL-12005LL-9005LL-6005LL-400
Spiral Diameter(mm)200015001200900600400
Spiral Pitch(mm)1200540/680/900720 /540675/540 /405400240/180
Lateral Obliquity9°9°9°9°9°9°
Starts344422
Feeding Sizes(mm)2.00-0.040.8-0.0370.3-0.030.3-0.030.2-0.020.2-0.02
Feeding Density (%)30-5530-6025-3525-5525-5525-55
Capacity(t/h)7-106-84-62-30.4-0.80.15-0.2
Dimension (mm)Length2120160013601060700460
Width2120160013601060700460
Height560053005230400026001500
Weight (kg )90080060040015050

Main Features

1. Reasonable structure and small area occupation

2. High recovery, high efficiency, and precise separation

3. Non-required power

4. Light in weight, anti corrosion, rust and wear resistant

5. Simple installation and Minimal maintenance requirements

6. Low operating cost and long working life

7. Reliable running with minimal operator attention

8. Strong adaptability to fluctuation of feeding amount, density, size and grade

9. The surface of emery forms strong friction the concentration effect surpass plastic surface

Working principle

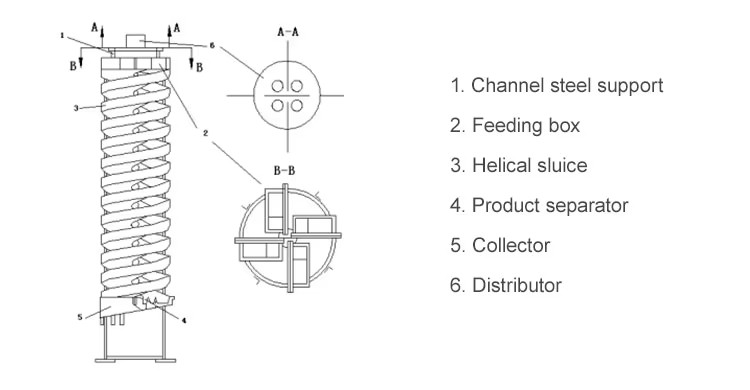

Spiral Chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral, and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles arecarried with the bulk of the water towards the outside of the spiral, while particles with the greatest density migrate towards the inside of the spiral.

It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.

Now

FAQ

Q:You are factory or trade company?

A

A:We are the biggest grav

workshops,1sample test workshop,1office build.

Q:If your company can provide whole line machine?

A:Yes,From crushing or washing to get final gold bar.

A:Yes,From

Q:What's capacity you can provide?

A:All machine can customization,we can provide from 1t/h-100t/h.

Q:If can arrange engineer come to worksite for installation?

A:Yes.

More details,please don’t hesitate to

or add My

Pre-Sales Service Inquiry and consulting support.

Sample testing support.View

After-Sales Service Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas.

Related product

Trommel screenShaking table3 discs magnetic separator
Description images

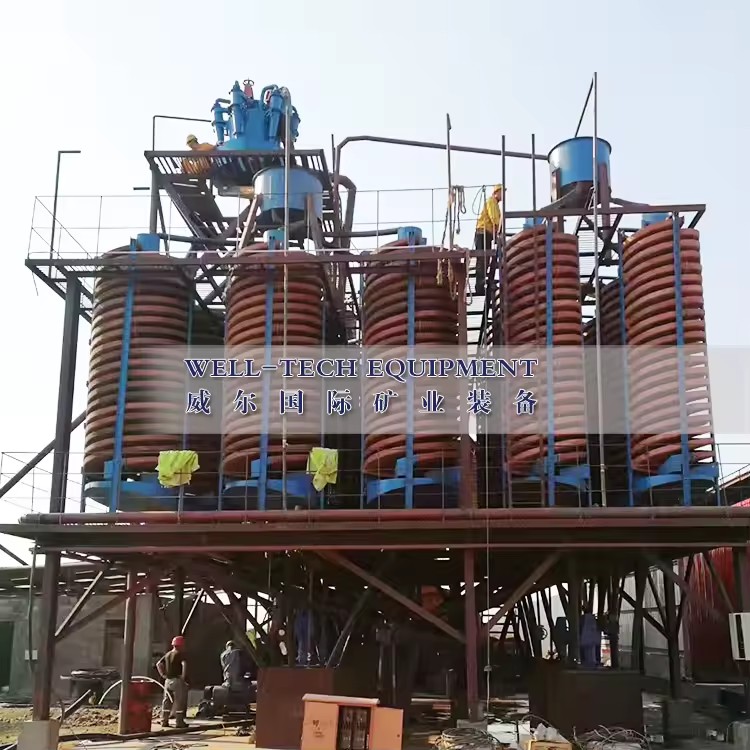

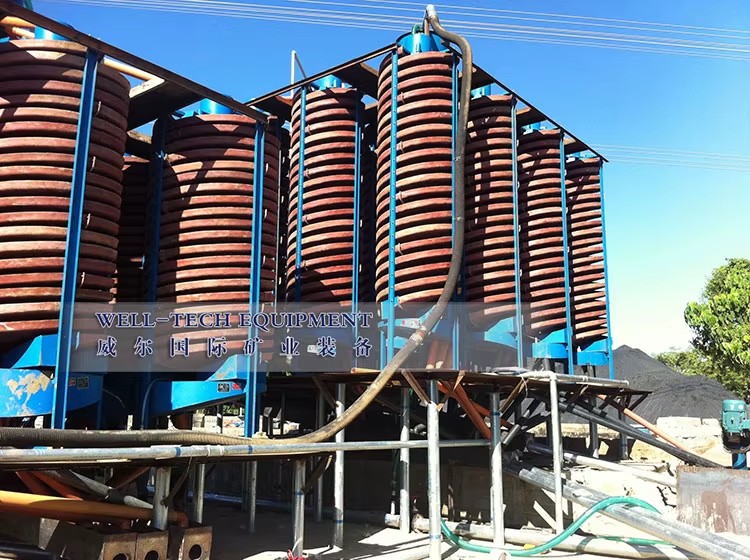

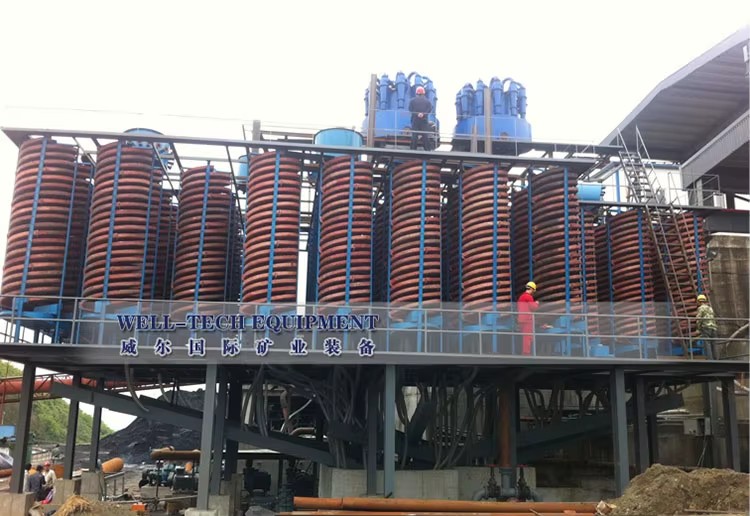

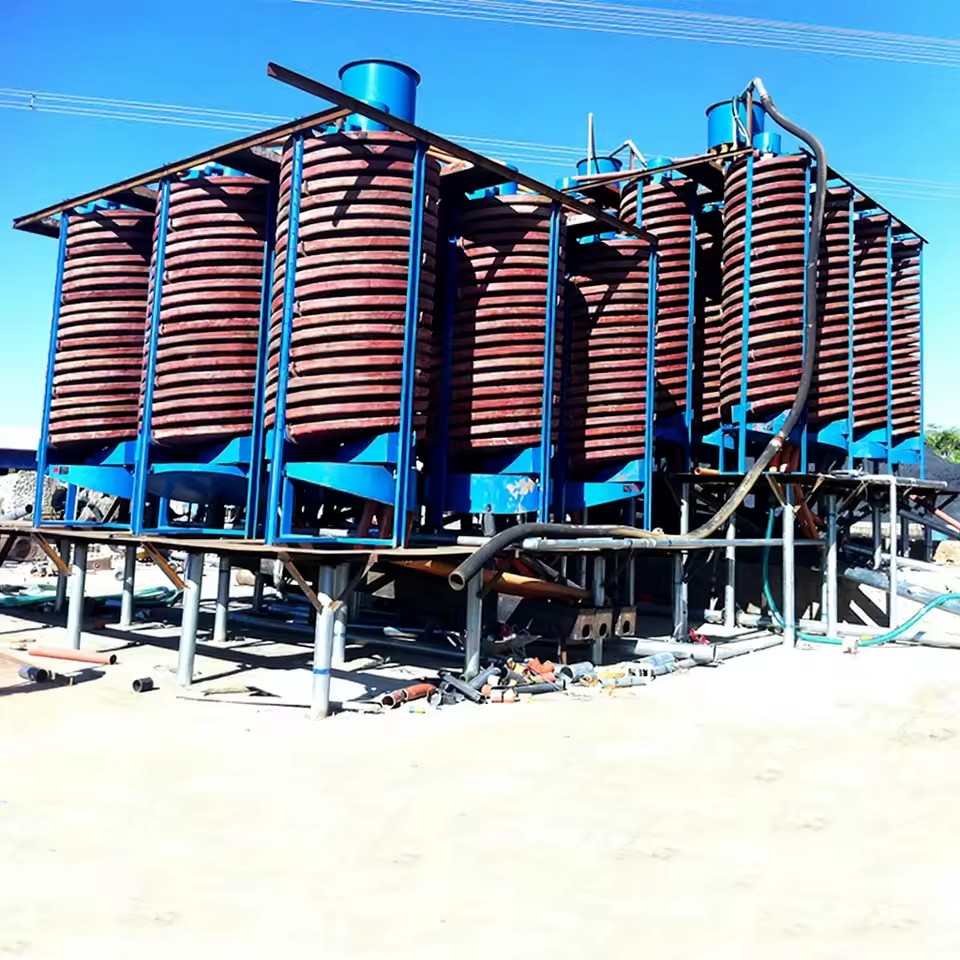

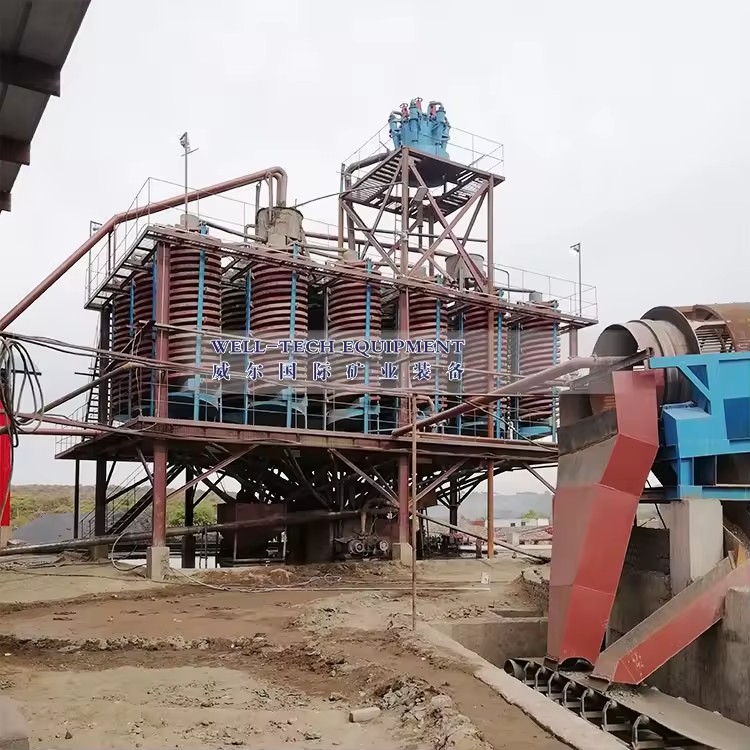

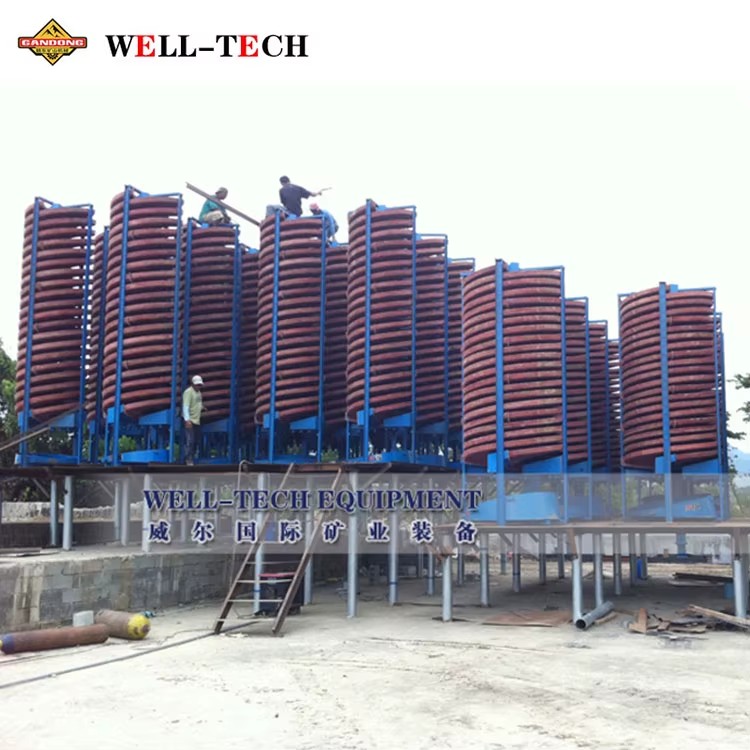

Tin Processing Plant Ore Mining Machinery with Pump As Core Component
Tin Processing Plant Ore Mining Machinery with Pump As Core Component
Tin Processing Plant Ore Mining Machinery with Pump As Core Component
Tin Processing Plant Ore Mining Machinery with Pump As Core Component
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Multimodal transport · Approx. shipping fee: $ 358.19 for 1 unit · Estimated delivery in 38-48 business days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
Gravity Separator
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
energy conservation
Production Capacity
90 pcs/min
Place of origin
China, Jiangxi
Weight
800 KG(1763.70lb)
Dimension (L*W*H)
diameter 900/1200/1500mm
Capacity
5T/h
Feeding size
<2mm
Weight (kg )
800KG
Material
fiberglass
Lateral Obliquity
9°
Installation
Engineer Guide
Whole line machine
supply
Sample test
supply
Visit factory
welcome
Selling Units
Single item
Single package size
20X20X20 cm
Single gross weight
68.000 kg
Model number
5LL-900, 5LL-1200, 5LL-1500
Lead time
30 days
Minimum order
1 Units
