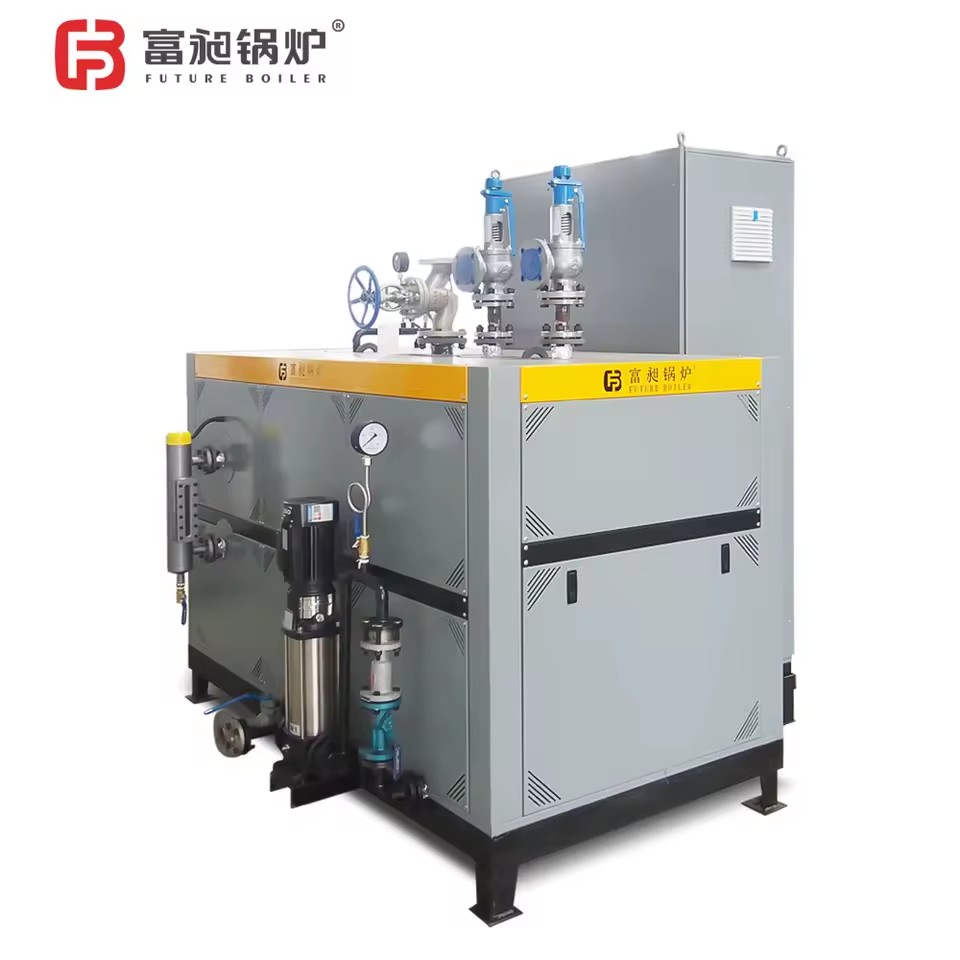

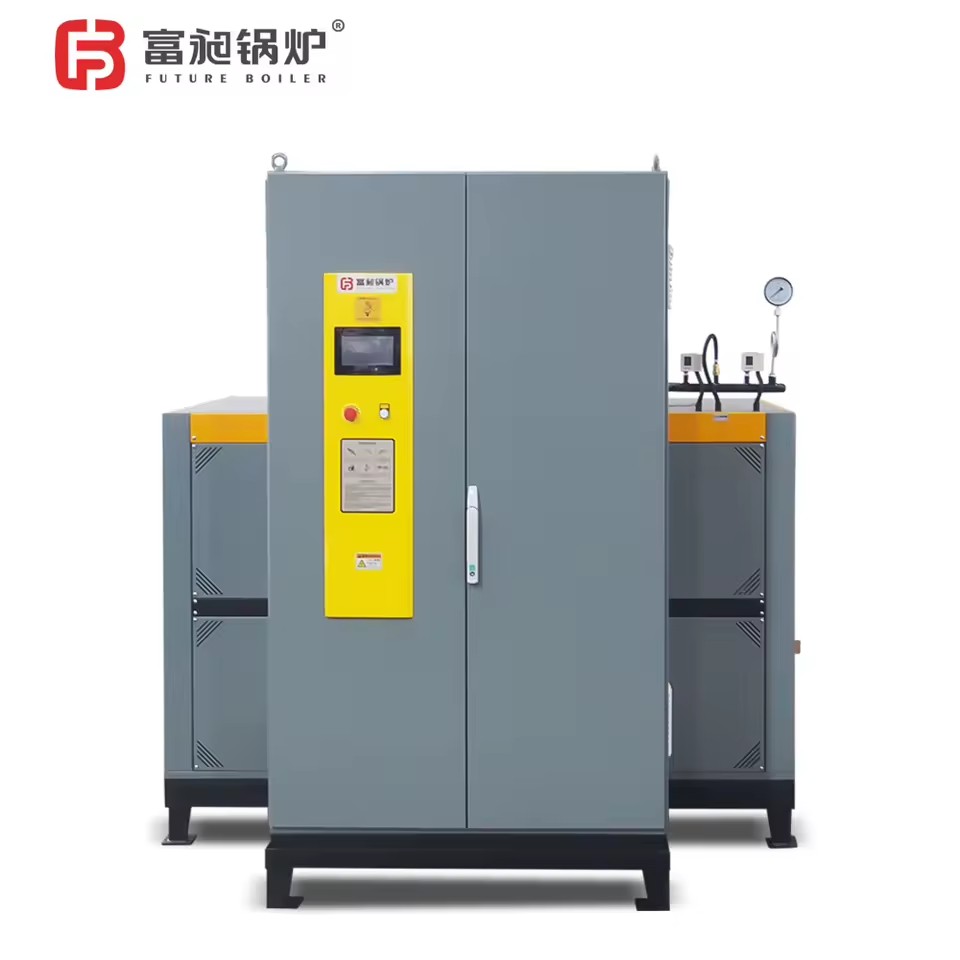

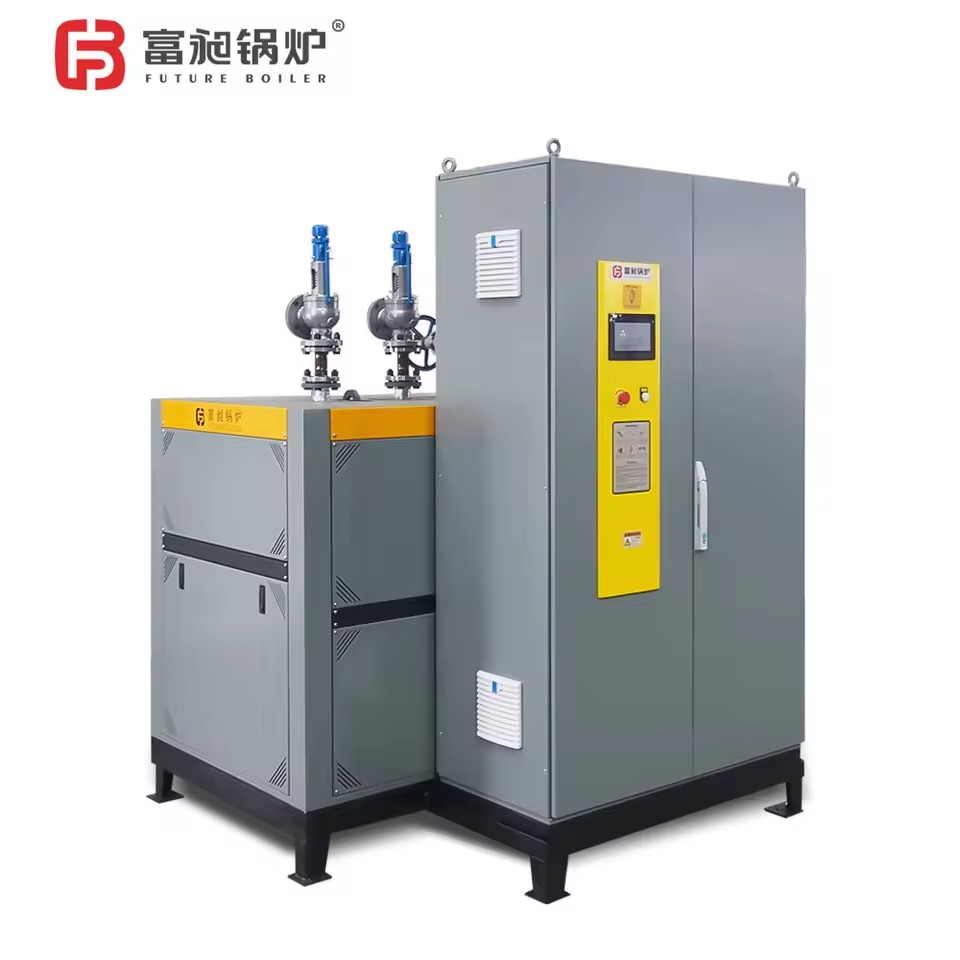

Name: Thermal Efficiency 98% 1T/Hr Horizontal Low Pressure Automatic Industrial Electric Steam Generator PLC Control 5Year Warranty CE
SKU: B2B-49385
Price: 7820.0 USD
Availability: PreOrder

Product description

Q

A: We are factory.

Q: How long is your lead time?

A: Generally it is 5-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock, it is according to quantity & requirements.

Q: What are the shipping terms?

A: Ocean shipment to the harbor near from your city; Air freight to the airport near from your company

Door to door service by international express.

Q: What is your warranty peroid?

A: 24 months dated from shipment or 18 months dated from installation in user site, whichever occurs earlier.

Q: Will you test the equipment before shipment?

A: YES! We will test EACH BOILER before shipment, remember each! If you have another question, pls feel free to

Technical Parameters

Model	WDR0.8-0.8	WDR1-1.0	WDR1.5-1.0	WDR2-1.0	WDR3-1.0	WDR4-1.25
Item	Unit
Rated steam capacity	t/h	0.8	1	1.5	2	3	4
Rated working pressure	MPa	0.8	1.0	1.0	1.0	1.0	1.25
Saturated steam temp.	℃	175	184	184	184	184	194
Input power	KW	576	720	1080	1440	2160	2880
Input current	A	892	1100	1650	2210	3260	4350
Electric voltage	V	380
Water inlet dia.	DN	32	40	40	40	40	40
Steam outlet dia.	DN	40	50	65	65	80	100
Blowdown valve dia.	DN	40	40	40	40	40	40
Safety valve dia.	DN	40	50	50	2×40	2×50	2×50
Overall dimension （L×W×H）	mm	2690 ×1500×1810	2870×1600×1950	3510×1890×2220	3620×1930×2310	4260 ×2100 ×2550	5030×2150×2550
Net weight	kg	2050	2580	3060	3520	4180	4850

Lifetime Protection Service Content

Model	WDR 0.8-0.8	WDR 1-1.0	WDR 1.5-1.0	WDR 2-1.0	WDR 3-1.0	WDR 4-1.25
Item
Rated steam capacity (t/h)	0.8	1	1.5	2	3	4
Rated working pressure (MPa)	0.8	1.0	1.0	1.0	1.0	1.25
Saturated steam Temp (°C)	175	184	184	184	184	194
Input power (KW)	576	720	1080	1440	2160	2880
Input current (A)	864	1080	1620	2160	3240	4320
Rated voltage oil(V)	Made to order
Thermal efficiency (%)	98
Water inlet dia (DN)	32	40	40	40	40	40
Steam outlet dia (DN)	40	50	65	65	80	100
Blowdown valve dia (DN)	40	40	40	40	40	40
Safety valve dia (DN)	40	50	50	2×40	2×50	2×50
Overall dimension. L×W×H (mm)	2690×1500×1810	2870×1600×1950	3510×1890×2220	3620×1930×2310	4260×2100×2550	5030×2150×2550
Net weight (kg)	2050	2580	3060	3520	4180	4850

Vertical Electric Steam Boiler Product Introduction

Model	LDR0.2-0.8	LDR0.25-0.8	LDR0.3-0.8	LDR0.4-0.8	LDR0.5-0.8
Item	Unit
Rated steam capacity	Kg/h	200	250	300	400	500
Rated working pressure	MPa	0.8
Saturated steam temp.	°C	175
Input power	KW	144	180	216	288	360
Input current	A	169.2	235	270	329	547
Thermal efficiency	%	99
Water inlet dia.	DN	20	25	25	25	25
Steam outlet	DN	25	32	32	32	40
Blowdown valve dia.	DN	25	32	32	32	32
Safety valve dia.	DN	25	25	25	32	40
Overall dimension （L×W×H）	mm	1130×750×1780	950×900×1830	1320×1040×1920	1380×1040×2070	1020×890×2350
Net weight	kg	450	650	760	890	1020

Certifications & compliance

PED(2014/68/EU)

Pressure Equipment Directive compliant

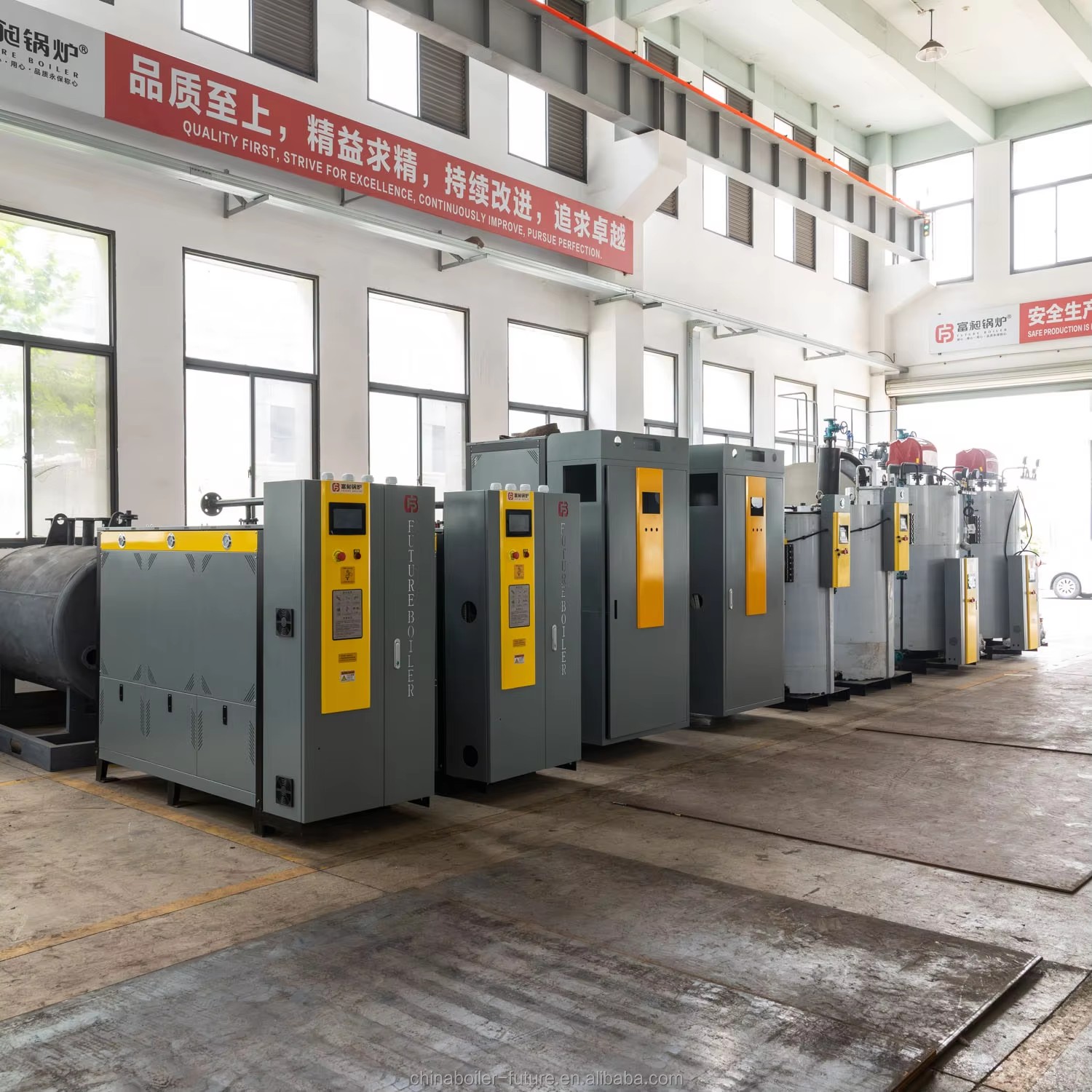

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 86.00 for 1 set · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

OUTPUT

Steam

Usage

Industrial cleaning

Fuel

electric

Pressure

Low Pressure

Structure

heating elements

Type

Natural Circulation

Material

Carbon Steel

Core components

PLC, Pressure Vessel, Pump

Key selling points

Automatic, Easy To Operate, High-Accuracy, Long Service Life, High Safety Level, Energy Saving, Remote Monitoring, Low Maintenance Cost, Remote Control, Patented Product, Accurate Temperature Control, Famous Brand PLC, IOT, Digital, R410A

Style

Horizontal

Warranty

More Than 5 Years

Video outgoing-inspection

Provided

Machinery test report

Provided

Weight (kg)

2580

Place of origin

China, Jiangsu

Dimension(L*W*H)

2870*1600*1950

Thermal efficiency

98%

Installation

Professional Installation Guidance

After Warranty Service

Video Technical Support Online Support

Control system

Touch Screen

Steam Capacity

1000kg-4000kg/h

Operation

Fully Automatic Control

Advantages

Safe Operation

Application

Cleaing

Selling Units

Single item

Single package size

48X52X85 cm

Single gross weight

50.0 kg

Steam production

Max.1T/h, Max.2T/h, Max.3T/h, Max.4T/h

Model number

WDR4-1.25, WDR1-1.0, WDR2-1.0, WDR3-1.0

Certifications & Compliance

PED(2014/68/EU)

Lead time

35 days

Minimum order

1 Units
