Name: TDO Smart Display 4 Inch 86-Type Wall Control Panel 720*720 485/CAN/WiFi Centralized Smart Control Custom Programming Smart Home
SKU: B2B-54324
Price: 80.0 USD
Availability: PreOrder

Product description

PRODUCT SPECIFICATION

Smart Home & IoT Display 86 Box
Touch method	480RGB×480	720RGB×720
Model	TY040WVP04CF	TY040HDP04CF
Touch	Capacitive touch
Active area(mm)	71.86 (W) × 70.18 (H)
Product size(mm)	86.4(W)×86.4(H)×38.85(T)	86.4(W)×86.4(H)×38.85(T)
Brightness (cd/m²)	430	340
Communication mode	485/CAN/WiFi
Download pictures	JPG/PNG
Video player	H.264 format video only (Up to 1280*720 pixels)
Audio player	MP3 and WAV format audio support
Firmware update	Micro USB
Download pictures	Micro USB
Storage	Customer available 60M
Display type	TFT LCD IPS
Back light	LED
Perspective (T/B/L/R)	(85/85/85/85)
Voltage	3.6~5.5V, typical 5V DC
Working temperature	20℃~70℃
Storage temperature	30℃~80℃
RTC	Support
Speaker	Support

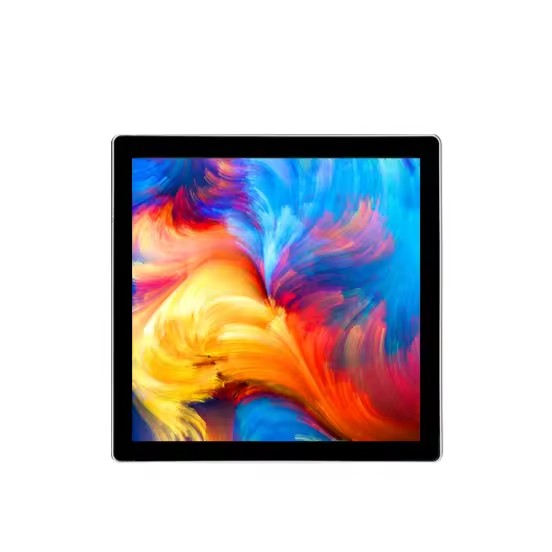

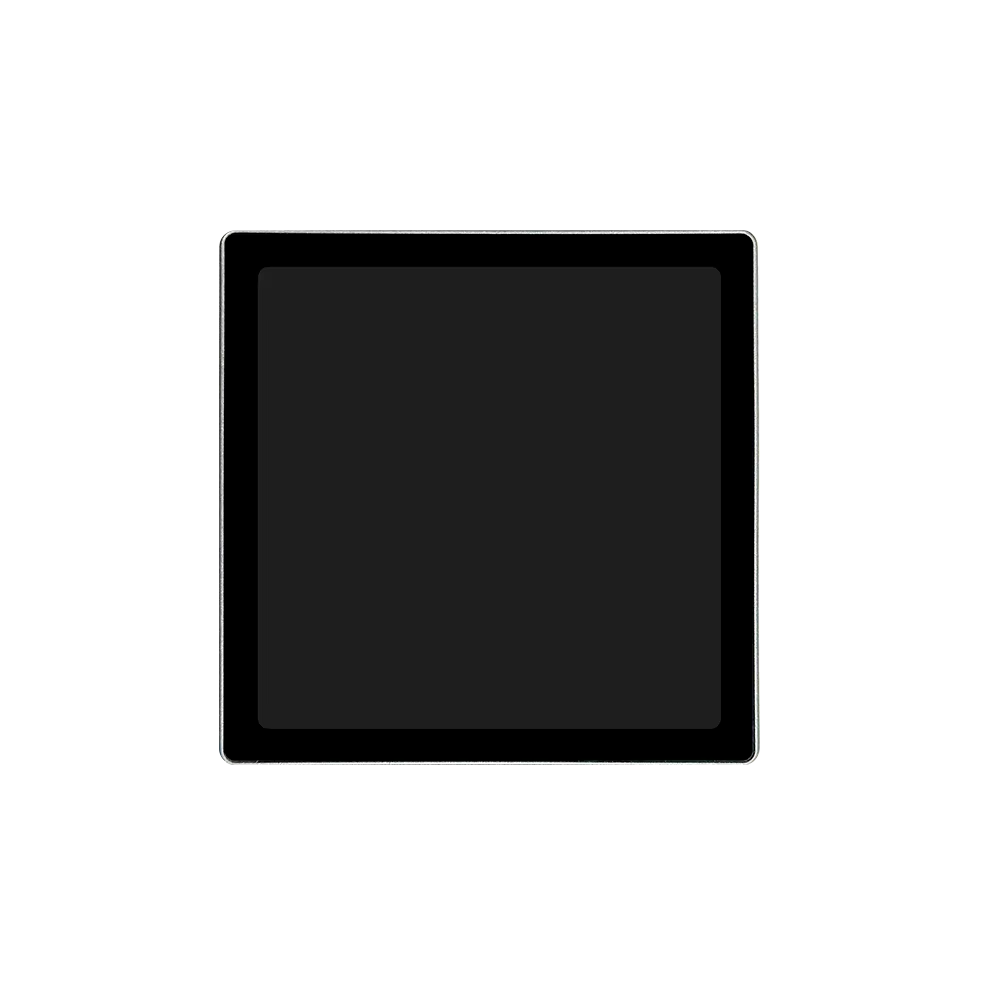

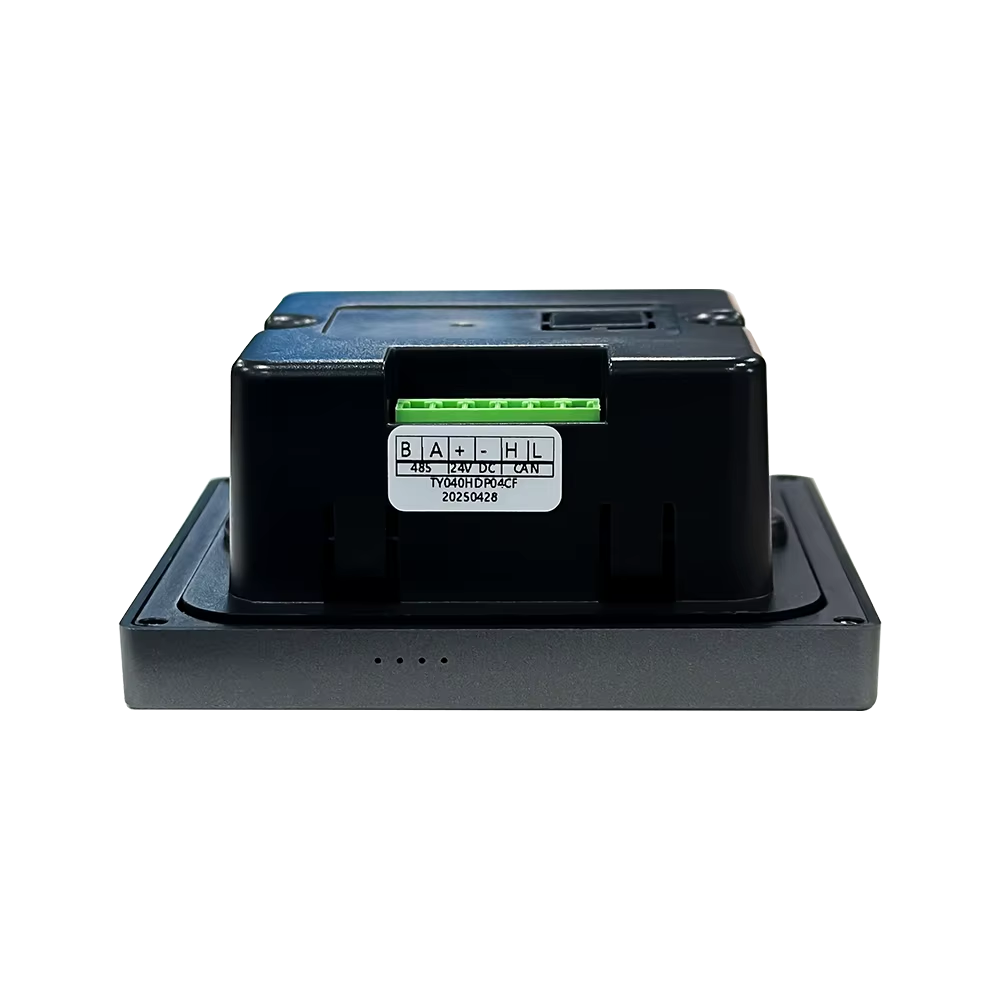

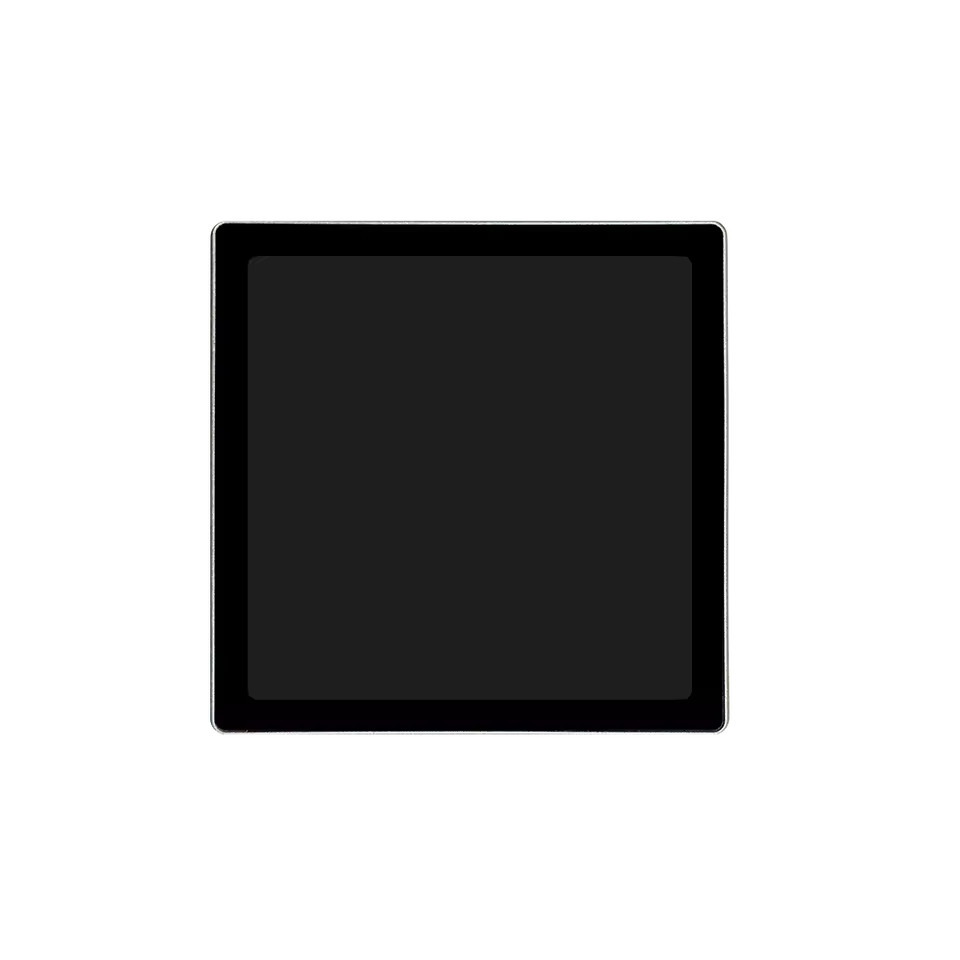

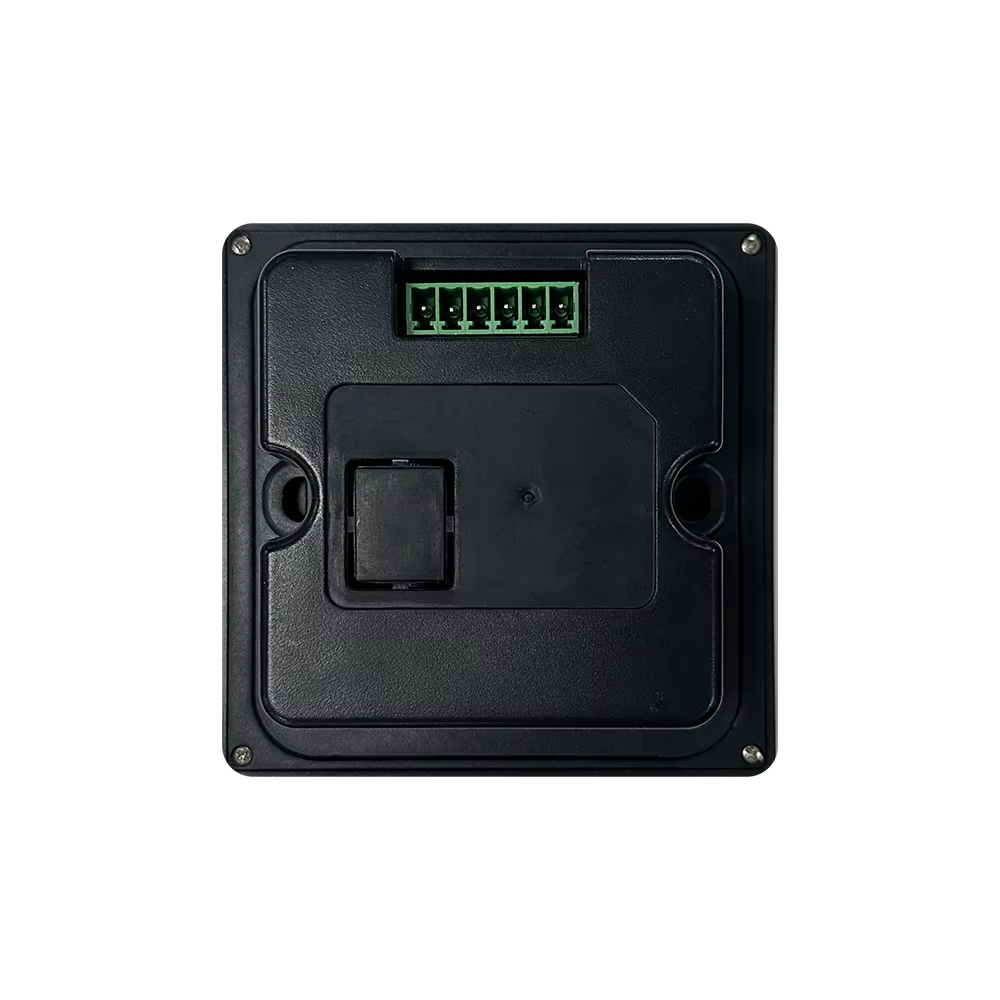

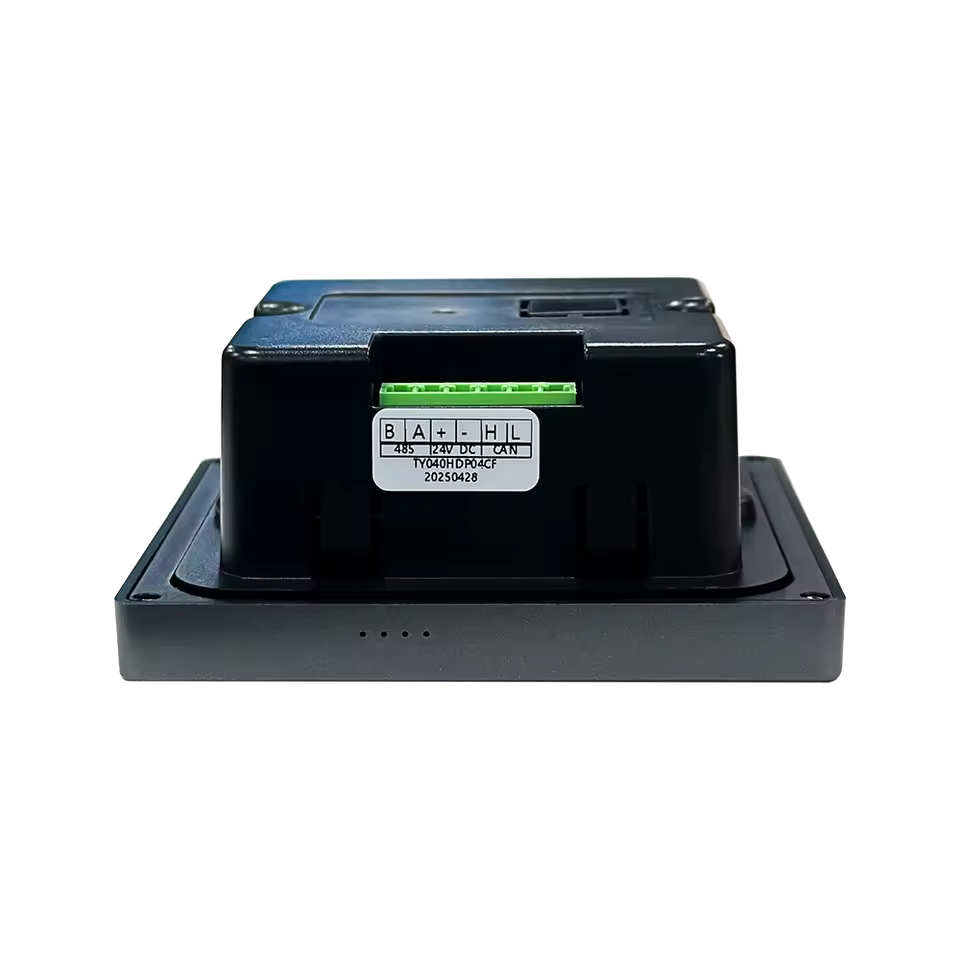

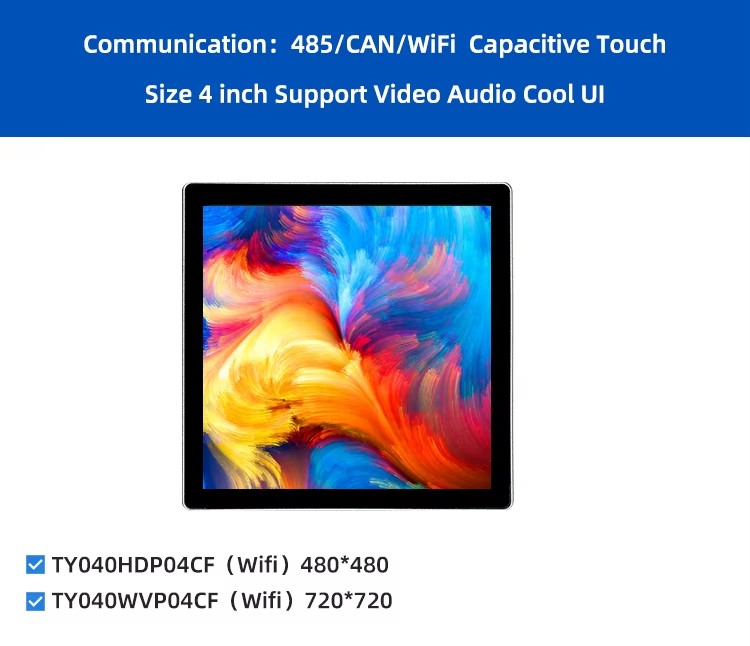

PRODUCT PICTURE

ENVIRONMENT RELIABILITY TESTING

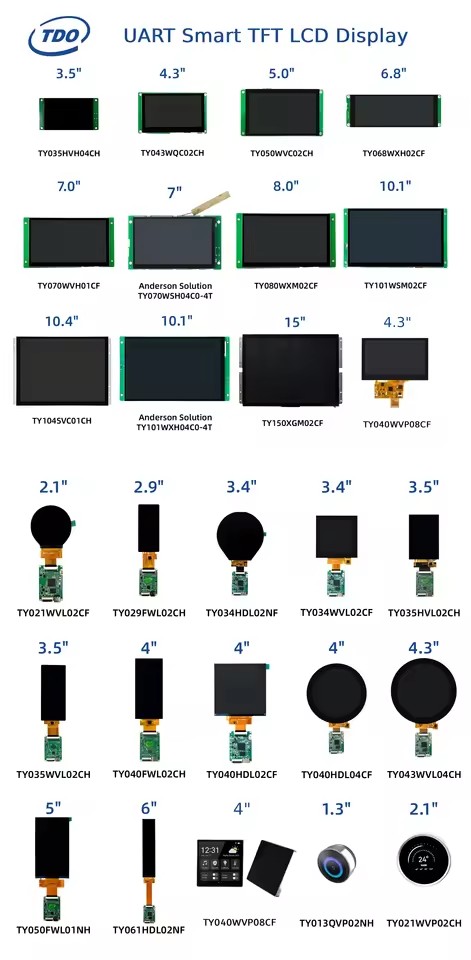

Intelligent Display Product List
Type	Size	Model No.	Resolution	Development Mode	Interface
86 Box	4.0"	TY040WVP04CF	480*480	Giraffe IDE	RS485/CAN/WiFi
4.0"	TY040HDP04CF	720*720	Giraffe IDE	RS485/CAN/WiFi
4.0"	TY040WVP08CF	480*480	Giraffe IDE	R485/RJ45/POE
4.0"	TY040HDP08CF	720*720	Giraffe IDE	R485/RJ45/POE
Smart knob	1.28"	TY013QVP02NH	240*240	Giraffe IDE	TTL
2.1"	TY021WP02CH	480*480	Giraffe IDE	TTL

Certifications & compliance

RoHS

RoHS compliant

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Air + Express via FLY Logistics · Approx. shipping fee: $ 12.00 for 1 piece · Transit time: Est. 8-9 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Type

Capacitive

Place of origin

China

Model number (Specification)

TY040HDP04CF((WIFI), TY040WVP04CF((WIFI)

Application

Consumer-grade

Interface

485/CAN/WiFi

Core Processor

TR230M

Size

4.0 inch

Resolution

720*720/480*480

Active area(mm)

71.93 (W) * 71.93(H)/71.86 (W) *70.18 (H)

Communication mode

485/CAN/WiFi

Storage

Customer available 60M Bytes

Back light

LED

Brightness(cd/m2)

340/430

Working temperature

20°C~70°C

Storage temperature

30°C~80°C

Selling Units

Single item

Single package size

30X20X10 cm

Single gross weight

3.0 kg

Size / Dimension (Product option)

TY040HDP04CF, TY040WVP04CF

Certifications & Compliance

RoHS

Lead time

15 days

Minimum order

1 Units
