Energy saving and high quality ball mill for sale
Cement ball mil b rief introduction
Ball mill is an important equipment in grinding process after primary crushing. It is widely used in cement production, silicate products, new construction material,refractory material, chemical fertilizer, ferrous and non-ferrous metals beneficiation and glass ceramics industries.
Our MQZ energy saving bearing type edge drive ball mill has been technology upgraded. Compared with traditional type, it reduces working electric current 15%, and reduces starting electric current 50%.It has greatly improved the faults of concentricity,running unstable, current fluctuated etc.After using roller beaing, the hollow shaft can also work and save lubricant 90%, increase ball loading 20%,increase capacity 15%,speed up 10% and save electricity 20-30%.

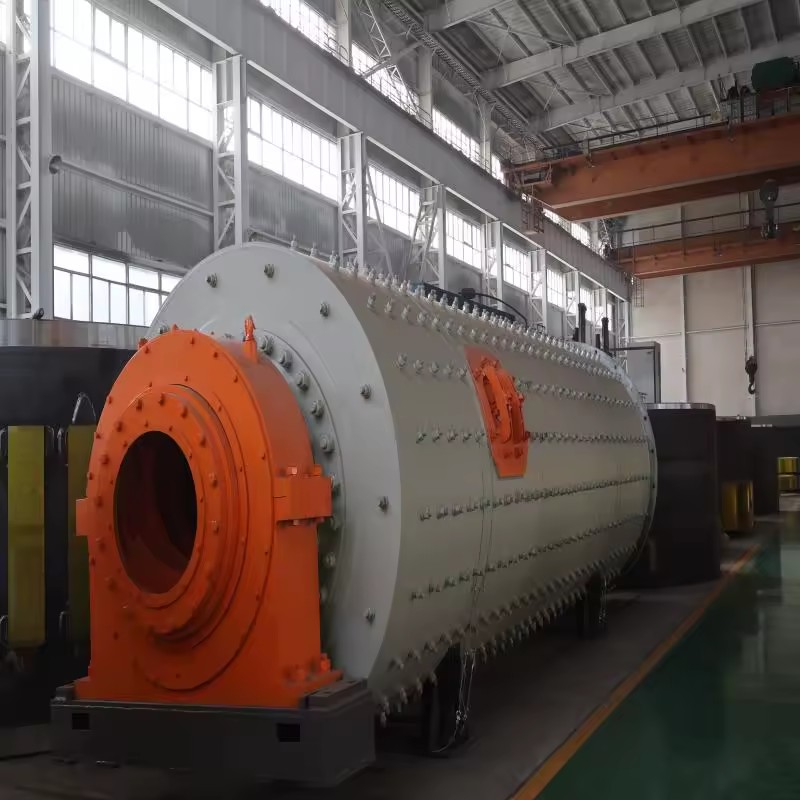

(MQZ energy saving bearing type edge drive ball mill)

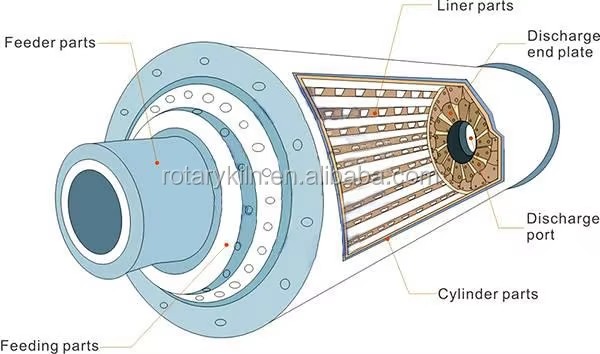

Cement ball mil s tructure
Cement ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
Cement ball mill a pplications
The ball mill is key equipment in grinding industry, especially in mineral ore dressing plants. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.

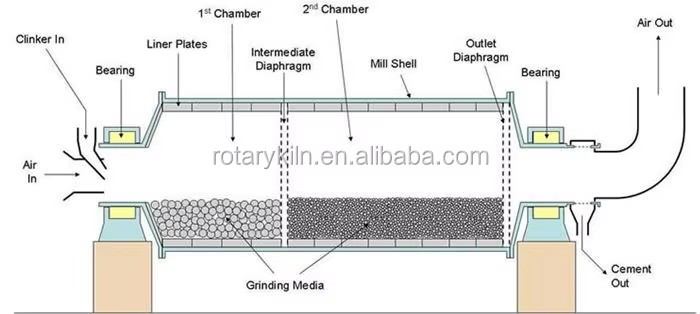

Cement ball mil w orking principle
1. This cement ball mill, a horizontal type and tubular running device, has two chamber. This machine is grid type. The material enters first warehouse spirally and evenly along the input material hollow axis by input material device.
2. In this chamber, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls. When shell rotates and it produces centrifugal force. At this time, steel balls will be carried to certain height and falls down to make the material heavy impact and grinded.
3. After being grinded coarsely in the first chamber, material enters second chamber for regrinding with the steel ball and scaleboard. At the end, the powder is discharged by output material board and the final products are completed.

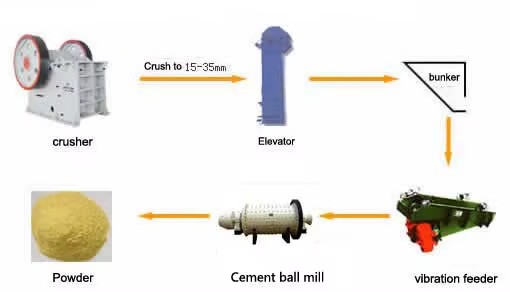

Cement ball mil p roduction line
Cement ball mil f inished Products
Cement ball mil f requently questions
Q: “What’s the technique structure of ball mill machine?
A: Cast steel hollow shaft, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good wear resistance. Smooth mill operation of the machine, reliable.
Q: “Can introduce the details of several issues when used ball mill to grind rocks?”
A: 1. Additional ball mill should be regularly in order to maintain the best ball mill loading.
2. Running regularly on the recirculation pump, piping and recycling containers to wash, cyclone should also be regularly switch, flush to prevent clogging. 3.Ball mill output should be in the best run, should not easily change the output.
Cement ball mill t echnical data
Cement ball mil f eatures: 1.Ball Mill is an efficient tool for grinding many materials into fine powder; 2.The ball mill is used to grind many kinds of mine and other materials, or to select the mine; 3.Ball mill is widely used in building material, and chemical industry. 4.There are two ways of grinding: the dry way and the wet way. 5. Ball mill can be divided into tabular type and flowing type according to different expelling mine 6. To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media. 7. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours. 8. The longer the ball mill runs, the finer the powder will be. 9.Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

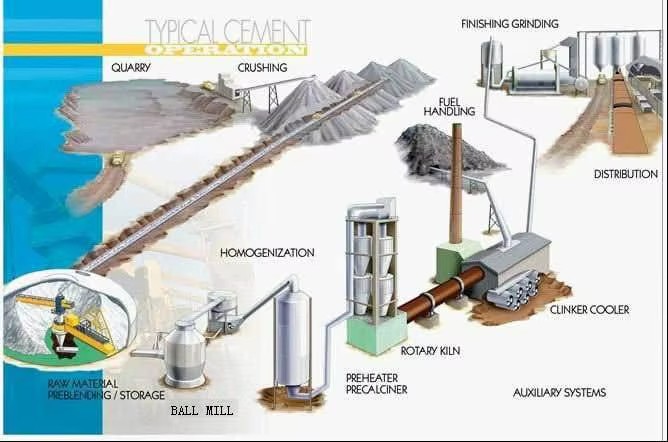

cement grinding station project
The main products of
1.
All machines from ZK are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to y ou right away.
3. If you are new for this business
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
FAQ
♥ What is the type and size of raw material?
♥ What is your required capacity(t/h)?
