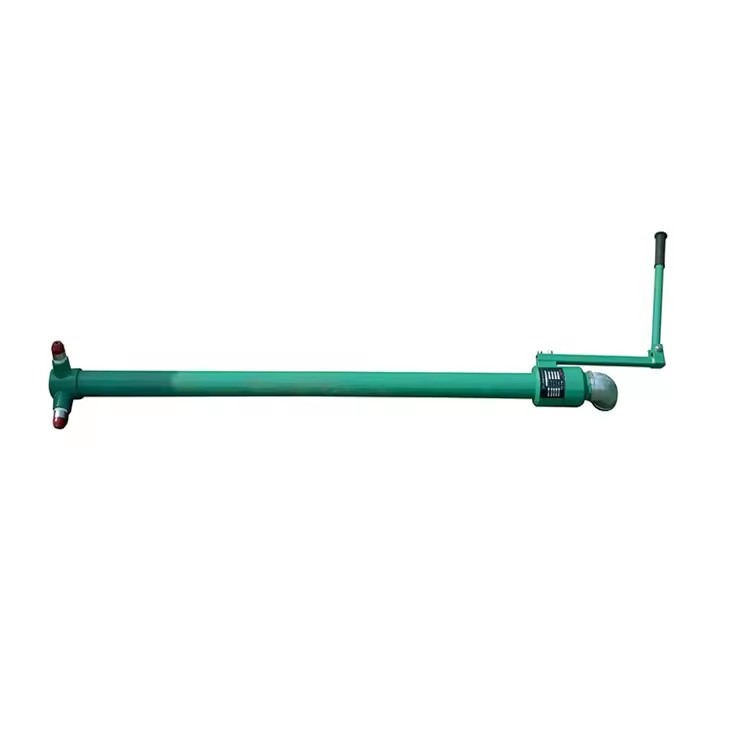

2" Diameter Oil Drilling Mud Gun for Solid Control tank

2" Diameter Oil Drilling Mud Gun for Oilfield

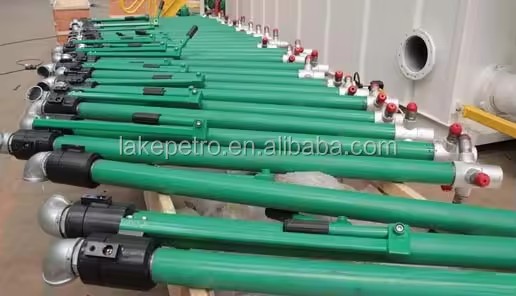

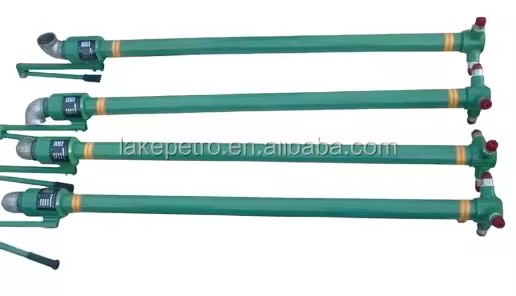

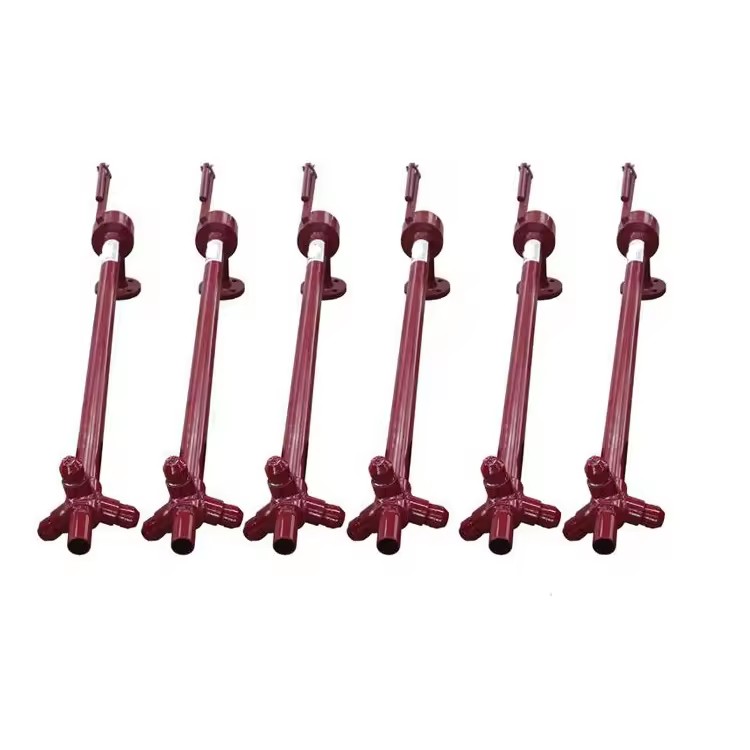

There are 2 type of mud guns, the common one is top tank type, sometimes we design it as bottom tank type. Top tank mud gun is controlled by staff on the tank, the difference between LAKE mud gun and NOV mud gun is the nozzle numbers, we make to 3 nozzle numbers, which can jet more place in the tank so the agitating effect can be better.

What is the difference between tank top and tank bottom mud gun?

1. tank top mud gun

Tank top mud gun is usually with function of agitating, together with mud agitator, they are important equipments for drilling mud tank and mud mixing tank. And how many sets of agitator you have for the mud mixing tank, usually how many mud guns you have. But it also have exception, for example, when the tank room is very small, you have no room for the agitator, and the tank is not so large, you can use a mud gun instead, it is much cheaper, needs smaller area to install and convenient to operate, also do not need to use electric power, but use pressure to work, and you do not need to buy a lot of spare parts such as gear box, bearings for the mud agitator. Anyway mud gun has a lot of advantages but it can not replace mud agitator totally, the agitating effect is not so strong as agitator. We need to use them together to benefit from both of them.

2. Tank bottom mud gun

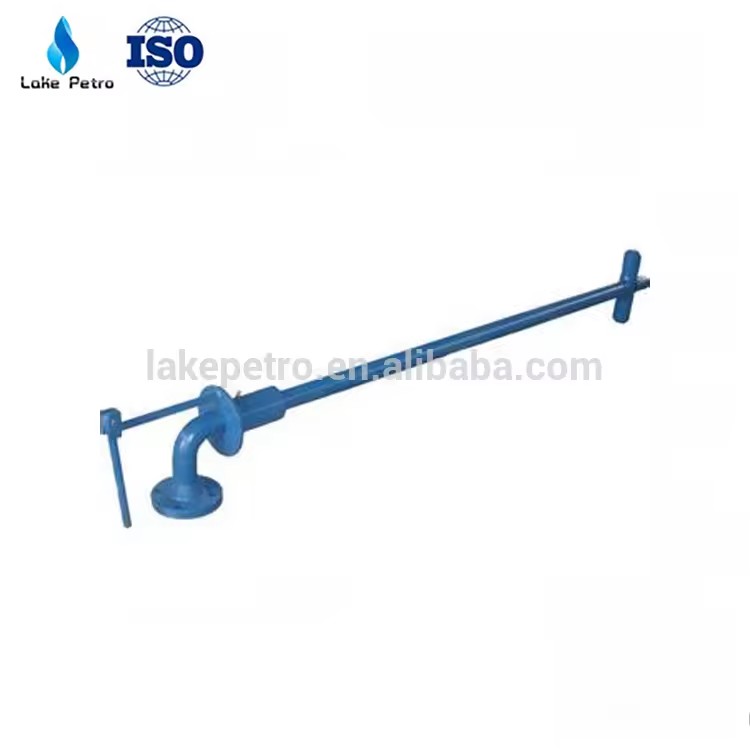

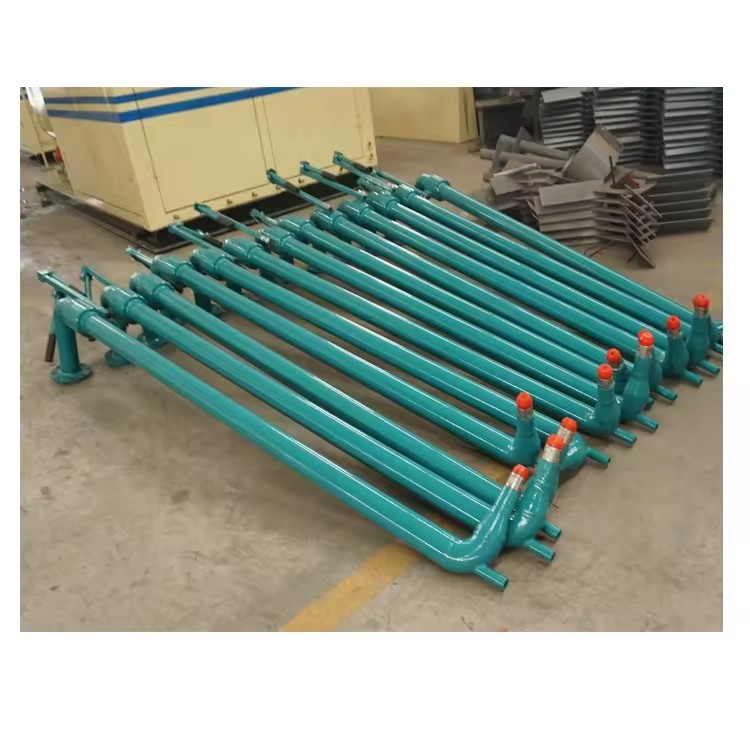

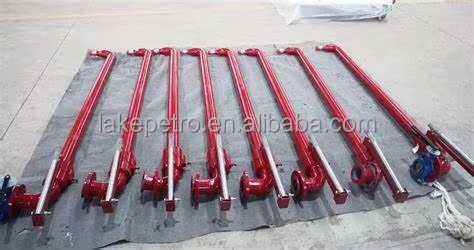

Tank bottom mud gun also called inner tank mud gun, its function usually not agitating, but transferring and mixing line. It transfers the mud from mud mixing tank to another tank.

Where is the pressure come from?

For high pressure mud gun, the pressure came from mud pump, for lower pressure mud gun, the pressure came from mixing pump, it can mix and transfer drilling mud to another tank.

At present, LAKE can produce 2” and 3” mud gun, both of them with 3 nozzles, it can be made into manual rotary type or fixed type, it is optional. And we will choose high pressure mud gun or low pressure mud gun according to the actual situation of client’s.

For example, oilfield drilling mud solids control system usually use high pressure mud gun with high pressure gate valves. The HDD mud recycling system can use a low pressure mud gun which is much cheaper.

Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported, South America, Africa, Middle East, and some other countries (regions). Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.

Why you need to choose L ake P etro?

As a professional oil and gas service company, Lake P etro has many good experience i n selling and serve s for the oilfield industries for years. Q uality is the culture of the company, we provide API and BV certified products for customer.

Can you make us the best quality products as well as a good price.

Yes. we can give you really high quality products with competitive price. W e have a better understanding in Chinese market, with us your money will be safe.

What is special compare with other companies?

First, we provide the quality products, with BV and API certified; A t the same time, we provide
