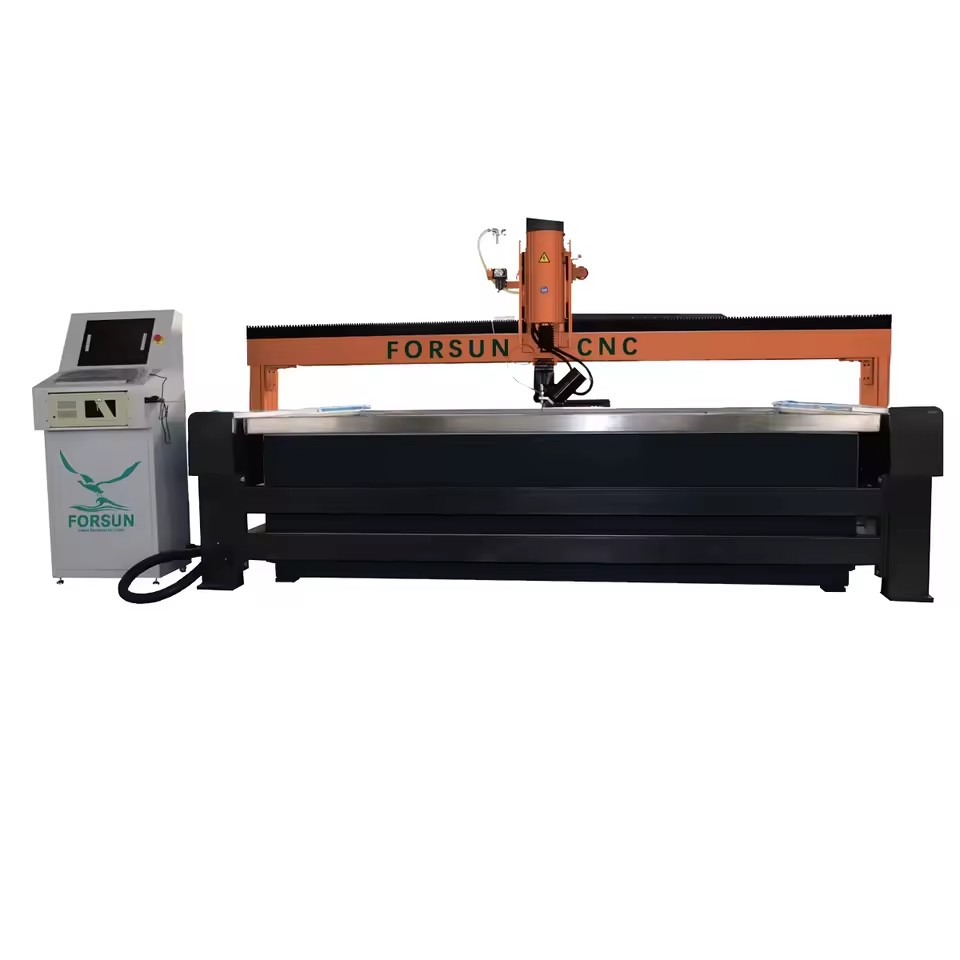

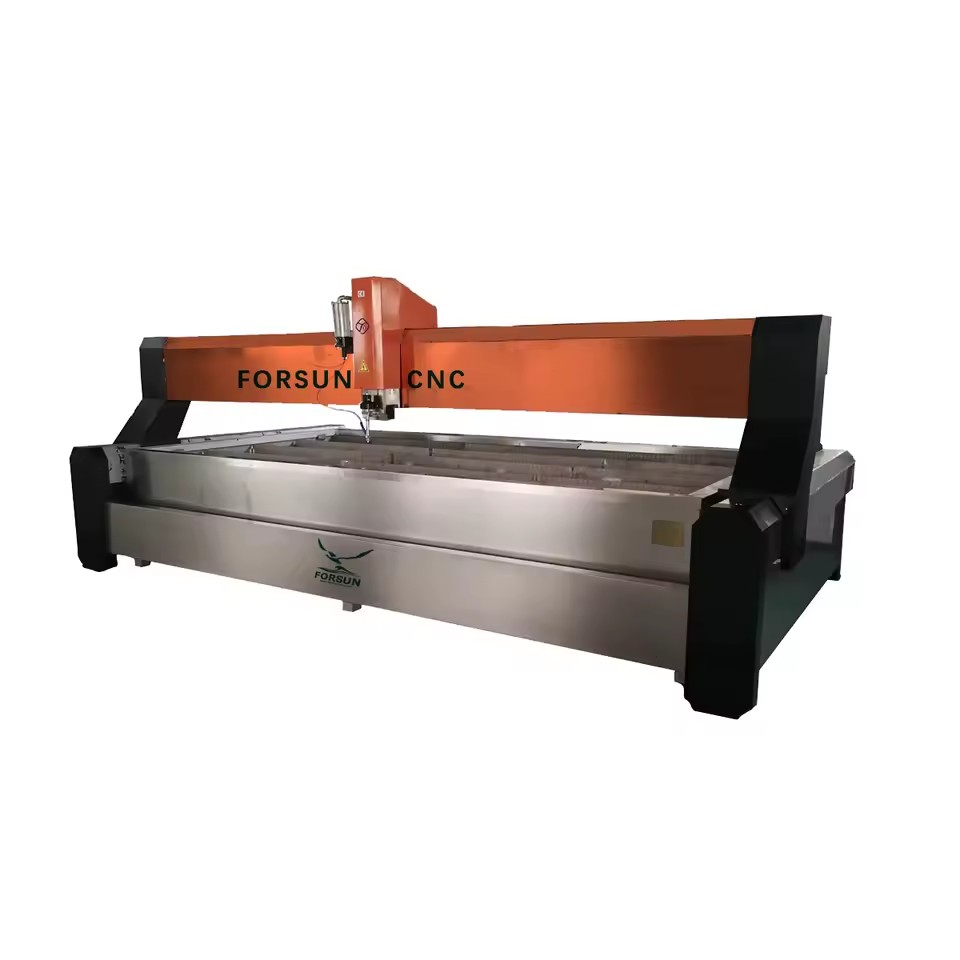

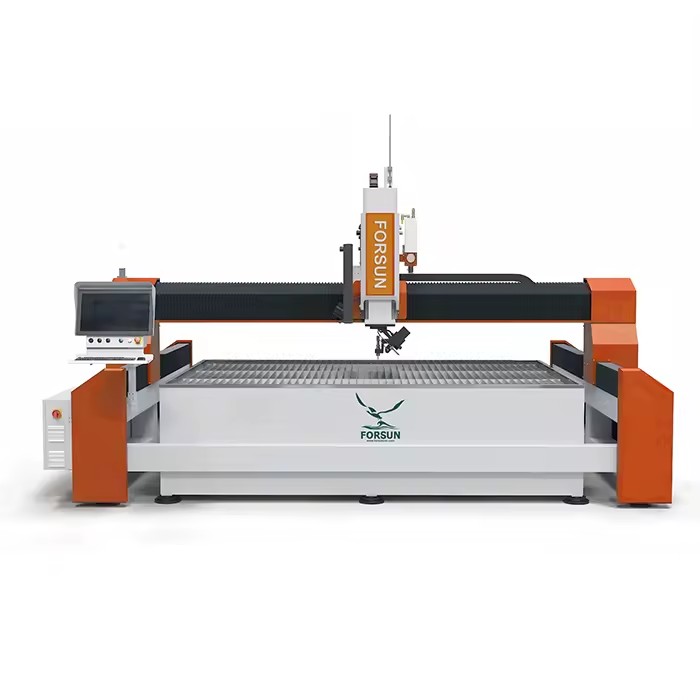

Factory Outlets Water Jet Cutting Machine for Marble 45 Degrees Cutting Cnc 5 Axis Small Water Jet Cutter
Features of 5 Axis water jet Cutting Machine
1) 2000*3000mm working size
2) BETA inverter
3) Stepper motor
4) Stepper drivers
5) Heavy duty table for stone
6) Mach3 control system
7) 10KW Host

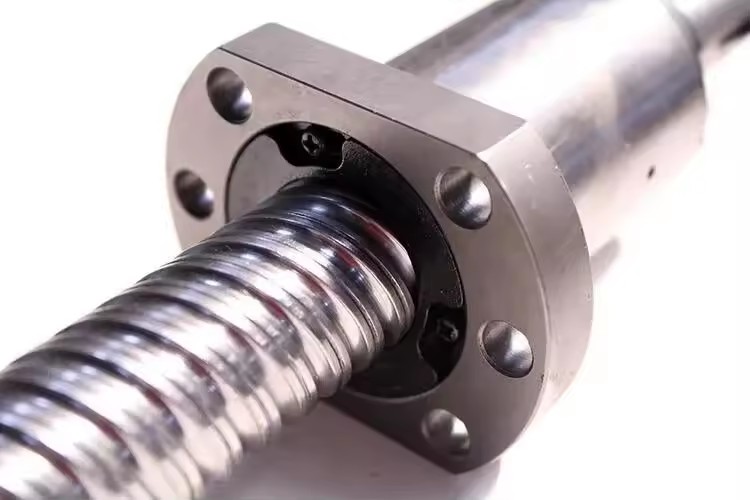

8) X /Y/A axis gear rotation, Z-axis ball screw
9) 0-360° Head rotation angle
What’s the Technical data of 5 Axis Water jet Cutting Machine?
Processing size
3000*2000mm
Blade Diameter
350mm
Cutting thickness
50mm
Control system
Mach 3
Platform flap angle
0-85
Head rotation angle
0-360
Nose tilt angle
0-45
host
10kw
Transmission mode
x/y/a axis gear rotation, z-axis ball screw
Driving mode
Servo / step
What's the advantage of 5 Axis Bridge Cutting Machine?
1. The machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape
2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting
3. The platform is turned over at 85 degrees to facilitate loading and unloading.
4. The operation is simple and the control system can input data.
5. Equipped with grinding wheel device, it can polish the table face and cutting surface.
What's the benefit of 5 Axis Bridge Cutting Machine?
Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability.
Used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
What's the package of 5 Axis Bridge Cutting Machine?
What's our service for 5 Axis Bridge Cutting Machine?
Guarantee: 1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime. Technical support: 1. Technical support by
Why choose us?
Customer visit us
Q1:How long is the delivery time of this cnc milling machine?
For standard machines, it would be 7-15 days
For non-standard machines and customized machines according to client s specific requirements
it would be 15 to 30 days.
Q2: What mode of payment for this cnc milling machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this cnc milling machine during warranty
period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
