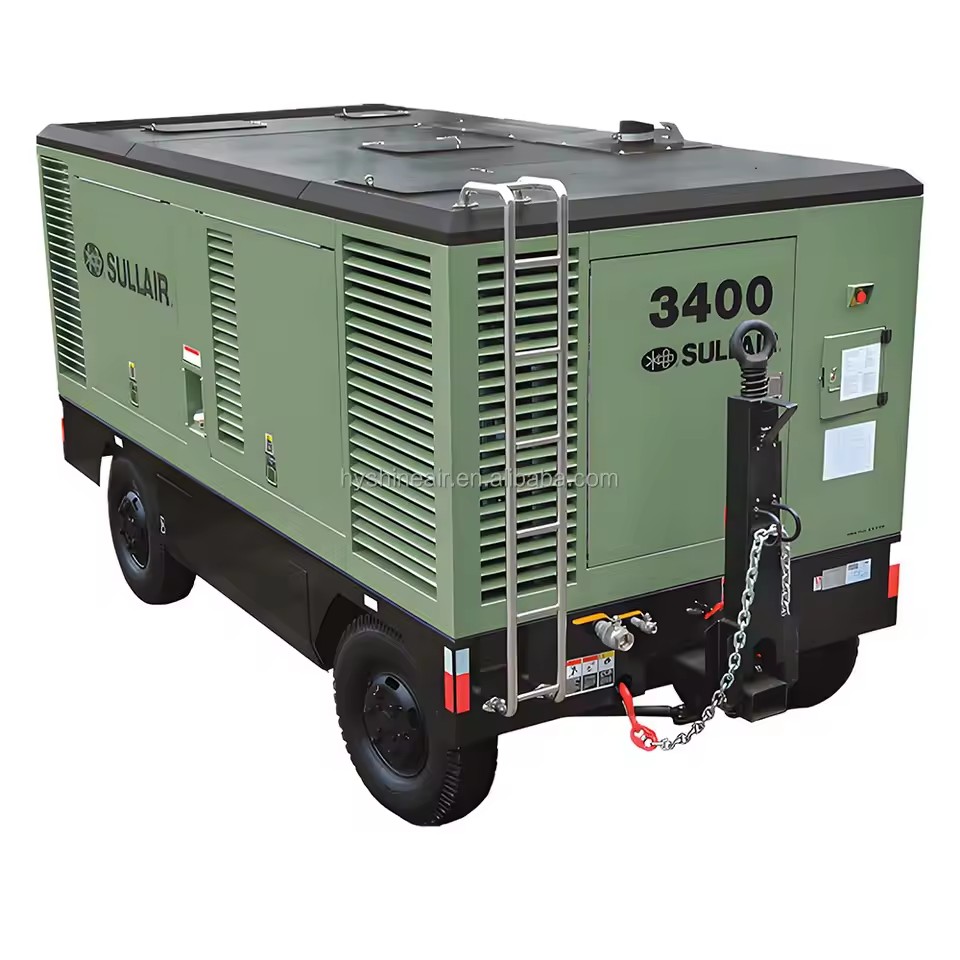

Name: Sullair DWQ3540XH Diesel Engine
SKU: B2B-62406
Price: 1640.0 USD
Availability: PreOrder

Product description

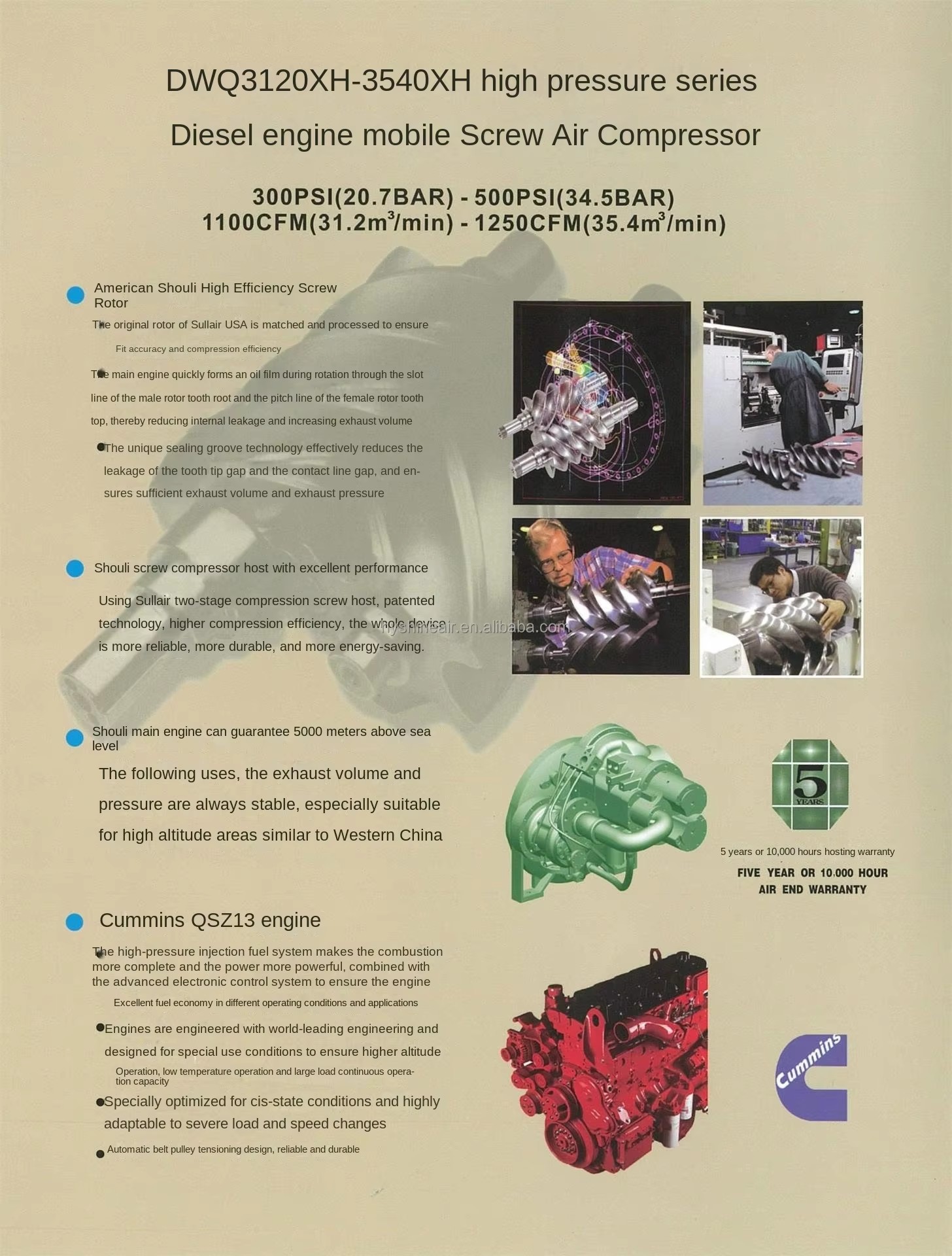

Model	DWQ3120XH	DWQ3400RH	DWQ3030XHH	DWQ3400XXH	DWQ3540XH
Complete Machine
Air CompressorRated exhaust pressure bar(psi)	24.1(350)	20.7(300)	34.5(500)	30.0(435)	24.1(350)
Nominal volume flow m'/min (CFM)	31.2(1100)	34.0(1200)	30.3(1070)	34.0(1200)	35.4(1250)
Working pressure range bar	13.8-24.1	13.8-20.7	20-34.5	20-30.0	20-24.1
Maximum traction speed km/h	35
Maximum working angle	15°
Total weight of the unit kg	6600
Dimensions: Length x width x height mm	4687x2100x2396 (to the top of the carport) 4687x2100x2558 (total height of the unit)
Wheel width mm	1786
Tire specifications	8.25-16-14PR
Tire pressure kPa (psi)	690-760(100-110)
Maximum operating altitude - m	2438
Diesel engine
Manufacturer	CUMMINS
Model	QSZ13
Full load/no load speed rpm	1850/1400	1800/1400	1850/1400	1800/1400
Rated power kWV (BHP)	354(475)	410(550)
Displacement L (in 3 )	13.0(793.3)
Water tank capacity L (U.S.gal)	60(16.0)
Oil capacity L (U.S.gal)	45.4(12.0)
Fuel tank capacity L (U.S.gal)	700(185)
Electrical system operating voltage V	24
Battery rated capacity C 20 (A.H)	210
Compressor
Air supply valve specifications	1 x Rp2 1 x Rp3/4
Lubricating oil capacity L (U.S.gal)	60(15.8)

Sullair

Atlas Copco

Ingersoll Rand

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Type

Screw

Gas type

Air

Power source

Diesel

Lubrication style

Lubricated

Cooling Method

Air Cooled

Configuration

Portable

Voltage

24v

Machinery test report

Provided

Video outgoing-inspection

Provided

Mute

Yes

Warranty

1 Year

Core components

Motor, Engine

Weight (kg)

6600

Place of origin

Zhejiang, China

Model number (Specification)

3400, 375, 375H, 375HH, 425, 425H, 425HH, 400XH, 550RH, 600XH, 750H, 750HH, 750XH, 825H, 825HH, 825XH, 900H, 900HH, 780RH, 825RH, 980RH, 900XH, 1070XH, 185, DWQ3120XH, DWQ3400RH, DWQ3030XHH, DWQ3400XXH, DWQ3540XH, 1300, 1260Z, 1525XH

Dimension(L*W*H)

4687*2100*2558mm(184.53*82.68*100.71in)

Air capacity

1250 cfm 35.4 m3/min

Engine

CUMMINS QSZ13

Condition

Brand New

Name

SULLAIR

Certification

iso ce

After-sales Service Provided

Overseas third-party support available

Applications1

Pipeline Testing, Sandblasting

Applications2

Geothermal Drilling, Gas Boosting & Well Servicing

Applications3

Mining & Oilfield Approved Construction, Quarrying, Tunneling

Selling Units

Single item

Working pressure (Product option)

24.1 bar(349.54psi)

Power(W) (Product option)

1250 cfm, 35.4 m3/min

Lead time

30 days

Minimum order

1 Units
