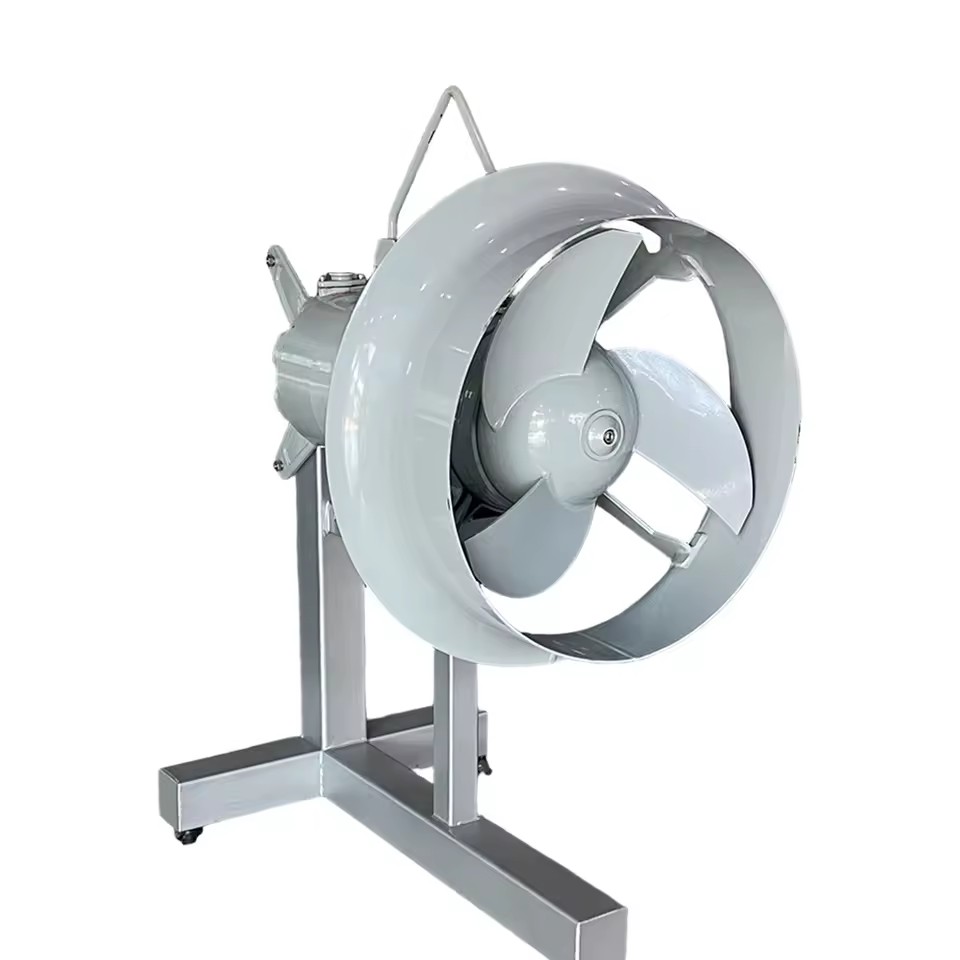

Name: Submersible Agitator Mixer Wastewater Treatment Diving Water Treatment Stirrer Working Underwater Water Agitator Submersible
SKU: B2B-34430
Price: 920.0 USD
Availability: PreOrder

Product description

Highlights at a glance

Technical performance Direct connection structure Compact structure and low energy consumption The swept-back, low-speed-ratio, large-diameter blade design can generate high thrust at low speeds, achieving large-area uniform mixing

Sealing technology Dual-chamber mechanical seal Gear box completely isolated from the motor chamber Double-end mechanical seal,achieve dual leakage monitoring and early warning

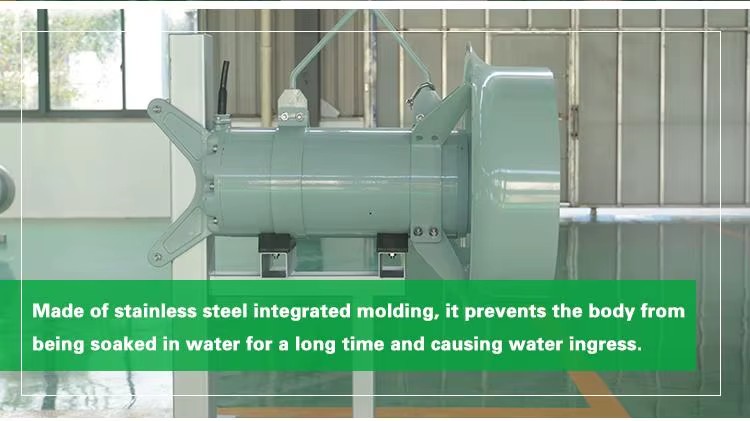

Materials and corrosion protection Full range of corrosion-resistant materials and surface treatments 304/316L stainless steel, 2205 duplex steel Ensure long-term operation in sewage or other harsh environments

Electrical and Insulation Fully oil-filled wet winding motor 100% heat dissipation and insulation Machine protection rating IP68, insulation class F

Intelligent monitoring and integration Supports PROFIBUS DP / Modbus communication Operating data (current, temperature, insulation, operating hours) Remote centralized monitoring and big data analysis ensure safe equipment operation

Testing and Verification Performance testing based on ISO 9906 Each pump underwent performance testing on a standard test bench. Provides authoritative performance curves

Convenience design No upgrade required Quick maintenance design Significantly reduces maintenance costs and downtime risks

Full-scene adaptation Power range: 0.37kW-45kW Supports full-dimensional customization and offers multiple installation options Suitable for equalization tanks, aeration tanks, anaerobic tanks, etc

Low energy consumption and stable output Safe and intelligent, stable and trouble-free operation Low vibration and low noise Reduce connection losses with the pool body and extend the overall lifespan of the equipment

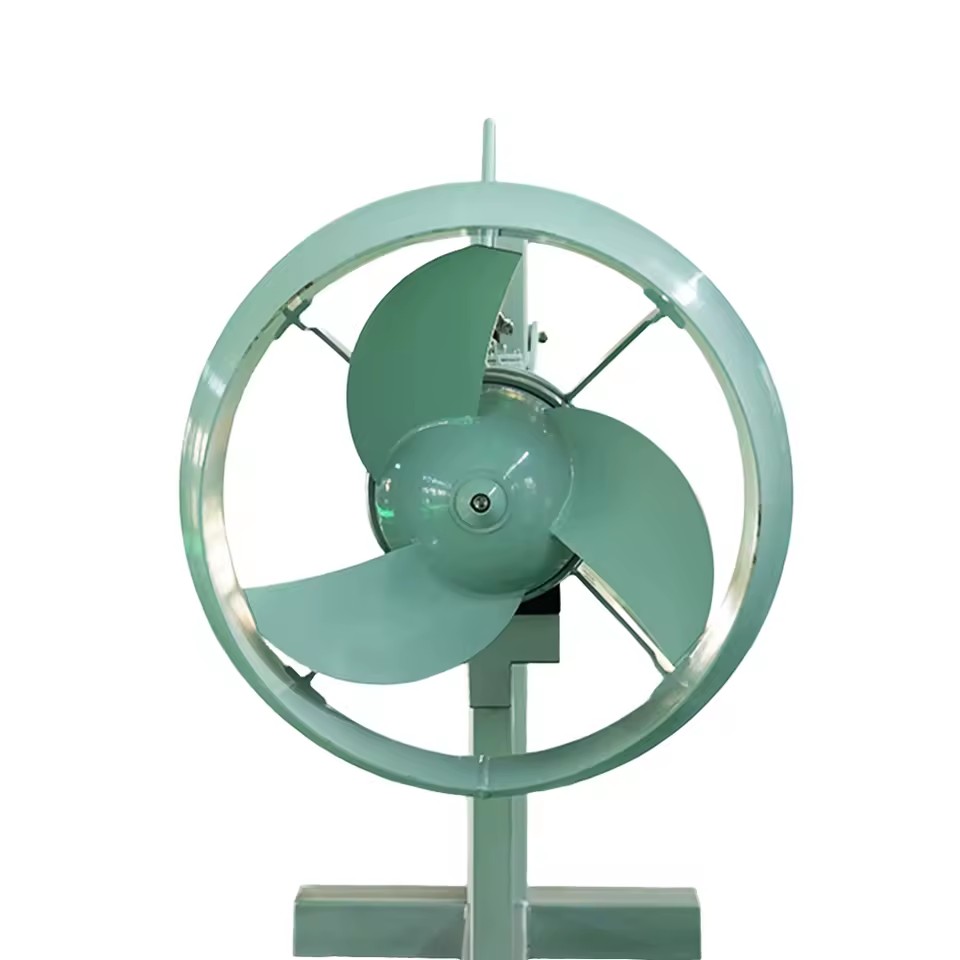

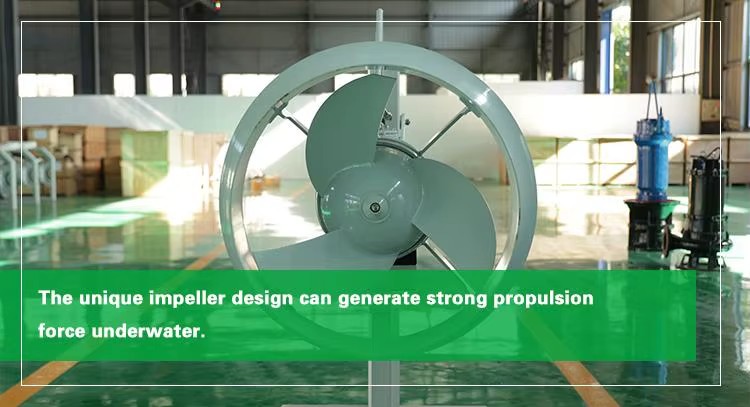

High-efficiency mixing Propeller blades, high thrust, large flow field The stirred flow field is gentle and has comprehensive coverage With a wider stirring area and a low-speed, high-flow design, the solid-liquid-gas mixture is more uniform

Certifications & compliance

Complies with EU standards

Frequently asked questions

Our QJB submersible mixers cover a wide power range from 0.37 kW to 22 kW, with models like QJB0.37/6-220/3-980/S for low-power needs and QJB22/12-620/3-480/S for high-power applications. This ensures we have a suitable mixer for various tank sizes and mixing intensities.

We offer impellers made from stainless steel or carbon steel, available in both precision-cast and stamped/welded versions. The blades feature a swept-back, optimized design for high efficiency and self-cleaning, suitable for harsh wastewater environments.

Cast impellers are typically more robust for heavy-duty applications, while punch-type impellers offer cost-effectiveness for standard duties. Both are designed for efficiency and anti-clogging, with the choice depending on the specific media and operational requirements.

We offer multiple installation systems. System I is for pools <3m deep and allows horizontal/vertical angle adjustment. System II uses guide rods that can rotate ±60° horizontally. Custom designs are available for specific pool geometries and depths.

For optimal plug-flow mixing effect, the flow velocity should be maintained between 0.15 m/s and 0.3 m/s. Velocities below 0.15 m/s may be ineffective, while those above 0.3 m/s can be inefficient. Our selection service helps determine the right model for your tank.

hey are primarily used for mixing, stirring, and circulating in municipal and industrial wastewater treatment processes, including in anaerobic, anoxic, and conditioning tanks. They are also effective for flow pushing in landscape water circulation to prevent settling.

We offer a 1-year warranty on our submersible mixers. This warranty covers free replacement of parts, including shipping and repair service costs for orders placed and paid through.

Our standard MOQ is 1 set, allowing you to place trial orders. We are flexible and can discuss volume-based pricing for larger projects.

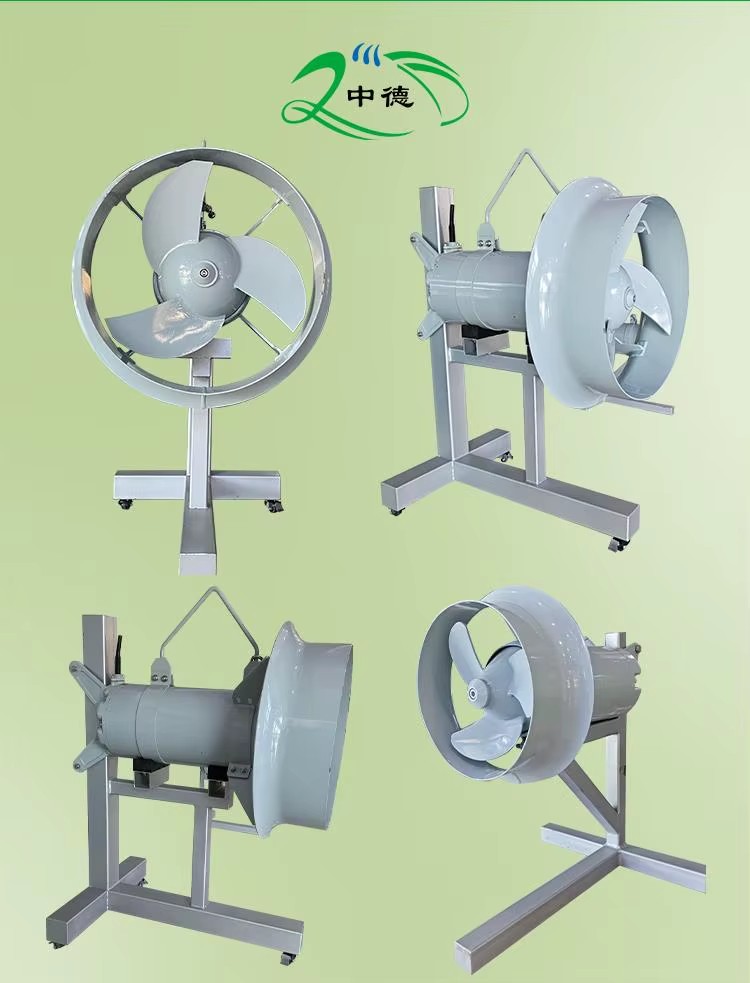

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Productivity

10-320m3/h(353.15-11300.69ft3/h)

Processing Type

Casting

Voltage

380 V, 415V, 440V, 575V

Power (W)

0.75-22KW(1.01-29.50hp)

Core components

Motor, Impeller

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Weight (kg)

120

Place of origin

China, Jiangsu

Application

Municipal and industrial wastewater treatment

Type

Direct connected structure

Function

Compact structure, low energy consumption

Model

QJB

Rated Current(A)

3.2-65

Advantage

Prevent suspended solids from settling

Weight(kg)

55-290

Impeller Diameter (mm)

220,260,320,400,620

Hydraulic Thrust(N)

138-3900

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

Submersible Mixer

Processing capacity (Product option)

90%, 98%, 99%, 95%

Certifications & Compliance

Lead time

10 days

Minimum order

1 Units
