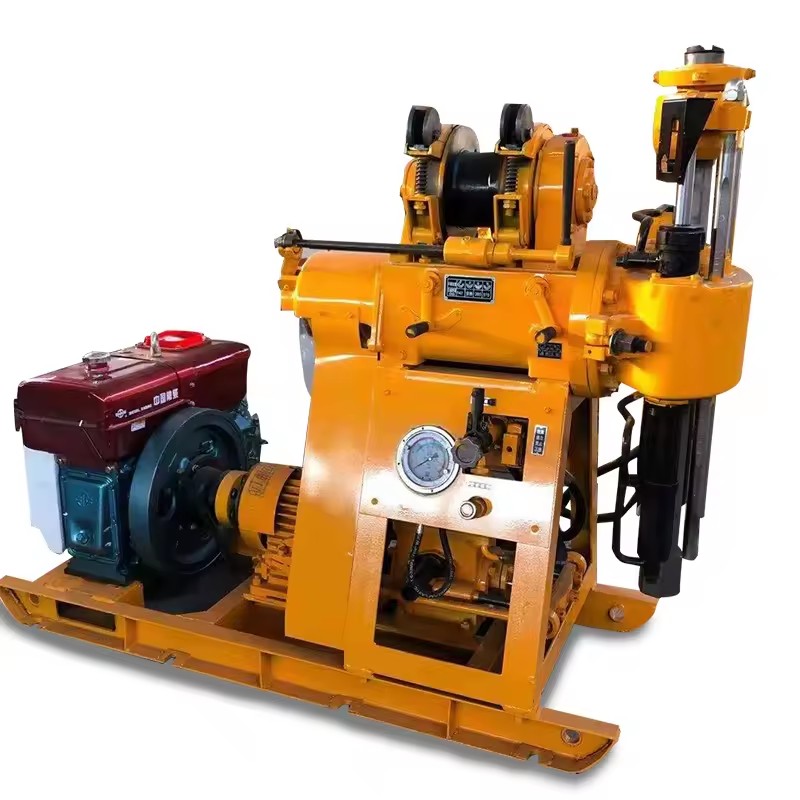

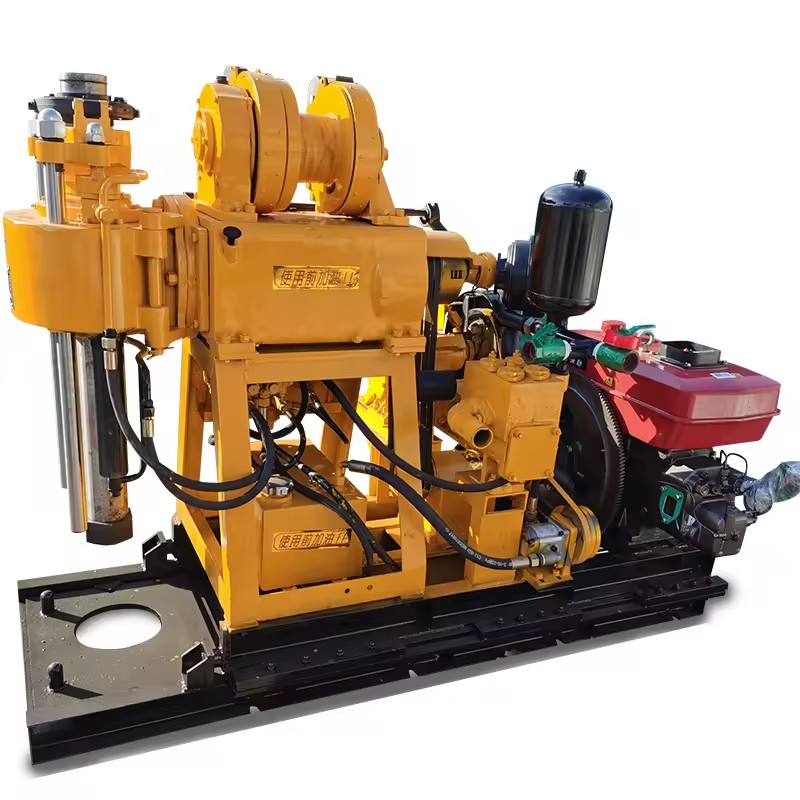

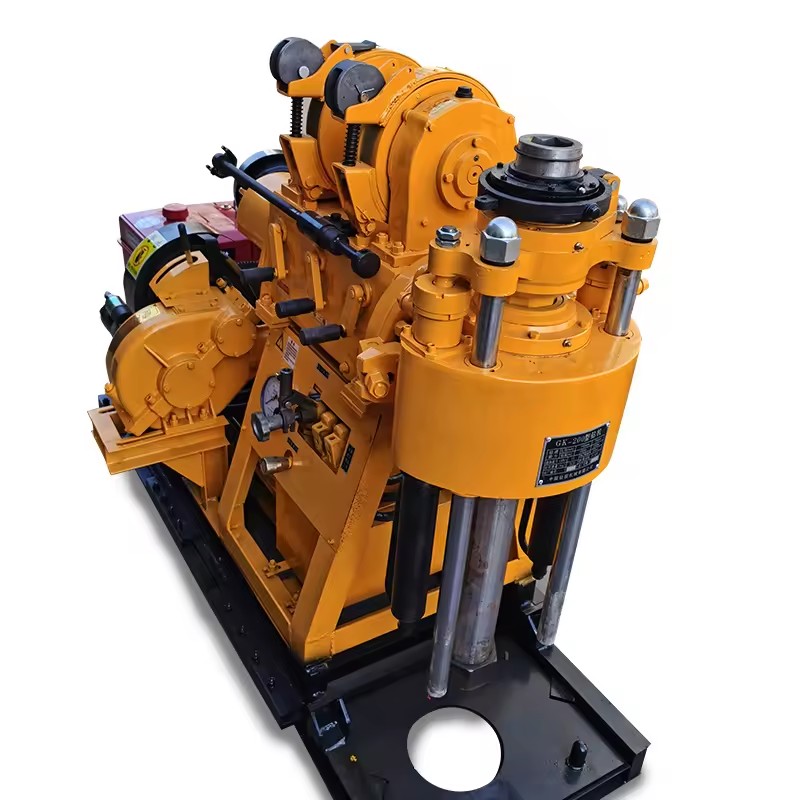

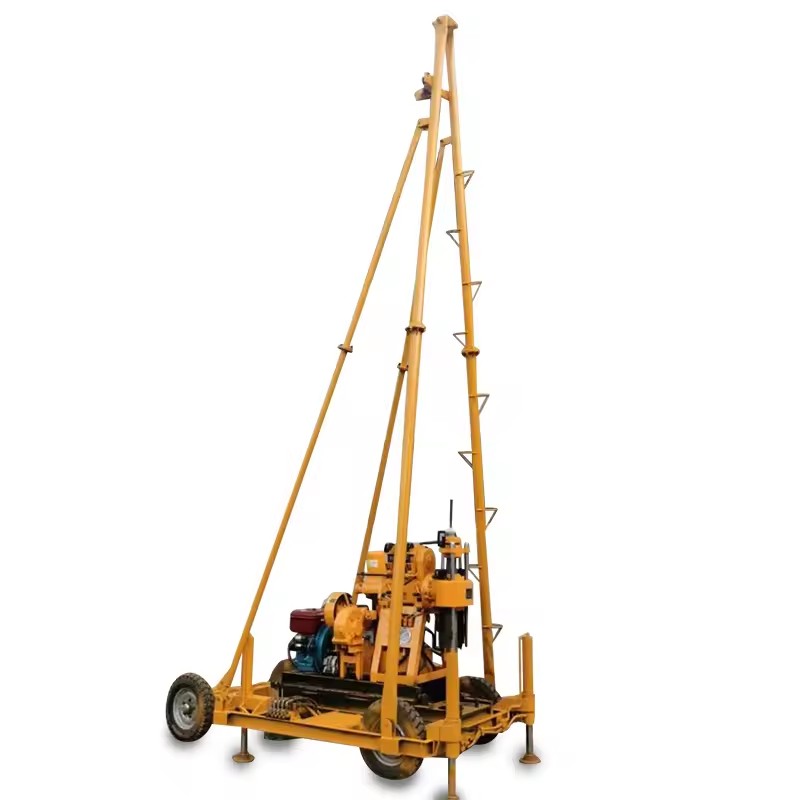

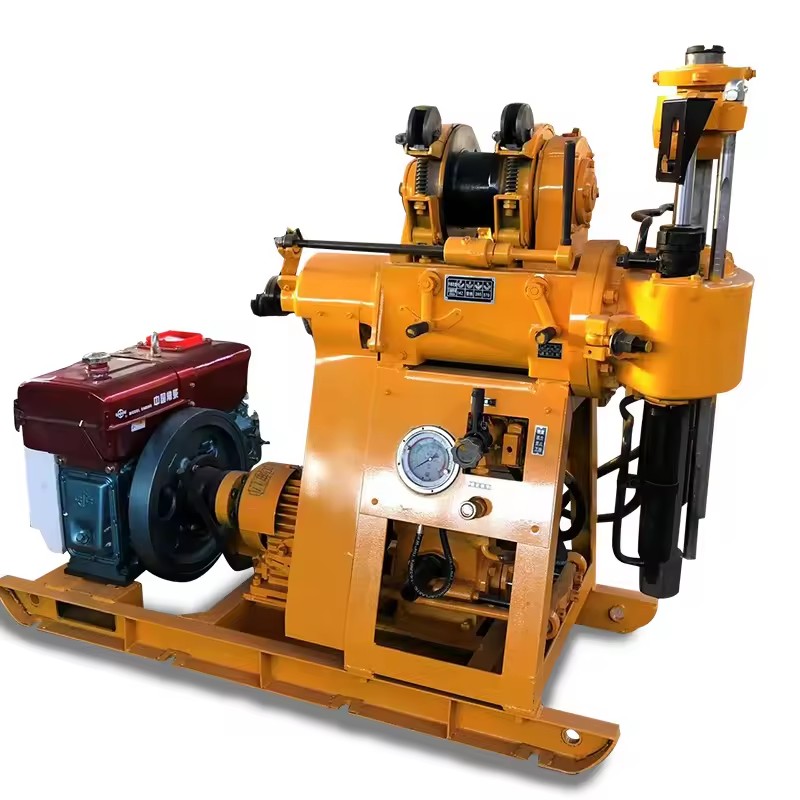

Small Mining Drilling Rig Exploration Geological Mine Diamond Soil Testing Investigation SPT Core Drill Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 4,400.00 4400.0 USD $ 4,400.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Keyword
  • Drill rod diameter
  • Max.single line hoisting capacity
  • Spindle stroke
  • End hole diamerter
  • Drill pipe length
  • Open Hole Diameter
  • Reel caliber
  • Applicable Industries
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Core / Water Well
Type
Drilling Rig
Drilling Depth
Max.300m, 130/180/200m
Drilling Diameter
180 mm
Power Type
Diesel
Voltage
220V/380V
Product description
ModelXY-130XY-180XY-200
Drilling depth(m)130180200
Open hole dia.(mm)220220325
End hole dia.(mm)757575
Drill rod dia.(mm)42-6042-6042-60
Drill angle(°)90-7590-7590-75
Matching power (kW)13.213.215
Weight without power (kg)5606101150
Dimension (m)2.4*0.7*1.42.4*0.6*1.42.7*0.9*1.6
Speed (r/min)142/285/570130/300/480/730/830/104564/128/287/557
Stroke(mm)450450450
Max.torque(N.m)8909802200
Thrust (k.N)404040
Lifting force (k.N)606060
Single rope lift force(kg)160020002400
Lifting speed Head(m/min)0.41-1.640.35-2.230.12-0.95
Rope dia.(mm)φ9.3φ9.3φ12.5
Roll capacity(m)273535
Rated load(ton)225
Height(m)6.56.56.5
Dispalcement(L/min)9595145
Max.pressure(Mpa)1.21.22
Times(pcs/min)939393
Inlet hose dia. (mm)515151
Outlet hose dia. (mm)323232
Certifications & compliance
CE
Complies with EU standards
Description images

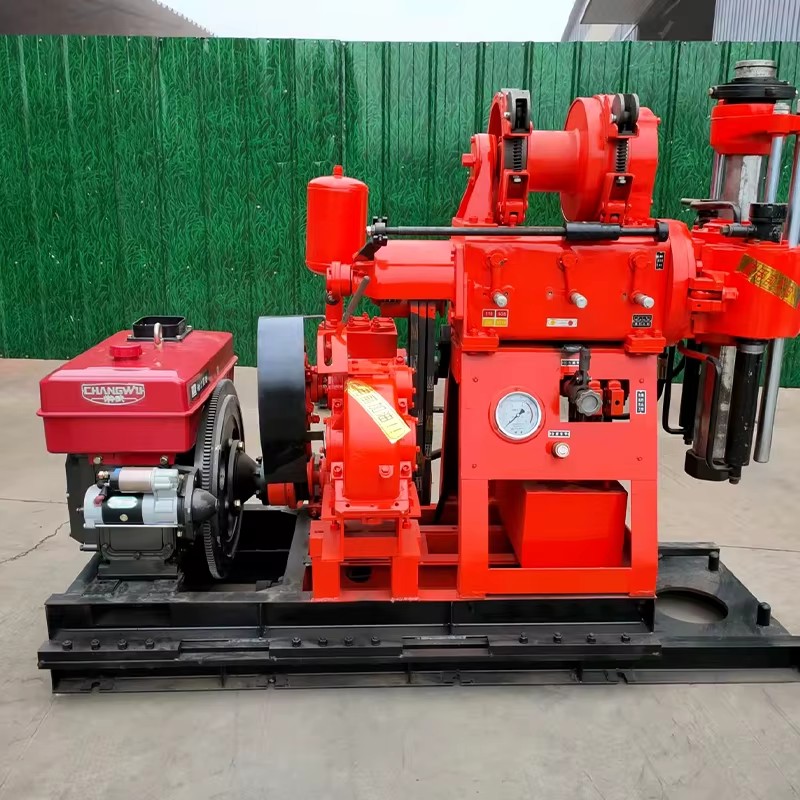

Product detail
Product detail

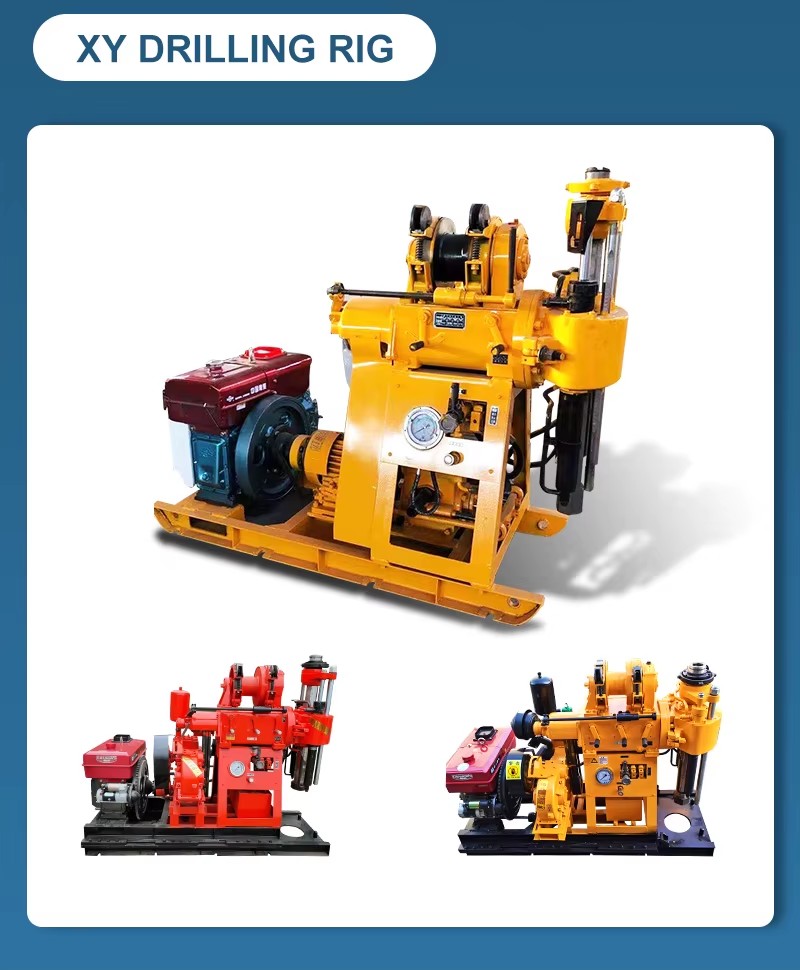

Product detail

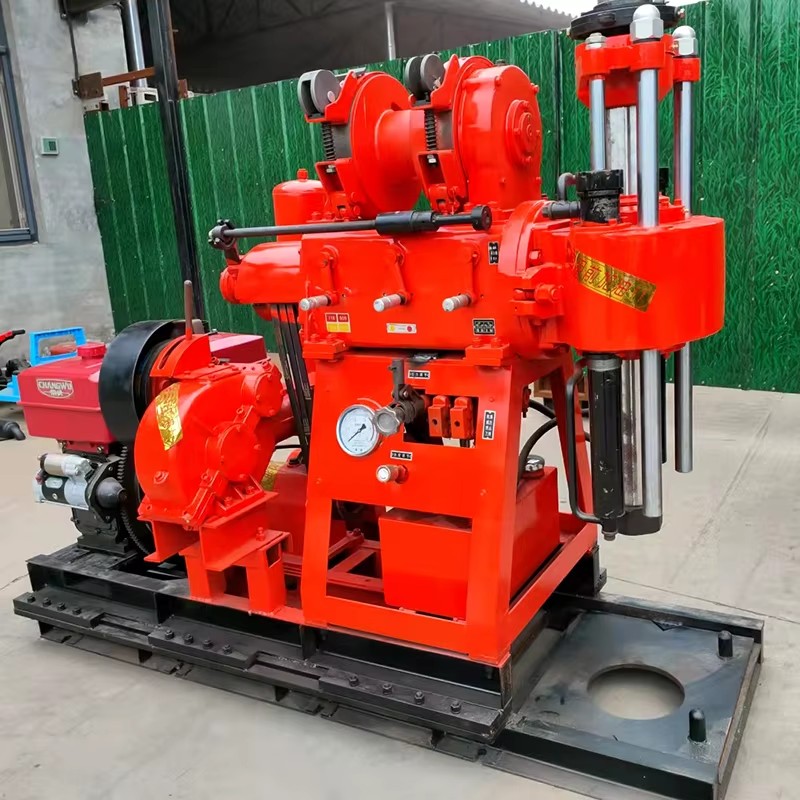

Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Core / Water Well
Type
Drilling Rig
Drilling Depth
Max.300m, 130/180/200m
Drilling Diameter
180 mm
Power Type
Diesel
Voltage
220V/380V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
740 KG
Dimension (L*W*H)
2400*800*1400mm
Mobility
Movable
Keyword
Deep water well drilling rig
Drill rod diameter
42-60mm
Max.single line hoisting capacity
2000kgs
Spindle stroke
450mm
End hole diamerter
75mm
Drill pipe length
4.2m/pc
Open Hole Diameter
220mm
Reel caliber
140mm
Applicable Industries
Farms
Selling Units
Single item
Single package size
310X120X150 cm
Single gross weight
3500.0 kg
Model number
XY-130, XY-200, XY-180
Power (W) (Product option)
15kw, 13.2KW
Certifications & Compliance
CE
Lead time
31 days
Minimum order
1 Units
