Name: Shoring Prop for Construction Steel Prop Powder Coated Galvanized Jack Heavy Duty Scaffold Prop
SKU: B2B-23643
Price: 50.0 USD
Availability: PreOrder

Product description

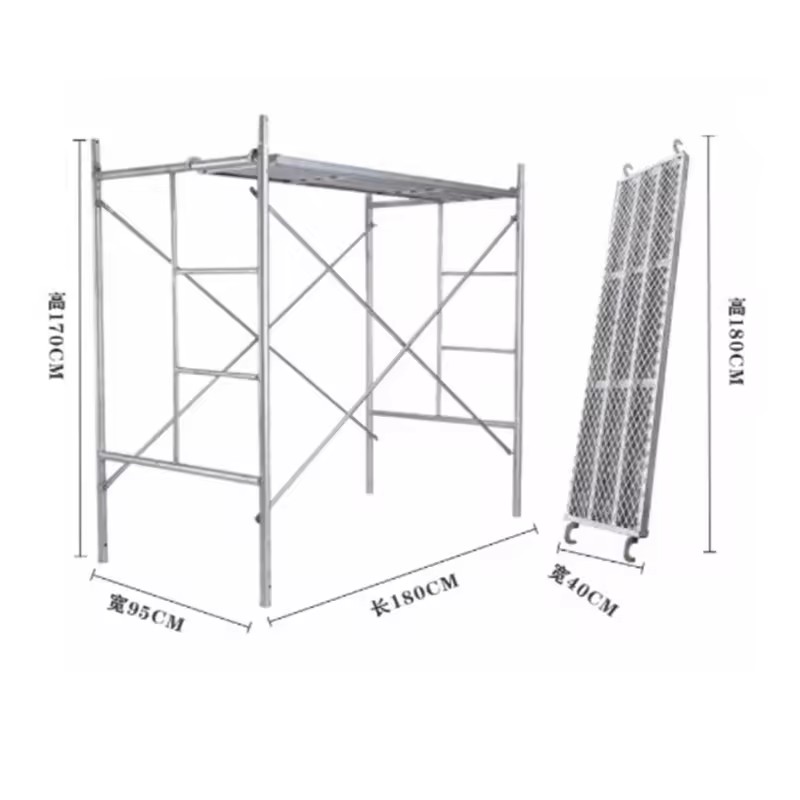

The main components of frame scaffolding
Component Name	Function Description
Main Frame	Plays the main supporting role, similar to a "door" shaped structure
Cross Brace	Increase overall stability and form a scissor strut structure
Slant support	Enhance the lateral displacement resistance of the framework
Joint Pin	Connect the upper and lower main frames
Pedal board (Plank)	Provide standing work platforms for operators
Adjustable Base Jack	Adjust the overall height and level
Ladder Frame	Provide up and down channels
Guardrail	Ensure the safety of homework personnel

Scaffolding Frame Technical Specifications
Item	Specification	Material	Surface Finish	Remarks
Main Frame	1219×1930 mm / 48"x76"	Q235 Carbon Steel/Q235 Steel	Hot dip galvanizing/spray painting/powder coated	Standard door structure
Main Frame	914×1700 mm / 36"x67"	Q235 Carbon Steel/Q235 Steel	Hot dip galvanizing/spray painting/powder coated	Compact frame
Cross Brace	1829 mm / 72"	Q195/Q235	Galvanized/Galvanized	Scissor brace form
Cross Brace	1219 mm / 48"	Q195/Q235	Galvanized/Galvanized	Standard connecting rod
Diagonal Brace	1930×1219 mm	Q195/Q235	Painted/Painted	Enhance stability
Steel Plank	1219×240 mm	Galvanized Steel/Galvanized Steel	Hot Dip Galvanized	Anti slip perforation design
Base Jack	600 mm adjustable	Solid Screw	Electroplating/Galvanized	With chassis
Joint Pin	Φ34×200 mm	Q235	Electroplated galvanizing	Used for framework connection
Ladder Frame	1219×1930 mm	Q235	Spray painting or galvanizing	Climbing channel
Guardrail	1219 / 1829 mm	Q235	Spray painting/galvanizing	safety protection

Commodities and Description	Weight(lbs)	Commodities and Description	Weight(lbs)
7'x 4' Punch Hole Cross Brace	13.01	7'x4' Snap-on Cross Brace	12.5
8'x 4' Punch Hole Cross Brace	12.83	8'x4' Snap-on Cross Brace	13.78
7'x 3'x 4' Double Punch Hole Cross Brace	13	10'x4' Snap-on Cross Brace	16.33

Commodities and Description	Weight(lbs)	Commodities and Description	Weight(lbs)
5' Punch Hole Guard Rail	5.11	5' Snap on Guard Rail	5.97
7' Punch Hole Guard Rail	7.12	7' Snap on Guard Rail	7.96
10' Punch Hole Guard Rail	11.01	10' Snap on Guard Rail	11.91

Item No	Description	Length	Width	Weight
AP3 ALI	Aluminum Walk Board	3'	19.25"	15.2 1bs
AP4 ALL	Ahuumminum Walk Board	4'	19 25"	18.2 1bs
AP5 ALL	Ahuminum Walk Board	5'	19 25"	22 3 16s
AP6 ALL	Ahminum Walk Board	6'	19.25"	25.9 lbs
AP7 ALL	Ahminum Walk Board	7'	19.25"	29.5 lbs
AP8 ALL	Ahminum Walk Board	8'	19 25"	33 lbs
AP10 ALL	Ahuminum Walk Board	10'	19 25"	40.2 1bs
APP3	Aluminum w/Plywood Deck	3'	19"	16.1 lbs
APP4	Ahuminum w/Plywood Deck	4'	19"	20.7 1bs
APP5	Aluminum w/Plywood Deck	5'	19"	24.5 lbs
APP6	Ahuminum w/Plyvood Deck	6'	19"	28.4 1bs
APP7	Ahminum w/Plywood Deck	7'	19"	32.2 1bs
APP8	Alminum w/Plywood Deck	8'	19"	35.9 lbs
APP10	Alminum w/Plywood Deck	10'	19"	45 9 16

Certifications & compliance

Complies with EU standards

RoHS(2)

RoHS compliant

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 50 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Load capacity

700 lb

Material

Steel, Q235 / Q345 Carbon Steel

Height

customization

Performance level

High Strength, Corrosion Resistant

Application

Design Projects

After-sale Service

Online Technical Support

Warranty

5 year

Design Style

Traditional

Project Solution Capability

total solution for projects, Online Technical Support

Place of origin

China, Shandong

Type

Frame-type scaffolding

Type 1

Frame Scaffold, Ring Scaffold, Electric Elevator

Type 2

Outdoor Ladder, Buckle Scaffold

Surface Treatment

Hot-dip Galvanized / Electro-galvanized / Painted

Wall Thickness

2.5mm / 3.0mm / 3.25mm

Fittings

Casters, adjustable bases, safety nets, ladders, etc

Standard

EN12811 / OSHA / JIS / GB

MOQ

10 sets

Package

Waterproof Paper + Woodern Case

Selling Units

Single item

Single package size

90X90X90 cm

Single gross weight

90.0 kg

Color (Product option)

Red, Blue, Silver

Certifications & Compliance

CE, RoHS(2)

Lead time

10 days

Minimum order

50 Units
