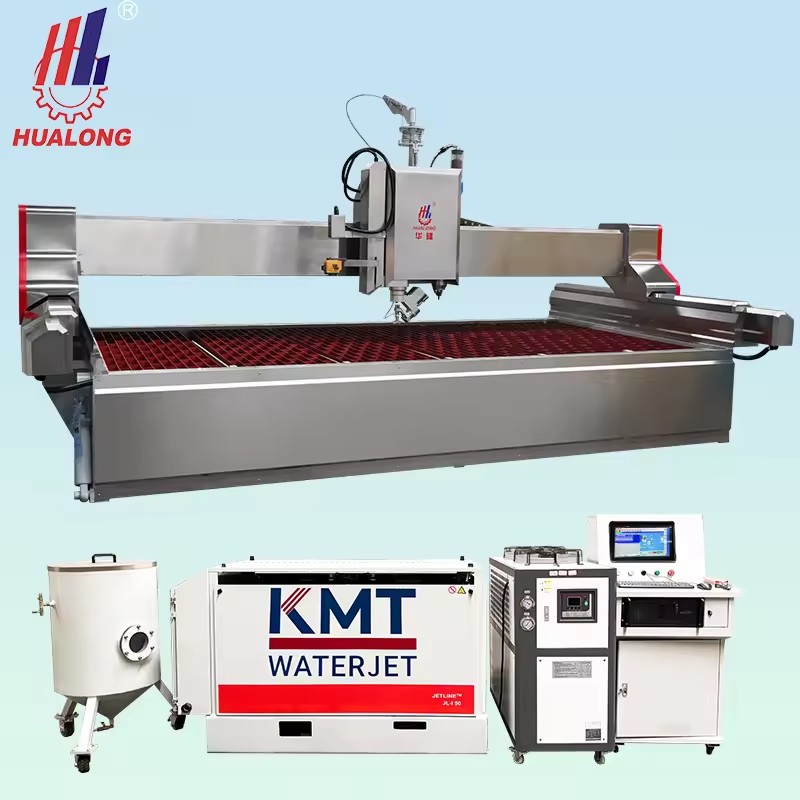

CNC Water Jet Cutters Waterjet Stone Cutting Machine for Marble Granite Ceramic Tile with System

CNC Waterjet Cutting Machine

Technical Data for water jet cutting machine

Model No.

HLWJ-3020

HLWJ-4020

Working area

mm

3300*2100

4100*2100

X-axis stroke

3200

4000

Y-axis stroke

2000

Z-axis stroke

80-130

Max. angle of C axis rotation

°

+/- 360

Max. angle of A axis swing

+/- 60

Cutting accuracy

+/- 0.1

Repeatable accuracy

+/- 0.05

Traverse speed

mm/min

5000/15000

Main motor power

kw

37

Dimension (L x W x H）

443x278x220

494x280x222

which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.

This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and

achieves 2D/3D cutting easily.The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface. It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.

Main Features

1) Processable any curve cutting, flexible, convenient and versatile.

2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.

Tension-free processed parts due to minimal cutting force.3) Narrow kerf – The amount of material removed by the water jet stream

is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.

4) Cut Recovery - Pick back up where Jet stopped.

5) Programmable Z axis height. Z axis retracts between pierces.

6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.

7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.

8) Driver system sealed against water,dust and grit. Long working life.

Different sizes and configuration are customizable

Technical Data

for water jet cutting machine

Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.

Transfers the abrasive to the abrasive regulator.

Air valve to prevent jams and breakages

Auto control with CNC auxiliary function

Self sealing

Slightly adjust the flow.

A less mantained, more stable and better working chiller.

It cool and guarantee the hydraulic system can be used in a stable

circular manner at 42-45°C，while at 55-57°C if by water chiller.

Movable Operator Station

The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.

Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.

Remote Control (optional)

For operating the movement of 5 axises conviniently.

Abrasive Screening System (optional)

Last Chance Sifter Assy - Purifying waterjet abrasive, virtually eliminates abrasive feed tube and mixing tuble clogs due to

foreign particles /debris entering into the main abrasive hopper when loading the cutting media.

Save time, money, material, reduce the amount of scrap/reworked parts and reduce machine downtime.

* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.

* Glass industry, such as bathroom glass, shop window glass, automotive glass and appliance glass.

* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.

* Gasket Cutting

* Foam Product Cutting.

Water Jet Software

Brand

Weihong

Original

A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize

perfect dynamic five-axis cutting

Easy to operate and to learn.

Main Motor

Produced by

Siemens

Power

37 kw

Efficiency

92.7%

To generate motion energy throught electtical energy for high pressure pump

Linear Guide

* Linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.

* The linear

slides and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and

to continue sensibility.

Elec-magnet Valve

Brand: Hytek

Indicate and change advantage

Intensifier

To produce high pressure water continuously.

Main parts come from Ashcroft,.Stable performance and operation

Laser Sensor

Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant

Servo Motor

Origin

Nr of revolutions

0-1500 rpm

Drive X axis moving accuracy and reposefully.

KMT High Pressure Pump-O

ptional

1. High pressure and high efficiency, maximizing production capacity

2. Excellent cutting quality, reducing post-processing

3. Low maintenance and high reliability, stable operation

4. Strong adaptability, wide application scenarios

5. Environmentally friendly and intelligent, compliant and easy to manage
