Product video
Certifications CE

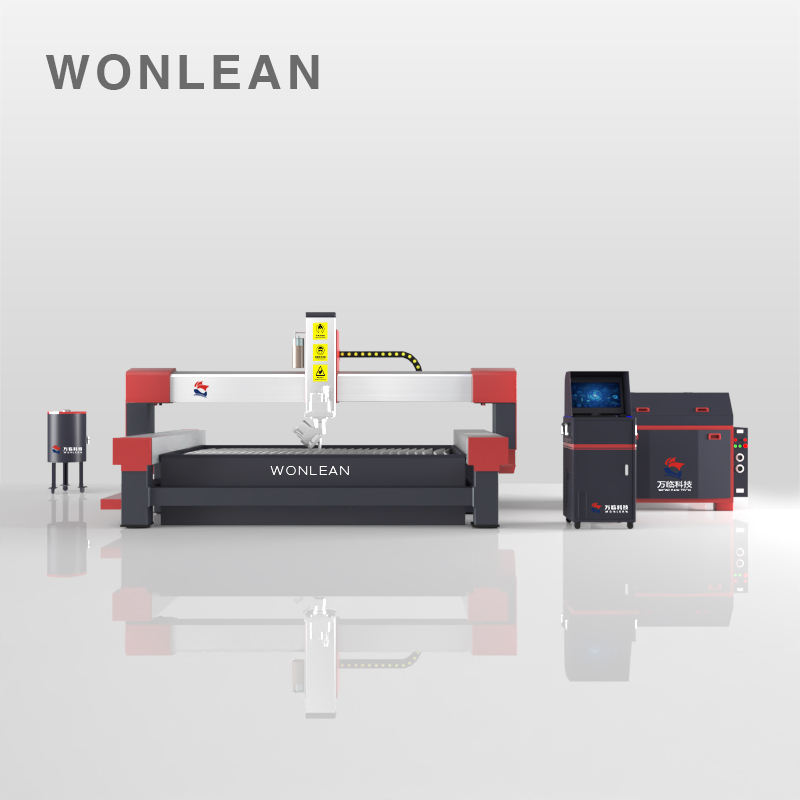

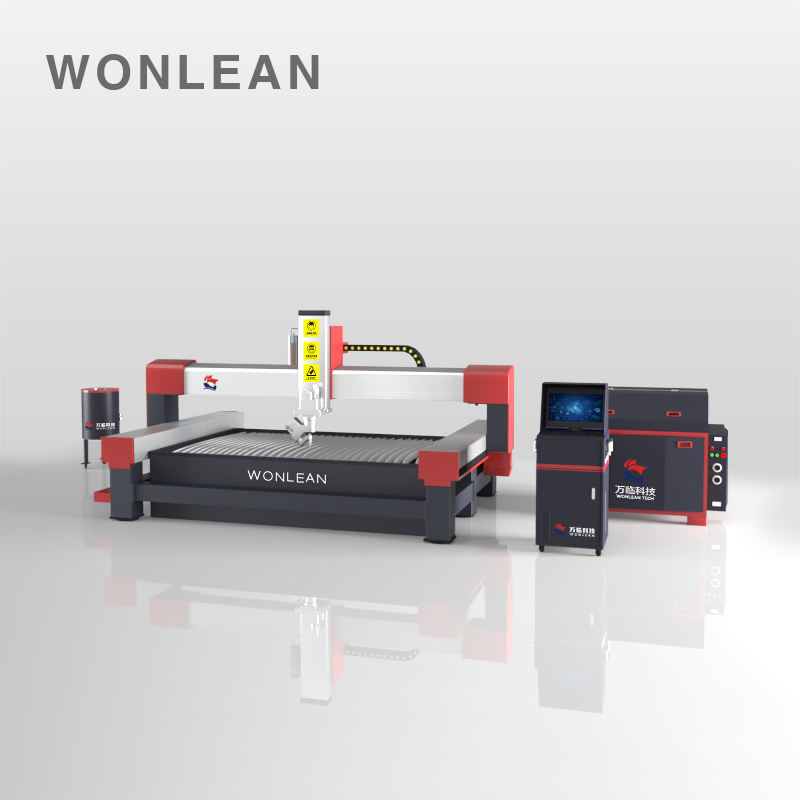

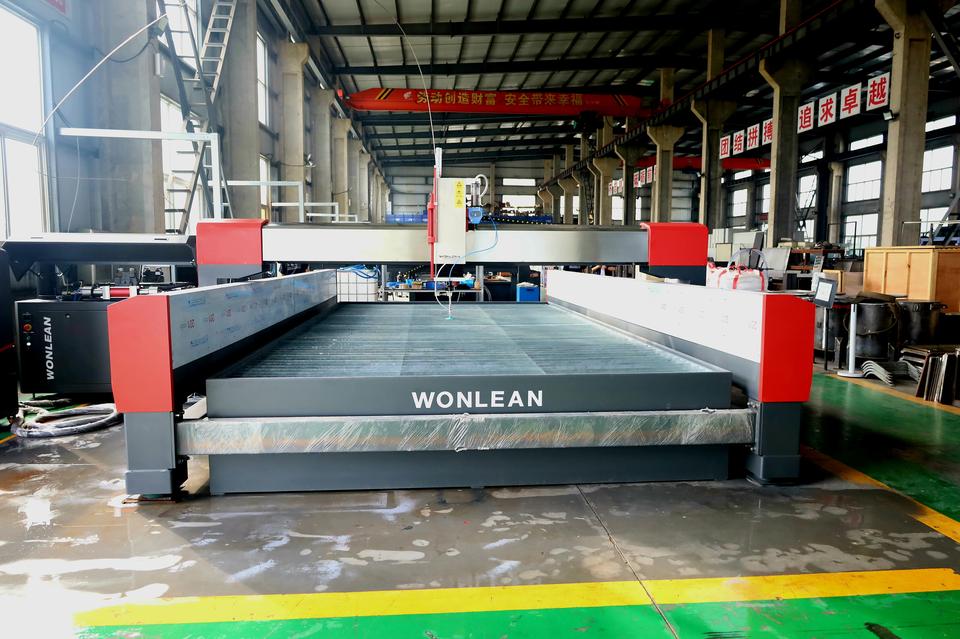

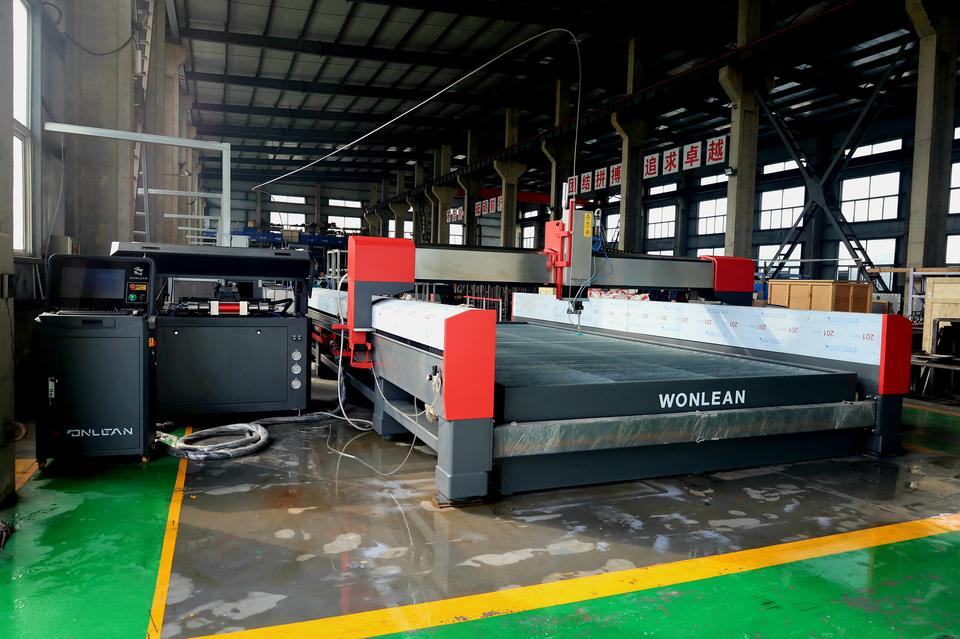

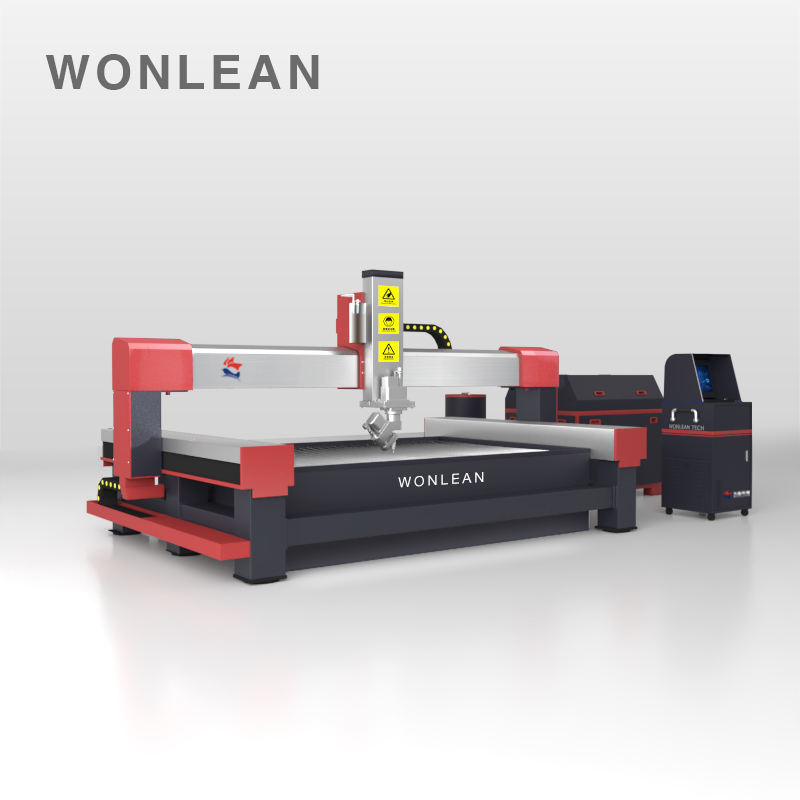

Cutting Machine Stone Water Jet Cutter Manual Cnc Waterjet 5 Axis

Available for enquiry 0.0 · 0 reviews
USD

$ 58,510.00 58510.0 USD $ 58,510.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
420MPA
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Product description

15 years of practice creates classic

High pressure system specifications
ModelWL30018ZWL38030ZWL42037Z
Max. Pressure300Mpa380Mpa420Mpa
Continuous working pressure260Mpa340Mpa380Mpa
Power18KW30KW37KW
Maximum water flow3.7L/min3.7L/min3.7L/min
Maximum nozzle diameter0.33mm0.33mm0.33mm
Working power supply380V/50HZ
Technical parameters of gantry cutting platform
ModelWL2015BAWL2030BAWL3020BAWL2040BAWL2060BAWL3060BA
X axis2000mm2000mm3000mm2000mm2000mm3000mm
Y axis1500mm3000mm2000mm4000mm6000mm6000mm
Z axis150mm150mm150mm150mm150mm150mm
Running speed9000mm/min
Cutting accuracy±0.1mm
control precision±0.01mm
Repeat accuracy±0.05mm
Delivery Time30days
Payment TermT/T,30% in advance,70% before shipment(negotiable)
Packaging detailsNormal packaging is container. We can also according to the special requirements of customers for packaging
portDalian
Validity45 days from the date we offered validity

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Description of five-axis

The AB 5-axis water jet cutter is a solution for small angle bevel cutting in stone industry and metal high-precision vertical cutting. The cross structure of the two axis is sensitive in response and fast in motion. It can realize plane 3D cutting less than 8°, and all of the path programming and angle change are completed intelligently and automatically which is convenient and quick and has a very high cost performance ratio.

Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 22 fields
Voltage
420MPA
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Dimension(L*W*H)
4000MM*2000MM
Key selling points
Easy To Operate
Rated power
37KW
Place of origin
China
Weight (kg)
5000
Table travel (x) (mm)
4000
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
0.1
Name
CNC Water Jet Cutting Machine
Application
Material Cutting
Structure
Oil immersion
Machine Cover
Stainless Steel
Keyword
5 Axis Waterjet Cutting Machine
Type
Water Jet Cutters
Packaging and delivery 3 fields
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Product options 2 fields
Model number
WL4020
Effective cutting range (mm)
4000×2000
Other details 1 field
Certifications & Compliance
CE
Lead time
30 days
Minimum order
1 Units
