API 4F Origin ZJ15 550hp Truck-mounted Workover Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 1,001,020.00 1001020.0 USD $ 1,001,020.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
workover rig
Power Type
Diesel
Voltage
24V/220V/380V/460V
Warranty
1 Year
Place of origin
China, Jilin
Model number (Specification)
XJ550
Product description

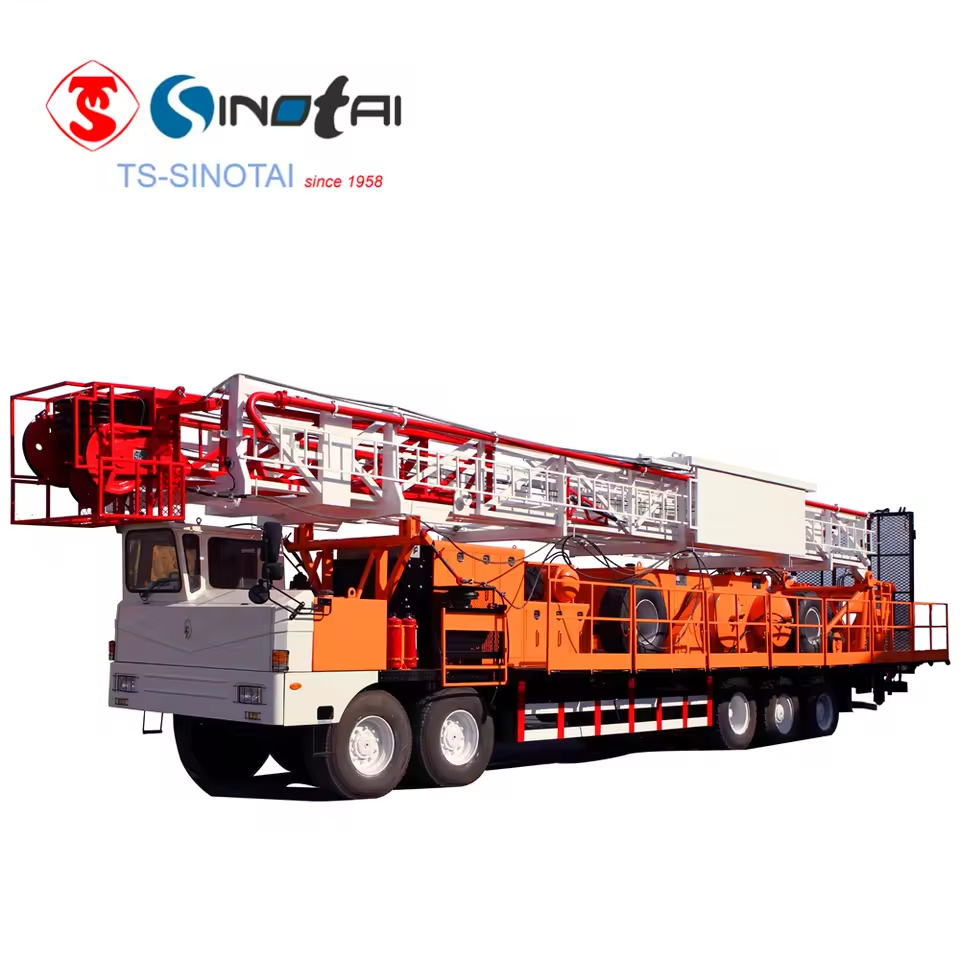

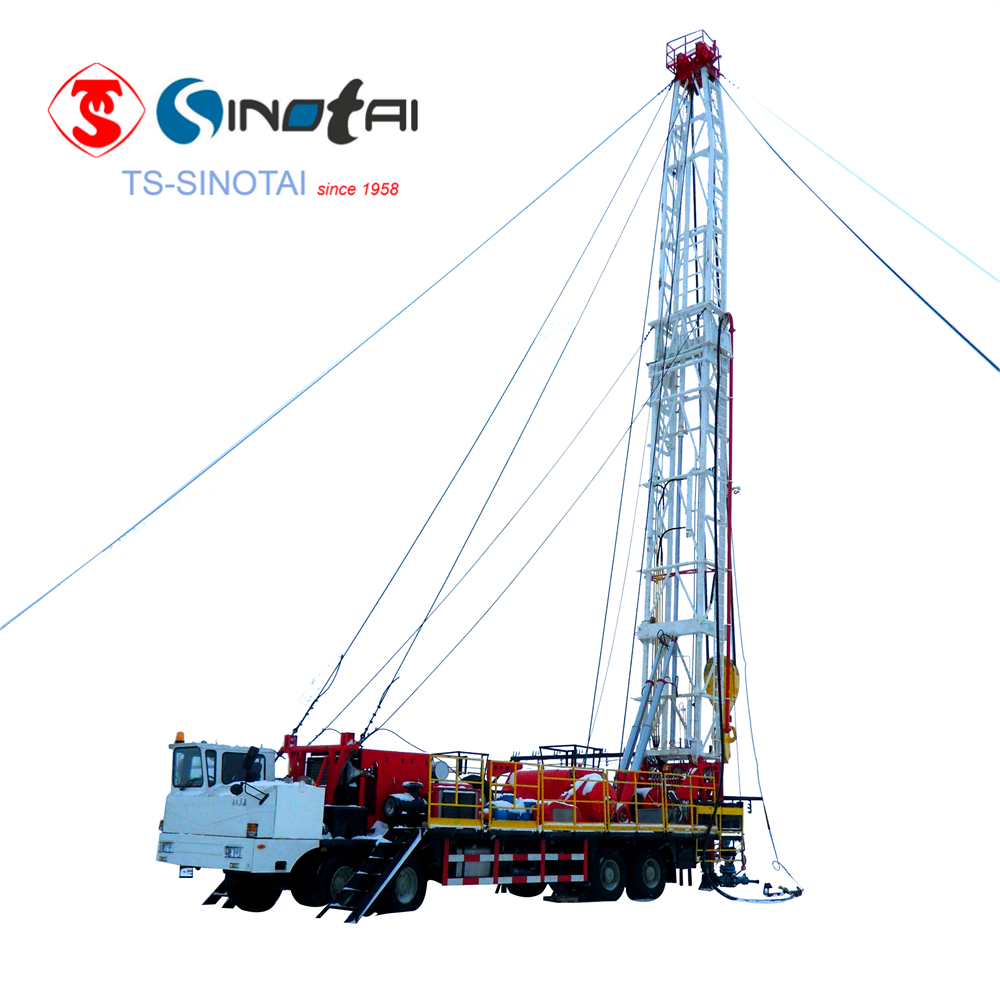

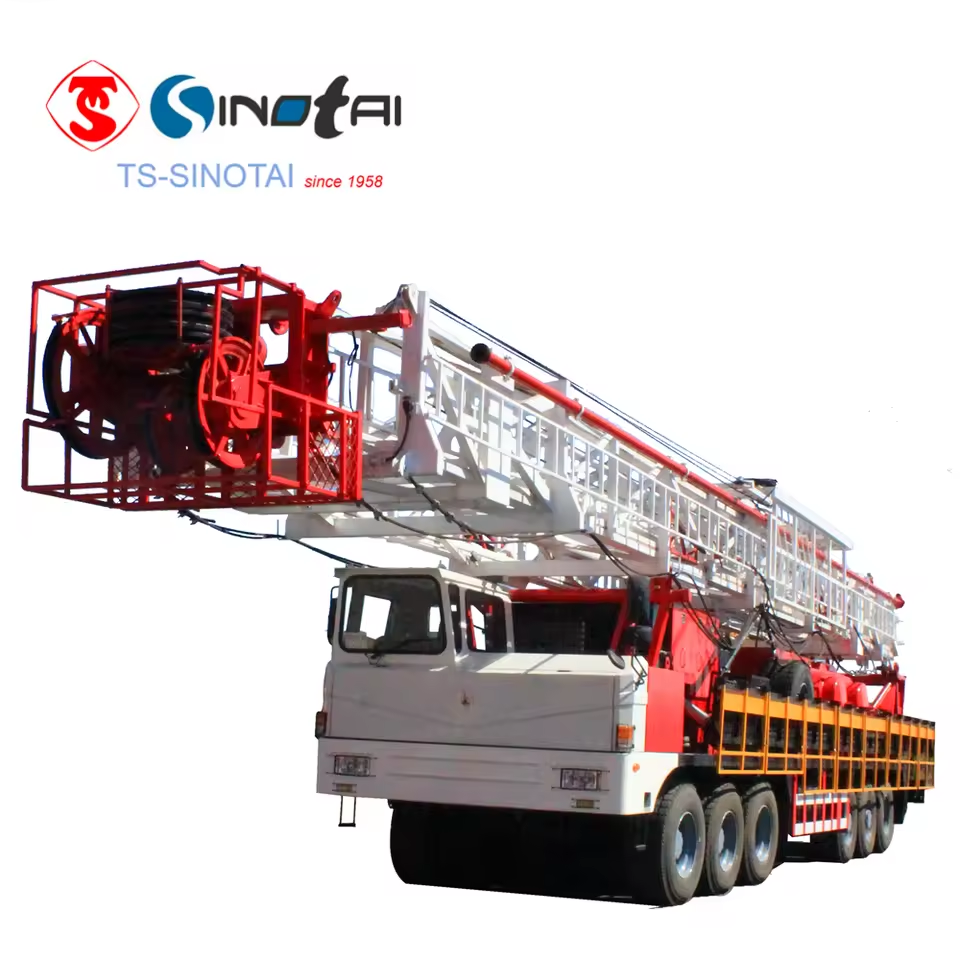

API 4F Origin ZJ15 100t 550hp truck-mounted workover rig

XJ550 ( 100t ) workover& drilling rig is dedicated equipments for oilfield. The rig adopts 10x8 driven type chassis, Caterpillar engine and Allission transmission (can use brand also), and double drum draw-works. Max. hook load is 1350KN. The mast height is 35m. The rig equipped with rotary table, platform, and swivel etc.

Adopts double section hydraulic lifting, flexible mast, the height is 35m.

Equipped with double CAT C15 engine and Allission M5620AR transmission. The performance is stable and reliable.

The driven model of chassis is 10x8. Single cab. With heater.

The main drum adopts ATD324 disc brake, and assis brake is air control disk type brake.

Anti-collision crown block.

Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.

All pneumatic pipelines adopt FESTO quick-coupling and pipeline.

Meter system adopts 24V DC, and lighting system supplied power by external AC power.

Technical Parameters

DescriptionXJ550(100t)
Workover depthΦ73mm (2 7/8”upset tubing)m7000
Service depthΦ73mm( 2 7/8”DP)m5800
Φ88.9mm( 3 1/2”DP)m4500
Φ114mm(4 1/2”DP)m3600
Drilling depth1500
Rated hook load1000
Max. hook load1350
Engine modelCAT C15
Engine power403 ( 540 )
TransmissionAllision M5620AR
Chasssis driving form10x8
Approach/departure25°/ 16°
Min. ground clearance310
Derrick height35
Derrick typefront opened, double section hydraulic lifting, flexible mast
Valid rope number8 ( 4x5 )
Hoist rope diameterΦ26
Transportation dimensions ( length x with x height )19.87x3.10x4.20
Total weight53000
DrumSingle / double drum
Main drum assist brake systemAir control disk type brake / hydraulic control disc brake / hydraulic brake
Description images
API 4F Origin ZJ15 550hp Truck-mounted Workover Rig
API 4F Origin ZJ15 550hp Truck-mounted Workover Rig
API 4F Origin ZJ15 550hp Truck-mounted Workover Rig
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
workover rig
Power Type
Diesel
Voltage
24V/220V/380V/460V
Warranty
1 Year
Place of origin
China, Jilin
Model number (Specification)
XJ550
Weight
Actual weight
Dimension (L*W*H)
19.87x3.10x4.20
After-sales Service Provided
Video Technical Support, Online Support, Engineers available to service machinery overseas, Field maintenance and repair service, Field installation, commissioning and training
Application
oilfield
Drum
single/double
Rig type
truck-mounted
Drilling Depth
1500m
Chassis
10x8
Engine model
CAT C15
Transimission
Allision M5620AR
Capacity
100t
Certification
API
Packaging Details
bulk cargo
Port of dispatch
Tianjin Sea Port
Selling Units
Single item
Supply Ability
240 sets per Year
Power (W) (Product option)
Standard
Lead time
90 days
Minimum order
1 Units
