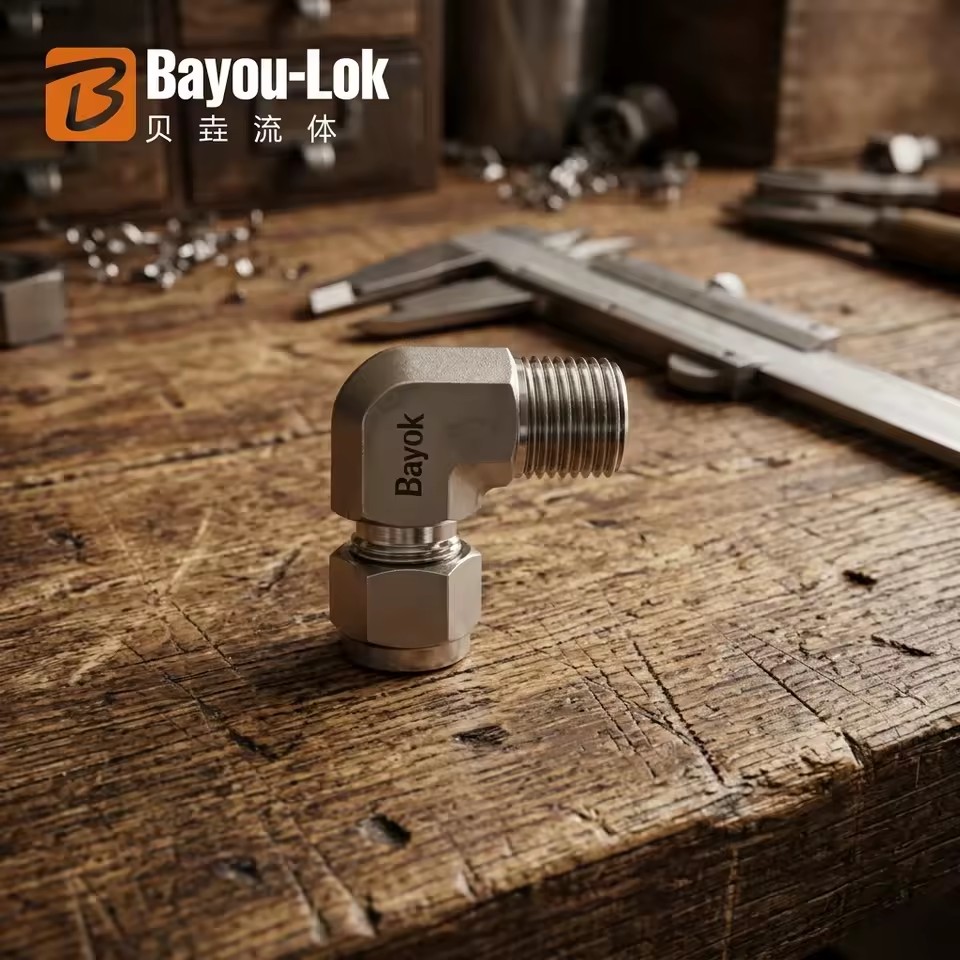

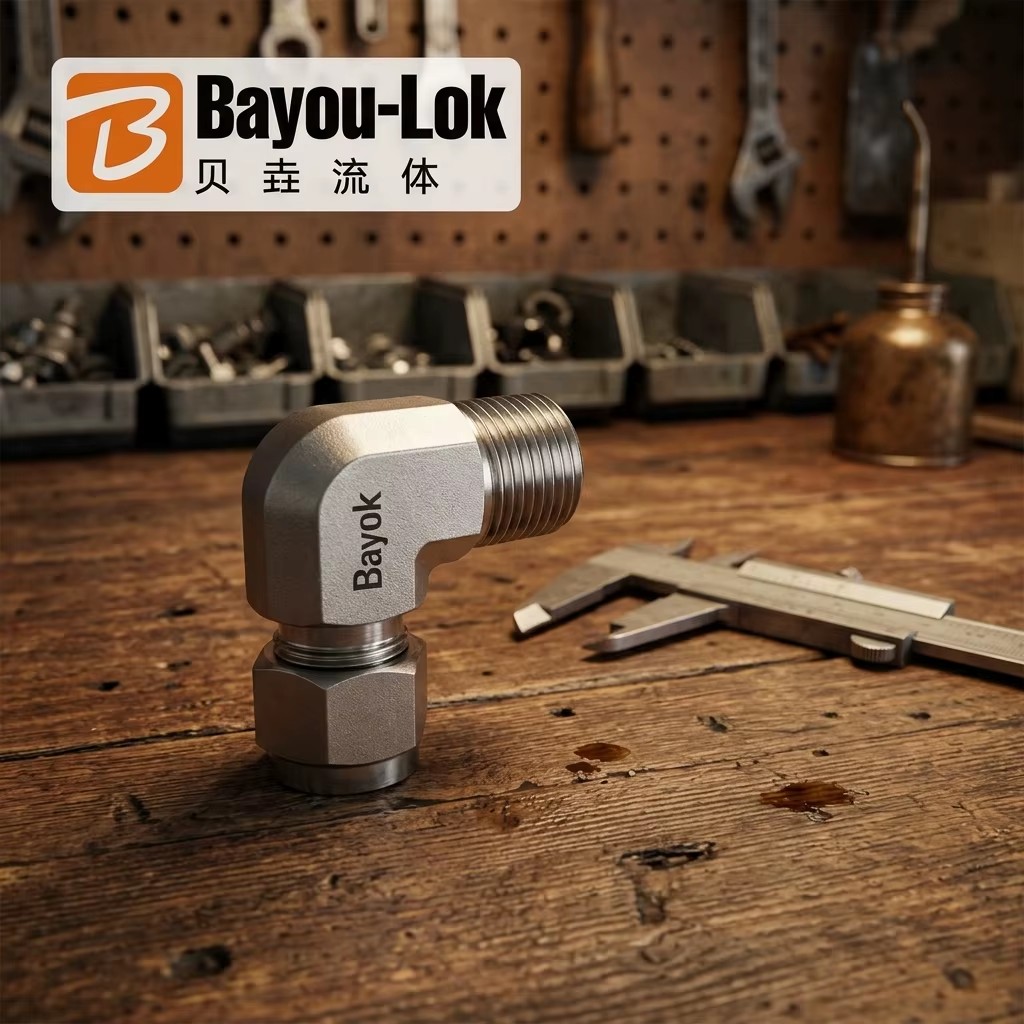

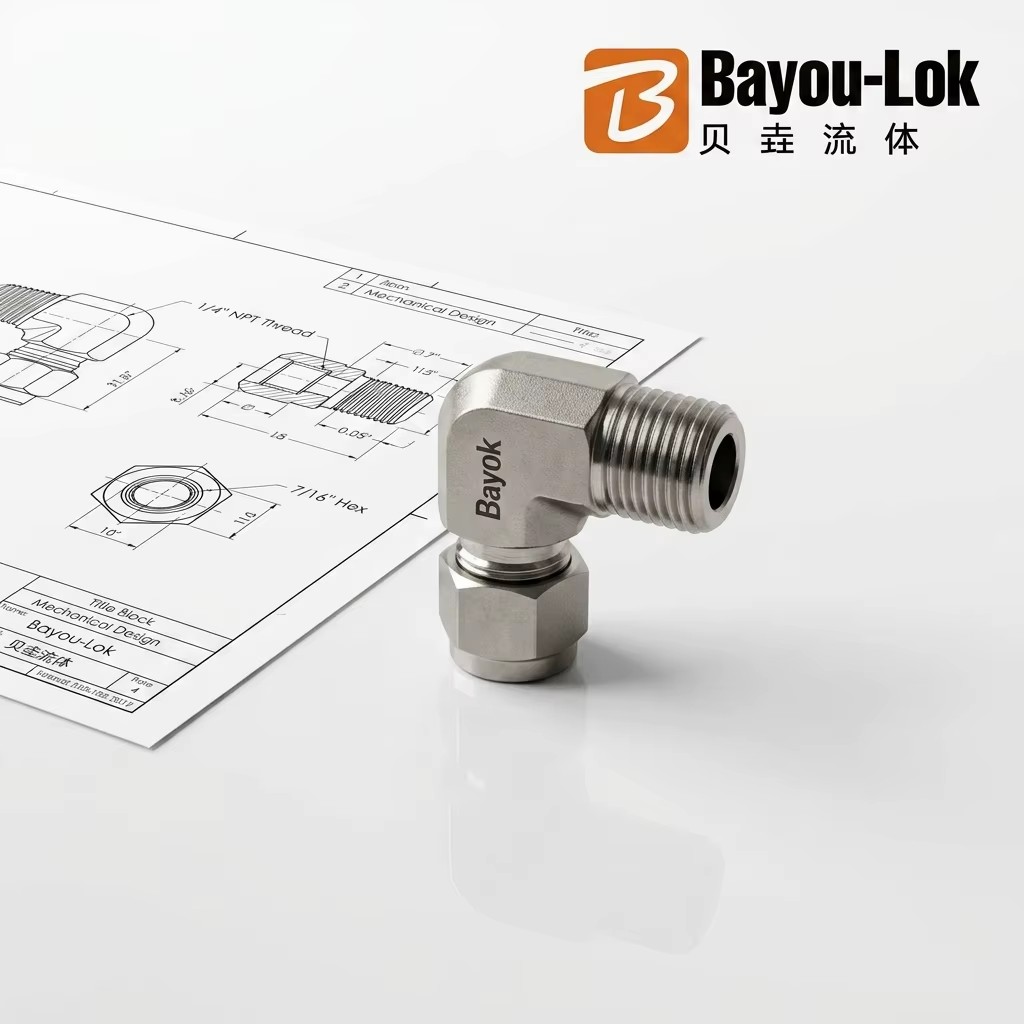

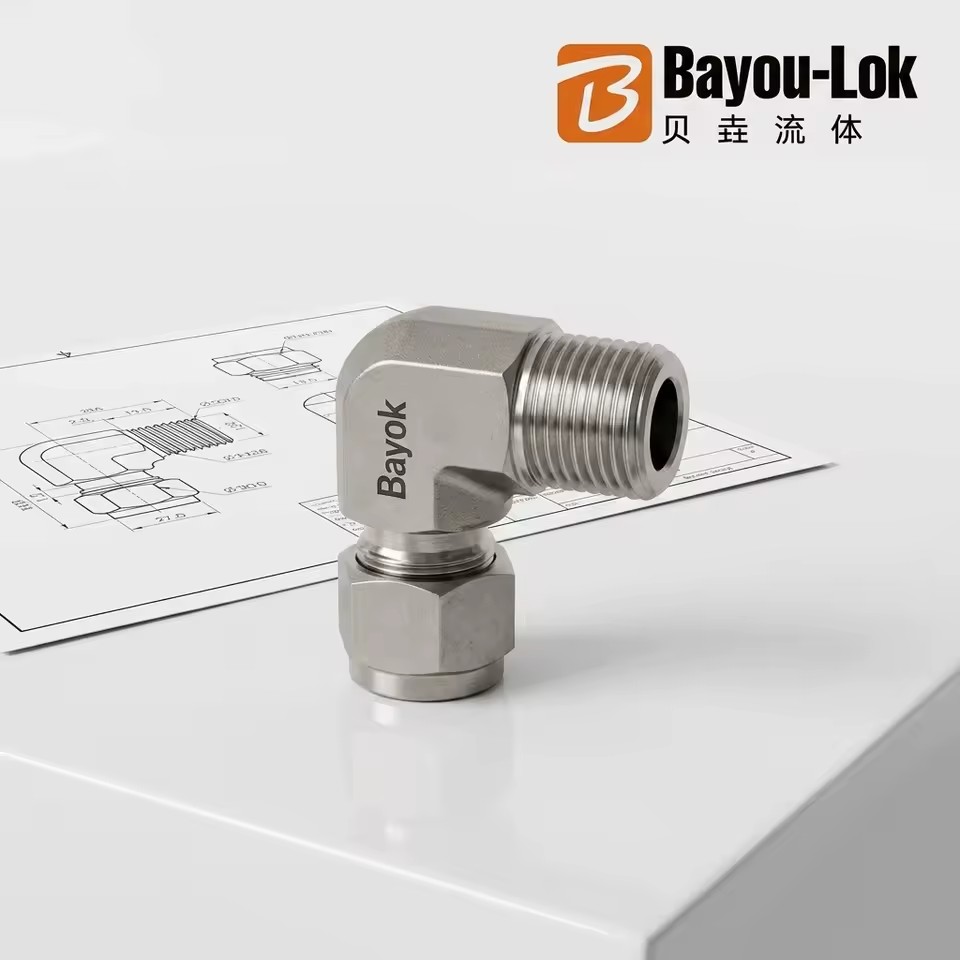

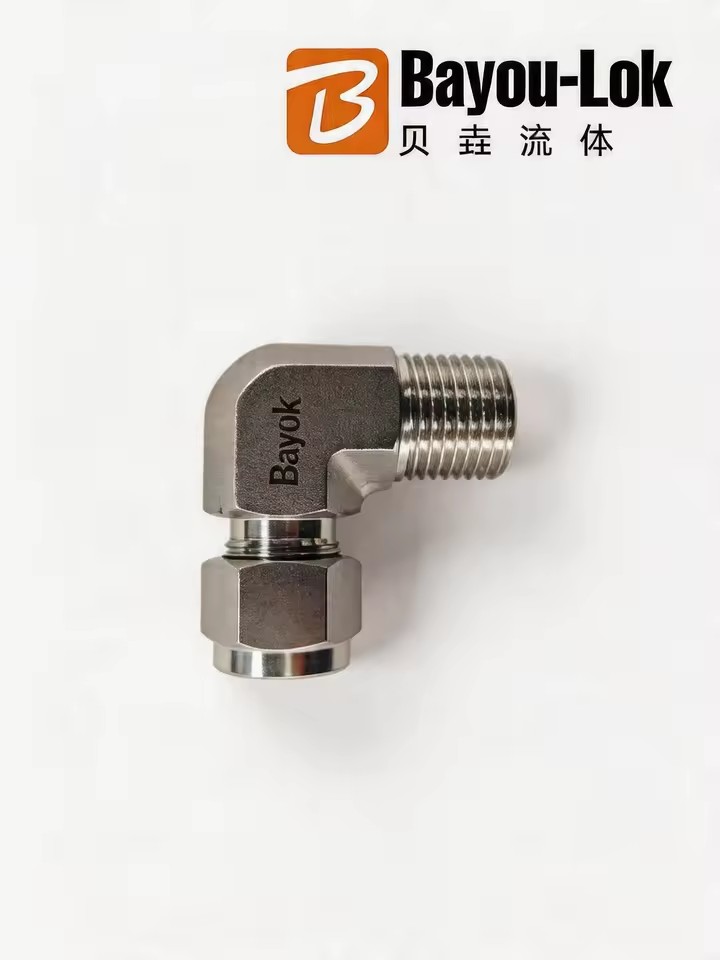

Right Angle 90 Compression Tube to NPT Male Adapter Forged Polished Valve Fitting

Available for enquiry 0.0 · 0 reviews
USD

$ 20.00 20.0 USD $ 20.00

Not Available For Sale

Minimum order quantity: 200 Units
  • Pipe Class
  • Thread Types
  • Connectivity
  • Application
  • Surface Treatment
  • Pipe Features
  • Technic
  • Shape
  • Head code
  • Mounting hole diameter
  • Customized support
  • Warranty
  • Place of origin
  • Selling Units
  • Type (Product option)
  • Pipe size
  • Material (Product option)

This combination is unavailable.

Key attributes

View all
Pipe Class
1000
Thread Types
NPT
Connectivity
Ferrule
Application
Shipbuilding, Agricultural Irrigation, Automotive Repair, Construction Engineering, Heating Systems, Power Industry, petrochemical industry, manufacturing/electrical/food/pharmaceutical/military/aerospace/automotive electronics, water supply and drainage systems, building water supply and drainage, plumbing & water supply, municipal engineering, manufacturing & industrial applications, oil & gas industry, fire protection systems, natural gas pipeline installation, natural gas & petroleum industry, natural gas transportation, shipbuilding & marine engineering, Metallurgical Industry, home appliance installation, automotive manufacturing and maintenance, hvac & refrigeration systems, home appliance repair, electrical wiring protection, nuclear industry
Surface Treatment
Polishing
Pipe Features
Corrosion-resistant, Flexible, Chemical Resistant, No additional Features, Uv Resistant, underground rated
Product description

Product details

Forged Construction: Durable and reliable connection for demanding applications.

High-Quality Polishing: Enhances corrosion resistance and aesthetics.

Flexible Design: Suitable for various industrial and plumbing applications.

NPT Threads: Secure and compatible connections for easy installation.

1-Year Warranty: Peace of mind with -Lok's quality assurance.

SUS316L Double Ferrule Male Elbow 90°, Right-Angle Tubing Transition for High-Purity Specialty Gas

Dual Ferrule Clamping Seal, Vibration & Thermal Cycle Resistant, Zero Long-Term Micro-Leakage

One-Piece Forged CNC Machining, Mirror Smooth Inner Bore, Low Adsorption for Cleanroom

High-Moly SUS316L Resist Corrosive Gas like HCl & Silane, Anti-Pitting & Rust Proof

Standard Male Thread, Compatible with Regulators, Gas Panels & Cabinet Thread Ports

Weld-Free Quick Assembly, Reusable Design for Flexible Routing in Narrow Space

Elbow body, double ferrules and nut all forged SUS316L stainless steel with high molybdenum, resist hydrolytic corrosive gas such as SiHCl3, silane and HCl, anti pitting & salt spray. Copper-free design avoids chemical contamination to ultra-pure process gas.

One-piece forged without weld seam for high pressure resistance, no crack leakage under high inlet pressure. Matte passivation forms dense anti-oxidation layer, stable in humid corrosive workshop.

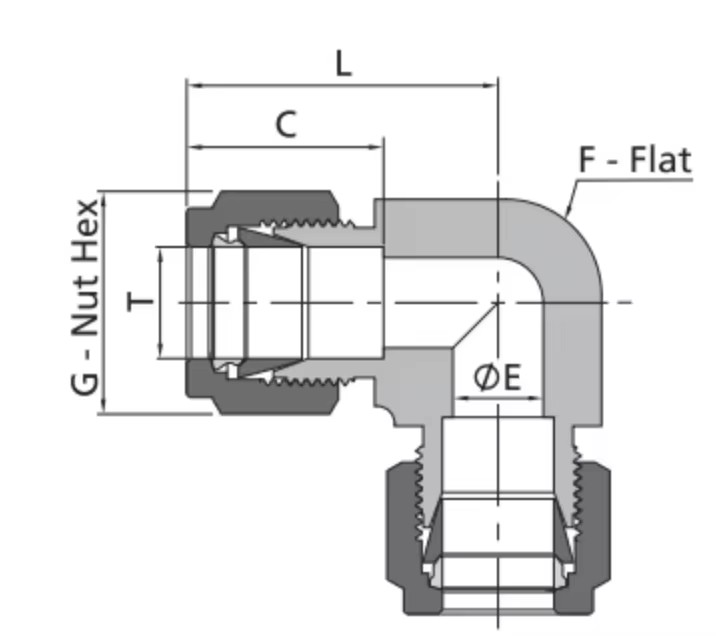

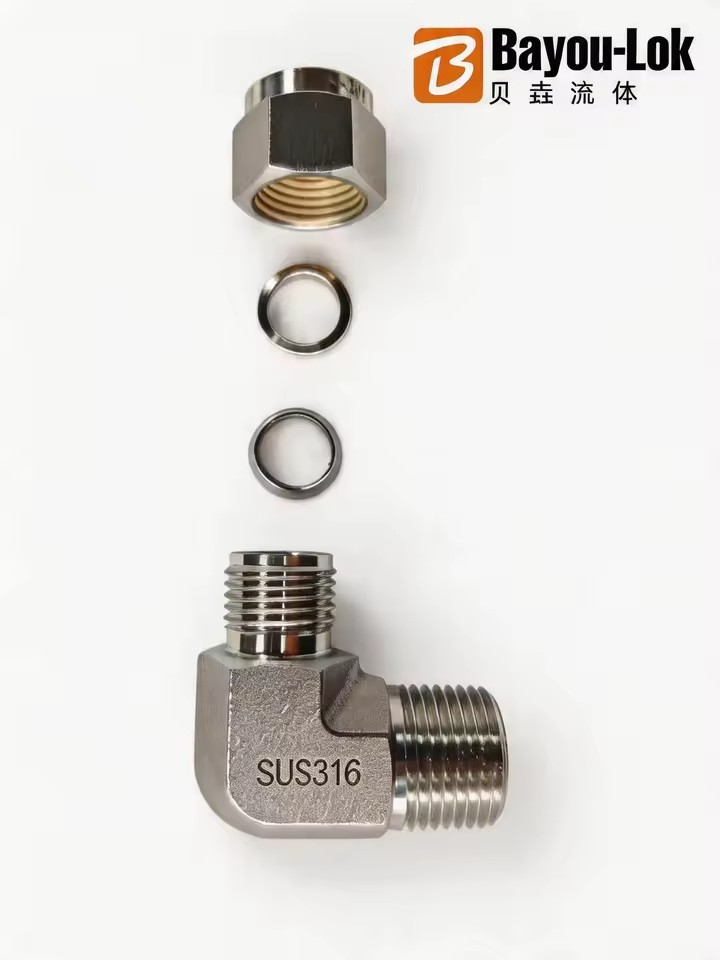

Classic double ferrule sealing: front ferrule cuts tube for radial airtight seal, rear ferrule supplies axial locking tension. Double clamping prevents slip & leakage under vibration, thermal cycling and minor tube deformation, meet semiconductor helium micro-leak requirements.

Ferrule hardness perfectly matched with seamless tubing, no tube crack during tightening, reusable after disassembly to cut consumable cost.

Wide temperature range -196℃~450℃ compatible with pipeline heating jackets. Excellent pressure resistance fits 24/7 continuous production gas supply.

Frequently asked questions

Our standard lead time is 2 weeks, significantly faster than the industry average of12-20 weeks. We achieve this through modular design and a strategic inventory ofcore components (SS316L bodies, diaphragms). For urgent project needs, pleasecontact our engineering team for "Fast-Track" options.

Every single product undergoes a rigorous Helium Leak Test using ahigh-sensitivity mass spectrometer. We guarantee a leak rate of less than 1x10-3mbar-l/s. A detailed test report with a unique serial number is provided with eachdelivery.

Yes. We hold the CE-PED (Pressure Equipment Directive) certification (NB0036/0035 equivalent). This is not just a general CE mark, but a specific safetycertification for high-pressure equipment, which is a mandatory requirement for 90%of industrial projects in Europe (,, etc.).

We strictly use SS316L (VIM/VAR grade) for ultra-high purity and hydrogenapplications to prevent hydrogen embrittlement. All raw materials come with EN10204 3.1 Mill Test Reports. For corrosive gases, we offer Hastelloy and Elgiloydiaphragm options.

Absolutely. We specialize in "Lego-style" modular customization. Whether it's a70MPa hydrogen manifold or a semi-automatic changeover system for a lab, ourengineers can provide a professional 3D design and technical datasheet within 24-48nours.

Yes, we welcome sample orders. We understand that in the semiconductor andenergy sectors, "seeing is believing." You can test our Ra < 0.25um surface finish andoressure stability before committing to a bulk purchase.
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 200 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 17 fields
Pipe Class
1000
Thread Types
NPT
Connectivity
Ferrule
Application
Shipbuilding, Agricultural Irrigation, Automotive Repair, Construction Engineering, Heating Systems, Power Industry, petrochemical industry, manufacturing/electrical/food/pharmaceutical/military/aerospace/automotive electronics, water supply and drainage systems, building water supply and drainage, plumbing & water supply, municipal engineering, manufacturing & industrial applications, oil & gas industry, fire protection systems, natural gas pipeline installation, natural gas & petroleum industry, natural gas transportation, shipbuilding & marine engineering, Metallurgical Industry, home appliance installation, automotive manufacturing and maintenance, hvac & refrigeration systems, home appliance repair, electrical wiring protection, nuclear industry
Surface Treatment
Polishing
Pipe Features
Corrosion-resistant, Flexible, Chemical Resistant, No additional Features, Uv Resistant, underground rated
Technic
Forged
Shape
Bend
Head code
Hexagon
Mounting hole diameter
0.19in
Customized support
OEM, ODM, OBM
Warranty
1 years
Place of origin
China, Shanghai
Selling Units
Single item
Type (Product option)
Direct-through through-board connector
Pipe size
10 mm, 12 mm, 14 mm
Material (Product option)
Stainless Steel, Brass, Alloy
Lead time
15 days
Minimum order
200 Units
