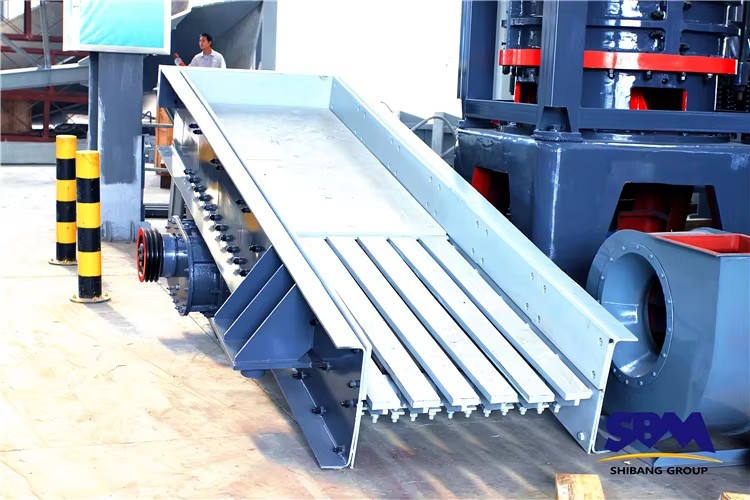

Mining Industry Vibrating Conveyor Feeder Machine Vibrating Grizzly Feeder Machine

SBM Vibration feeder is a kind of commonly used feeding equipment. In the production process, vibrating feeder can feed the block or granular material uniformly and continuously to the material receiving equipment

SBM Mining Industry Vibrating Conveyor Feeder Machine Vibrating Grizzly Feeder Machine

Vibrating Conveyor Feeder Machine Vibrating Grizzly Feeder Machine

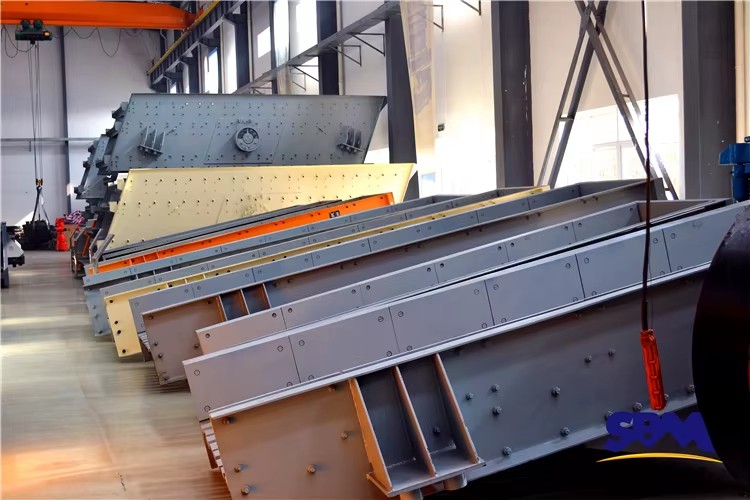

The ZSW Vibrating Feeder is the tool feeding the lump, granular and powdery materials from the warehouse or hopper into the material receiving equipment in a uniform and continuous manner or by certain amount. In crushing lines, this product can feed the materials in a continuous and uniform manner to the crushing machine and screen the materials primarily.

Input Size: 0-800mm Capacity: 30-1000TPH Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and so on

What sapp

Technical Data

Performance

Having Prescreening Function & Wide Applications

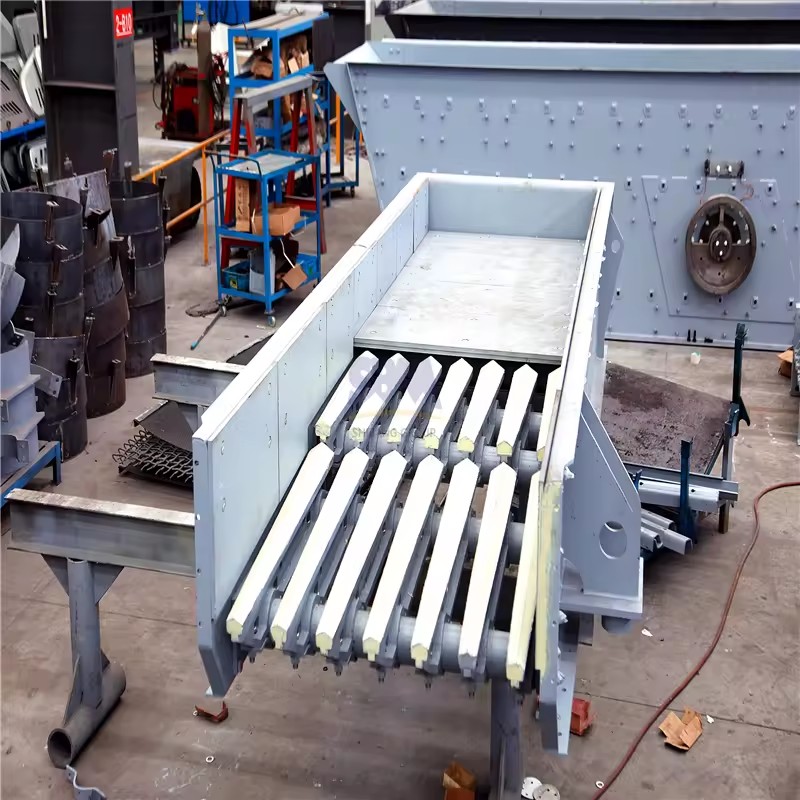

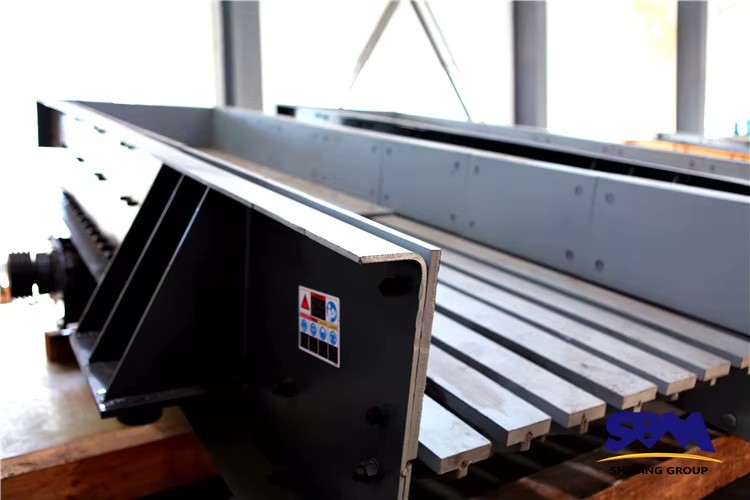

SBM's ZSW Vibrating Feeder can be used to feed various ores, stones, river pebbles, construction wastes and other lump and granular materials. The feed chute is equipped with single layer of grate bars, which can simply pre-screen the materials to remove the fine materials and sundries in the raw materials.

Double Eccentric Shaft Vibration Exciter Stronger Than Ordinary Ones

ZSW Vibrating Feeder adopts double eccentric shaft vibration exciter, which is of powerful exciting force, stable amplitude, uniform and continuous feeding and high production efficiency, making material receiving equipment reach the optimal working state.

Simple Structure, Strong Adaptability

ZSW Vibrating Feeder is small, light, simple and compact. It has no rotary parts and few quick-wear parts. It has strong adaptability to all kinds of ores, especially viscous materials, and it can run under dusty or watery environment.

Low Noise, No Pollution

To avoid dust pollution and noise, ZSW Vibrating Feeder supports the closed structure in response to environment protection under the trend of developing "green mines".

Working Principle

A ZSW Vibrating Feeder is composed of a feed chute, a vibration exciter, spring supports and a transmission device. The vibration exciter, consisting of two eccentric shafts (driving shaft and driven shaft) and gear pair, vibrates the feed chute. Driven by the motor, the driving shaft works under the action of the triangular belt. Next, gears on the driving shaft rotates the driven shaft. So, the rotation direction of driven shaft shall be contrary to that of driving shaft. In the process, the chute vibrates to convey materials continuously.
