NEW DEVELOPMENT INDUCTION TURBINE MICRO HYDRO ELECTRICITY ENERGY GENERATOR

NEW DEVELOPMENT INDUCTION TURBINE MICRO HYDRO ELECTRICITY ENERGY GENERATOR

Product Feature

1. Energy conservation and environment protection.

2. Transforming the steam of water into power.

3. Shell is made of durable plastic material.

4. The output power can charge different devices as small battery

5. Appearance: generator surface clean, no rust, no scratches when significant, solid structure.

6. 3 types of power generation output optional.

Specifications

This generator has 3 different power generation output, divided into 3 sub-types as follows

AC0-20V: AC 0- 20v ac output, the generator does not have voltage stabilizing circuit, and 150mA is the max current. Because the electricity generated during charging is used out in a timely manner, the voltage will be kept around 14V automatically, and the most appropriate voltage will be maintained, so that all the electricity generated will be used to charge the small battery.

5V: DC 5V steady output, which can charge

12V: DC 12V stable output, which can power the 12V radio, charge, and power the LED lamp.

Note: there are two kinds of lithium batteries on the market, one with the charge management chip and one without the charge management chip. The charge management chip is needed for charging the lithium battery, otherwise it is easy to explode.

Technical Condition

1. The Maximum Output Voltage: 12 V 2. The Maximum Output Current: ≥ 150mA (12V) 3. The Resistance Between Line: 10.5 ± 0.5Ω 4. Insulation Resistance: 10MΩ (DC100 megohm meter) 5. Outlet Closed Highest Pressure Resistance: 0.6Mpa 6. Outlet Opening Maximum Pressure Resistance: 1.2Mpa 7. Start Water Pressure: 0.05Mpa

Mechanical properties and operating environment: 1. Appearance: Generator surface clean, no corrosion, no significant scratches, solid structure. 2. The Axial Clearance: Approx. 0.2~1.0mm 3. Mechanical Noise: ≤ 55dB 4. Generator Single Volume: 90g 5. Generator Life: ≥ 3000h 6. Output Characteristics: The output voltage with no voltage regulator is proportional to the water pressure. Package Includes: 1 x Hydro Electric Generator

Picture Description

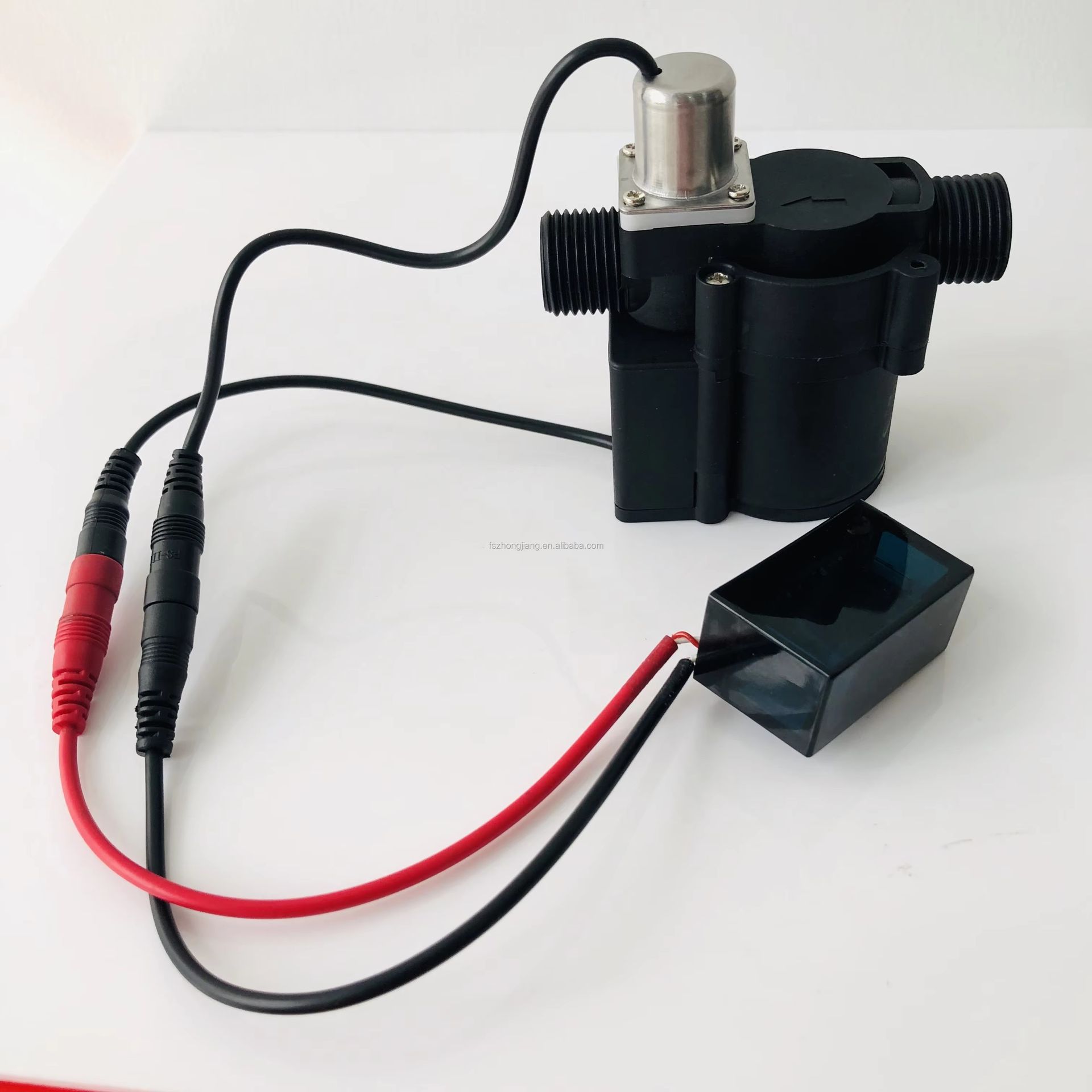

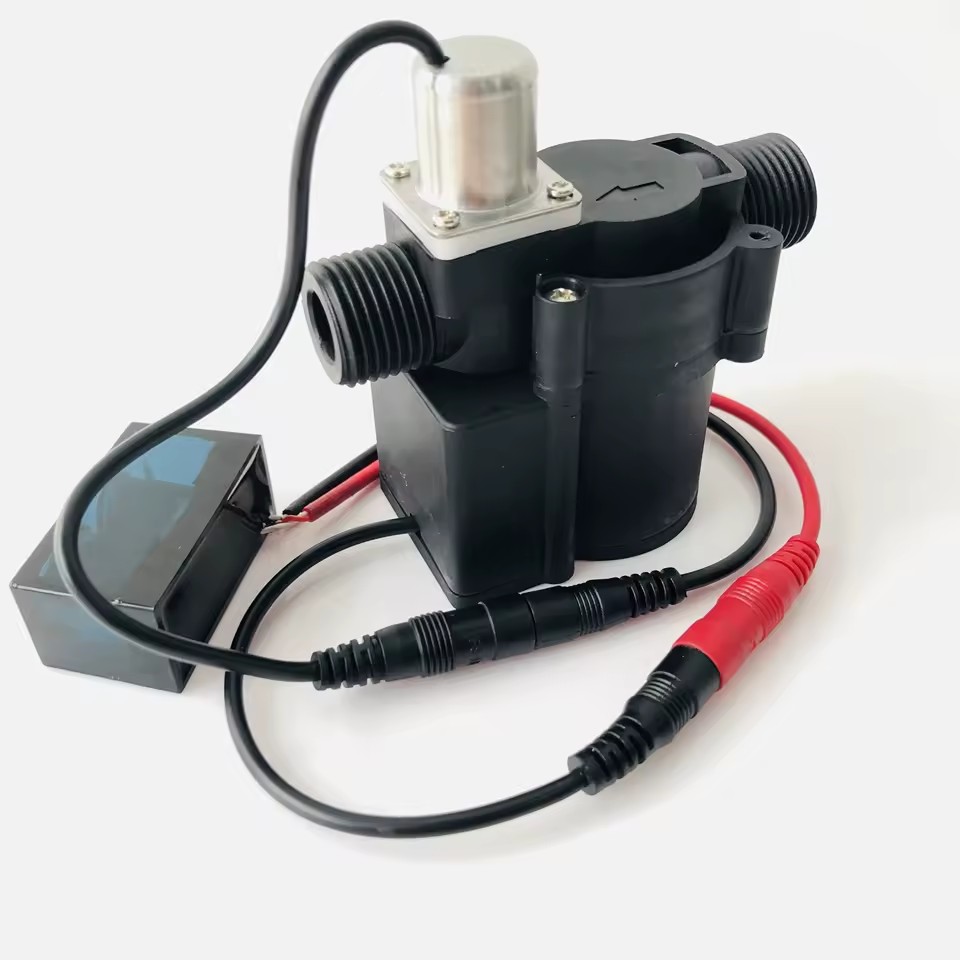

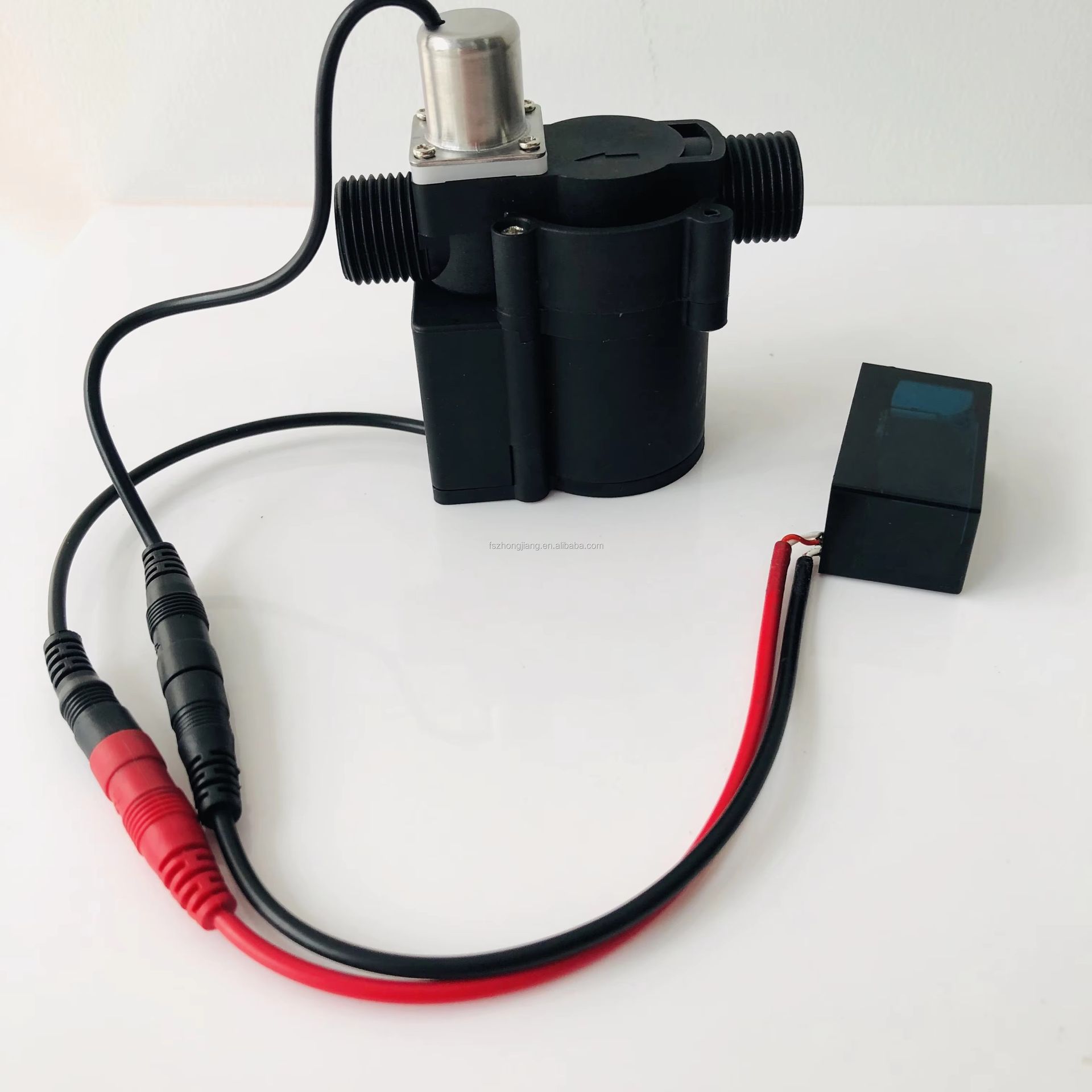

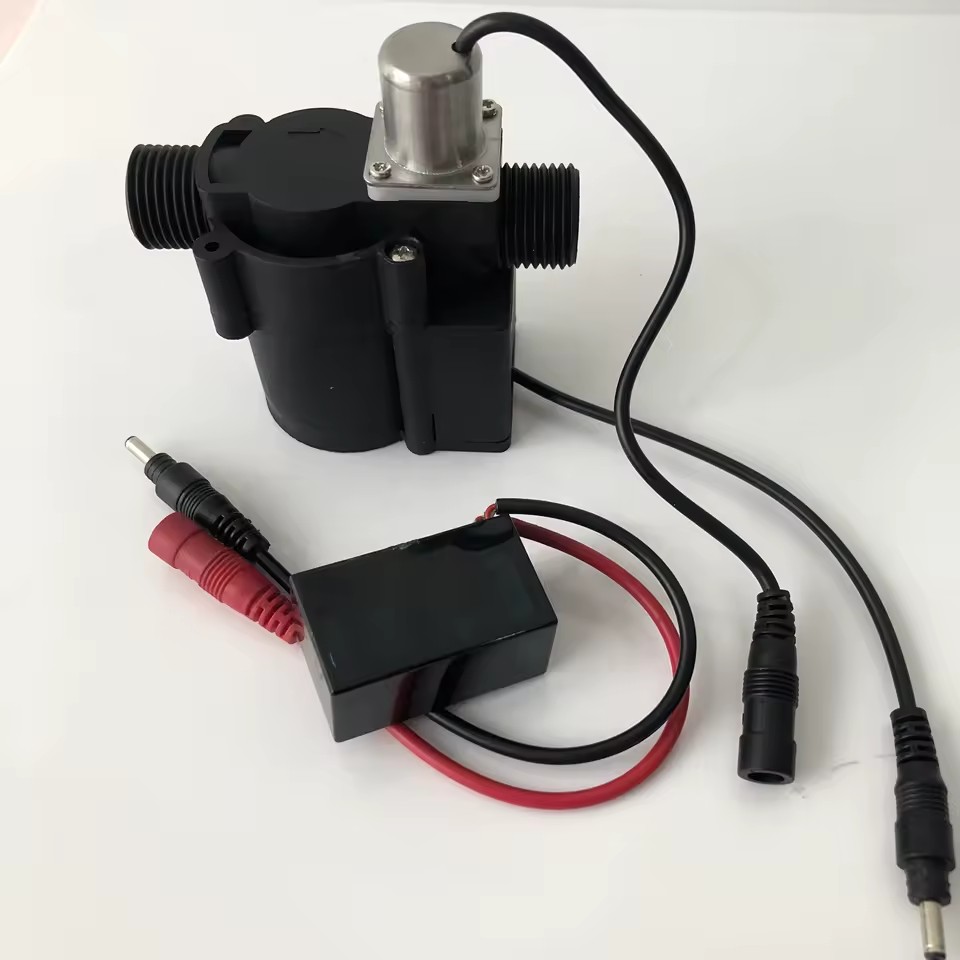

Induction Generator = micro energy generator + pulse valve
