How an Oxygen generator is used in manufacturing companies
Using Oxygen in industry Adding oxygen to a process enables better control of heating patterns, higher furnace efficiencies (for lower fuel consumption) and the reduction in particulate and NOx emissions. It’s used with fuel gases to enhance processes including gas welding, gas cutting, oxygen scarfing, flame cleaning, flame hardening and flame straightening. Oxygen is a raw material in many oxidation processes and it’s also used to regenerate catalysts.
How an Oxygen generator works The air we breathe is about 21% oxygen. Oxygen for industrial use is generated by separating oxygen molecules from the other molecules within a clean, dry compressed air stream. Pressure Swing Adsorption (PSA) is a simple, reliable and cost-effective technology that enables continuous, high-capacity oxygen flow at the desired level of purity. Adsorption happens when atoms, ions or molecules from a substance (compressed air in this case) adhere to a surface of an adsorbent. PSA technology isolates oxygen molecules from other molecules (nitrogen, CO2, water vapor and trace gases) to leave high purity oxygen at the outlet of the generator. The process takes place in two separate pressure vessels (tower A and tower B), each filled with a carbon molecular sieve, that switch between a separation process and a regeneration process.
Benefits of on-site production Compared to the delivery of gas bottles or tanks of oxygen, in-house generation of oxygen offers many key advantages. For example, it ensures continuous availability of oxygen, removing the risk of a production breakdown due to delivery issues or supplier shortages. It avoids the hassle of constant order processing for refills and delivery costs associated with bottled oxygen. It also eliminates the space and special handling requirements for full oxygen bottles in inventory and empty bottles awaiting pickup, refill and re-delivery.
Industries that use Oxygen
A dependable supply of oxygen gas is crucial to productive operations in many industries
• Steel
• Food & beverage
• Pharmaceuticals
• Plastic injection molding
• Electronics
• Laser cutting
• Semiconductors
• Gold and silver mining/extraction
• Oxyfuel combustion
• Chemicals
• Pulp & paper
• Metal heat treatment
• Cable & optical fiber
• Glass
• Fire prevention
• Fish farming
• Waste-water treatment
Ask an air system professional about your best solution for generating oxygen in-house.

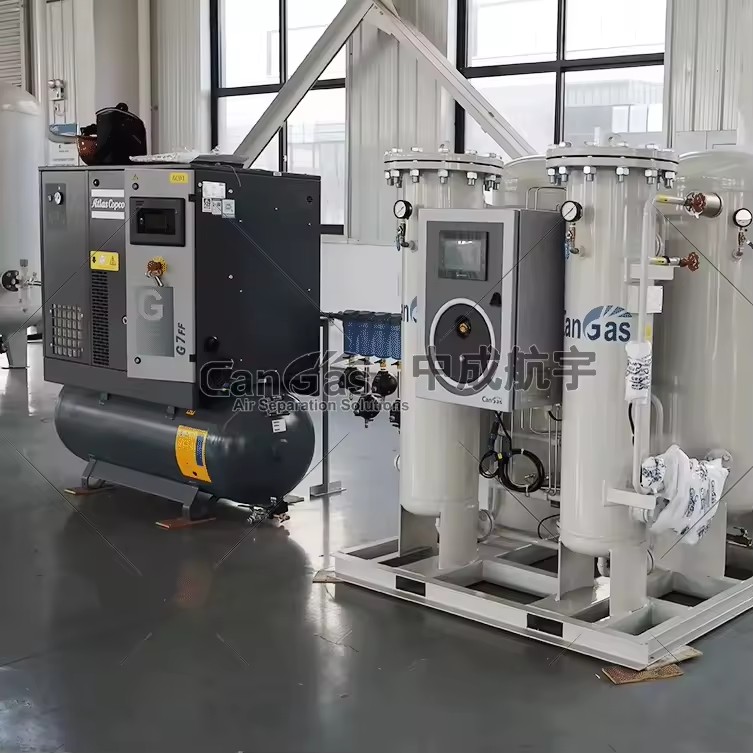

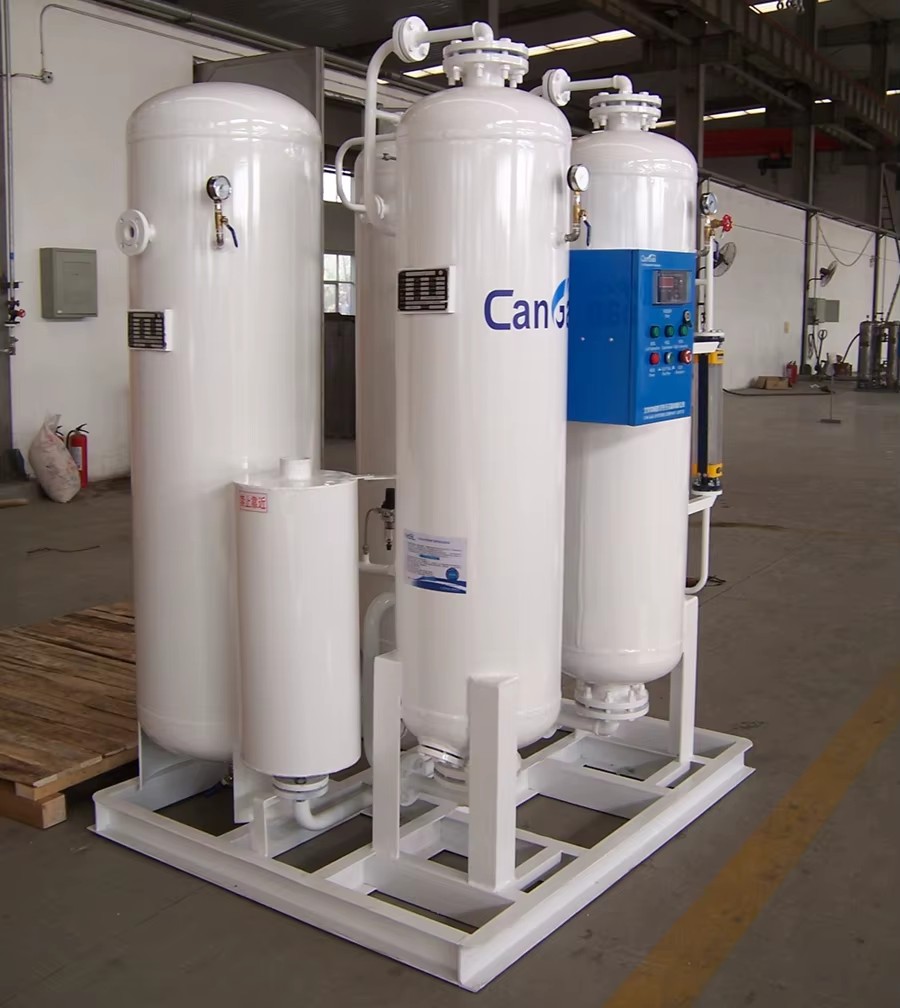

Industrial PSA VPSA Oxygen Generator plant for mines and gold mining
Oxygen generation systems are operating in some of the world’s most remote gold mines to ensure that miners are supplied with sufficient oxygen, several cubic metres of oxygen per personnel is required every hour.
Why use Oxygen Generator for Extraction Mining?
Our oxygen generator for mining can work in any altitude, climate, or conditions, this dramatically improves safety for mining personnel but also provides oxygen for the leaching process. Mines that extract gold on an industrial scale usually use the cyanide leaching process. The gold-bearing rock is first ground to this end. A sodium cyanide solution is then allowed to seep through the ground rock. The solution is enriched with artificial oxygen for this purpose. By using oxygen to convert mineral sulfides to sulfates and processing them, gold yield can be more than doubled over standard ore gravity separation and concentration.
Why Use generators for Extraction Mining? provides custom design units for industry operation with the highest quality parts intended for extreme environments. Ideal for hot, cold and humid climates. This makes our systems ideal for mining operations with
Gold cyanidation (also known as the cyanide process or the MacArthur–Forrest process) is a hydrometallurgical technique for extracting gold from low-grade ore through conversion to a water-soluble coordination complex. It is the most commonly used leaching process for gold extraction. Cyanidation is also widely used in silver extraction, usually after froth flotation.
Production of reagents for mineral processing to recover gold represents 70% of cyanide consumption globally. While other metals, such as copper, zinc, and silver, are also recovered using cyanide, gold remains the primary driver of this technology. The highly toxic nature of cyanide has led to controversy regarding its use in gold mining, with it being banned in some parts of the world. However, when used with appropriate safety measures, cyanide can be safely employed in gold extraction processes. One critical factor in its safe use is maintaining an alkaline pH level above 10.5, which is typically controlled using lime in industrial-scale operations. Lime plays an essential role in gold processing, ensuring that the pH remains at the correct level to mitigate risks associated with cyanide use.
Find out more about our Oxygen Generators.
Generating oxygen can range from simple to highly intricate, depending on your industry, equipment, and environment. We take pride in our innovative design and advanced technology, enabling us to cater to a diverse range of industries, sectors, and demanding environments.
Selecting the optimal solution for your business entails more than just considering the price per unit. It requires meticulous planning, industry-specific design, seamless deployment, and expertise.
Take the initial step toward on-site gas generation and liberate yourself from market supply constraints.
An Oxygen Generator (O2 Generator) or a Pressure Swing Adsorption (PSA) Oxygen Plant represents an exceptionally efficient method of oxygen production. Capable of yielding oxygen with purity levels of up to 95%, it surpasses the quality of the air we naturally breathe. This remarkable purity renders the PSA oxygen plant indispensable for both medical and industrial applications, ensuring patients receive oxygen of the utmost quality to facilitate their recovery from illness or injury.
Our generators are meticulously crafted to your specifications, adhering to stringent medical standards to ensure a seamless and pure oxygen supply. We offer comprehensive systems, encompassing high-pressure boosters for cylinder filling and backup systems capable of operation without reliance on external power sources.
While PSA systems can theoretically produce oxygen with purities higher than 95%, doing so becomes markedly inefficient due to the substantial volume of compressed air required. Additionally, the majority of global regulations mandate a 95% purity threshold, particularly in healthcare settings.
Our generators represent a pinnacle of specialization, meticulously crafted to meet healthcare standards and approvals. Utilizing premium-grade materials sourced from Europe, and in some instances manufactured in-house, ensures unparalleled quality. Our systems boast an industry-exclusive gas flow and purity mechanism, setting them apart from any other offerings in the market. Powered by our innovative Vortex technology, our systems guarantee safe and reliable operation with minimal maintenance requirements, delivering peace of mind for up to 20 years of continuous use. To underscore our confidence in the durability and performance of our product, we provide an extensive 5-year comprehensive warranty, covering the entirety of the system.
CanGas ® medical on-site oxygen generator/plant, continuously generate high quality oxygen gas meeting requirements of medical respiratory oxygen.
It ends days when medical institutions rely on traditional costly liquid oxygen and cylinder oxygen. They have passed People’s Republic Of Registration Certification, and as medical instruments meets the Pharmacopoeia (U.P. S) XXI Oxygen 93% Monograph.
It wins good reputation from clients Mainland,,,,,,,, etc out of its reliability, economy, convenience, and proven applications in medical industry.
Contrast of three medical oxygen generation methods
PSA oxygen generation technology is popular globally, which has partly substituted oxygen cylinder method and cryogenic method, and become an important part of modernized hospitals.
Calculated as cylinder oxygen consumption of 1500 cylinders, it will save USD81,415 than liquid oxygen in three years, and save USD206,030 than cylinder oxygen(as liquid oxygen USD230.8/Ton, cylinder oxygen USD4.6/cylinder)
CAPO Series & CFS Series&&CAPO-HP Series
CAPO series oxygen machines generate 93±3% purity oxygen. This purity is the most applicable in lots of industries, with its unique advantage of cost. Generally 1~1.5kw per cubic meter oxygen. Much more economical than buying liquid oxygen in cylinders.
CFS Series (Oxygen cylinder Filling System), an self-serviced oxygen generation and cylinder filling system. With oxygen generation system it fills generated oxygen into cylinders. The system is an ideal choice if the end users for oxygen are in mountains or mines/oilfield. Hospitals require it for standby of oxygen once breakdown or blackout.
CAPO-HP Series high purity oxygen machine generates high purity oxygen at 98±1%. It is an unique technology developed by. This purity is specially used for steel cutting, medical and other high fields requiring high purity oxygen.
Features Reliability * Over ten years’ experience, over 40 countries and regions, thousands of machines running.
* Automatic start-stop, remote start-stop, unqualified oxygen automatic venting, central control of the whole system.
* Operate under low working pressure, less potential safety hazard.
* Turn-key solution, pre-commissioned before shipment.
*HMI Human Machine Interface enables online displaying&setting of operating parameters including flow, purity, pressure, historic curve recording, and alarming once breakdown.
Economy
* Less unit cost than liquid oxygen.
* Completely automatic, labor cost saved.
* No need of specified professional men to operate, lower maintenance cost.
* EES system (Energy Efficiency System) enables you to produce oxygen as actual demand to lower operating cost.
Conveniece
* Use more advanced, higher efficient ZMS imported from Europe.
*Optional Wi-Ctrl remote wireless monitoring system for long-distance monitoring, commissioning, and upgrading.
*Generator maintenance and instrument calibration is simple and easy to do.
*Generator systems skid mounted, easy to assemble and move. Vehicle-Mounted for moving purpose.
CANGAS Systems, identified as the Beijing Key High-Tech Corporation, is one of the initial companies involved in air separation industry. CANGAS is committed to continuously providing core value to customers in all industries. With production base of 27,000.00 square meters, 15 national patents and ISO9001 Certificate of Quality Management System Certification, CE certificate, ASME certificate, UL certificate, GHOST certificate, CANGAS has been an integration of R&D, design, manufacture, sales, service. Over the past 20 years, CANGAS has successfully provided over 3000 sets of air separation systems for many industries in over 70 countries and regions.
CANGAS Systems have a range of PSA oxygen generator, PSA nitrogen generator, PSA Oxygen purifier, PSA nitrogen purifier, hydrogen generator, VPSA oxygen generator, VSA oxygen generator, Membrane oxygen generator, Membrane nitrogen generator, Liquid (cryogenic) oxygen, nitrogen and argon generator, etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, mining, cutting, welding, new material, etc. With years research in air separation technology and rich solution experiences in various industries, CANGAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CANGAS ® systems for clients including GE, WILMAR International, DEGUSSA Group, SAMSUNG Korea, ORION Korea, Petrol, Sinopec, etc. CANGAS have built up a global distributor system covering,,,,,, etc. During the 2008 Olympics, CANGAS was selected by Beijing Food Safety Test Center as the supplier for nitrogen generator to test the Olympic food.
We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. CANGAS is responsible for after-sales services to all CANGAS products and other related equipments provided by us. Besides, CANGAS global distributor system can provide prompt professional localized service.
CANGAS is dedicated to supplying
Summary
CANGAS PSA oxygen generator is a compact on-site oxygen generation system, which can replace cylinders or
cryogenic oxygen supply system. With the strengths of compact, low cost, easily operated, and convenient, it has been
widely used in many kinds of fields such as petrochemical, electric steel furnaces, glass making, paper making
ozone generation, aquaculture, aerospace, medical industry, mining, oxygen enriching, oxygen bar, welding and cutting, etc.
PSA Oxygen Principles
The principles of Pressure Swing Adsorption (PSA) oxygen generator are adsorption and desorption.
Each gas has a characteristic adsorption rate that when adsorbed by Zeolite Molecular Sieve (ZMS). ZMS has large
surface area containing a mass volume of micro pores and passageways. Nitrogen has a higher adsorption rate than
oxygen when delivered to the ZMS bed after pressurized. When compressed air enters ZMS, oxygen molecules are able to
pass through this large surface, and nitrogen molecules are adsorbed to the surface area.
Adsorption and desorption/diffusion are the general principles of the PSA system since each gas has a characteristic
adsorption rate that is a function of its ability to be adsorbed by a molecular sieve. The adsorption process can produce
a range of gas with purities more than 90% oxygen.

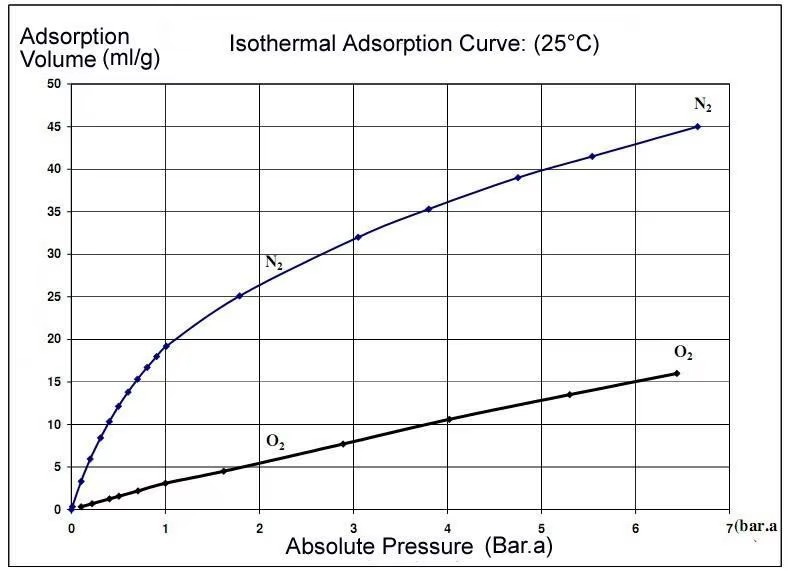

The different capacities that ZMS adsorbing O 2 molecule and N 2 molecule can be shown by the adsorption balance
vessels filled with ZMS to produce a continuous stream of oxygen.
During depressurization, the oxygen of lower purity than required is transferred to another vessel first, which is called
pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption. Then the adsorption and desorption/regeneration processes switch in the two adsorption towers.
CANGAS has the obligation for the service after product selling. The scope of service after product selling are as below
To establish user’s files.
To investigate user or
To be responsible for the maintenance at equipment.
To provide technological consultant service.
For every sold PSA oxygen generator, PSA nitrogen generator, PSA Oxygen purifier, PSA nitrogen purifier, hydrogen generator, VPSA oxygen generator, VSA oxygen generator, Membrane oxygen generator, Membrane nitrogen generator, Liquid (cryogenic) oxygen, nitrogen and argon generator, CANGAS establishes user’s files in computer. We collect the content of contract, technical parameters after commissioning, equipment working state, equipment operating state, user’s opinion or suggestion and so on, then we record them in computer so that we can look up easily to serve the user better and improve our service work. Therefore help from users would be greatly appreciated. It is better that the customers send us the record list about equipment operating state and maintenance record by
We will send technician to investigate or
If the equipment or instrument break down within guarantee period and the damage is within the scope of free maintenance guarantee, CANGAS will unconditional maintain or provide corresponding new parts at once. If the maintenance is not within the scope of free maintenance, CANGAS only charge for the maintenance fee and expenses generated during the maintenance process, and will not take any technological cost.
For users, CANGAS provide technological consult at any time replying any question happened on the user’s working process. We do the best to resolve the related problem which is encountered by user.
CANGAS' commitment: User’s difficulty is our difficulty! User’s profit is our profit!
* High Reliability
Proven PSA technology, simple engineering design, few moving parts and international standardized manufacturing techniques ensure minimal maintenance and maximum reliability.
* Low Cost
Patented REFLUX high-efficiency control system reduces air consumption, saves electric power.
* Convenience
Unattended operation controlled by PLC automatically. Optional touch screen CANBUS control
display and alarm system makes all the generation system to be operated by one touch.
CANBUS displays working parameters, reminds filter elements replacing and instructs trouble shooting, enables remote control.
* Easy Installation
Skid mounted for easy installation and move.
* Longer Service-life
Exclusive bed containment system extends Zeolite/Carbon Molecular Sieve (Z/CMS) bed life to more than 10 years.
* Minimal Maintenance
The generator has highly-reliable valves and no other moving parts. Filter elements are easily replaced.
* More reliable CANGAS standardized air separation systems based on proven state of the art technologies in history of many years application in fields.
Simplified engineering design idea with much less moving parts, guarantees maximumreliability and minimal maintenance.
* More economical More advanced and more economical air separation membrane modules. REFLUX composition control system reduces air consumption capacity, saves energy cost. Patented Energy Efficiency System (EES) enables CANGAS systems to produce product gases based on actual demand.
* More convenient CANBUS multi monitoring and control system enables parameters of capacity, purity, and pressure of product gases online display on panel screen, gives running problem alarm, and reminds of maintenance.
Turn-key solution and pre-commissioned. Skid mounted design, easy installation.
* Plug and play with smart control.
* Proven design with reliable parts.
* CE, ISO, ASME, UL, BV, GHOST, GC3 certificated.
* Leader in the market with 20 years of experience.
* Have exported more than 1000 sets of PSA O 2 /N 2 units to more 70 countries.
* Turn-key design with easy control, simple installation and easy operation.
* Low maintenance with super long service life.
* Could be containerized for easy installation, transportation and relocating.
* High efficiency: ONLY 0.5kw·h for 1m³ N 2 production and 0.8kw ·h for O 2.
* 18 months warranty.
* Full Automation
All systems are designed for un-attended operation and automatic Oxygen/Nitrogen demand adjustment.
* Lower Space Requirement/Small footprint
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.
* Fast Start-up
Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per Oxygen demand changes. For nitrogen generators, it is shorter.
It’s very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always.
* Expected Zeolite Molecular Sieves and Carbon Molecular Sieve life is more than 10 years, overall service life time of Oxygen/Nitrogen plant is more than 30 years.
* Low investment and energy consumption.
* Simple operation and maintenance.
Except the commonly used PSA nitrogen and oxygen generators, CANGAS is able to manufacture some other air separation equipments which are listed below.
Oxygen purifier; nitrogen purifier; hydrogen generator; VPSA oxygen generator; VSA oxygen generator; membrane oxygen generator; membrane nitrogen generator; liquid (cryogenic) oxygen, nitrogen and argon generator.
