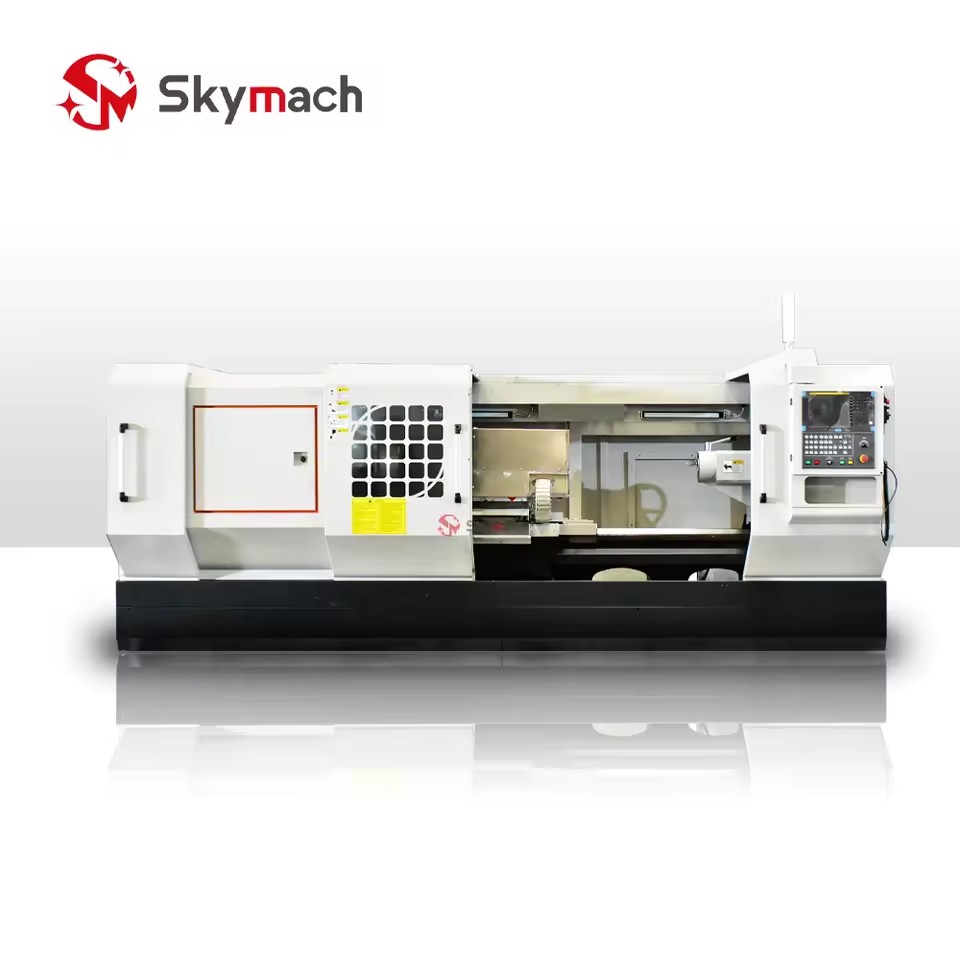

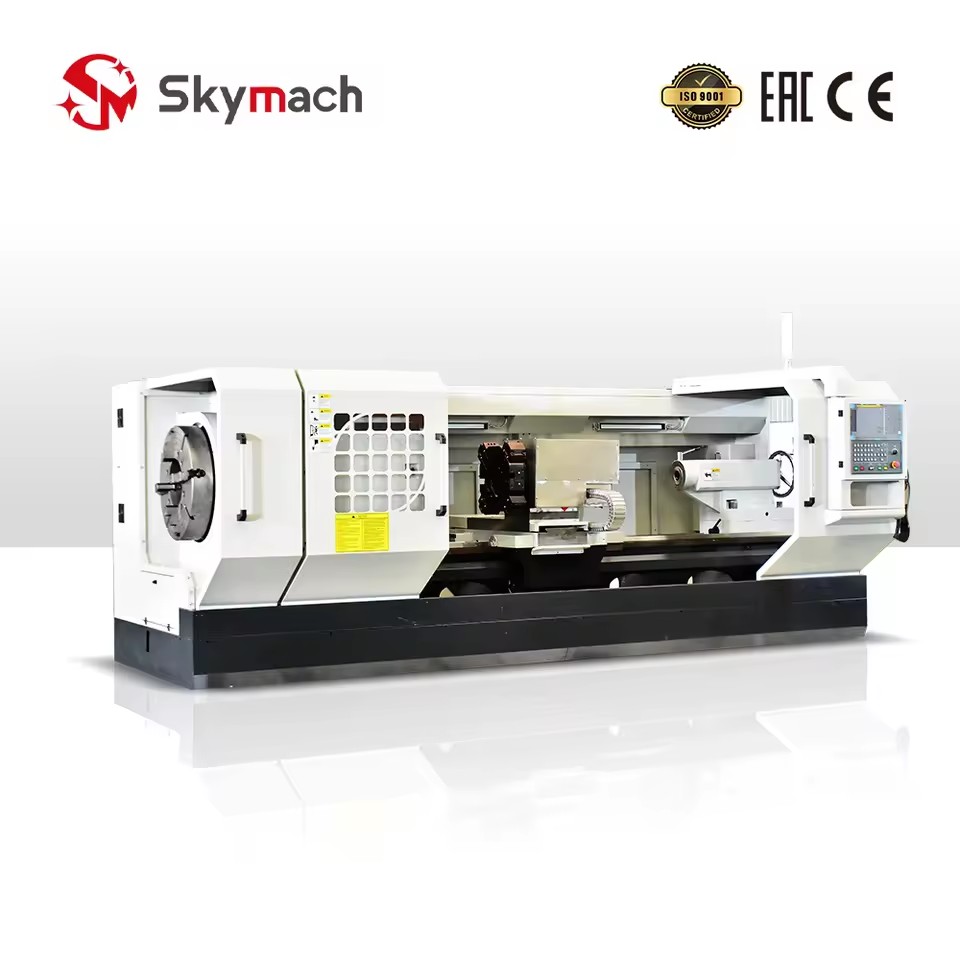

QK1313 CNC Pipe Threading Lathe for Drill Pipe Casing and Tubing Thread Machining in Petroleum and Chemical Industry

Available for enquiry 0.0 · 0 reviews
USD

$ 14,940.00 14940.0 USD $ 14,940.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Max. length of workpiece (mm)
  • Positioning accuracy (mm)
  • Repeatability (x/y/z) (mm)
  • Number of axes
  • CNC control system
  • No. of Spindles
  • Tool post stations
  • Machining capacity
  • Voltage
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Max. weight of workpiece(kg)
  • Travel (x axis)(mm)
  • Travel (z axis)(mm)
  • Width of bed (mm)
  • Place of origin
  • Dimension(L*W*H)
  • Model number (Specification)
  • Weight
  • Range of spindle speed
  • Cutting torque
  • Cutting material
  • Machine type
  • Function
  • Control system
  • Max. Swing Diameter
  • Tailstock sleeve taper
  • Selling Units
  • Single package size
  • Single gross weight
  • Spindle motor power(kw) (Product option)
  • Max. swing diameter (mm)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Type
Horizontal, Metal pipes, threading tools
Max. length of workpiece (mm)
1000-6000
Positioning accuracy (mm)
±0.005
Repeatability (x/y/z) (mm)
±0.003
Number of axes
2
CNC control system
FANUC
Product description

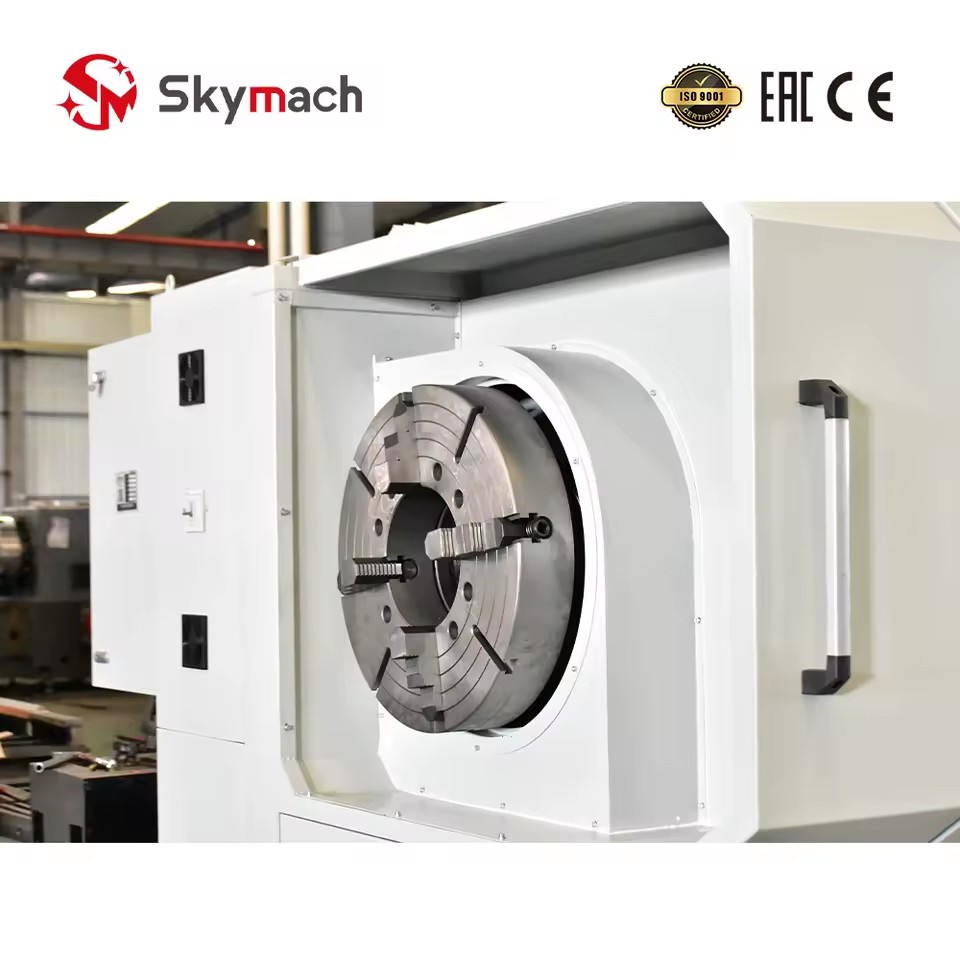

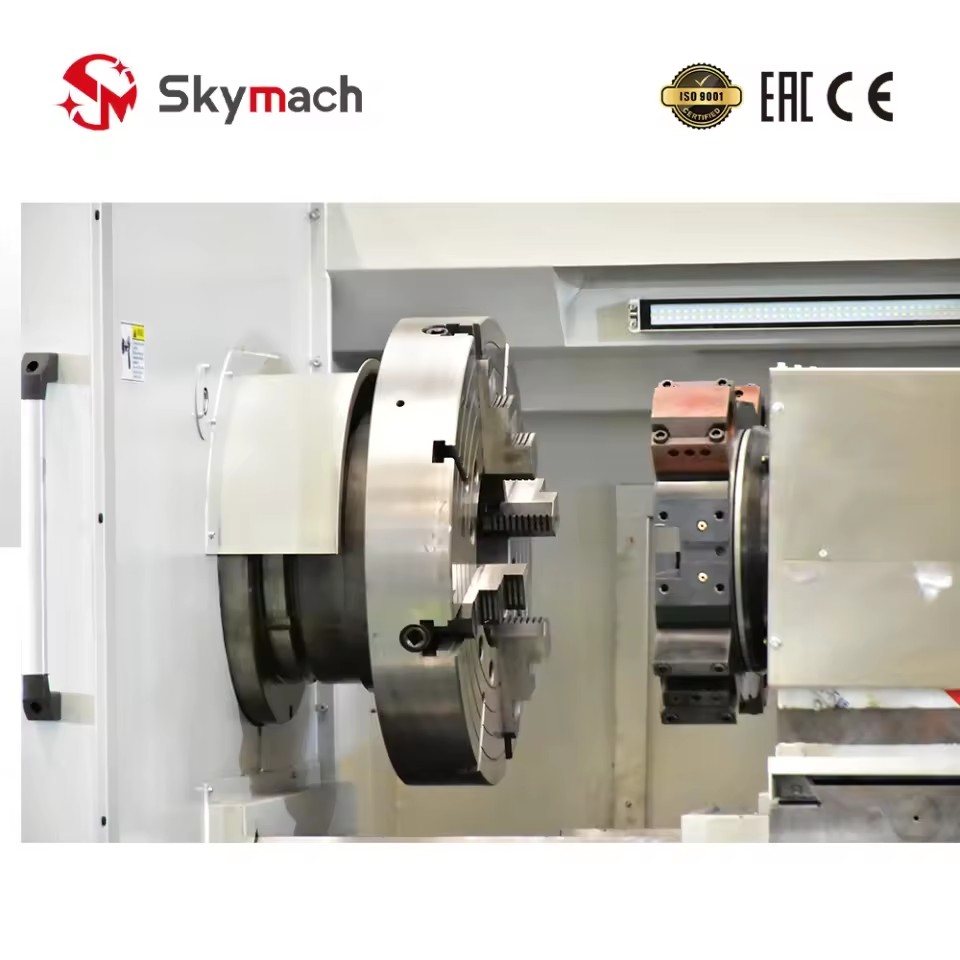

  • Large spindle bore with front/rear chucks for one-setup pipe threading Large bore with chucks on both ends. In oil drill pipes and chemical pipelines, one clamping completes internal and external threading without re-clamping.
  • Integral cast iron bed with hardened guideways for lasting accuracy High-strength cast bed with induction hardened guideways. In heavy cutting of casing and drill pipe joints, it resists vibration and maintains long-term accuracy.
  • Pipe threading and general turning in one versatile machine Professional pipe threading plus full general lathe functions. In machine shops or pipe repair sections, one machine saves equipment investment and floor space.
  • Taper guide device with wide thread range for diverse needs Taper guide for taper threads with metric and inch options. In drill pipe joints and oil pipe threads, it covers various standard and non-standard requirements.
  • Multi-step speeds with wide feed range for different materials 18 forward/9 reverse speeds with multi-step feeds. For carbon, alloy and stainless steel pipes, select optimal parameters for both efficiency and quality.
  • Heavy load capacity with large swing for big pipe processing 3-ton load with 630mm swing and extra-long workpiece length. For oil casing and large chemical pipelines, heavy extra-long pipes are handled with ease.
  • Large tool shank with electric turret for quick change 32x32mm shank with 4-station electric turret. In alternating rough and finish threading, it ensures rigidity and fast tool change.

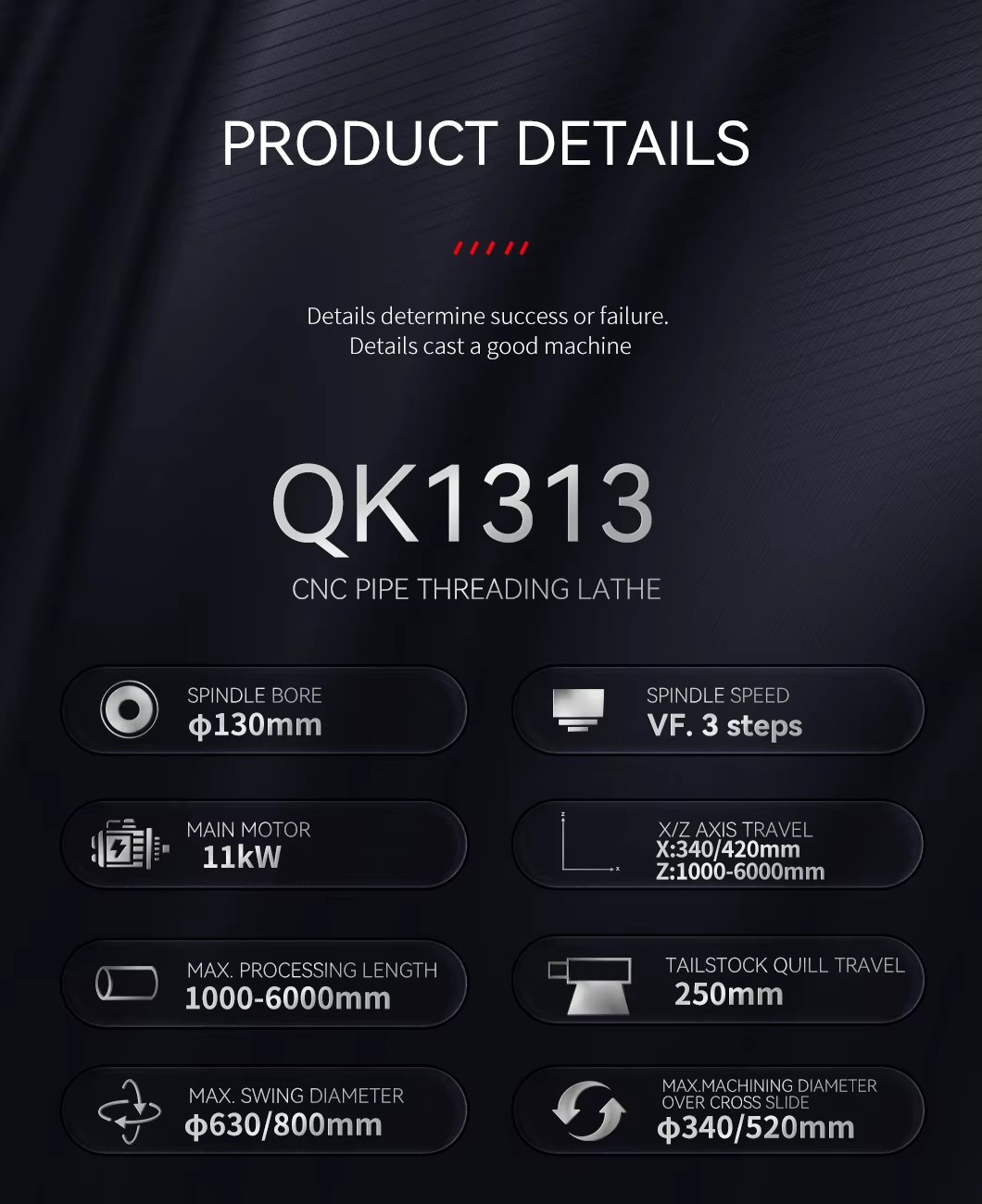

    • ParameterUnitSpecification
    Max. swing diameter over bedmm630/800
    Max. swing diameter over cross slidemm340/520
    Max. workpiece lengthmm1000-6000
    Pipe threading diameter rangemm30-126
    Guideway widthmm550
    Max. load capacityT3
    Spindle bore diametermm130
    Spindle speed steps3-speed variable frequency
    Spindle speed rangerpm30-800
    Chuck typeφ400 3-jaw manual
    Turret type4-station electric tool holder
    Tool shank sizemm32×32
    X-axis travelmm340/420
    Z-axis travelmm1000-6000
    X-axis rapid traverse speedmm/min4000
    Z-axis rapid traverse speedmm/min6000

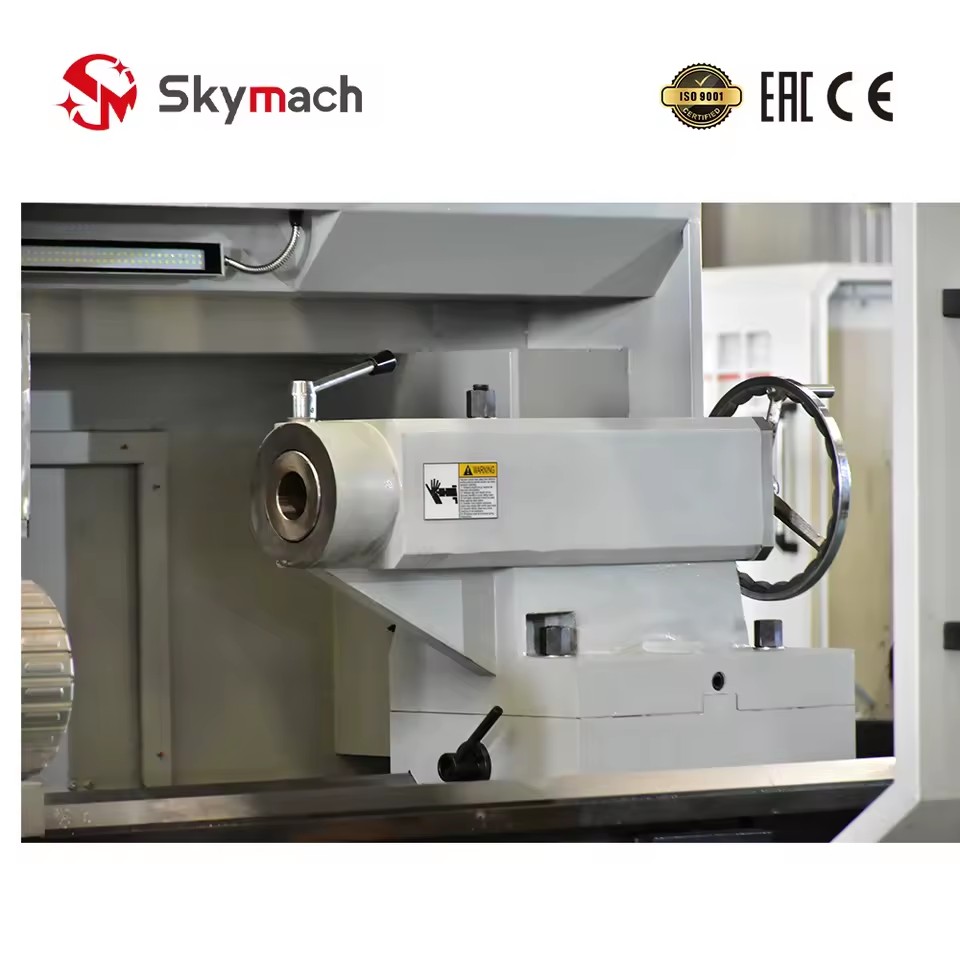

    Tailstock quill diametermmφ100
    Tailstock quill taperMT6
    Tailstock quill travelmm250
    Main spindle motor powerkW11
    Coolant pump motor powerkW0.25
    Machine dimensions (W×H)mm1800×1850
    Machine lengthmm3000/8300
    Net weightT4.8
    Certifications & compliance
    CE
    Complies with EU standards

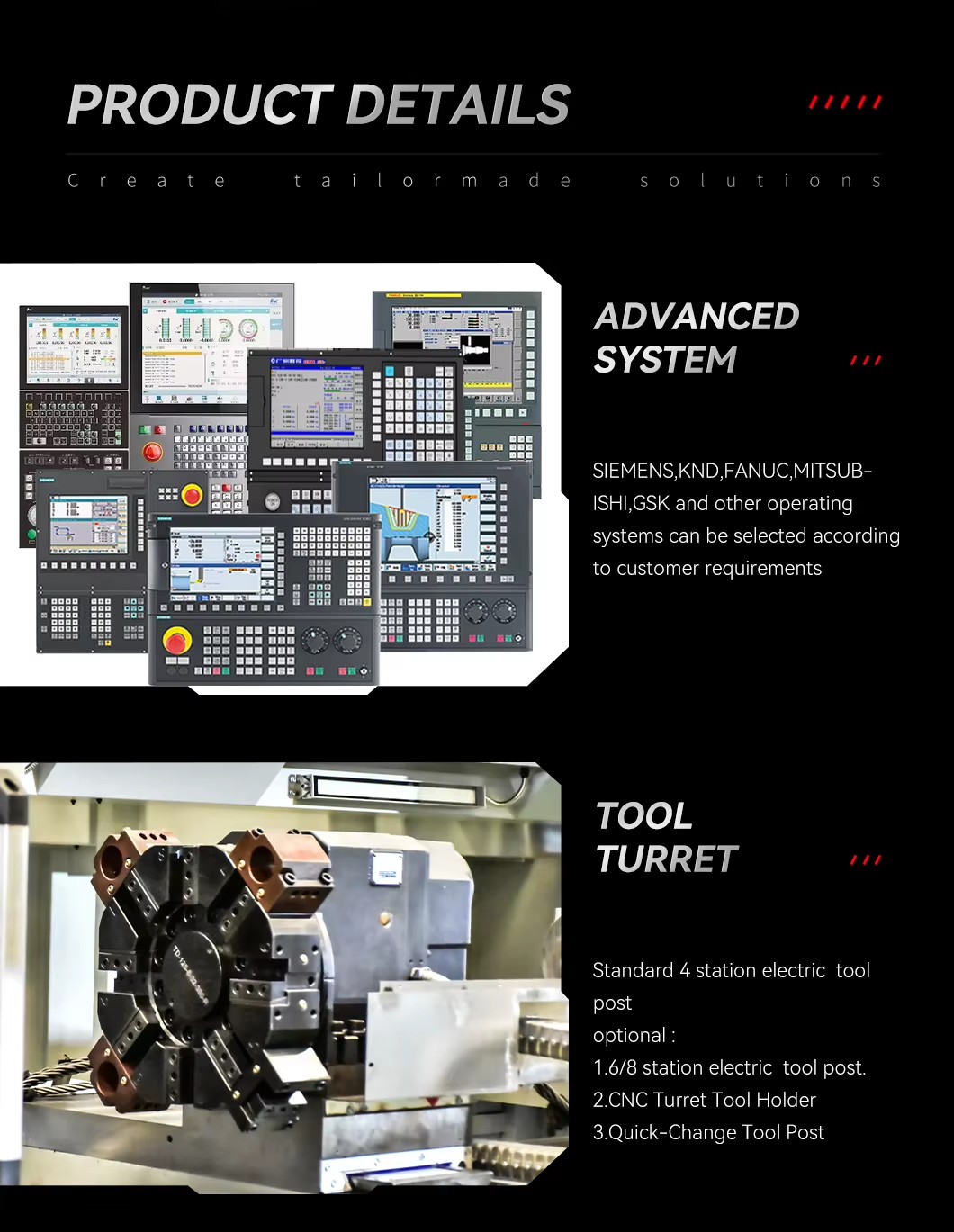

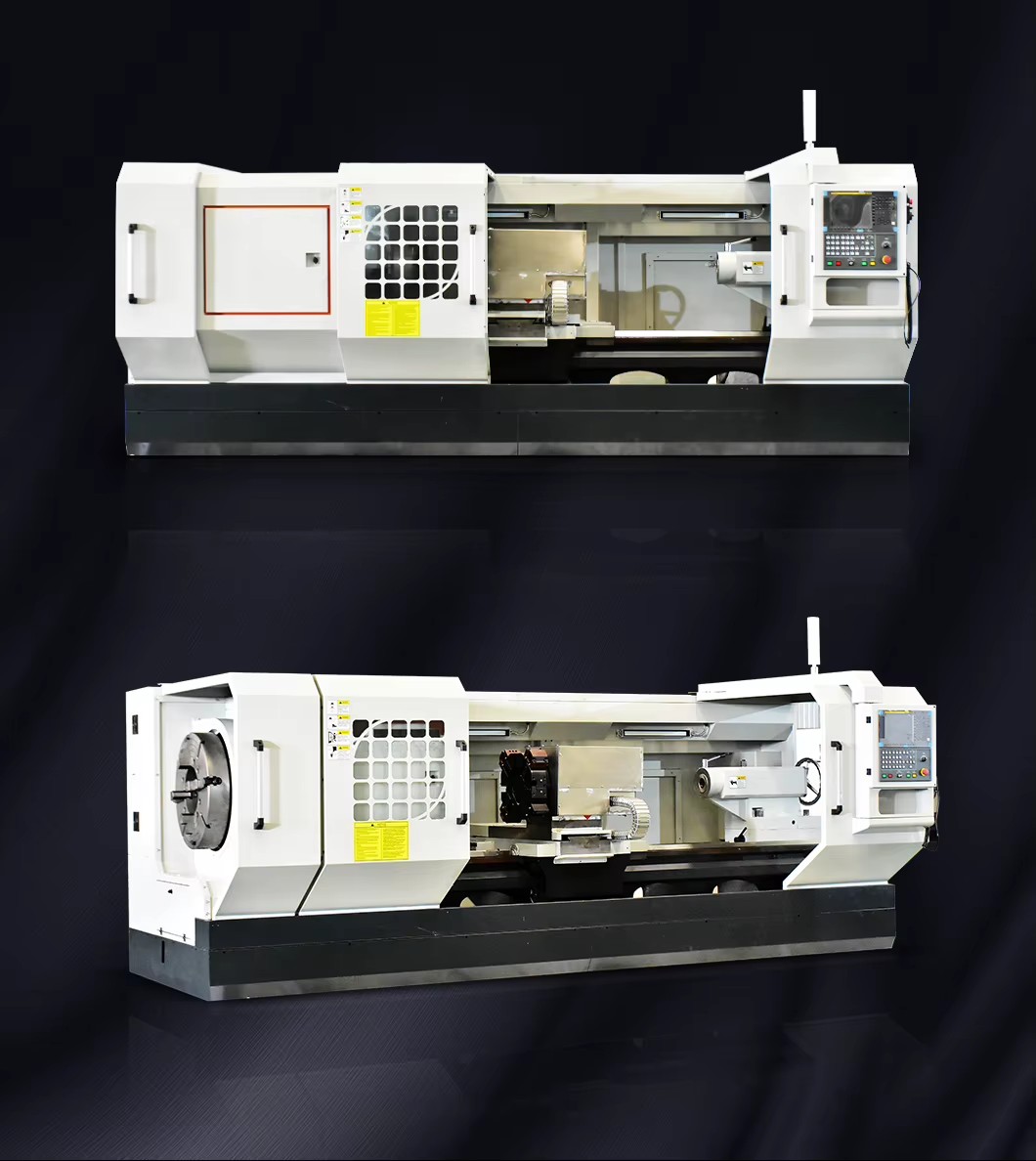

    Description images
    Product detail
    Product detail
    Product detail
    Product detail
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Ocean + Truck via Maersk · Approx. shipping fee: $ 2,088.76 for 1 piece · Transit time: Est. 20-27 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 36 fields
    Type
    Horizontal, Metal pipes, threading tools
    Max. length of workpiece (mm)
    1000-6000
    Positioning accuracy (mm)
    ±0.005
    Repeatability (x/y/z) (mm)
    ±0.003
    Number of axes
    2
    CNC control system
    FANUC
    No. of Spindles
    Single
    Tool post stations
    4
    Machining capacity
    Heavy Duty
    Voltage
    380 V, 220 V, 110 V
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    High-Accuracy
    Max. weight of workpiece(kg)
    2000
    Travel (x axis)(mm)
    330
    Travel (z axis)(mm)
    6000
    Width of bed (mm)
    440
    Place of origin
    China, Shandong
    Dimension(L*W*H)
    8300*1800*1850mm
    Model number (Specification)
    QK1313
    Weight
    4800
    Range of spindle speed
    30 - 800
    Cutting torque
    11
    Cutting material
    Metal.alloy Metal.aluminum
    Machine type
    CNC Pipe Threading Lathe
    Function
    Threading Lathe
    Control system
    SIEMENS GSK FANUC HNC (optional)
    Max. Swing Diameter
    800
    Tailstock sleeve taper
    MT6
    Selling Units
    Single item
    Single package size
    330X160X160 cm
    Single gross weight
    4800.000 kg
    Spindle motor power(kw) (Product option)
    11kw
    Max. swing diameter (mm)
    800, 630
    Certifications & Compliance
    CE
    Lead time
    7 days
    Minimum order
    1 Units
