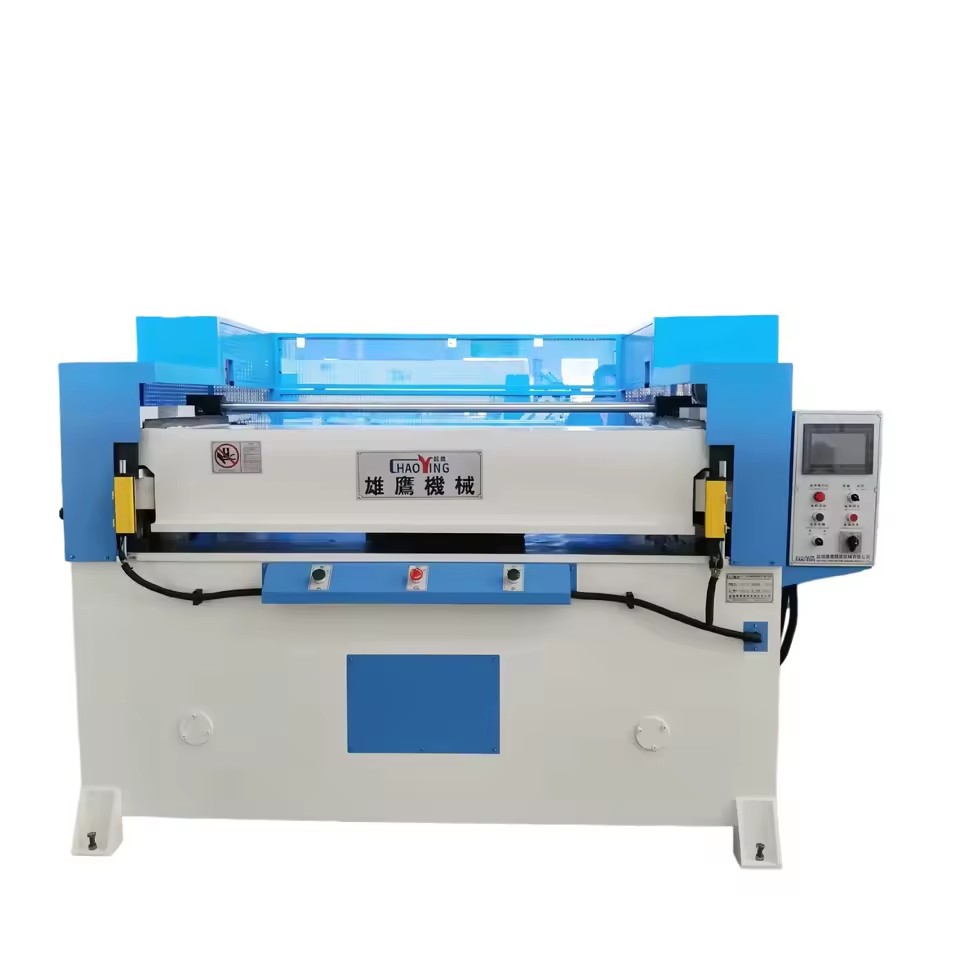

Precision Hydraulic 4column Die Cutting Machine for Leather and Shoes Making with Receding Head

Name: Precision Hydraulic 4column Die Cutting Machine for Leather and Shoes Making with Receding Head
SKU: QHDJ-GWQ5-SGSA
Price: 9260.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 9,260.00 9260.0 USD $ 9,260.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380 V, 220 V

Core components

Motor, Gearbox

Video outgoing-inspection

Provided

Warranty

1 Year

Weight (kg)

2200

Place of origin

China

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

It is suitable for cutting single layer or multi-layer of leather, rubber, plastic,packaging, textile, chemical fiber and other materials by the cutting die.

1. Upper cutting board can automatically move forward & backward, so thatthe operating visual field of operator is the best. From feeding material, placingcutting die until cutting, all movements (the upper cutting board will moveforward, drop down & cut, rise up & move backward automatically) will be doneat one go without interruption, which has greatly increased work efficiency and reduced the labor intensity.

2. Double oil cylinders, precision four-column auto-balancing link structure, which can guarantee uniform cutting depth of each cutting position.

3. When upper cutting board drops down and touches the cutting die, it can automatically slow cutting to make the cutting material no size error between the top and bottom layers.

4. Equipped with central oil supply automatical lubricating system, to ensure working precision and prolong the service life of machine.

5. When cutting, using the safety grating to ensures high safety of operators.

Frequently asked questions

No.we are a big manufacture,so the price and demands will be more suitable for you.

Our company is located in dagang Town,Yandu District, city,Jiangsu Province.Welcome to visit our company,it just needs 4 hours from Shanghai.

Yes,according to your requirements.we have some cooperative dealers.

30% in advance,the balance should be paid before shippment. Remark:we can customized client demand,such as machine color,worktable size,motor power,machine brand and so on.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 16 fields

Voltage

380 V, 220 V

Core components

Motor, Gearbox

Video outgoing-inspection

Provided

Warranty

1 Year

Weight (kg)

2200

Place of origin

China

Max.cutting force

300kN(30tons)

Stroke adjustment range

0-120mm

Range between the working tables

40-160mm

Size of upper cutting board

1600X500mm

Size of lower worktable

1600X510mm

Motor power

2.2KW

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

XYJ-3/30

Lead time

20 days

Minimum order

1 Units
