Mineral Concentrator Ore Sedimentation Mining Thickener Price

Note

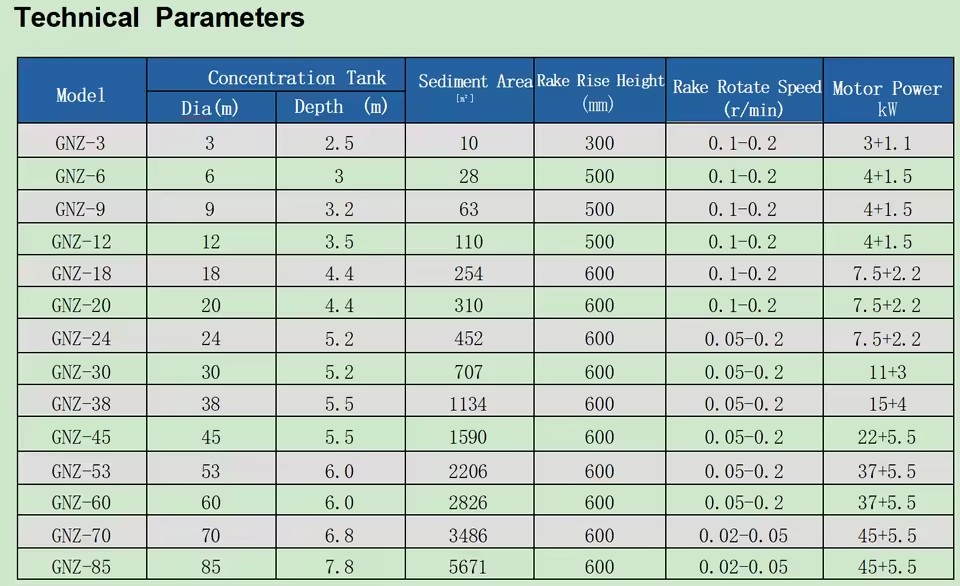

1. The above parameters are only for reference. As the settlement performance of materials is relatively large, the specific parameters are subject to the design drawings provided by

2.

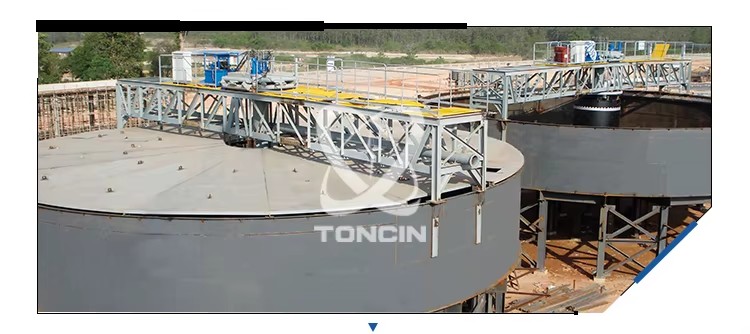

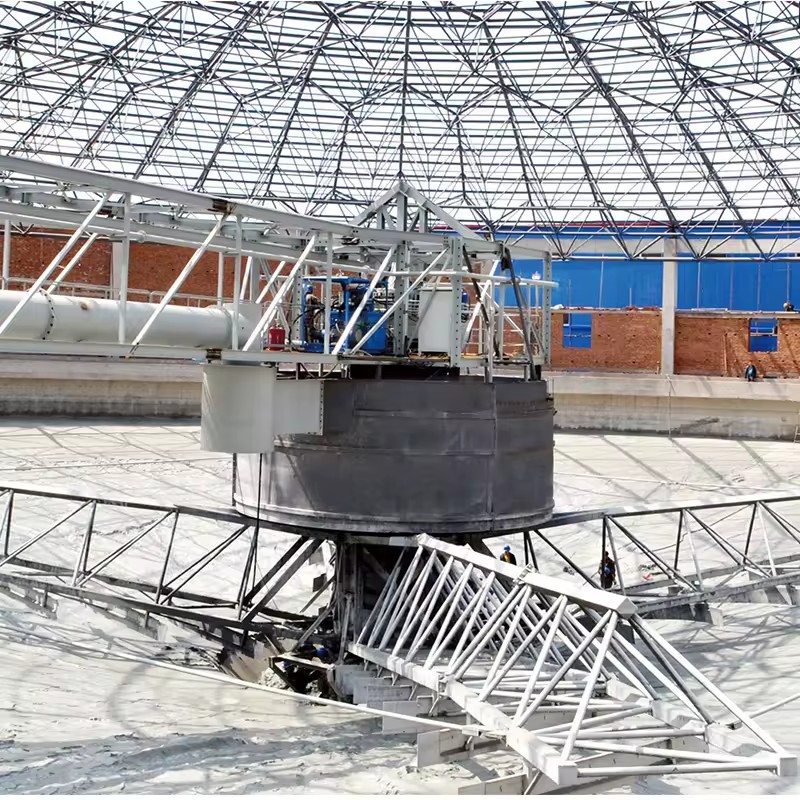

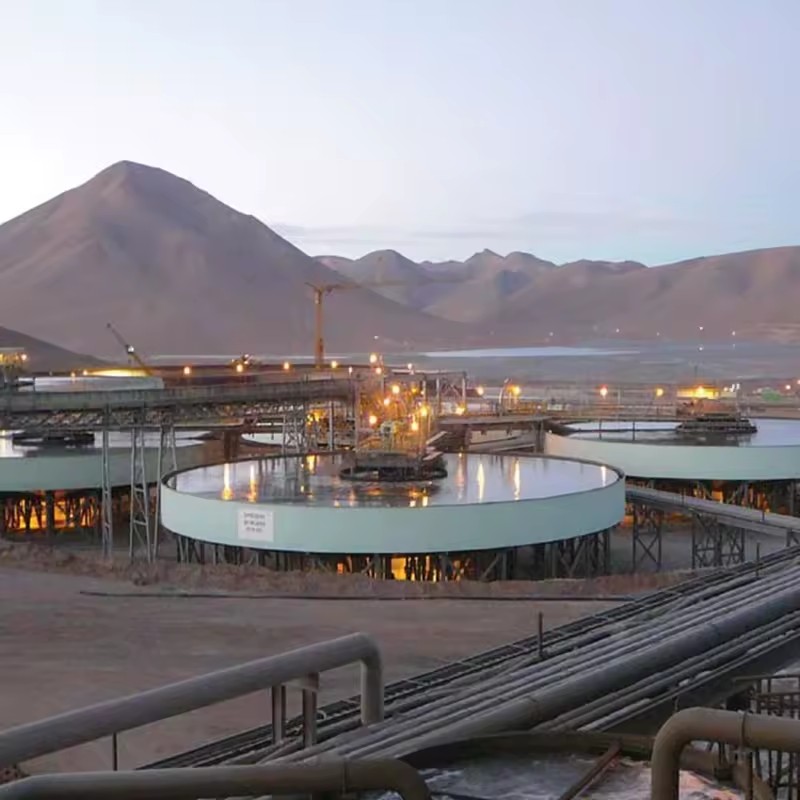

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

1. High efficiency of concentration and scraping, which is three to five times than common thickener.

2.Excellent feed system · high-rate feed well: a. The feed well makes the feed degas and have the energy dissipation, and it has tangential feeding. b.Add the flocculant reasonably, and improve the efficiency. is equipped with distribution plate, which can take advantage of the effective area of the tank reasonably.

3. Driven lifting system with overweight design and large torque design can ensure the normal operation of the device. The thickener can not shut down in the extreme conditions, improving the efficiency of the device.

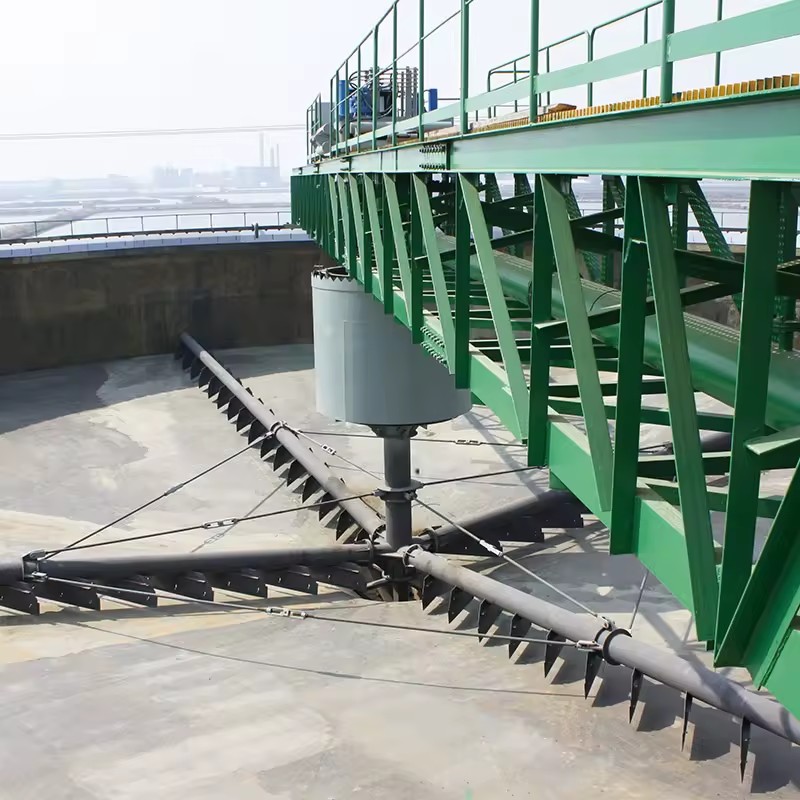

adopts spiral design of rake teeth logarithm, and we can design rake teeth density according to material performance, which can improve the efficiency of scraping.

has advanced thickener control system, automatically lifting rake, flocculant feeding, and automatically controlled underflow discharging pump

sign of main driving and rake lifting gear 1)Driving framework and chassis are made according to heavy type transmission device, running is stable and reliable.

2) full automatic rake lifting.

3)Star transmission,the max running torque is 5000,000Nm.The designed torque of driving transmission Is designed according to following standards. nning torque value: 33% of the designed torque. b.High torque alarm: 50% of the designed torque. c.Rake rising; 60% of the designed torque. d.Rake decreasing: 40% of the designed torque. e.The designed torque value of mechanical device: 150% of the designed torque.

2 Control system Site control and remote control are combined,DCS control points are supplied. 1,PLC control,overloading protection. 2,Material discharging terminal is set up with mud layer pressure sensor to control rotation

and mud discharging by pump.

GNZ thickener is a new High-rate thickener with central-drive, automatic lifting rake that we have developed based on foreign is widely applicable to treatment of various industrial feed pulp, like coals, metal ore dressing water, metallurgy, chemical, tailings treatment, environmental protection etc.

Export package:We use standard export package or as you required.

Shipping:We will send our products within 2 months.

Transport way:By sea or by air.

FAQ

1.Q

A

2.Q:Do you have minimum order quantity request?

A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.

3.Q:Do you have certificates?

A: Yes, we have CE, ISO,SGS.etc. certificates.

4.Q:Can you meet my special requirements for my products?

A: Yes, we have rich experience and we have a professional design team. We can provide different drawings according to your requirements.

5.Q:How to pay?

A:T/T is acceptable.

6.Q:What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 2 months.

7.Q:How to pack the products?

A: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.

8.Q:How to install after the equipment arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.

9.Q:How long is the validity?

A:The validity is 12 months after installation.
