PLC Automatic High-Temperature SOFC Evaluation System SUS316L Solid Oxide Fuel

Name: PLC Automatic High-Temperature SOFC Evaluation System SUS316L Solid Oxide Fuel
SKU: Q7A6-Q7D3-NGCS-01
Price: 20950.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20,950.00 20950.0 USD $ 20,950.00

Minimum order quantity: 1 Units

Key attributes

View all

Capacity

0~500 sccm per channel

Type

Solid Oxide Fuel

Voltage

220 V

Power(w)

12.5 KW

Machinery test report

Provided

Automatic grade

Automatic

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

Wide high-temperature test range, max furnace temp up to 1100℃, match SOFC working condition 650~1000℃; ±1℃ precise temperature control, dual furnace design (reaction furnace + preheating furnace) eliminates water vapor condensation.

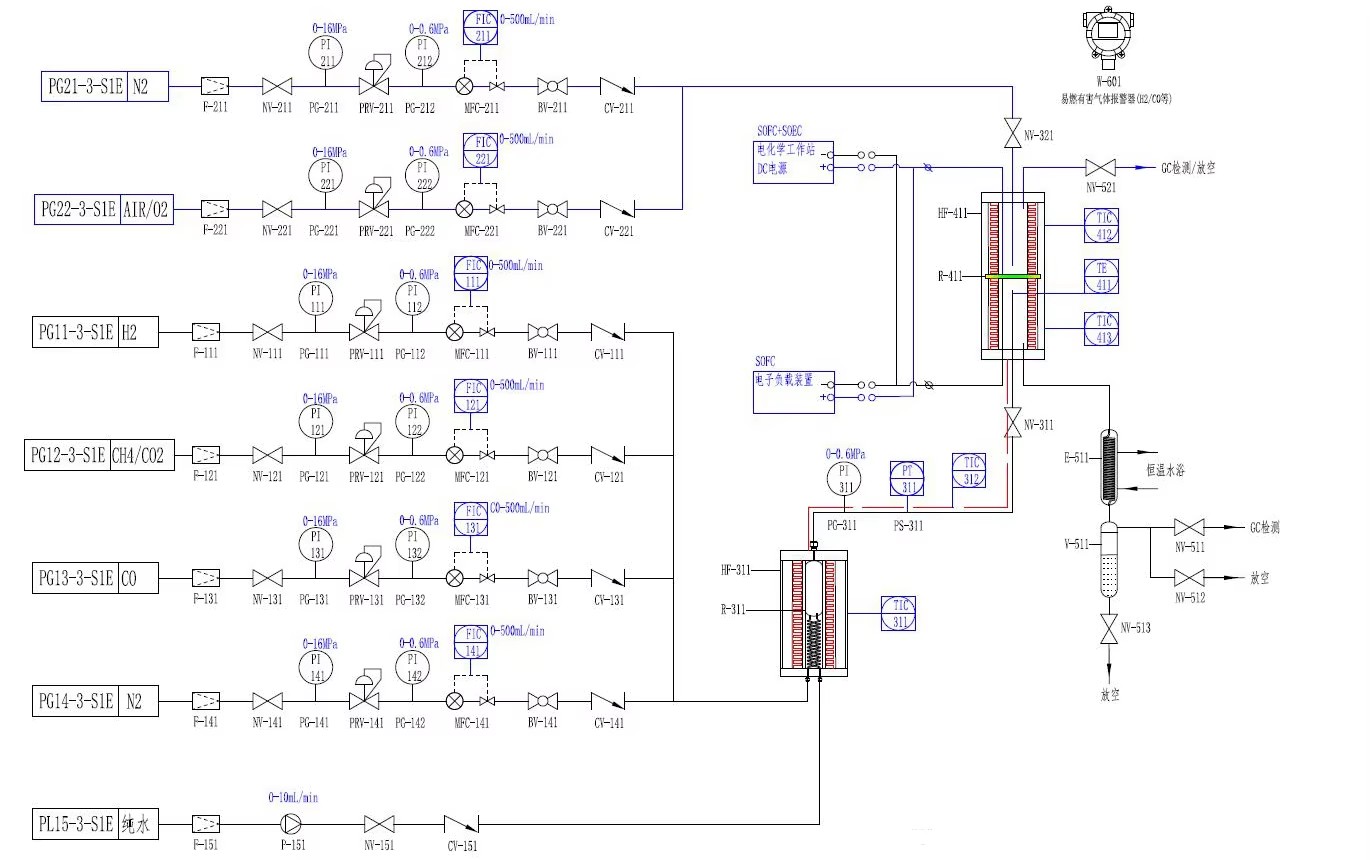

Full SUS316L anti-corrosion gas pipeline + independent MFC multi-channel gas distribution, built-in steam generator to simulate humid syngas atmosphere (humidity 5%-50%), support H2, CH4, CO, natural gas, coal gas and all combustible fuels.

All-in-one electrochemical test function: automatically measure I-V-P polarization curve, power density, EIS electrochemical impedance spectrum; resolve ohmic resistance, activation & concentration polarization; support over 100h long-term aging test to analyze

PLC full automatic closed-loop control system, real-time data recording & export test reports; reserved standard interfaces to connect electrochemical workstation, electronic load, GC gas chromatograph for fuel utilization analysis.

Safe & stable operation: multiple interlock protection for over-temperature, over-pressure and gas leakage; modular split structure for easy disassembly, maintenance and laboratory transfer.

Ideal test equipment for university labs, new energy research institutes and fuel

Frequently asked questions

Usually, delivery time is 30-45 days after receiving your payment.

We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.

Yes,We accept.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

40 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

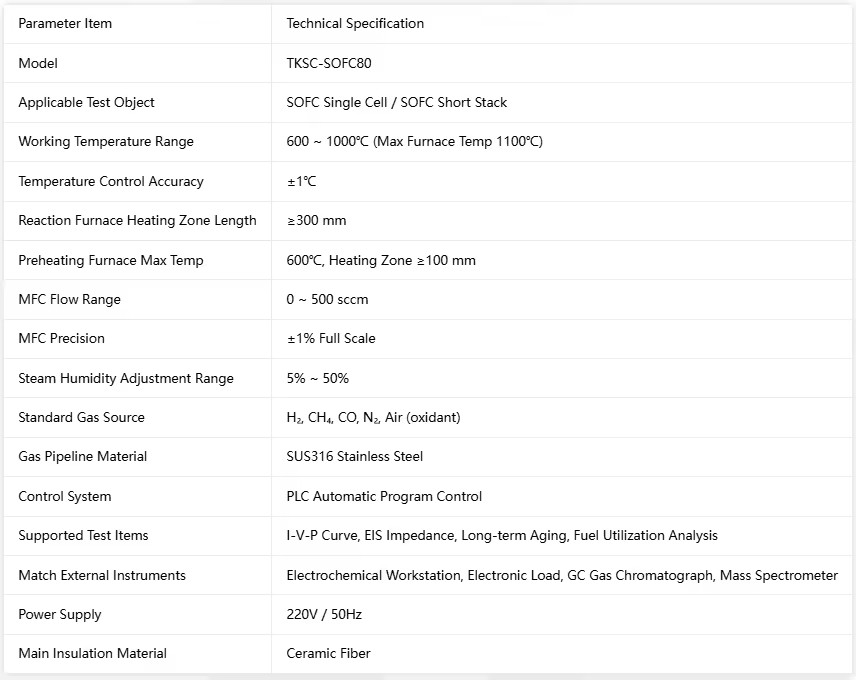

Technical specifications

Other details 24 fields

Capacity

0~500 sccm per channel

Type

Solid Oxide Fuel

Voltage

220 V

Power(w)

12.5 KW

Machinery test report

Provided

Automatic grade

Automatic

Video outgoing-inspection

Provided

Core components

High Temperature Reaction Furnace, Gas Preheating Furnace, MFC Mass Flow Controllers, Multi-component Gas Mixer, Water Vapor Generator, SUS316L Stainless Steel Gas Pipeline 316L, PLC Automatic Control System & Data Acquisition Un, Complete Safety Interlock Protection Module, Standard External Instrument Interface, Pressure Reducing Valves & Sealed Gas Circuit Acce

Warranty

1 Year

Key selling points

Wide high-temperature test range, ull SUS316L anti-corrosion gas pipeline + independ, All-in-one electrochemical test function, PLC full automatic closed-loop control system, Safe & stable operation, Ideal test equipment for university labs, new ener

Place of origin

China, Shaanxi

Weight (kg)

385

Dimension(L*W*H)

1650*920*1380 mm

Applicable Test Object

SOFC Single

Working temperature range

600 ~ 1000°C (Max Furnace Temp 1100°C)

Temperature Control Accuracy

±1°C

Reaction Furnace Heating Zone Length

≥300 mm

Preheating Furnace Max Temp

600°C, Heating Zone ≥100 mm

MFC Flow Range

0 ~ 500 sccm

MFC Precision

±1% Full Scale

Steam Humidity Adjustment Range

5% ~ 50%

Application field

New Energy Laboratory Research

Selling Units

Single item

Model number

SOFC80

Lead time

40 days

Minimum order

1 Units
