Automatic MgO Board Making Machine Glass Magnesium Sheets Production Line PLC Core Components Drywall Replacement

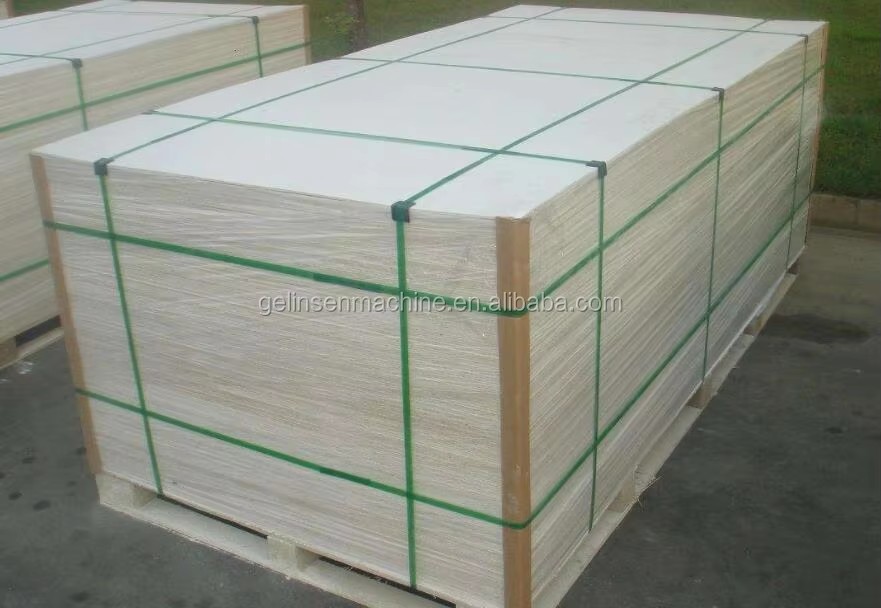

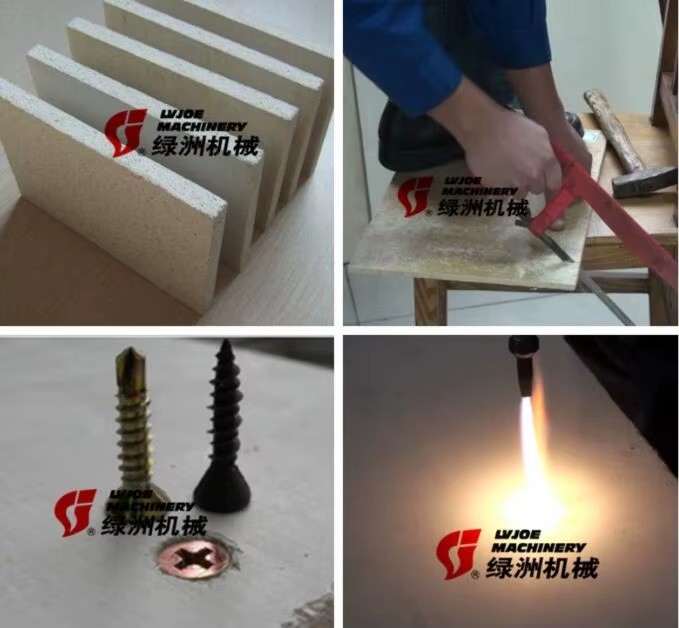

1.MgO Board performance: A. Oxygenic index%: >90 B. Level combustion: SO C. Vertical combustion: SO D. Water content rate: 10.9% E. Capacity: 1.15g/cm3 F. Static bending intensity: 169.46Mpa G. Density: T/ m3 1.13 H. Water resistance: Without chalking for 24 hours and there is no change on surface I. No "Three-wastes" (waste water, waste gas and waste residue), no pollution and environmental protection

2.Raw material and cost analysis

The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.

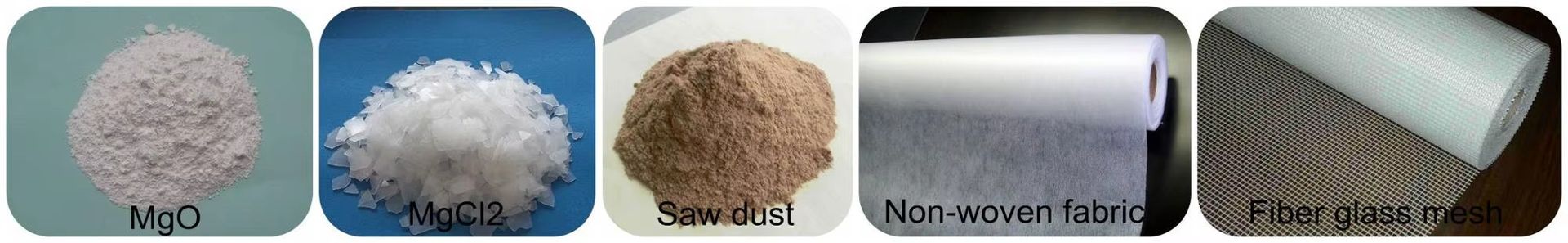

Raw material

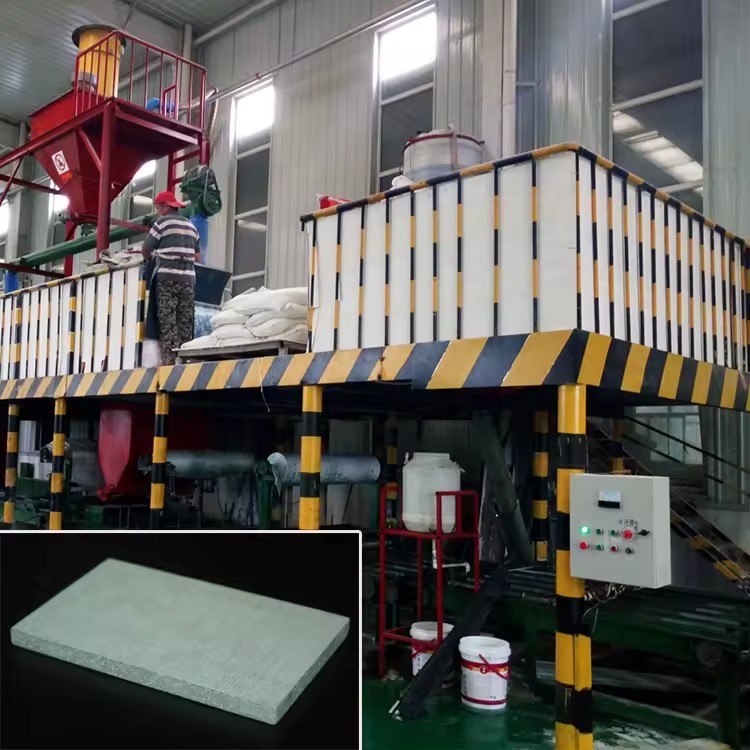

1.Batching system

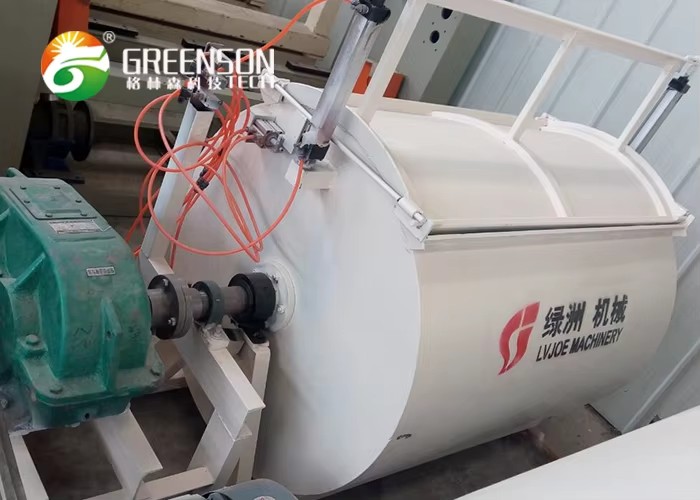

The agitator mixes liquid and solid raw material. It feeds mixed slurry into forming system, providing slurry for forming system.

2.Forming line and batching platform

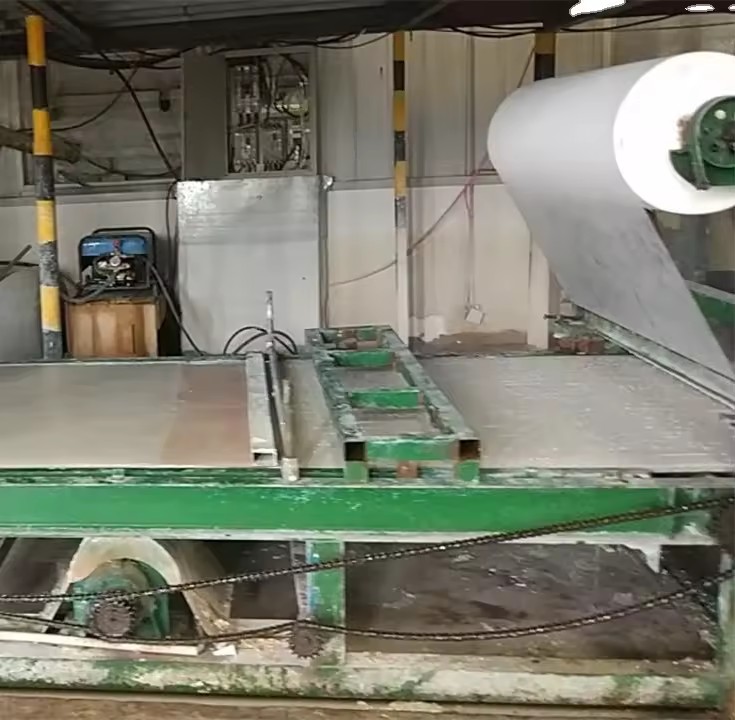

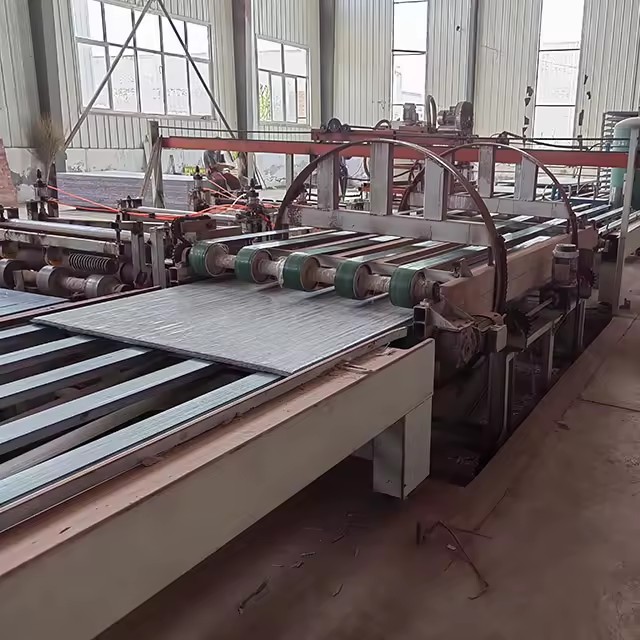

The forming line is the mainframe for the whole line. Mixed wet slurry is fed onto moulding board moving with constant speed, via a storage tank and feeder.

3. Automatic board receiving system

The wet board will enter the automatic receiving system after has been cut with presetting length.This system adopted microcomputer and double elevators.The wet board with moldboard will enter the curing transporter layer by layer following the order of the microcomputer twenty boards with one curing transporter, and the double elevator achieve process production and volume-produce through alternate use.

4. Solidifying rom with trackway style

This set of

moulding machine

This demoulding machine separately absorbs MgO boards and mould board with a vacuum device. It puts MgO board and mould into respective stacking machine separately.
