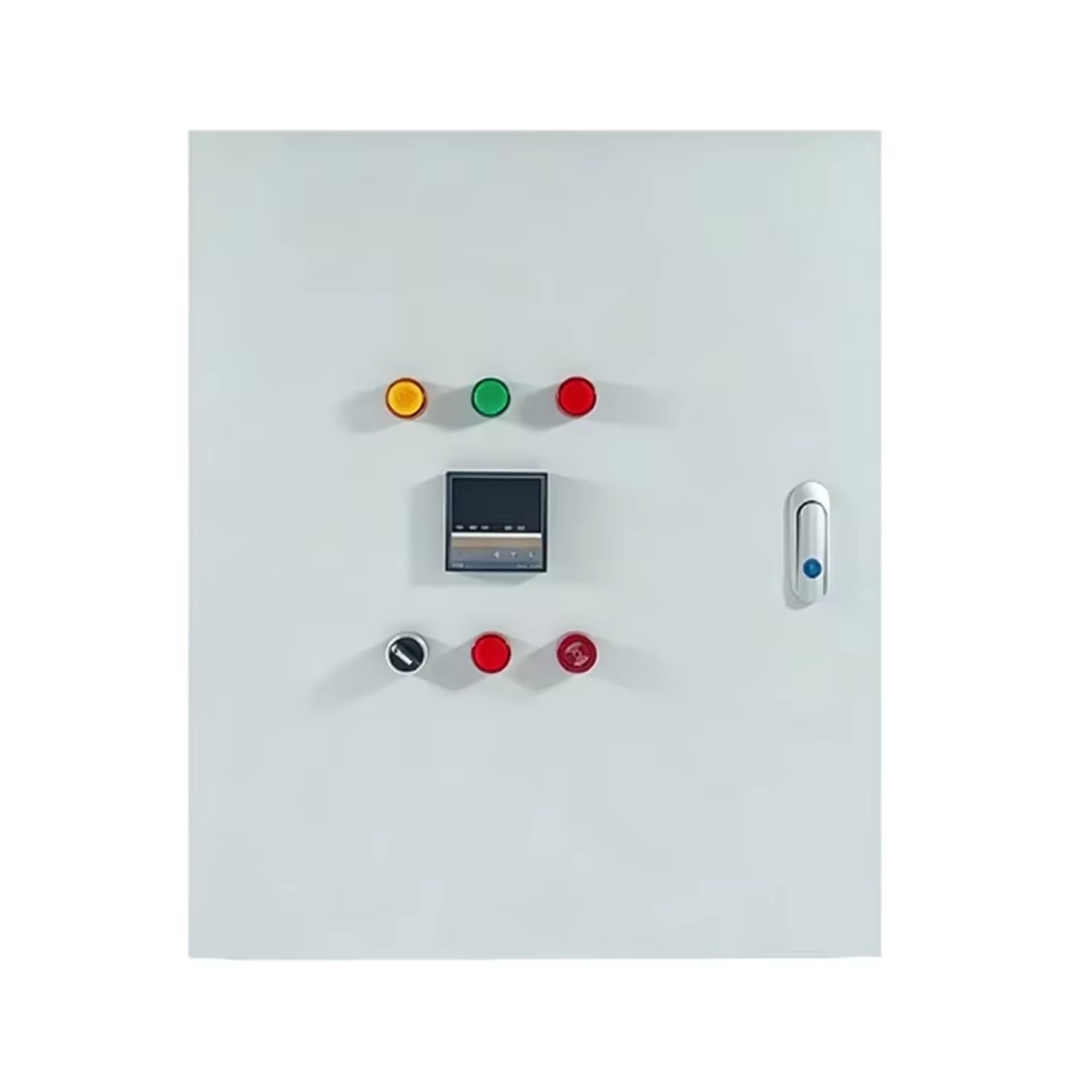

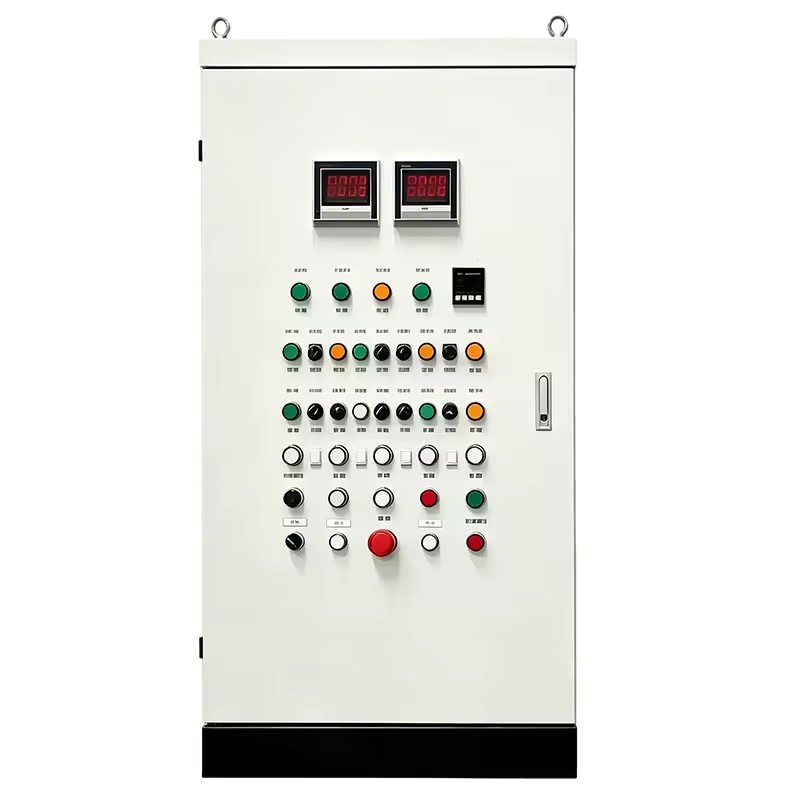

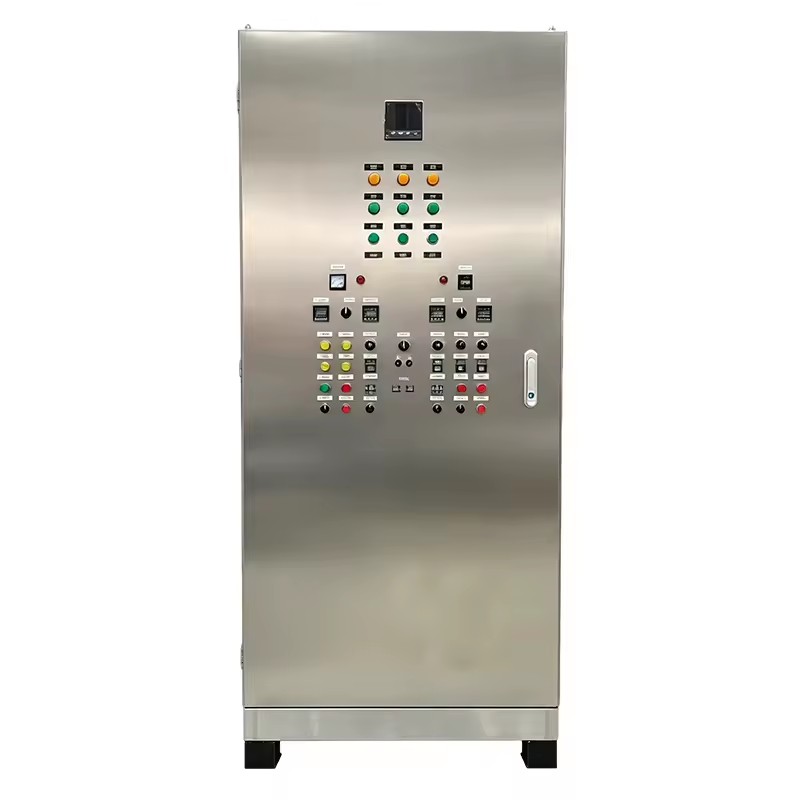

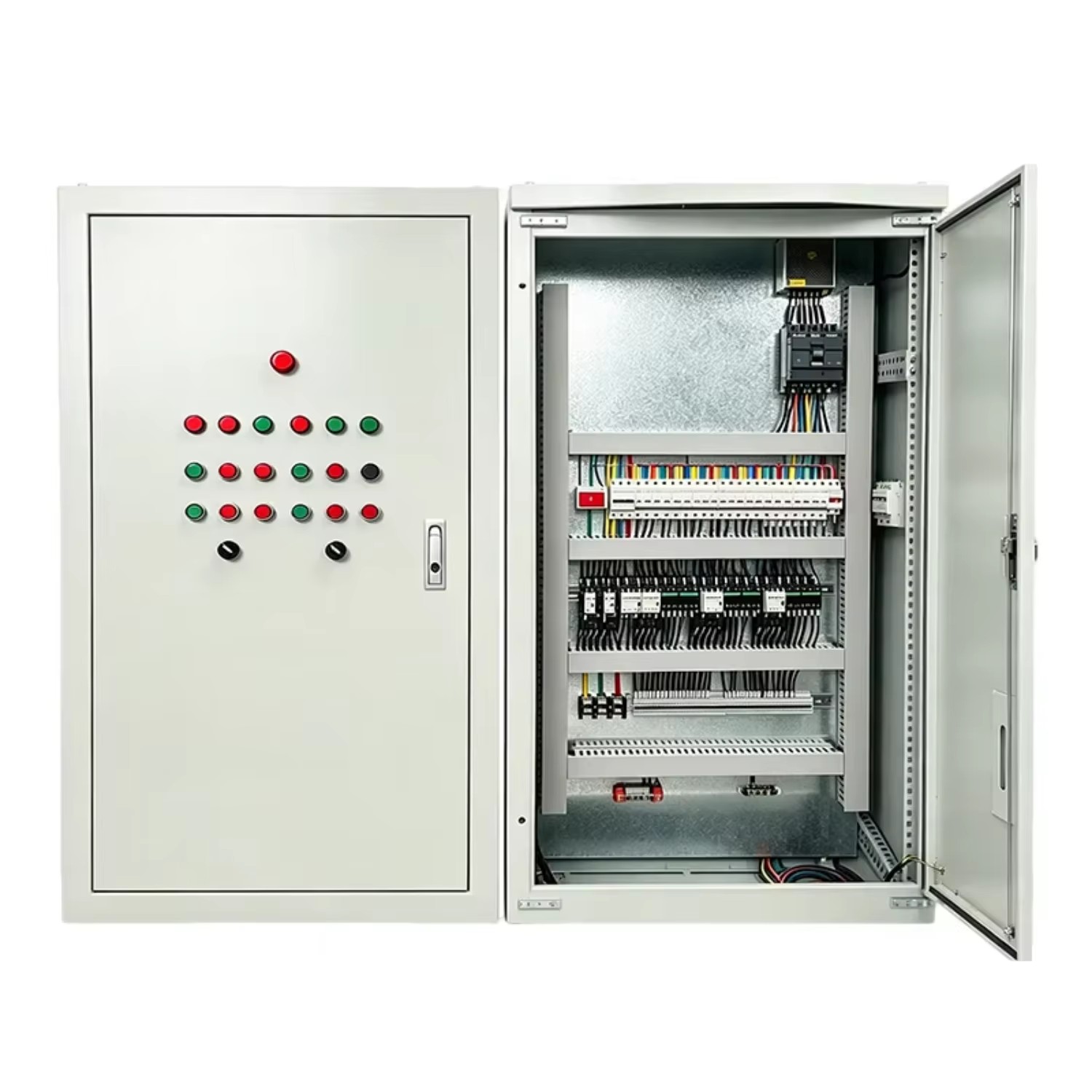

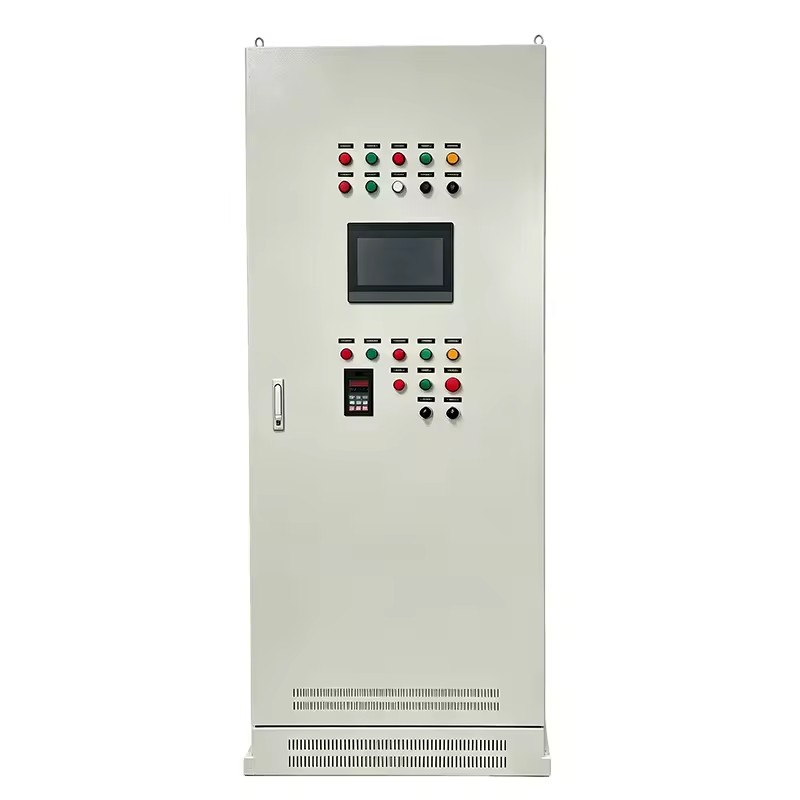

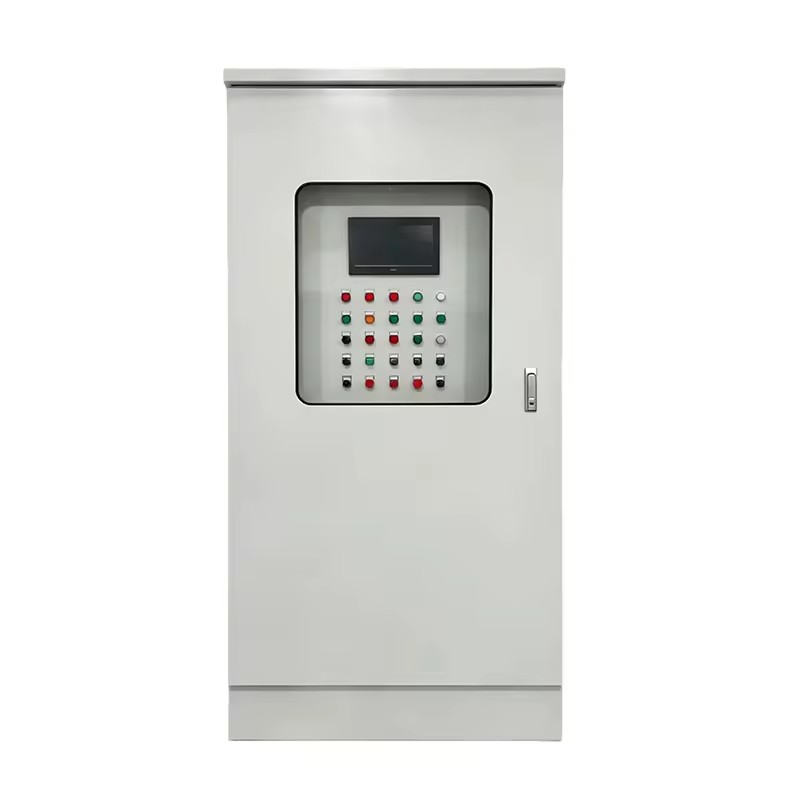

Low Voltage Star-Delta Switchgear Cabinet 380VAC Manual/Auto Control IP55 for Industrial/Petroleum Refinery Applications

Available for enquiry 0.0 · 0 reviews
USD

$ 110.00 110.0 USD $ 110.00

Not Available For Sale

Minimum order quantity: 5 Units

Key attributes

View all
Rated voltage
220/380/415/440/460/480V
Rated current
custom made
Application
Industrial
IP level
IP55
Type
LV Switchgear Cabinet
Number of Sockets
6
Product description

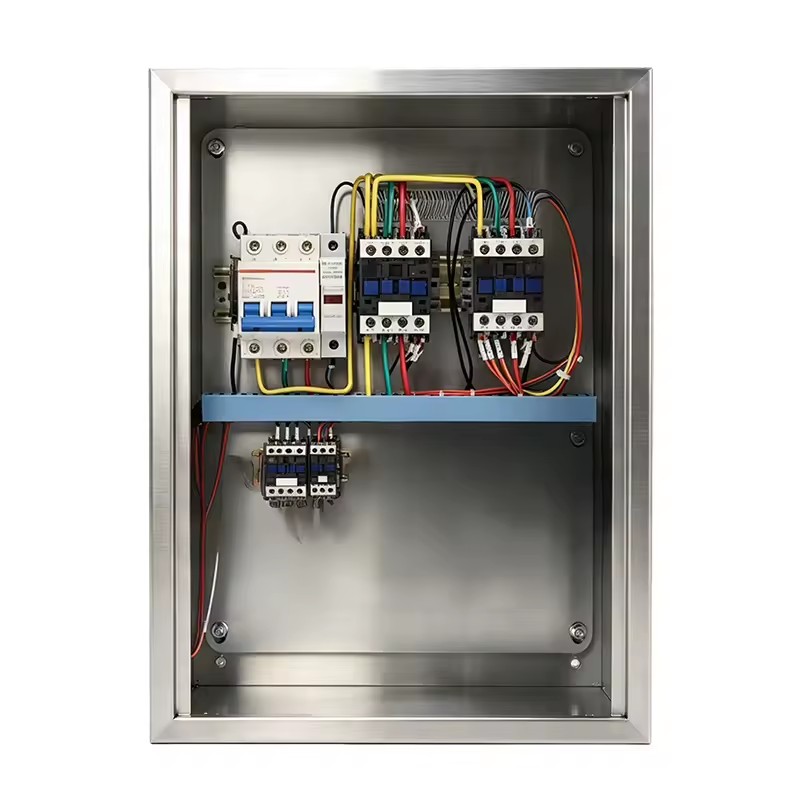

  • Internal Components
  • Core Control Components: Equipped with CHNT NXC series AC contactors (3 units) and JSZ3Y time relays, which work precisely together to realize automatic switching between star and delta starting modes. With fast response speed and stable switching logic, they provide core control support for motor start-up and shutdown, adapting to the control needs of three-phase asynchronous motors with different powers.
  • Safety Protection Components: Built-in CHNT NXM series molded case circuit breakers and overload protectors form a dual safety protection system. The circuit breaker quickly cuts off branch short-circuit current, while the overload protector real-time monitors motor load to prevent equipment burnout due to overload, fully safeguarding the safe operation of circuits and motors.

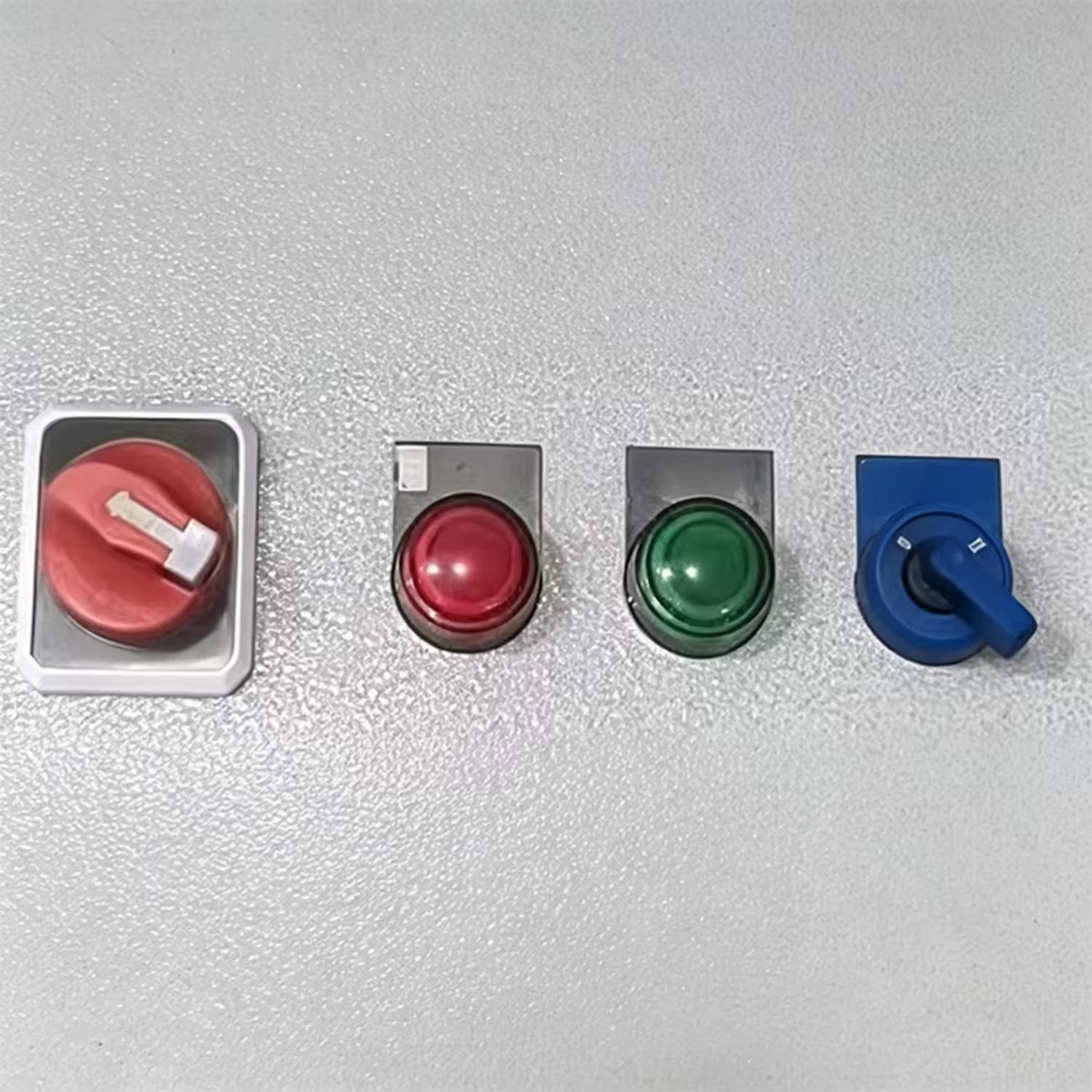

  • Auxiliary and Operational Components: Equipped with high-quality terminal blocks to ensure stable and convenient wiring transfer; built-in cooling fans continuously cool internal components to avoid performance degradation caused by high temperature; the panel is fitted with manual/automatic changeover switches, start/stop buttons, and multi-status indicators (power/operation/fault/low water level), balancing operational convenience and status visualization.
  • Product Advantages
  • Smooth Start-up, Grid-friendly: Adopting the star-delta reduced-voltage starting principle, when working with soft starter cabinets, it can reduce the motor starting current to 1/3 of direct starting, effectively avoiding damage to the power grid, motors, and associated equipment caused by starting impact, and ensuring the stable operation of the entire power system.
  • Safe and Reliable, High Usability: Relying on brand core components and dual protection design, the product features low failure rate and long service life; panel status indicators intuitively display equipment operating status, enabling quick problem location in case of faults; standardized wiring design and clear operation marks reduce installation, commissioning, and maintenance costs.
  • Flexible Control, Strong Adaptability: Supports free switching between manual and automatic control modes, meeting both on-site manual operation needs and unattended operation by connecting to automatic control systems; compatible with various general mechanical loads such as water pumps, fans, and conveyors, widely adapting to the usage needs of different industrial scenarios.
  • Application Scenarios
  • Water Supply and Drainage Systems: Specifically designed for branch control of motors in water supply pumps, sewage pumps, an other water supply and drainage equipment. It is suitable for scenarios such as secondary water supply in residential areas, industrial wastewater treatment, and municipal water supply and drainage projects, ensuring smooth start-up/shutdown and safe operation of water pumps, and avoiding impacts on water supply/drainage efficiency due to water pressure fluctuations or equipment failures.
  • Ventilation and Air Conditioning Systems: Applicable to motor control of central air conditioning fans, industrial exhaust fans, fresh air system fans, etc., widely used in shopping malls, office buildings, factory workshops, and other places. Through stable branch control and start-up protection, it ensures the continuous and efficient operation of ventilation and temperature regulation systems.
  • General Industrial Machinery: Compatible with branch control of three-phase asynchronous motors in general industrial machinery such as conveyors, compressors, and crushers, covering manufacturing, processing, warehousing and logistics, and other industries. It provides reliable branch control and safety protection for various mechanical equipment, helping to promote the smooth progress of production processes.
    • System TypeLow-Voltage Complete Distribution System
    Component UnitsIncoming Cabinet + Multiple Feeder Cabinets (Modular Combination)
    Input Voltage LevelAC 380V/220V
    Phase/FrequencyThree-phase/Single-phase; 50Hz
    Main Circuit Breaker TypeMolded Case Circuit Breaker (e.g., Schneider NSX Series)
    Main Switch Rated Current Range250A-630A
    Branch Switch TypeMiniature Circuit Breaker (e.g., Schneider C65 Series)
    Branch Circuit Number per Cabinet8-36 Circuits
    Core Protection FunctionsOverload/Short-circuit/Undervoltage Protection
    Operation ModeManual + Automatic Dual Mode
    Basic Monitoring FunctionsVoltage/Current Digital Display Monitoring
    Description images
    Low Voltage Star-Delta Switchgear Cabinet 380VAC Manual/Auto Control IP55 for Industrial/Petroleum Refinery Applications
    Low Voltage Star-Delta Switchgear Cabinet 380VAC Manual/Auto Control IP55 for Industrial/Petroleum Refinery Applications
    Low Voltage Star-Delta Switchgear Cabinet 380VAC Manual/Auto Control IP55 for Industrial/Petroleum Refinery Applications
    Low Voltage Star-Delta Switchgear Cabinet 380VAC Manual/Auto Control IP55 for Industrial/Petroleum Refinery Applications
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 5 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      31 days

    • Step 3

      Packaging and dispatch

      Ocean + Express via FLY Logistics · Approx. shipping fee: $ 227.50 for 5 sets · Transit time: Est. 16-23 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 24 fields
    Rated voltage
    220/380/415/440/460/480V
    Rated current
    custom made
    Application
    Industrial
    IP level
    IP55
    Type
    LV Switchgear Cabinet
    Number of Sockets
    6
    Lock Type
    Hidden handle lock
    Place of origin
    China, Fujian
    Model number (Specification)
    distribution box JHD-QTKZG06
    Applicable Motor Power
    0.75-110kW
    Control Mode
    Manual/Auto Switching
    Starting Method
    Star-Delta Reduced-Voltage
    Rated working voltage
    380V AC
    Protection Class
    IP40-IP65
    Rated Working Current
    1.5-225A
    Relative humidity
    ≤95%(Non-condensing)
    Installation method
    Floor-mounted/Wall-mounted (Optional)
    Cabinet size
    Customizable
    Selling Units
    Single item
    Single package size
    50X25X70 cm
    Single gross weight
    35.000 kg
    Color (Product option)
    Gray
    Material (Product option)
    Carbon Steel
    Size (Product option)
    50X25X70 cm
    Lead time
    31 days
    Minimum order
    5 Units
