Name: Professional Supply Diesel Hydraulic Stone Piston Splitter for Marble Crack with 102mm Pre-drilled Holes
SKU: B2B-69159
Price: 990.0 USD
Availability: PreOrder

Product description

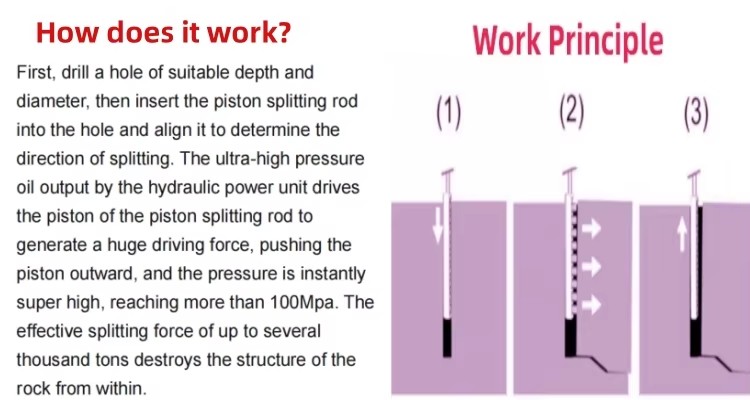

Piston rock splitter is a new type of rock-breaking equipment. Its design is inspired by our common hydraulic jack. Using a piston rock splitter requires a larger hole diameter than a hand-held rock splitter (typically 90mm, 110mm, 130mm, 150mm, 180mm, or over 220mm).

Model	Drilling Dia.	Drilling Depth	Practical Splitting Force	Unit Weight	Working Pressure	Spacial Distance	Pump Type
VT-90	90mm	more than 1000mm	260Ton/pc	32kg	120Mpa	500-700mm	Electric/Diesel
VT-110	110mm	more than 1000mm	411Ton/pc	47kg	120-150Mpa	1000-1500mm	Electric/Diesel
VT-115	115mm	more than 1000mm	420 Ton/pc	57kg	120-150Mpa	1000-1500mm	Electric/Diesel
VT-130	130mm	more than 1000mm	520 Ton/pc	80kg	120-150Mpa	1000-2000mm	Electric/Diesel
VT-150	150mm	more than 1000mm	600 Ton/pc	100kg	120-150Mpa	1200-2500mm	Electric/Diesel
VT-180	180mm	more than 1000mm	780 Ton/pc	168kg	120-150Mpa	1200-3000mm	Electric/Diesel
VT-250	250mm	more than 1200mm	1250Ton/pc	330kg	120-150Mpa	1500-5000mm	Electric/Diesel
Note: The above data is for basic reference, specific parameters and configurations are subject to change without prior notice. Customization service is available.

Engine Type	Power	Fuel Tank Capacity	Working Medium	Working Pressure Mpa	Work Flow(L/Min.)	Compatiable Splitter Numbers	Specifications(mm)	Weight (kg)
Elecric Type	4KW	30L	46/68 Wear-resistant hydraulic oil	63	2-13	1-6	384x280x260	75
7.5KW	100L	63	4-16	1-6	1150x1050x980	135
Diesel Type	8HP	40L	63	2-13	1-6	1200x1170x800	120
18HP	100L	63	4-16	1-6	980x830x1250	345

Q: What type equipment is used for drilling the hole for inserting the splitter rod and what is the general required diameter of the pre-drilled hole?

Q: Can you explain the splitting force of your large splitter effect?

A: The piston splitting rod is suitable for large-area rock splitting. It is the latest and most efficient rock-breaking tool currently used to replace explosive charges for mechanized large-scale rock excavation. It consists of an ultra-high-pressure pump station and a piston splitting rod, with a pressure of 150 MPa. When used in combination, the splitting force reaches 7,200 tons per unit (actual splitting force). It requires a drill hole of 250 mm in diameter and 1.1 m in depth. After inserting the hydraulic rock splitting rod, the splitting time is 1 minute, and the splitting depth can reach 1-3 meters.

Q: Do you offer the customization service for the piston splitters?

A: Yes, we can customize splitting rod length, piston numbers, diameter for

Q: How to choose between the Diesel and Electric Hydraulic Power Pack, which one is more powerful?

A: Due to the lack of electricity access, some customers will choose diesel one for the site works. They are having the same power, normally we suggest to adjust to 120Mpa pressure to work with the piston splitters.

Q: How long is your product warranty period?

A: We offer a one-year comprehensive warranty on the entire machine excluding the wearable parts. Additionally, we offer lifetime technical support to ensure the smooth operation.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Type

Rock Splitter

Motor Type

Electric or Diesel Engine

Core components

Motor, Gear, Engine

Machinery test report

Provided

Video outgoing-inspection

Provided

Warranty

1 Year

Weight (kg)

Place of origin

China, Henan

Application

Rock Splitting and Construction

Dimension (L*W*H)

1200x1170x800mm(47.24x46.06x31.50in)

Piston Splitter Material

42CrMoA,38CrMoAL

Key word

Diesel Driven Hydraulic Rock Splitter

Drilling Hole Diamter

90mm-250mm as per customer requirement

Splitting force effective

260-1250Ton/ unit

Supporting hydraulic power

Diesel/Electric

Working medium

46# 48# Hydraulic Oil

Work pressure

120-150Mpa

Setting Space

500-1500mm

Drilling Hole Depth

more than 1000mm

Selling Units

Single item

Power (W) (Product option)

4kw or 7.5kw for electric, 8 or 18hp for diesel engine

Model number

VT-90, VT-110, VT-115, VT-130, VT-150, VT-180, VT-250

Lead time

7 days

Minimum order

1 Units
