Toonice 30kvar 50kvar 75kvar Power Factor Correction Three Phase Three Wire Static Var Generator for Electricity Saving Device

Available for enquiry 0.0 · 0 reviews
USD

$ 1,320.00 1320.0 USD $ 1,320.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Rated voltage
10 kV, 12 kV, 24 kV, 35 kV, 36 kV
Rated current
3150
Frequency
50 Hz, 60 Hz
Application
Indoor, Electric Power Transmission, High Voltage, Power Distribution
IP level
IP53
Material
Stainless Steel, Aluminium Zinc Coated Plate
Product description

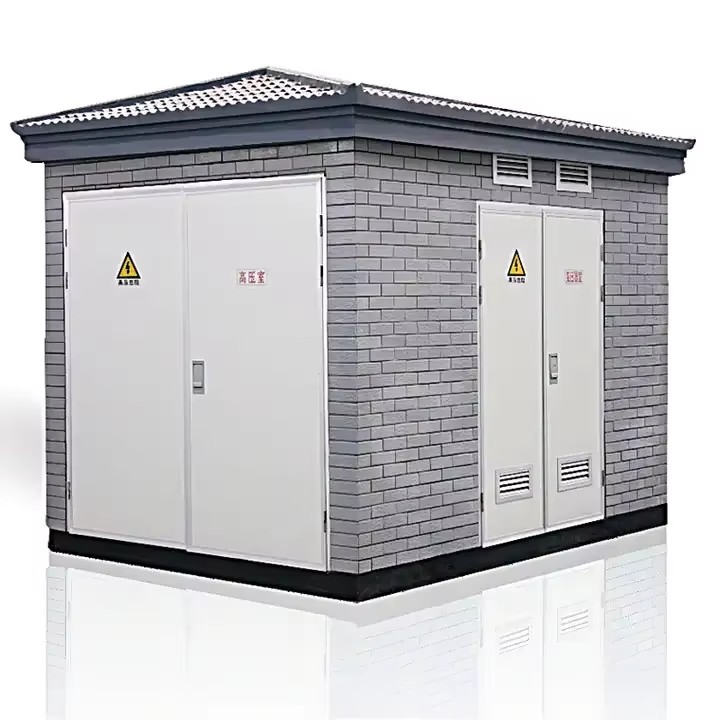

Distribution substations are essential components of electrical power networks, ensuring reliable power distribution. Our distribution substation is a comprehensive power supply unit designed for 3-phase AC 50Hz systems with a maximum rated capacity of 1600 KVA. It is widely utilized in various applications, including industrial and mining enterprises, residential areas, hospitals, shopping malls, and high-rise buildings.

Key Features: 1.High Voltage Control and Protection: Ensures safe operation and enhances reliability. nversion and Distribution Capabilities: Effectively manages power supply to meet diverse needs. pact Prefabricated Design: Provides an efficient, convenient, and economical solution, saving space and installation time. er-Friendly Operation: Simple to operate with enhanced safety features. 5.Our distribution substation offers a reliable, safe, and efficient solution for modern power distribution requirements.

Working Environment

Ambient temperature: -25°C ~ 40°C
Relative humidity
Daily average < 95%, monthly average < 90%, with an average water vapor pressure below 2.2kPa
Monthly average less than 90%, with an average water vapor pressure below 1.8kPa
Altitude: <1000m
Seismic intensity: below magnitude 8
*External wind speed less than 35m/s
Installation Location: Suitable for areas free from fire hazards, explosion risks, and chemical corrosion.

Technical Parameters

CompartmentItemUnitParameter
High voltage compartmentRated frequencyHz50/60 Hz
Rated VoltageKV3.3KV,6.0KV, 6.6KV10KV 11KV 13.8KV 15KV 20KV 22kv30KV 33KV 35KV 36KV
Max service voltageKV7.2 KV12KV,24KV40.5KV
Rated currentA400,630,1000,1250,1600,2000,2150,...etc
Transfer currentA1200-3150A
1MIN Power frequency withstand voltage,earth-phaseKV42/48,85/95
1MIN Power frequency withstand voltage,phase/fracture
BILKV75/85,170/185
Rated short circuit breaking currentKA20,31.5
Transfomer compartmentRated voltageKV3.3KV,6.0KV 6.6KV10KV 11KV 13.8KV 15KV 20KV 22kv30KV 33KV 35KV 36KV
Rated power capacityKVA200KVA Upto 2.5MVA
Tapping range%±2X2.5%,±5%
Vector groupYyn0,Dyn11
Short-circuit Impedance%4.0,4.2,4.5,6,8
Low voltage compartmentrated voltageV220,380,400,415,433,440,660,690,800
main circuit rated currentA50-4000
branch currentA5-800

*This table is only for a single specification of the product and does not represent the data parameters of all products.

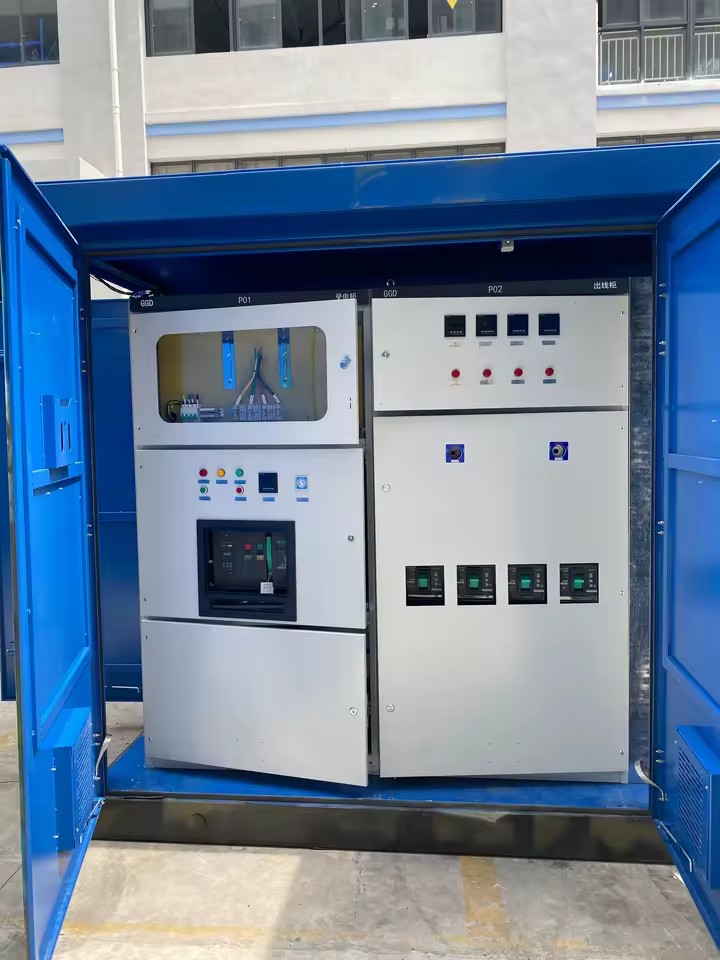

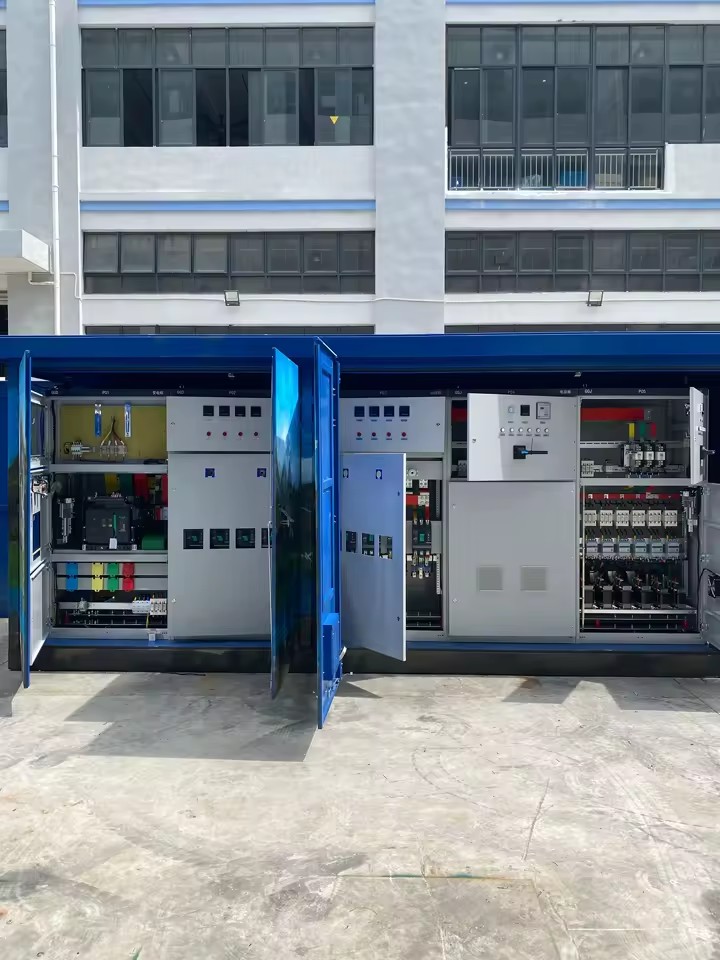

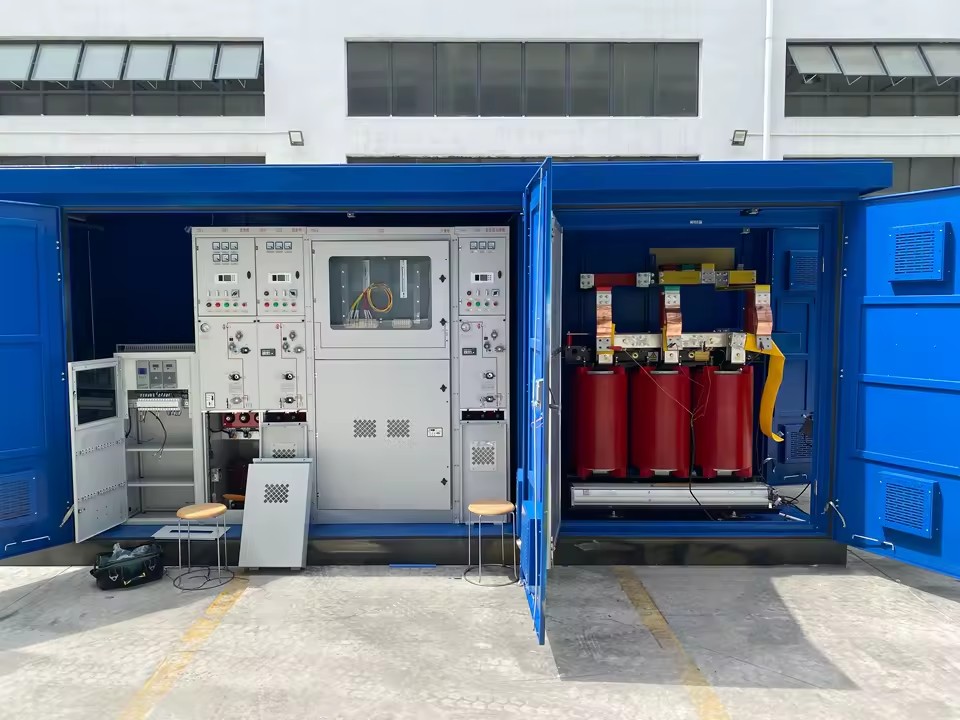

Detailed Photos

The company has a vacuum box helium leak detection system, local discharge test laboratory and other advanced inspection and test equipment system. With the basic experimental facilities and research environment needed for advanced technology development and scientific research, the products are tested according to the international IEC standards. The enterprise has passed the IS09001 quality system certification, IS014001 environmental system certification and OHSAS18001 occupational health and safety management system certification, the products have been obtained the CNAS national accreditation laboratory certification report.

Q
A: We are a professional factory with 10 years experience in the field of High and Low voltage switchgears,Substation,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker, load break switch etc.
Q: Do you accept customized serveice?
A: We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters.
Q: What is your MOQ?
A: Our MOQ is 1 piece.
Q: How long is your delivery lead time?
A: It depends on your product requirement and quantity. Generally,5~10 working days is available.
Q: How do you solve quality problems?
A: Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse.we will make a satisfied soluton within 2 days.
Q: What is your payment terms?
A: 30%T/T in advance,70% before shipment. West union,L/C are also acceptable.
Description images
Toonice 30kvar 50kvar 75kvar Power Factor Correction Three Phase Three Wire Static Var Generator for Electricity Saving Device
Toonice 30kvar 50kvar 75kvar Power Factor Correction Three Phase Three Wire Static Var Generator for Electricity Saving Device
Toonice 30kvar 50kvar 75kvar Power Factor Correction Three Phase Three Wire Static Var Generator for Electricity Saving Device
Toonice 30kvar 50kvar 75kvar Power Factor Correction Three Phase Three Wire Static Var Generator for Electricity Saving Device
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 22 fields
Rated voltage
10 kV, 12 kV, 24 kV, 35 kV, 36 kV
Rated current
3150
Frequency
50 Hz, 60 Hz
Application
Indoor, Electric Power Transmission, High Voltage, Power Distribution
IP level
IP53
Material
Stainless Steel, Aluminium Zinc Coated Plate
Place of origin
Zhejiang, China
Model number (Specification)
(QY)DFW
Size
6000
Rated Capacity(Oil-immersed Type)
50~2500kVA
Rated Capacity(Dry Type)
30~2000kVA
Connection Group
Dyn11 (Mainstream), Yyn0
Short-time Withstand Current
16kA/2s, 20kA/2s, 25kA/3s
Peak Withstand Current
40kA, 50kA, 63kA
Lightning Impulse Withstand Voltage
To Earth/Phases: 75kV, 95kV Isolation: 85kV, 110kV
Power-frequency Withstand Voltage
HV: 42kV/1min, LV: 5kV/1min
Protection Scheme
LBS+Fuse, VCB
Altitude
≤ 1000m
Seismic Resistance Grade
Grade 7 (Standard)
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Lead time
15 days
Minimum order
1 Units
