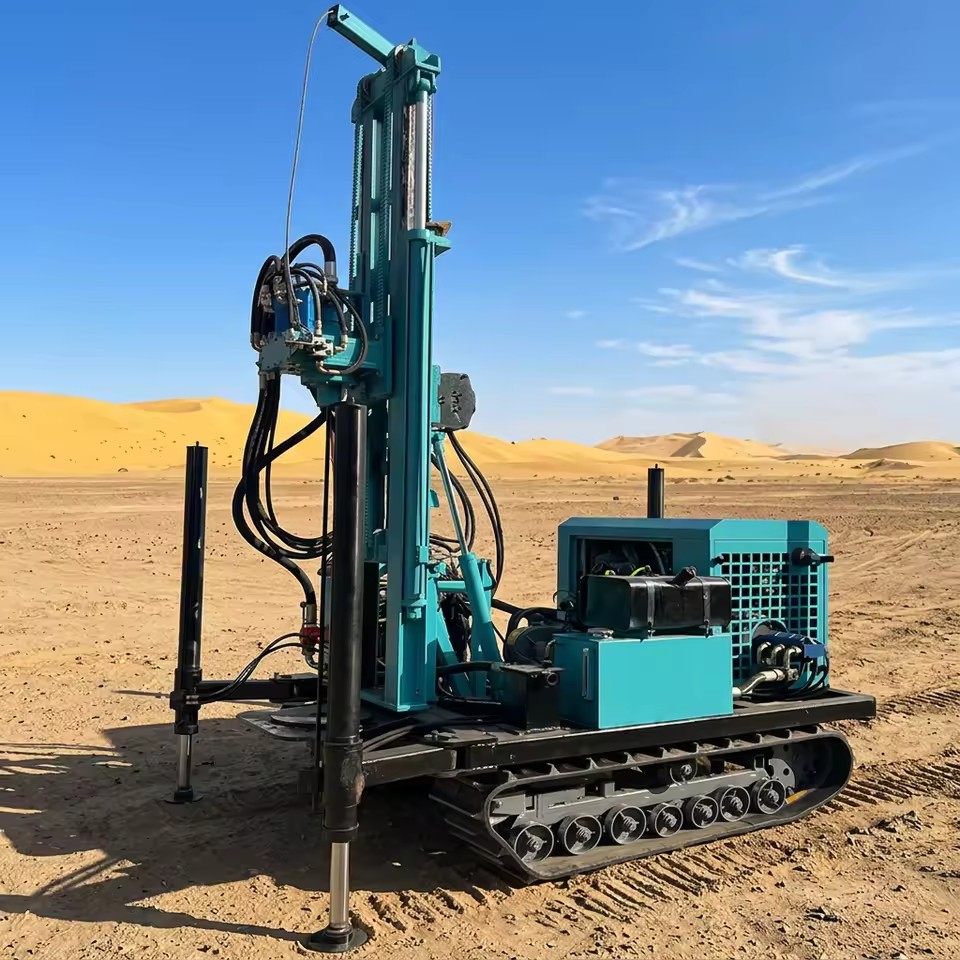

Drill Rig Deep Well Mud Pump 300m Hydraulic Diesel Water Well Drilling Machine Wheeled Air Compressor Motor Gear Durable for

Available for enquiry 0.0 · 0 reviews
USD

$ 6,750.00 6750.0 USD $ 6,750.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
Max.300m
Drilling Diameter
300 mm(11.81in), 100 mm(3.94in), 200 mm(7.87in), 350 mm(13.78in), 400 mm(15.75in)
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Product description

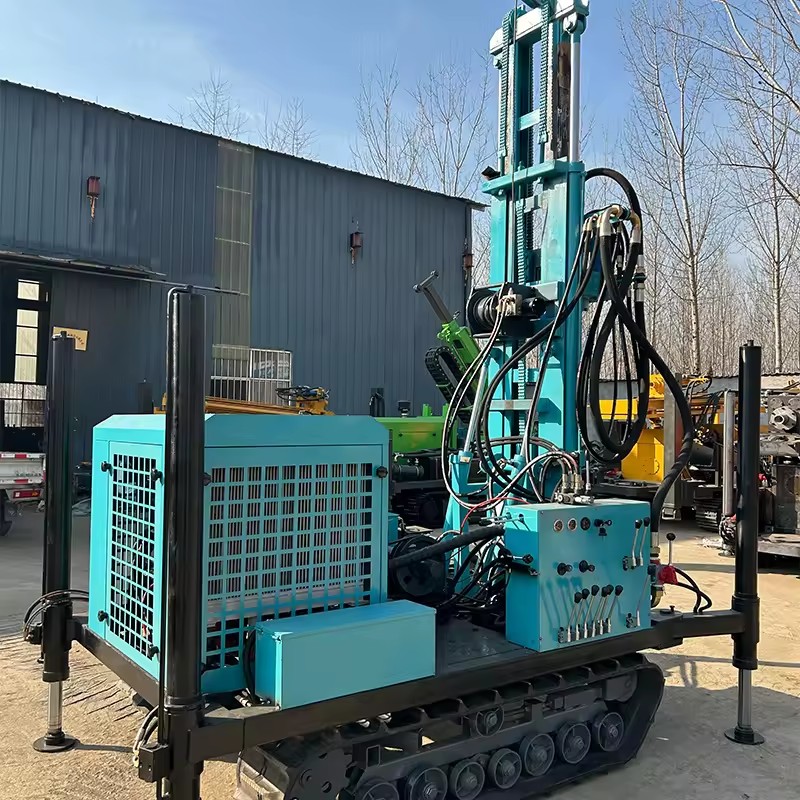

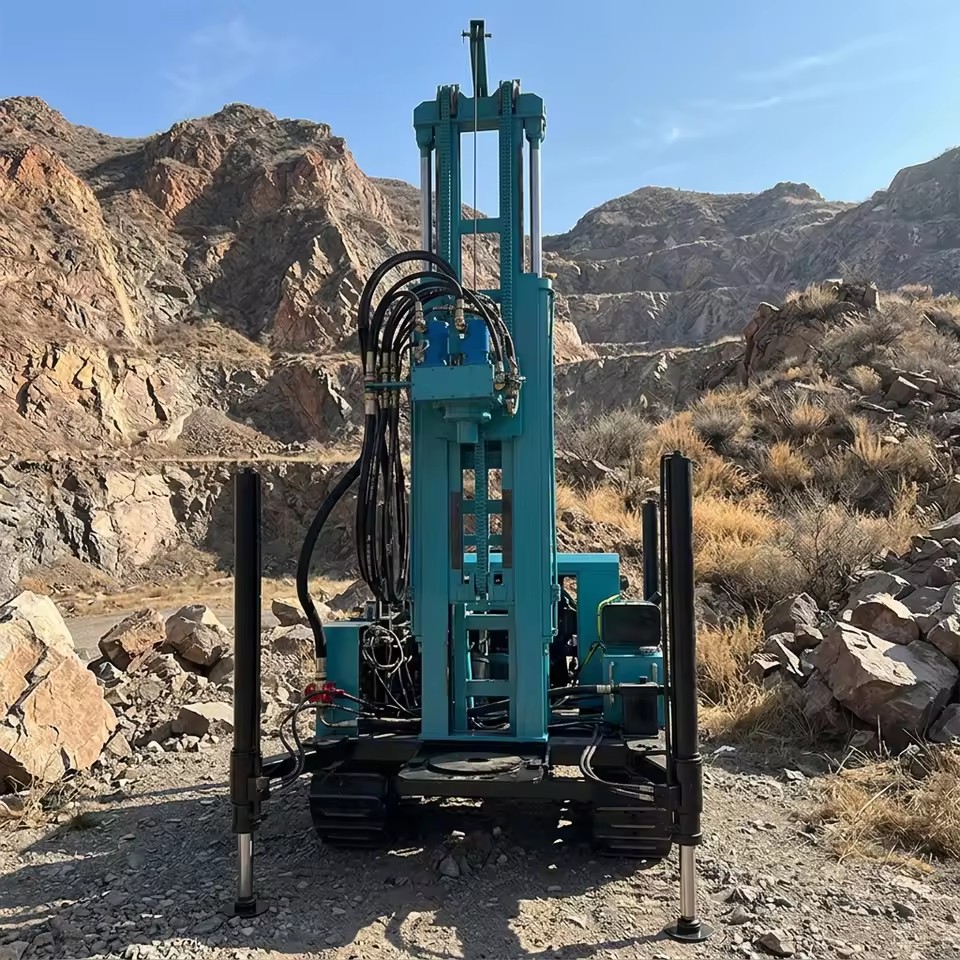

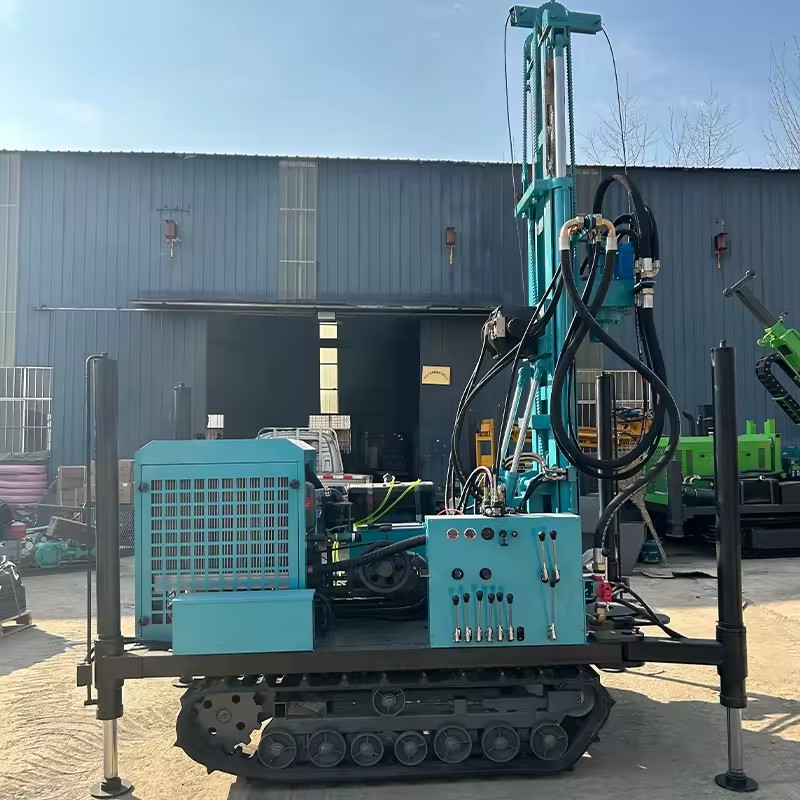

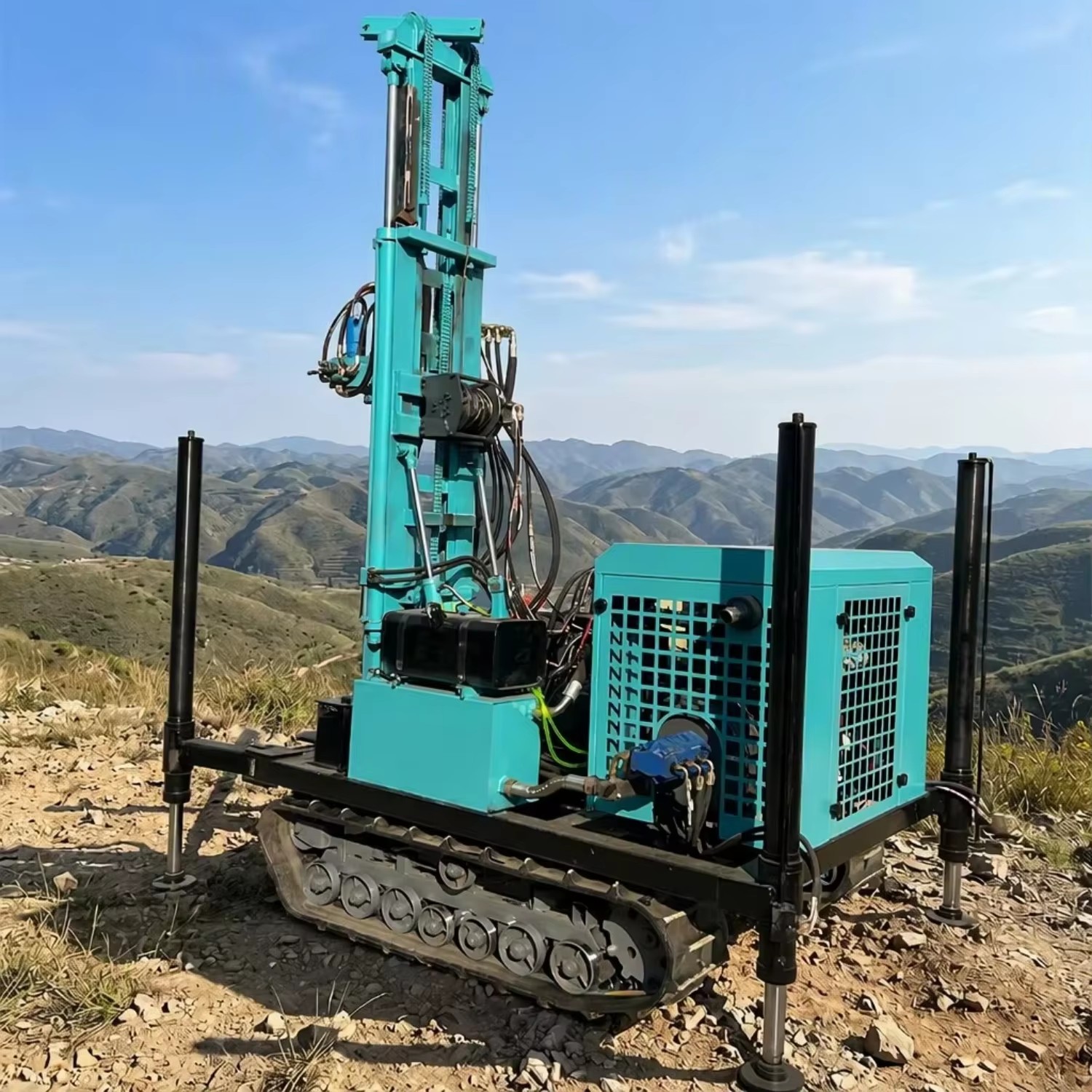

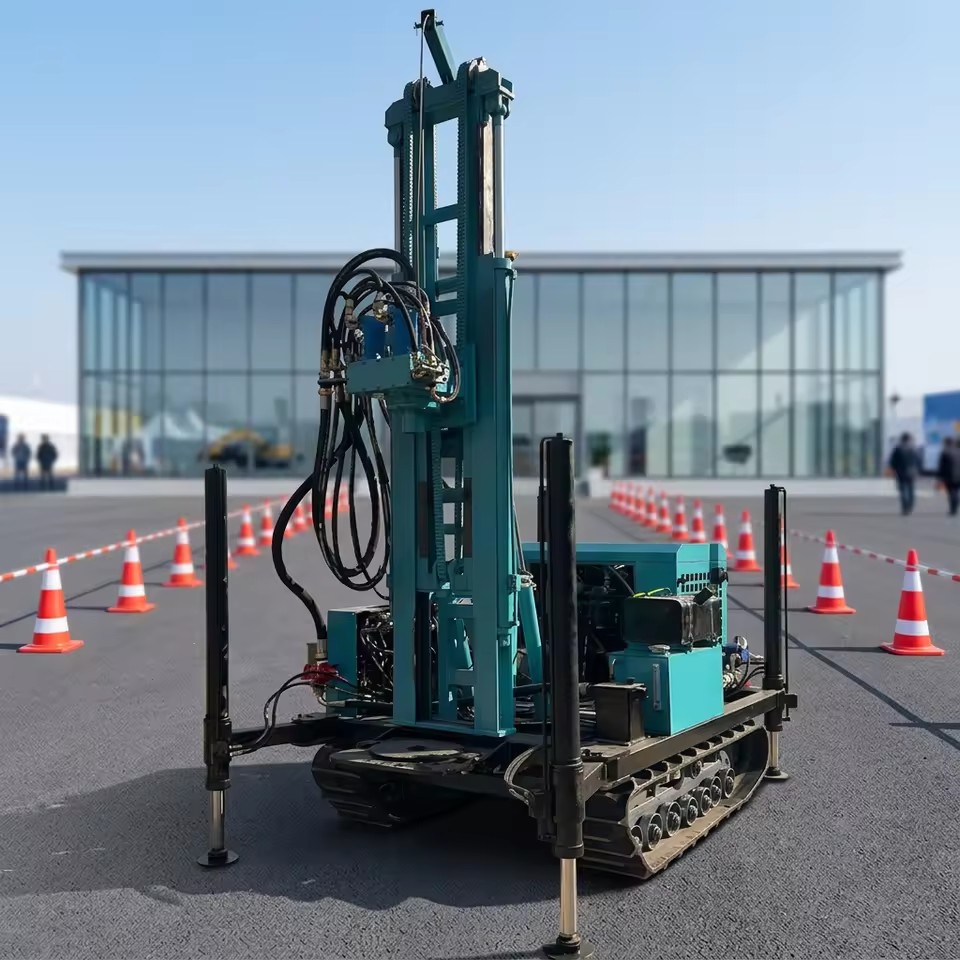

  • The tracked pneumatic water well drilling rig is an advanced drilling device that integrates high-efficiency rock breaking, mobility, and environmental adaptability.
  • It adopts compressed air-driven down-the-hole hammer technology and is specifically designed for medium-hard and hard rock formations (such as granite and basalt) and complex strata (pebble layers, fractured zones).
  • The tracked chassis offers superior off-road performance and convenient relocation.

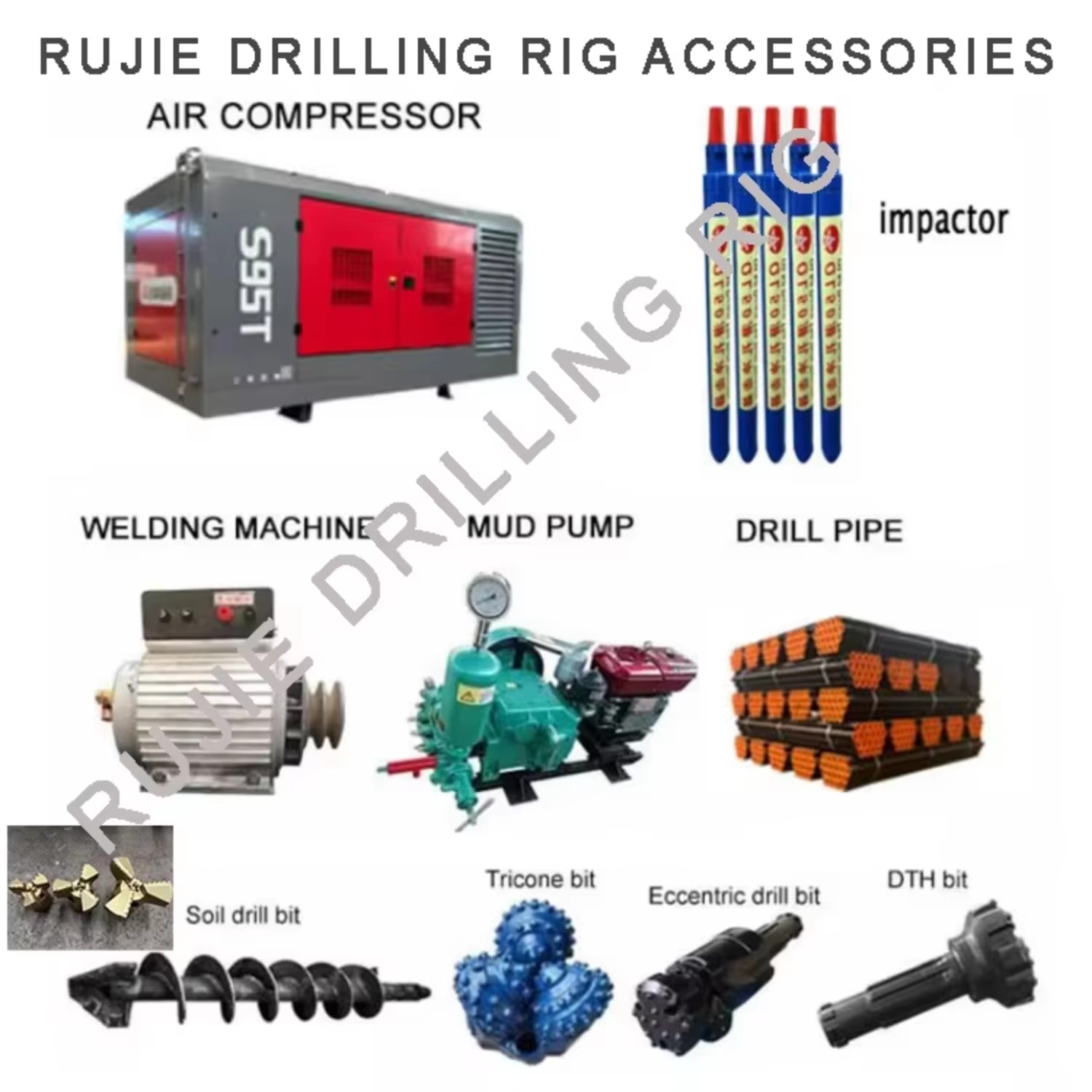

  • It can be used with a mud pump for water drilling or connected to an air compressor for pneumatic drilling, resulting in high work efficiency.
    • ModelRZQ-300C
    Max drilling depth300mDrill pipe diameter60/76/89mm
    Drill diameter100-325mmRotary torque5500-6500N.m
    Engine power78KW(110HP)Rotary speed80-200r/min
    Lifting force14TTravel speed2.5Km/h
    Speed of fast lifting30m/minGrade ability30Degree
    Fast feeding speed60m/minDimension3200*1700*2100mm
    One-time advance length3mWeight3500kg

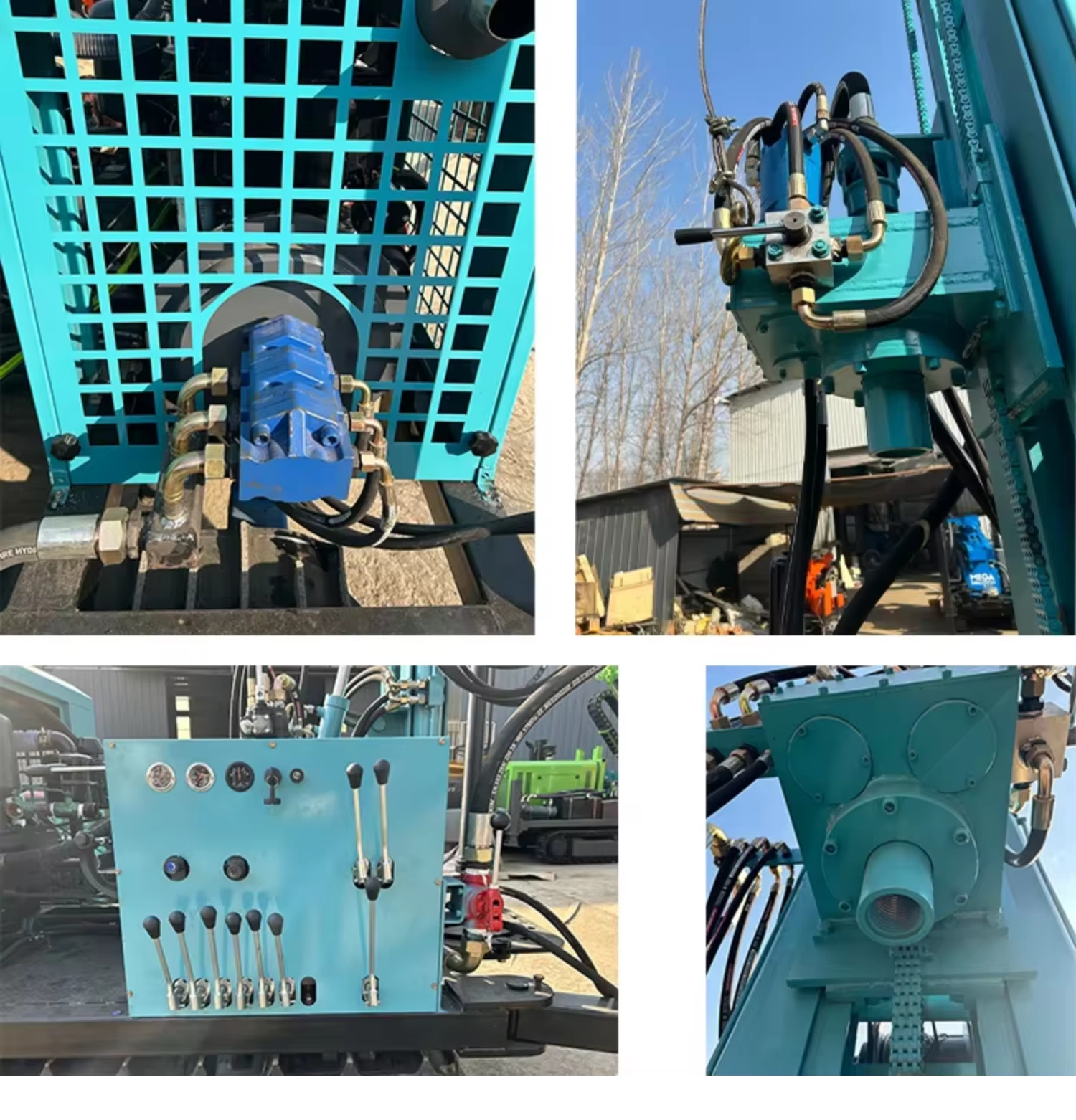

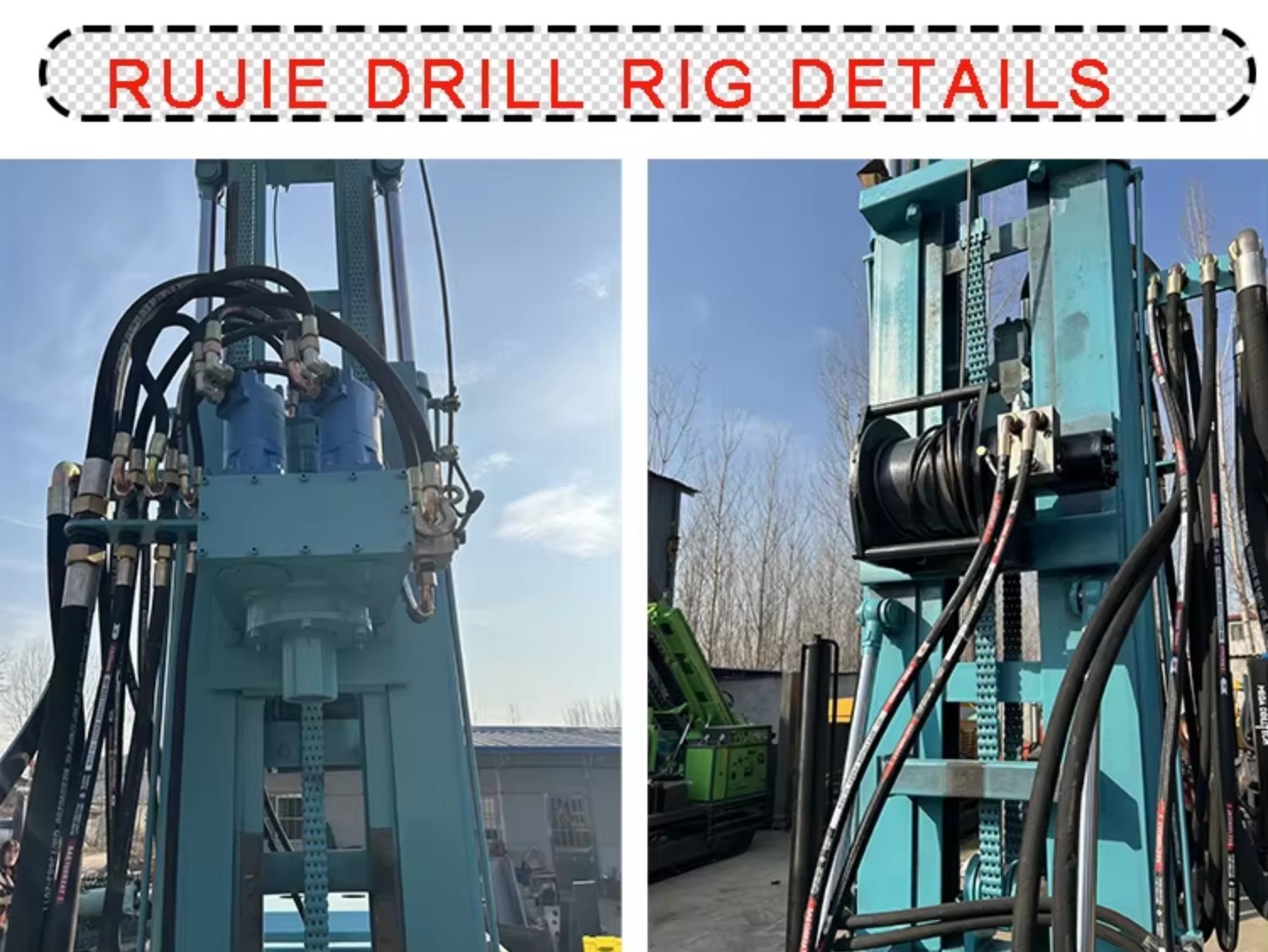

    Description images
    Drill Rig Deep Well Mud Pump 300m Hydraulic Diesel Water Well Drilling Machine Wheeled Air Compressor Motor Gear Durable for
    Drill Rig Deep Well Mud Pump 300m Hydraulic Diesel Water Well Drilling Machine Wheeled Air Compressor Motor Gear Durable for
    Drill Rig Deep Well Mud Pump 300m Hydraulic Diesel Water Well Drilling Machine Wheeled Air Compressor Motor Gear Durable for
    Drill Rig Deep Well Mud Pump 300m Hydraulic Diesel Water Well Drilling Machine Wheeled Air Compressor Motor Gear Durable for
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      10 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 28 fields
    Usage
    coal
    Type
    Rotary Drilling Rig
    Drilling Depth
    Max.300m
    Drilling Diameter
    300 mm(11.81in), 100 mm(3.94in), 200 mm(7.87in), 350 mm(13.78in), 400 mm(15.75in)
    Power Type
    Diesel
    Core components
    Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
    Warranty
    2 Years
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Flexible Manufacturing
    Place of origin
    Shandong
    Weight
    3500 kg(7716.18lb)
    Dimension (L*W*H)
    3200*1700*2100mm(125.98*66.93*82.68in)
    Mobility
    Move by wheels
    Application
    Mining Project Borehole Drilling Rig
    After-sales Service Provided
    Video Technical Support
    Max Drilling Depth
    300m Water
    Drilling method
    Pneumatic Hammer Drilling
    Power
    78KW
    Advantage
    Low Consumption High Efficiency
    Function
    Borehole Drilling Rig DTH Borehole Drill Rig
    Drilling bit
    Diamond tricon drill bits
    Drill pipe length
    2m/3m
    Selling Units
    Single item
    Single package size
    2800X1600X2000 cm
    Single gross weight
    3000.0 kg
    Model number
    RZQ-300C
    Power (W) (Product option)
    78KW(104.60hp)
    Lead time
    10 days
    Minimum order
    1 Units
