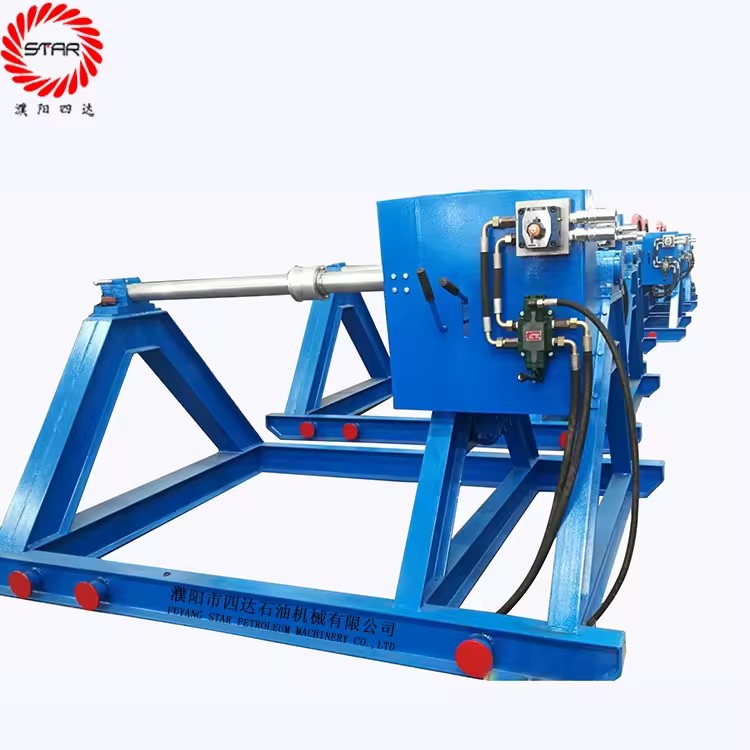

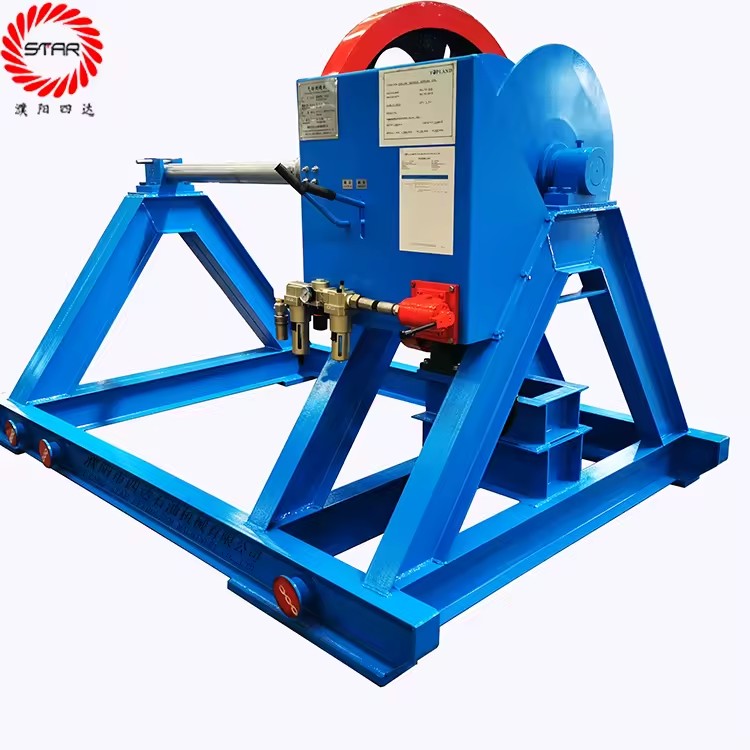

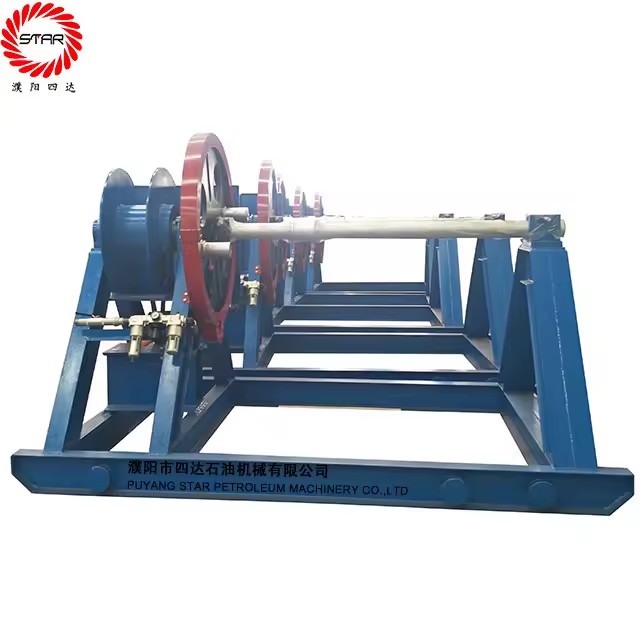

Factory Manufacture Customizable Well Drilling Hoisting Machine Pneumatic Spooler Wire Rope Spooler

Available for enquiry 0.0 · 0 reviews
USD

$ 10,630.00 10630.0 USD $ 10,630.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Drilling Rig Parts
Power Type
Diesel
Voltage
none
Machinery test report
Provided
Warranty
2 Years
Core components
Motor, Gear, ROLLER, Main Body, Shaft, Brake Machanism, Variable Transmission
Product description
Model/Product NameDSJ15-Q Wire Rope Spooler
Drive TypePneumatic
Support Spacing (mm)1320
Height of Center (mm)1640
Rated Output Torque (kN.m)10
Rated Speed (RPM)0.6-0.9MPa
Working Pressure (MPa)0.6-0.9MPa
Max Workload (Kg)15000
Weight (Kg)1800
Dimension (mm)3045x2050x1845

Product Application

Wire Rope Spooler Technical Parameters
SPEC/ModelDSJ8-DDSJ15-DDSJ8-YDSJ15-YDSJ15-Q
Drive TypeElectricHydraulicPneumatic
Support Spacing (mm)12601320126013201320
Height of Center (mm)11051640110516401640
Rated Output Torque (kN.m)10
Rated Speed (RPM)3.7-180.55-17.50.5~13rpm
Motor Power (kw)5.5kw (380V/50Hz 460V/60Hz)7.5kw (380V/50Hz 460V/60Hz)
Hydraulic Pressure (MPa)16MPa Flow:100L/min
Gas Consumption≤15m3/min(≈6 m3/min)
Max Load (Ton)81581515
RemarksCustomized production on request, such as load, canopy, with wire rope drum, single drum，etc.

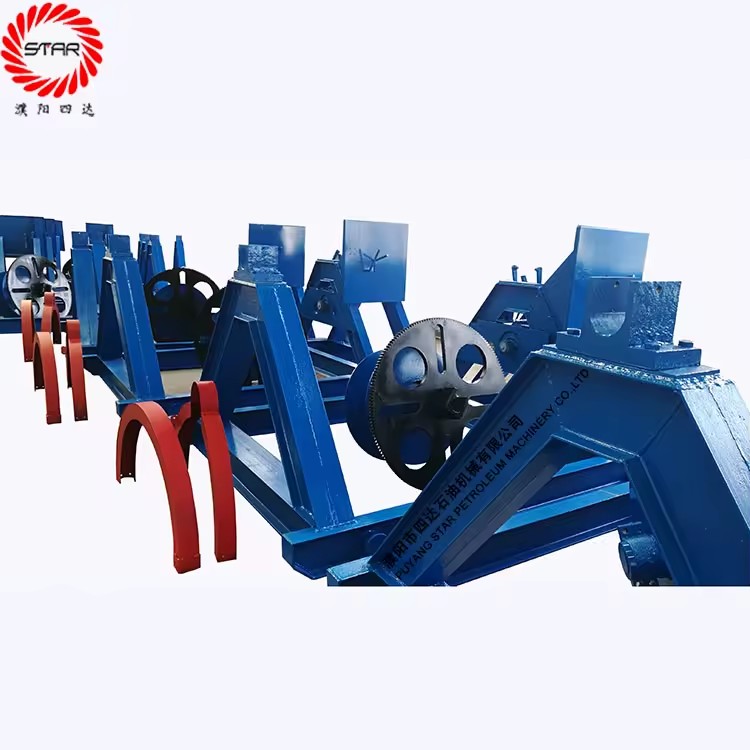

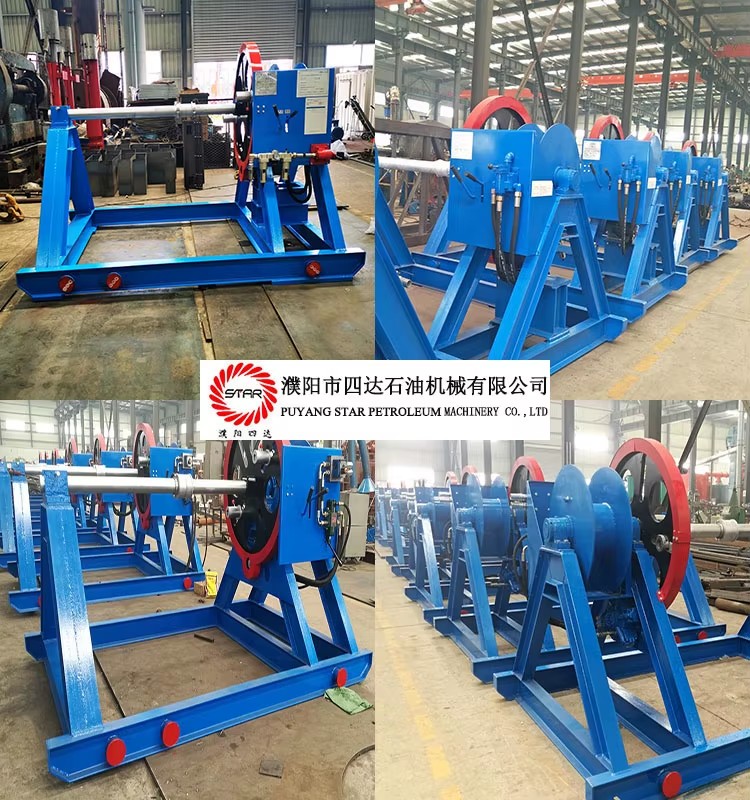

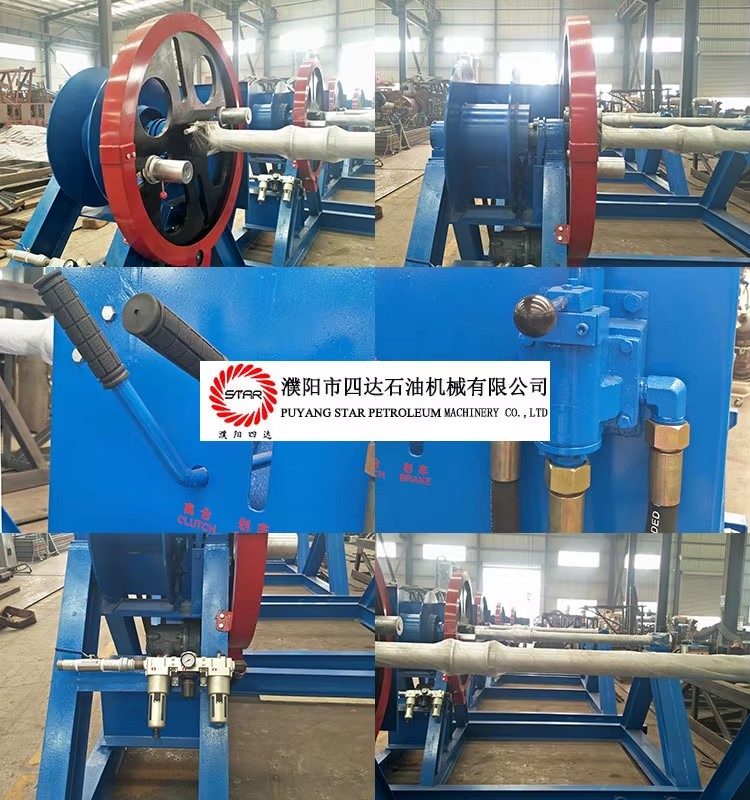

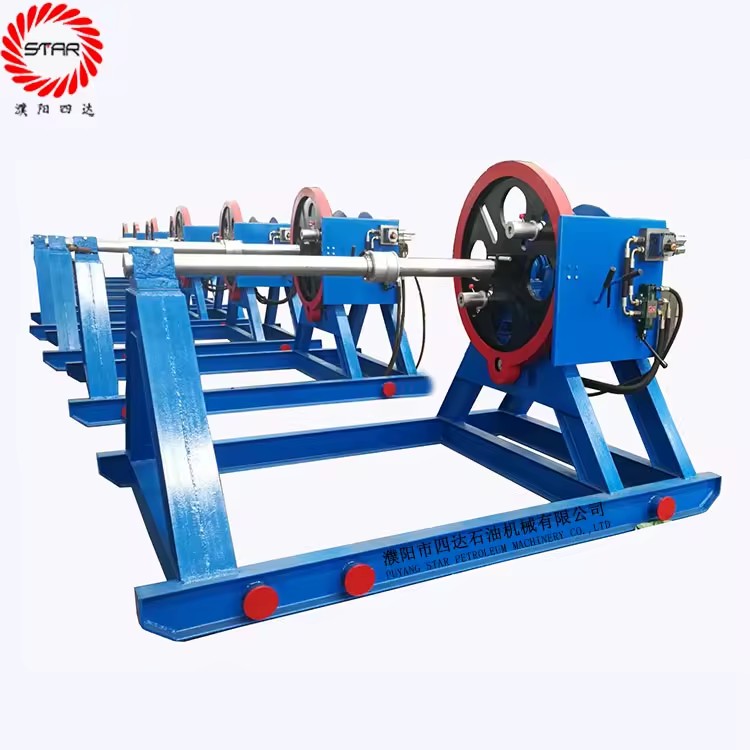

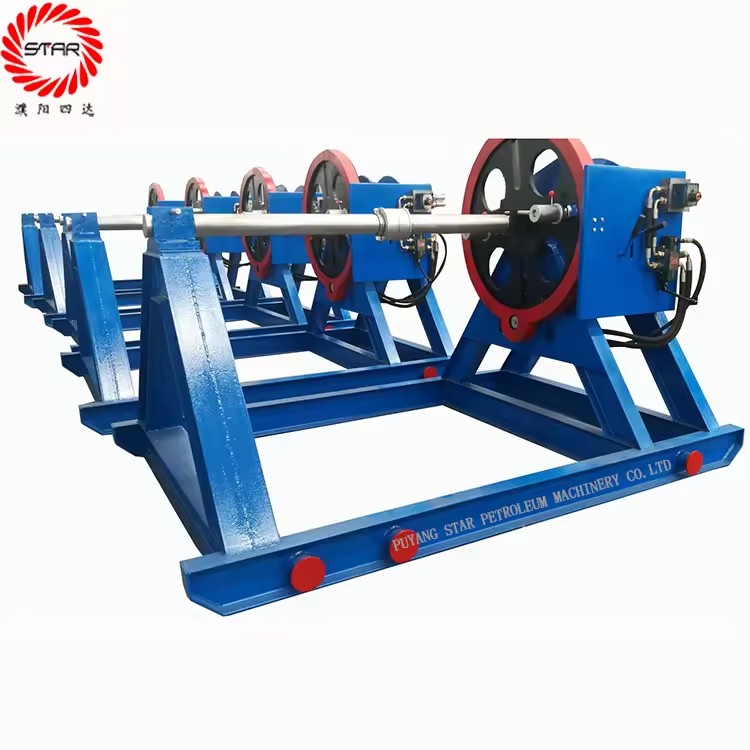

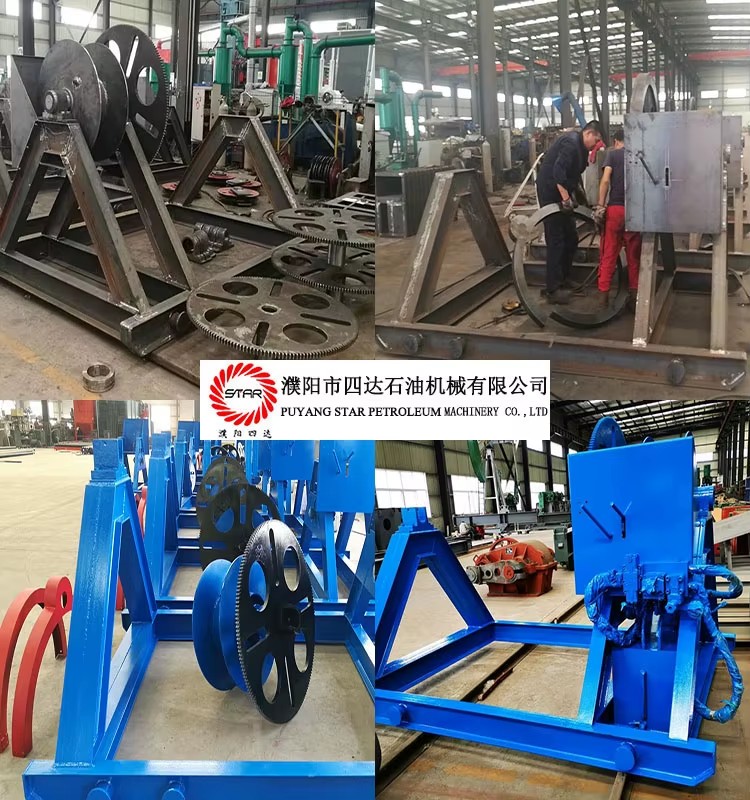

Wire Rope Spooler Production

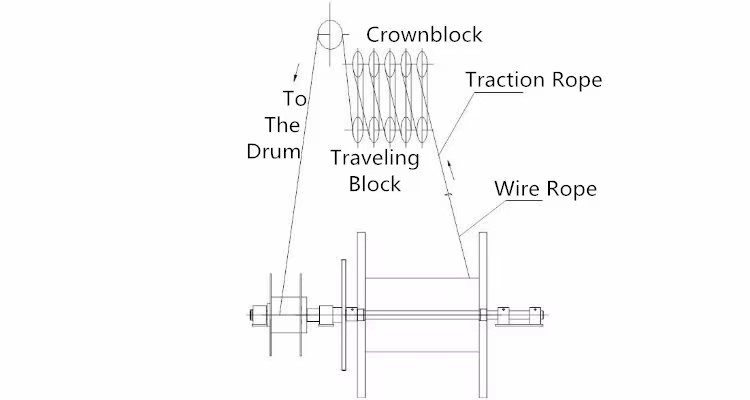

Wire Rope Spooler Line Threading Method

Want to know more,please be free to contact Lillian

1.By Trademanager

2.By Following information

Remark:please supply more detail require specification,that I can back the

Ignition Device

91.8% Response Rate

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    25 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
Drilling Rig Parts
Power Type
Diesel
Voltage
none
Machinery test report
Provided
Warranty
2 Years
Core components
Motor, Gear, ROLLER, Main Body, Shaft, Brake Machanism, Variable Transmission
Video outgoing-inspection
Provided
Place of origin
China, Henan
Weight
1400 KG
Dimension (L*W*H)
3050x2050x1845mm
Model
DSJ15-Q
Drive Type
Pneumatic
HS CODE
8431100000
Company Nature
Factory
Model Mark
DSJ
Color
Green, red, Blue or according to the requirement
Product Category
Drilling Rig Auxiliary Equipment
Remarks
Not only for oilfield, port and other operation can use it too.
Selling Units
Single item
Single package size
320X215X200 cm
Single gross weight
1700.000 kg
Power (W) (Product option)
None
Model number
DSJ15-Q
Lead time
25 days
Minimum order
1 Units
