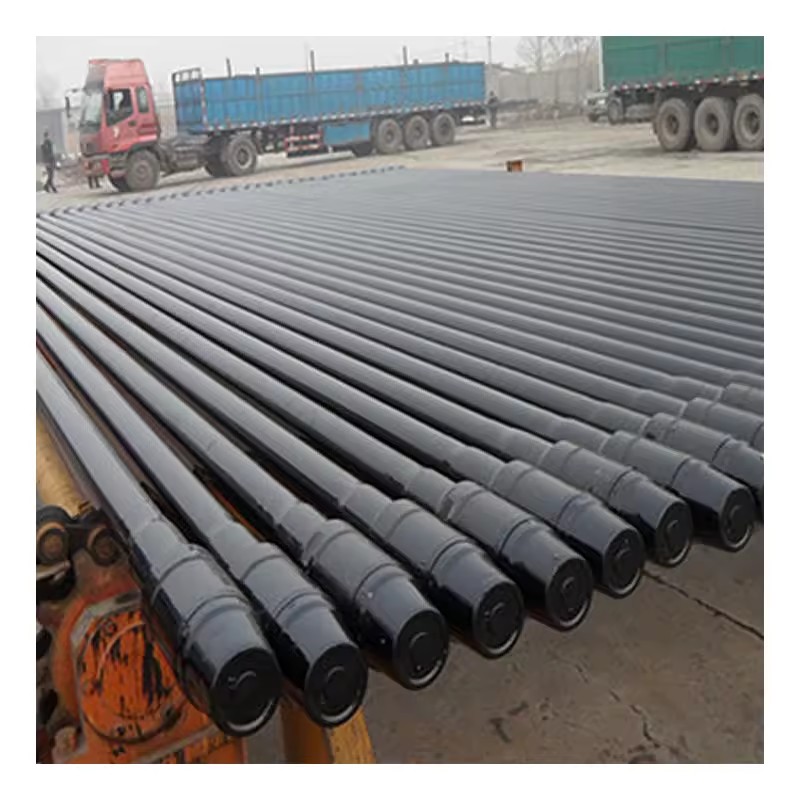

S-135/G105 API-5DP API-7-1 Oil Well Drilling Rig Drill Collar /drill Pipe

Product Importer Gallery 01 · 2f1897da78

Product Importer Gallery 02 · 5ba90addb6

Product Importer Gallery 03 · 623cf46232

Product Importer Gallery 04 · 5613d7ce9c

Product Importer Gallery 05 · 668801901a

Product video

Certifications API · API

S-135/G105 API-5DP API-7-1 Oil Well Drilling Rig Drill Collar /drill Pipe

Name: S-135/G105 API-5DP API-7-1 Oil Well Drilling Rig Drill Collar /drill Pipe
SKU: P5CA-T33K-TPM8
Price: 460.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 460.00 460.0 USD $ 460.00

Minimum order quantity: 100 Units

Key attributes

View all

Core components

Other

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000 pieces

Power (W)

Customized

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Drill pipe
Size(in)	OD of Pipe Body(mm)	Wall Thickness of Pipe Body（mm）
2.3/8“ to 6.5/8"	60.32—168.28	7.11—12.70

Drill pipe specifications
Designations	Pipe body OD.	Pipe wall thickness	Tool joint OD.	Tool joint PIN ID.	Approx mass
Lable 1	Lable 2	Grade	Upset type	RSC type	mm	mm	mm	mm	kg/m
Internal-upset
4	14.00	E	IU	NC40	101.60	8.38	133.4	71.4	22.42
4	14.00	G	IU	NC40	101.60	8.38	139.7	61.9	22.76
4-1/2	13.75	E	IU	NC40	114.3	6.88	152.4	85.7	22.5
3-1/2	15.5	G	EU	NC38	88.9	11.4	120.7	54.0	25.38
2-3/8	6.65	E	EU	NC26	60.32	7.11	85.7	44.5	10.45
2-7/8	10.40	S	EU	NC31	73.02	9.19	111.1	41.3	17.19
We can supply full size drill pipe with API 5D/5DP, including IU, EU, IEU. Please leave a message for consultation.

Description

Drill collar specifications
Nominal Size	OD	ID	Length	Bevel Dia. mm	Bending Strength Ratio
mm	in	mm	in	mm
NC31-41(2-7/8IF)	104.8	4-1/8	50.8	2	9150	100.4	2.43:1
NC35-47	120.7	4-3/4	50.8	2	9150	114.7	2.58:1
NC38-50(3-1/2IF)	127	5	57.2	2-1/4	9150	121	2.38:1
NC44-60	152.4	6	71.4	2-13/16	9150/9450	144.5	2.84:1
NC44-62	158.8	6-1/4	57.2	2-1/4	9150/9450	149.2	2.91:1
NC46-62(4IF)	158.8	158.8	71.4	2-13/16	9150/9450	150	2.63:1
NC50-70(4-1/2IF)	177.8	7	57.2	2-1/4	9150/9450	164.7	2.54:1
NC56-77	196.8	7-3/4	71.4	2-13/16	9150/9450	185.3	2.70:1
6-5/8REG	209.6	8-1/4	71.4	2-13/16	9150/9450	195.7	2.93:1
NC61-90	228.6	9	71.4	2-13/16	9150/9450	212.7	3.17:1
We can supply full size drill collar with API 5D/5DP, Please leave a message for consultation. 0086-18615995256

Certifications & compliance

API

Petroleum and natural gas standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

40 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Core components

Other

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000 pieces

Power (W)

Customized

Place of origin

China, Shandong

Weight (kg)

1000

Application

For drilling

Features

oil drilling

Dimension (L*W*H)

96.5*10*10cm(37.99*3.94*3.94in)

Technique

Hot rolled

Certification

API

Color

Required

Advantage

High Performance

Length

R1 R2 R3

Condition

New

Applicable Industries

Energy & Mining

Warranty of core components

1 Year

Selling Units

Single item

Model number

S-135/G105

Certifications & Compliance

API

Lead time

40 days

Minimum order

100 Units
