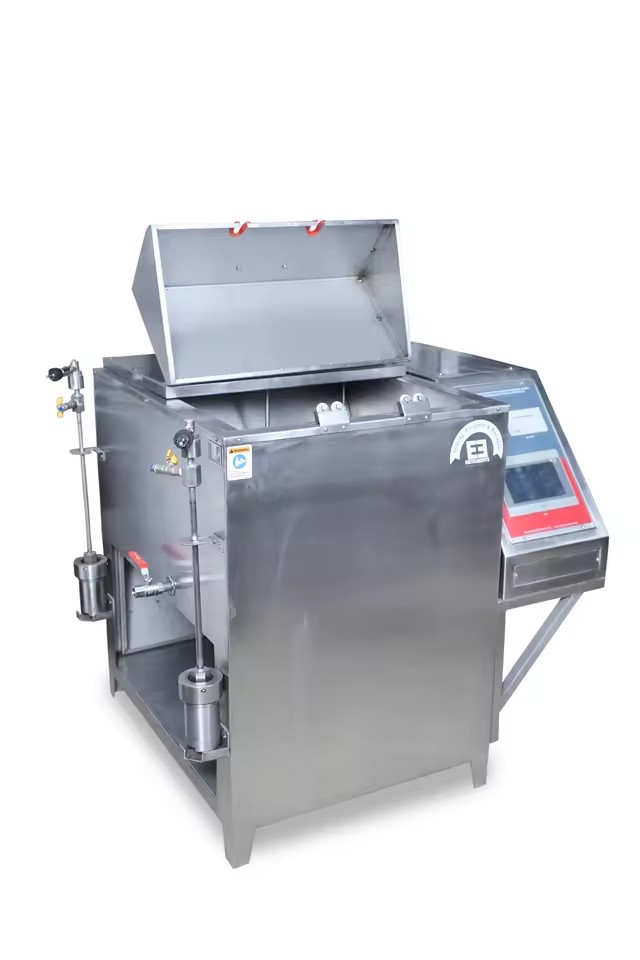

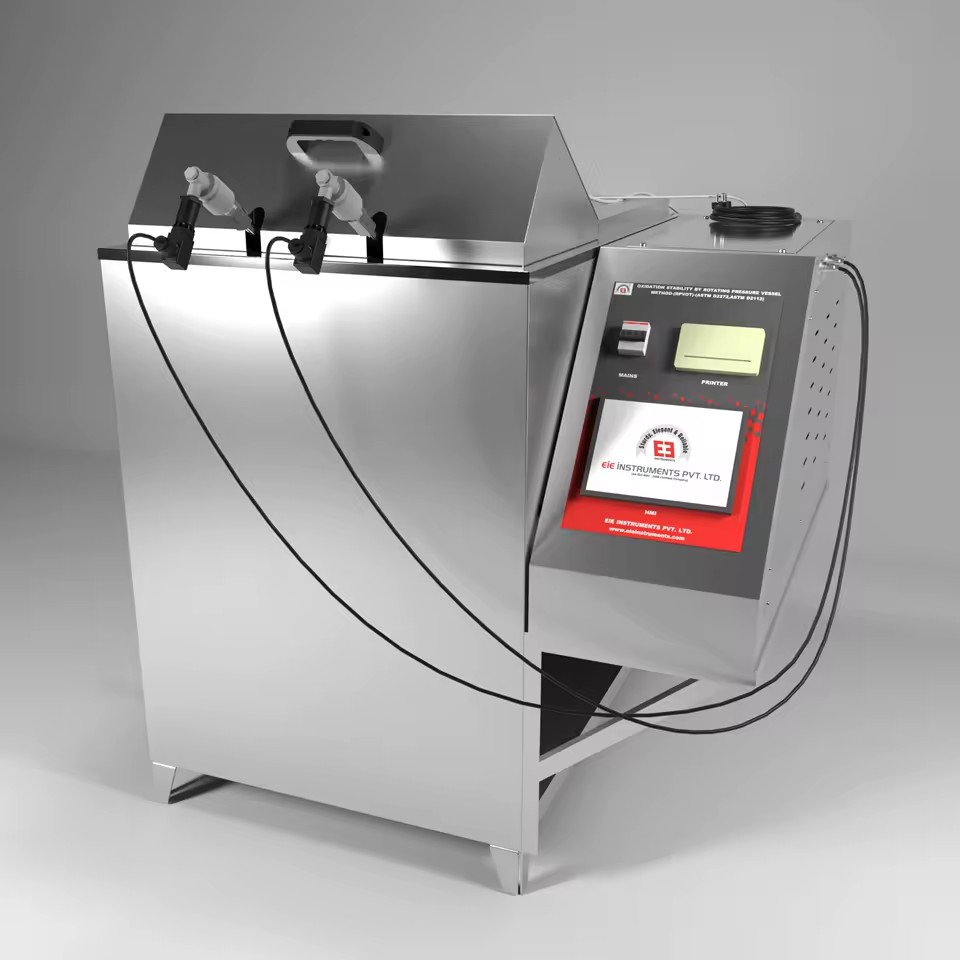

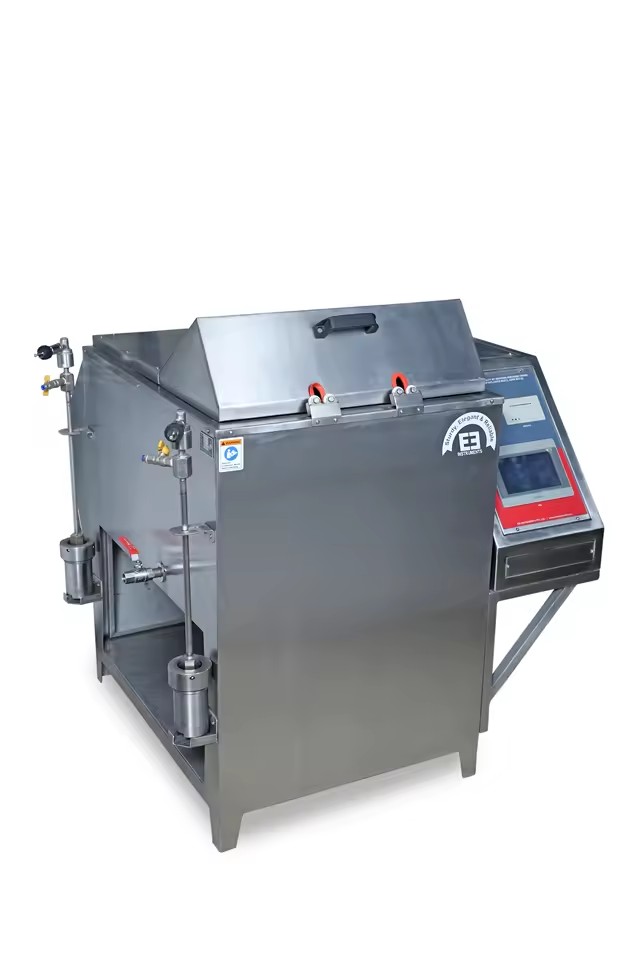

Name: Oxidation Stability Apparatus (RPVOT) Electronic Touch Screen Control High Precision Temperature Control (5C 200C) Oxidation
SKU: B2B-67668
Price: 13470.0 USD
Availability: PreOrder

Product description

Compliance Standards

ASTM D2272, ASTM D2112, IP 229

Purpose

These methods used to evaluate the oxidation stability of new and in service engine, turbine and inhibited mineral insulating oils in the presence of water and a copper catalyst coil at 150°C as per ASTM D2272 and at 140 °C test temperature as per ASTM D2112. The method is applicable to determine the oxidation stability of both, steam turbine oil and inhibited mineral insulating oil as per the respective standards mentioned above.

Summary of test method

The test oil, water, and copper catalyst coil, contained in a covered glass container, are placed in a vessel equipped with a pressure gauge. The vessel is charged with oxygen to a gauge pressure of 620 kPa (90 psi, 6.2 bar), placed in a constant temperature oil bath set at 150 °C, and rotated axially at 100 rpm at an angel of 30° from the horizontal. The time for oil to react with given volume of oxygen is measured; completion of the test is indicated by a specific drop in pressure. The number of minutes required to reach a specific drop in gauge pressure is the oxidation stability of the test sample.

Brief construction details

Following parts and accessories will be provided to conduct the entire test process

(1) Temperature controlled Heating Bath

Double walled oil bath with inlet provision & outlet provision

Outer body fabricated from mild steel material, Powder coated in attractive shades

Inner chamber is fabricated from Stainless Steel 304 Grade material

Heavy insulation is provided between inner chamber and exterior body to prevent the direct heat loss

Inner chamber is fitted with efficient heating element and PT 100 Sensor to measure the temperature

Bath temperature is controlled by Touch screen HMI & PLC Controller

Equipped with an efficient motorized stirrer to maintain uniform temperature throughout the chamber

Fitted with a suitable device for holding and rotating the vessel axially at an angle of 30° at 100 ± 5 rpm, while submerged in oil to a point at least 25 mm (1 in) below the level of the bath liquid.

Heavy duty drive motor to rotate pressure vessel at 100 ± 5 rpm rpm and is housed below the oil bath.

Temperature control accuracy: ± 0.5°C

Temperature display: Touch screen HMI Display

Temperature range: 5 °C above ambient to 200 °C

RPM of rotating vessels: 100 ± 5 rpm rpm

RPM Indication: ON HMI Touch screen controller

RPM Control: Controlled by accurate DC Drive

Pressure Indication: On HMI Touch screen controller

Supplied with over temperature protection safety

Operates on 230 Volt, 50 Hz, Single Phase, AC Supply

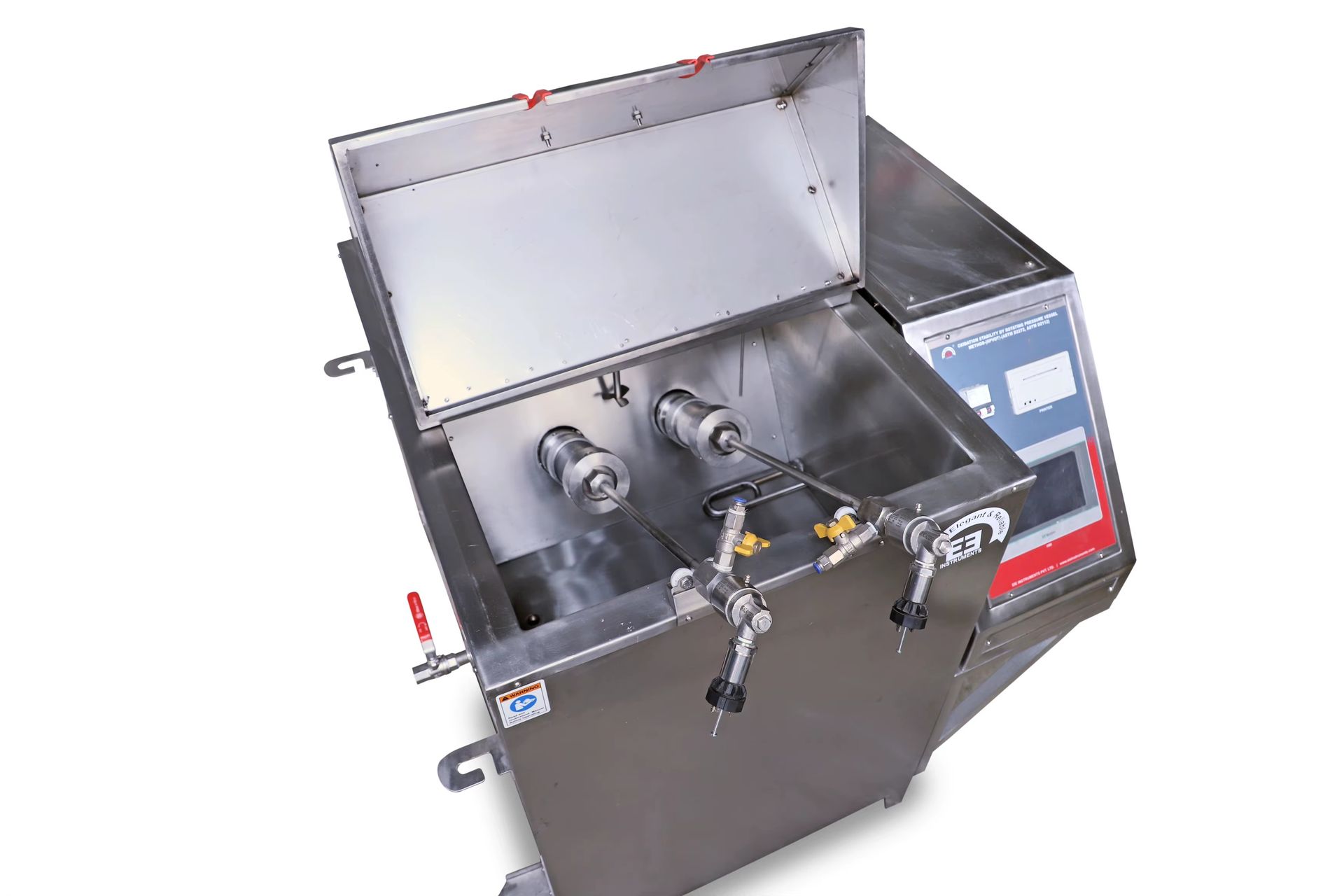

(2) Rotating Pressure Vessel (Oxidation Vessels)

Oxidation vessel with body, cap, closure ring and stem, constructed from Stainless Steel material

Stainless steel material ensures a proper rate of heat transfer.

The interior surface is given a smooth finish to facilitate cleaning.

Vessel stem is having an inside diameter of 6.4 mm (1/4 in) and is equipped with a 6.4 mm (1/4 in) needle valve

Withstands working pressure of 3450 kPa (500 psi, 34.5 bar) at 150 °C.

Two numbers of rotating pressure vessels are provided.

(3) Glass Sample Container, Catalyst Coil

It will be supplied with copper catalyst coil

Capacity of container: 175 mL capacity

Made of borosilicate glass

Will be having sliding fit in the vessel with no excess side clearance.

Will be having maximum wall thickness of 2.5 mm and weighs no more than 100 gram

Supplied with Catalyst wire, glass liners with PTFE Cover, & ‘O’ ring

(4) Thermometer

IP 37C/ASTM 96C sludge test thermometer having a range from 144 to 156 °C graduated in 0.2 °C intervals

(5) Recording Pressure Mechanism

Pressure recording mechanism consists of high quality Electronic pressure transducers, power source, mounting equipment, data recorder cum controller (Touch screen HMI), connecting cables and digital software. The rotary transducer couplings are mounted directly on the vessel stem in place of the standard mechanical pressure recorders. The output signal from the transducer is recorded & stored in HMI Controller. Complete system is designed such that operation of the unit will automatically be cutoff, when the pressure will be dropped by 25 psi from the originally established pressure Plateu.

Pressure Transmitter: 1 to 9 Bar

Technology: 4 to 20 mA two wire, 24 VDC

Accuracy: 0.25 %

Connection: 1/4" BSP

Temperature Range: 40 °C to 125 °C, DIN Connector

(6) Salient features of Touch Screen Controller / Recorder

Compact design

Touch screen HMI and PLC Controller

RS 485 Interface for PC Communications

Dedicated PC Software for Data Acquisition and recording

Secure data recording

PID control loops

High accuracy universal inputs

USB removable data storage facility

Description images

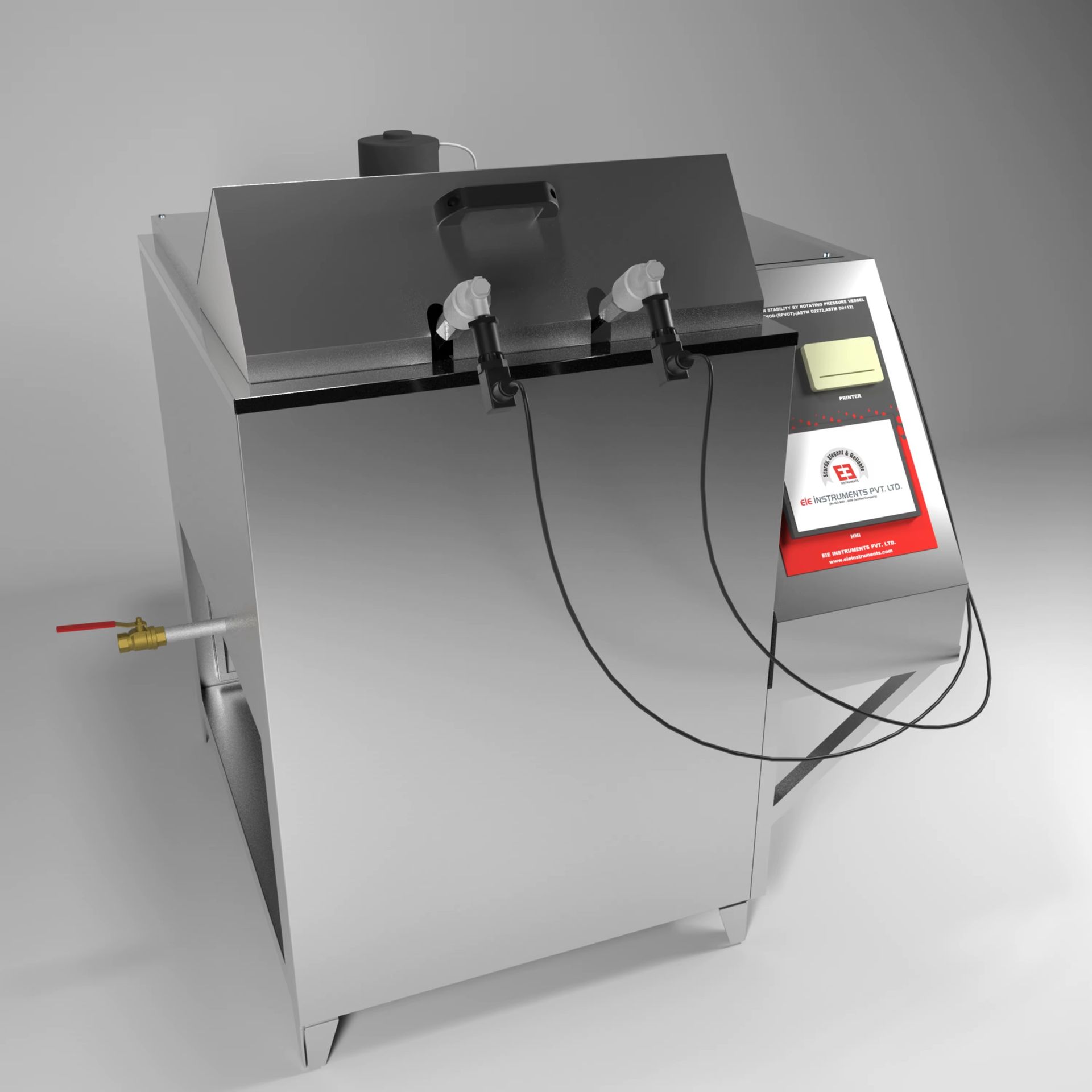

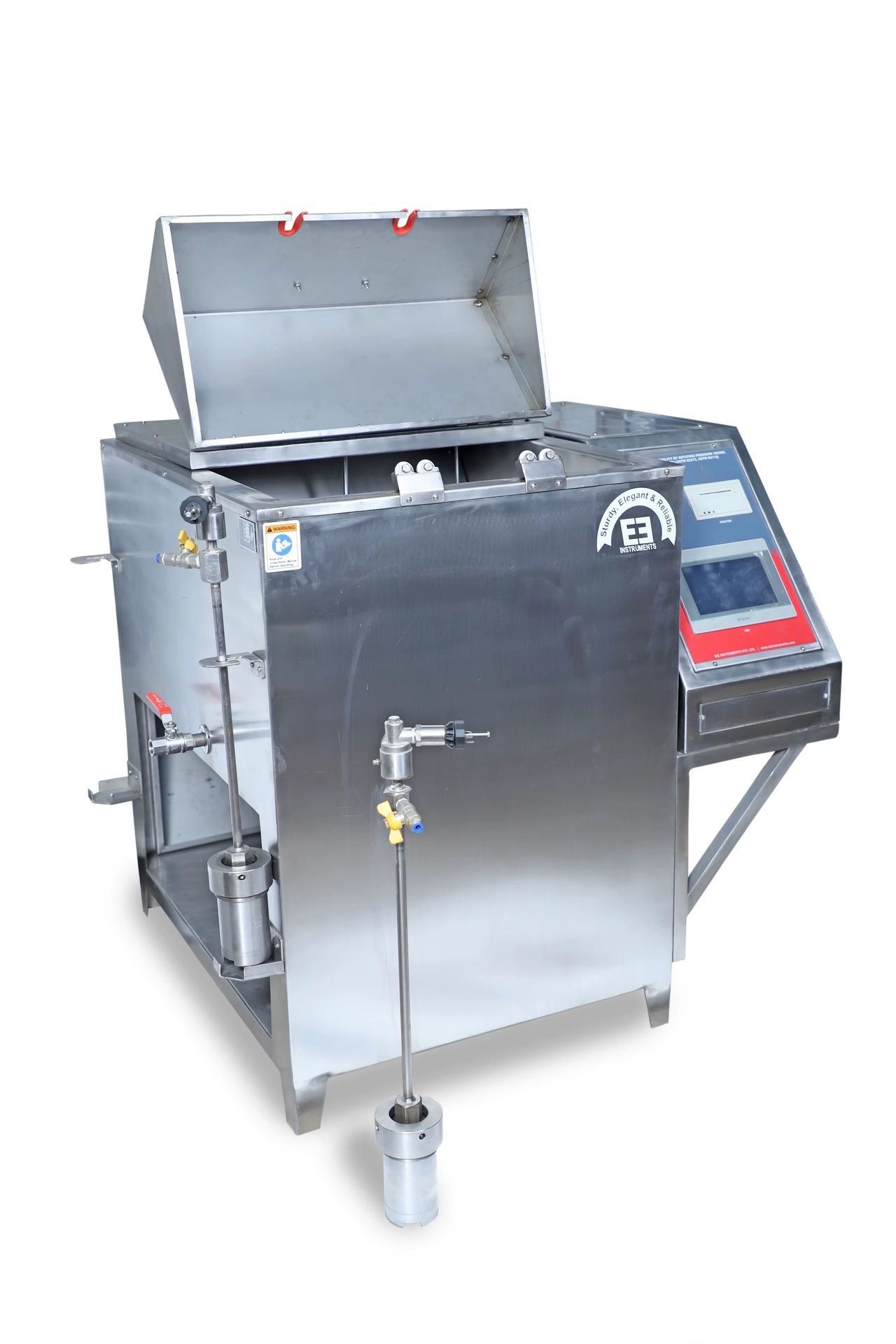

Oxidation Stability Apparatus (RPVOT) Electronic Touch Screen Control High Precision Temperature Control (5C 200C) Oxidation

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 17 fields

Warranty

1 Year

Customized support

OEM, ODM, OBM

Model number (Specification)

EIE-PTLT-121E

Place of origin

Gujarat, India

Control system

Touch Screen HMI Display with PLC Controller

Temperature sensor

Duplex type (Pt-100) sensor

Temperature Resolution

0.1 Degree Centigrade

Temperature Accuracy (Specification)

± 0.5 Degree Centigrade or better

Temperature range

5 °C above ambient to 200 °C

Pressure transmitter

Honeywell/Danfoss Make

Pressure Range

1 to 9 Bar

Pressure transmitter accuracy

± 0.50%

Data Acquisition

RS-485 Interface for PC Software communication

RPM of rotating vessels

100 ± 5 rpm rpm

Power

Electronic

Selling Units

Single item

Usage (Product option)

Petroleum testing instruments, Turbine Oil Testing, In Service Engine Oil Testing, Inhibited Mineral Insulating Oil Testing

Lead time

7 days

Minimum order

1 Units
