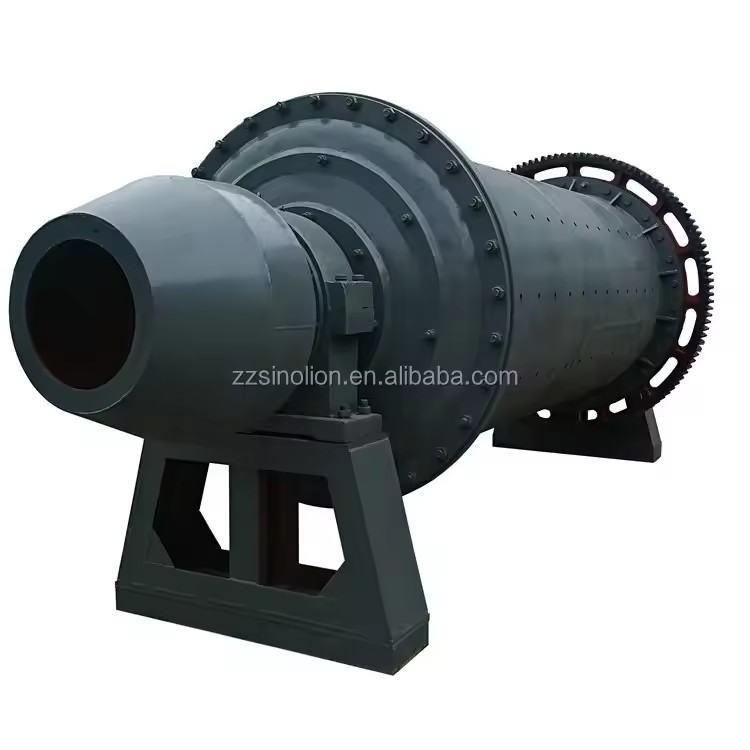

Name: Overflow Small Wet Dry Mine Laboratory Ball Mill Factory Price for Gold Copper Iron Chromite Ore Grinding
SKU: B2B-56080
Price: 4380.0 USD
Availability: PreOrder

Product description

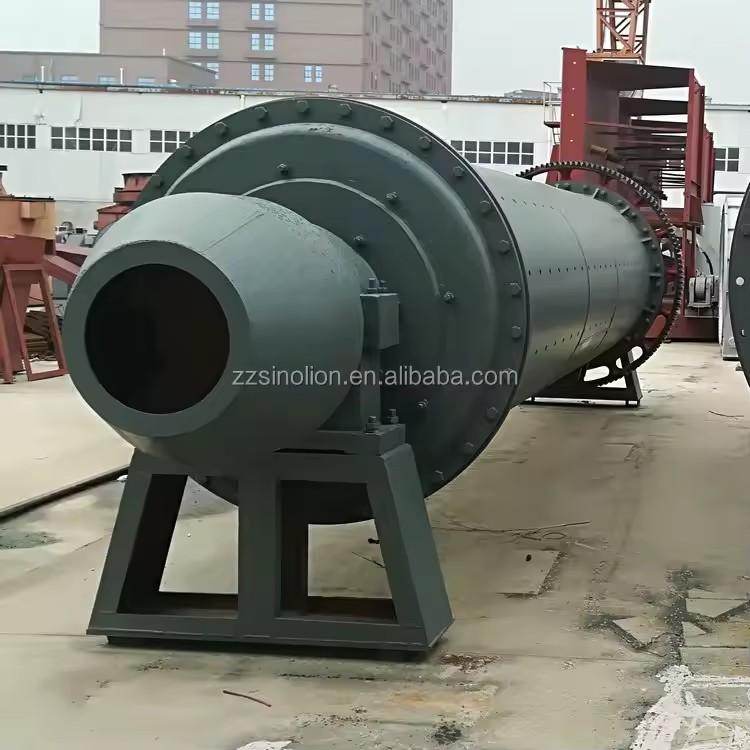

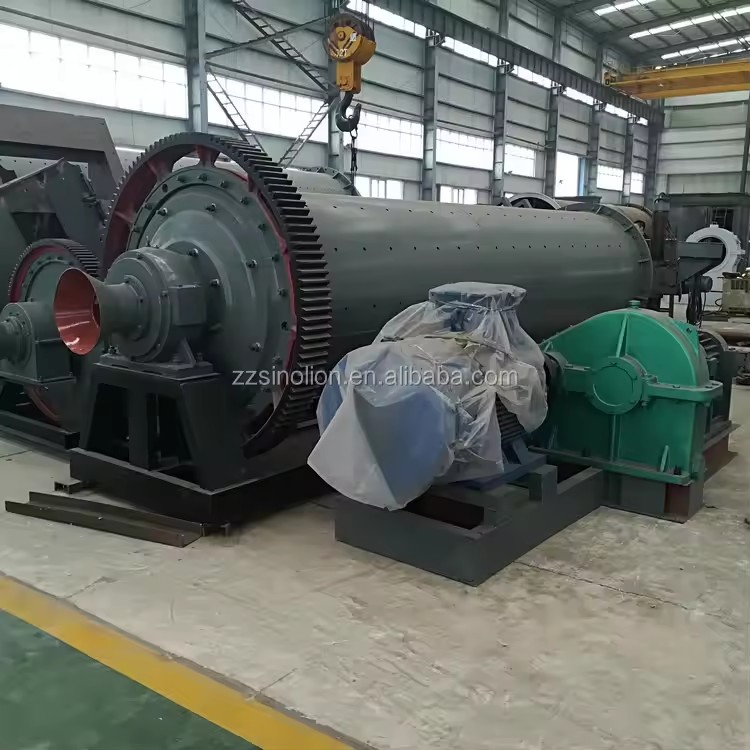

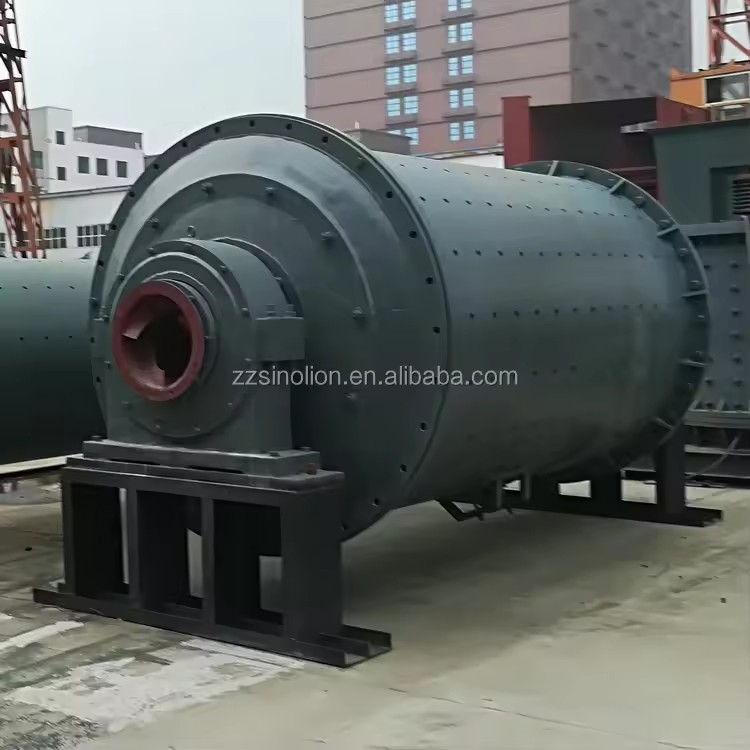

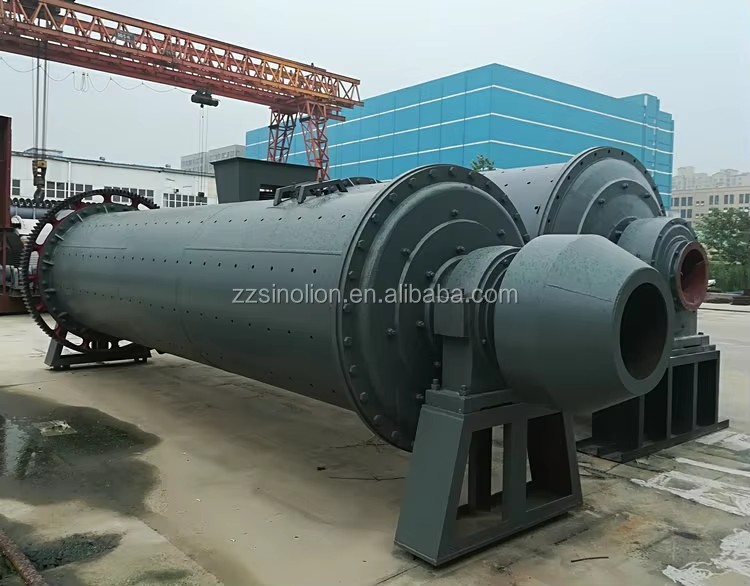

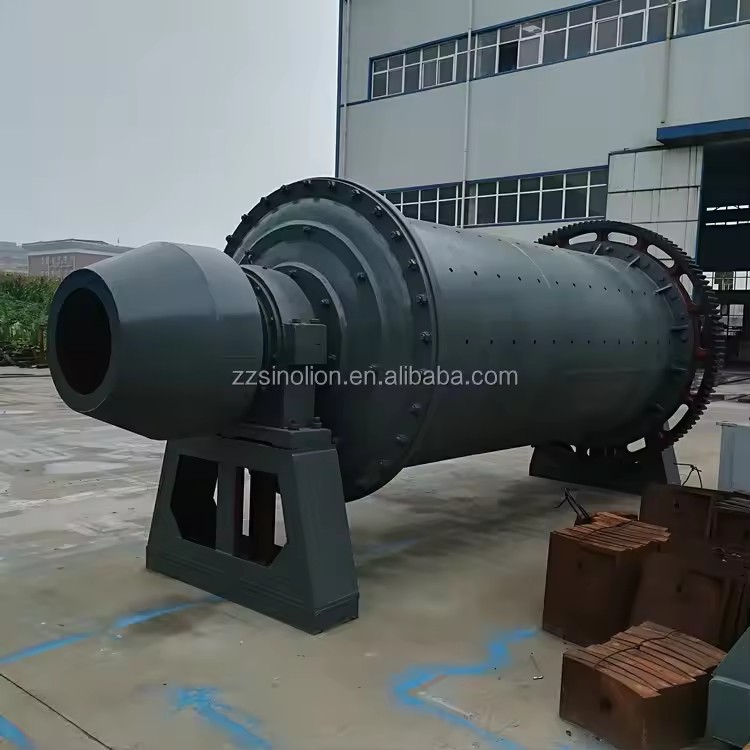

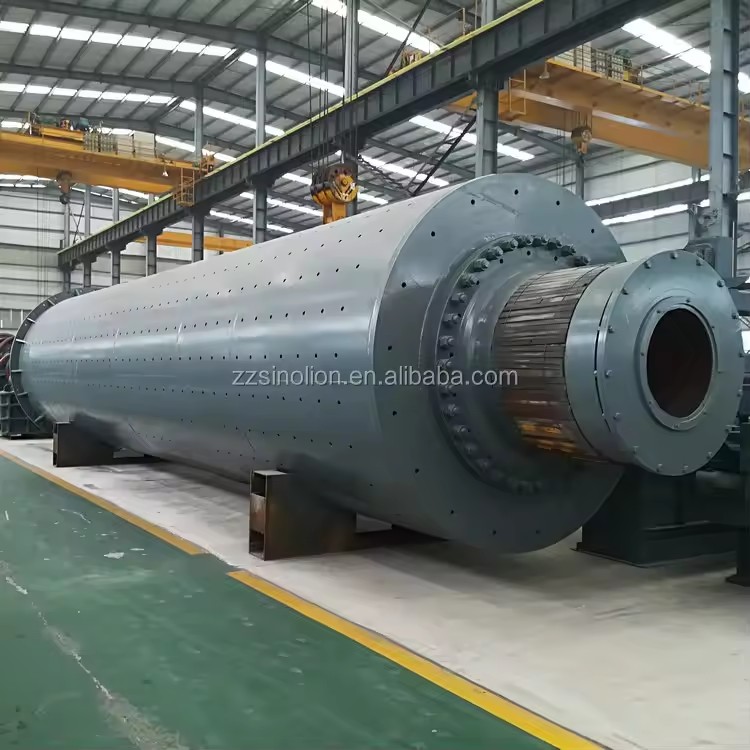

Overflow bearing small wet dry mine laboratory ball mill factory price for gold copper iron chromite ore grinding

Client Reviews

Ball Mill Application Range

Ball Mill is widely used for the dry or wet grinding of all kinds of ores and other grindable materials in the production industries of kaolin, quartz, feldspar, cement, silicate product, new building material, refractory, fertilizer, ferrous metal,non-ferrous metals and glass ceramic industry. etc.

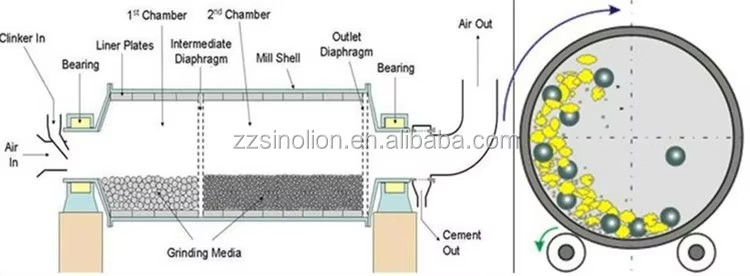

Ball mill main parts: feeding part,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

Ball mill technicial parameters

Model	Rotation speed (r/min)	Weight of grinding media (ton)	Size of feed opening (mm)	Discharge size (mm)	Capacity (t/h)	Power (kw)	Weight (T)
Φ 900x1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900x3000	38	2.51	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ 1200x2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	30-45	12.5
Φ 1200x3000	32	5	≤ 25	0.074-0.4	1.6-5	30-45	12.8
Φ 1200x4500	32	7	≤ 25	0.074-0.4	1.6-5.5	55	13.8
Φ 1500x3000	27	8	≤ 25	0.074-0.4	2-5.8	75-90	17
Φ 1500x4500	27	14	≤ 25	0.074-0.4	3-6.5	110	21
Φ 1500x5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
Φ 1830x3000	24	11	≤ 25	0.074-0.4	4-10	180	28
Φ 1830x6400	24	23	≤ 25	0.074-0.4	6.5-15	210	34
Φ 1830x7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
Φ 2200x5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
Φ 2200x6500	21	31	≤ 25	0.074-0.4	14-26	280	52.8
Φ 2200x7500	21	33	≤ 25	0.074-0.4	15-29	475	56

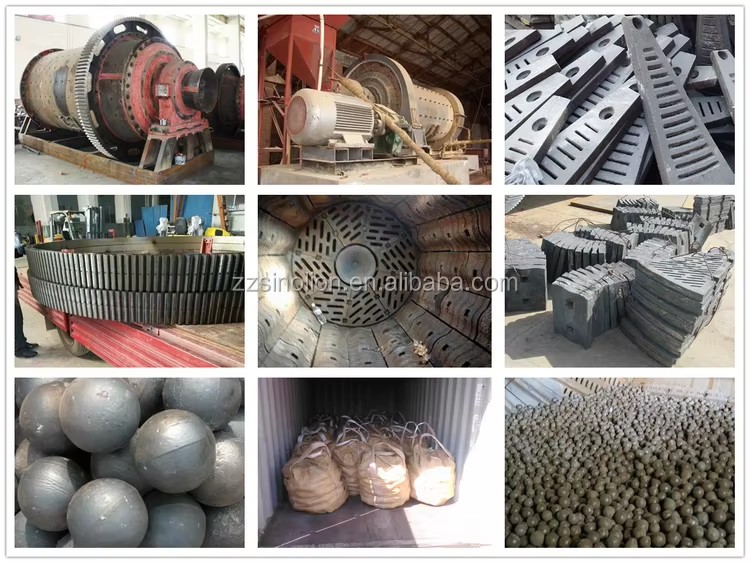

Ball mills working site of clients' mine site

1. Pre-sale service

1) will provide

2) Welcome to visit us at any time, we will pick you up.

2. Sale service

1) Keep clients updated when

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.

3. After Sale service

1) P rovide foundation drawing to the clients for installation.

2) Besides, o ur engineer s are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Question 1: What’s the delivery time after I pay the deposit?

Answer: We will delivery the goods within 15-25 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported,, the,,, Korea,,,,,,,,,,,,, Columbia,,,, etc

Question 4: How to make the payment?

Normally, when the order value is below USD10, 000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10, 000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.

Question 5: Suitability of motor?

As there are many voltage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happened, please send us your exact information of the power supply available, then we can modify the motor accordingly.

Question 6: After sale service?

For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.

Question 7

All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.

Question 8: How long of your machine quality guarantee terms?

Answer: Quality guarantee time is one year(wearing parts excluded).

Certifications & compliance

Complies with EU standards

Description images

Overflow Small Wet Dry Mine Laboratory Ball Mill Factory Price for Gold Copper Iron Chromite Ore Grinding

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Type

Ball Mill

Motor Type

AC Motor

Core components

Motor

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Capacity(t/h)

0.5-83t/h

Place of origin

China, Henan

Weight

3.6 KG

Dimension (L*W*H)

Based on different model

After-sales Service Provided

Engineers available to service machinery overseas

Application

cement, chromite, clinker, gold ore iron copper, quartz limestone, Al2o3

Liner

Rubber, high manganese, ceramic(as client request)

Spare Parts

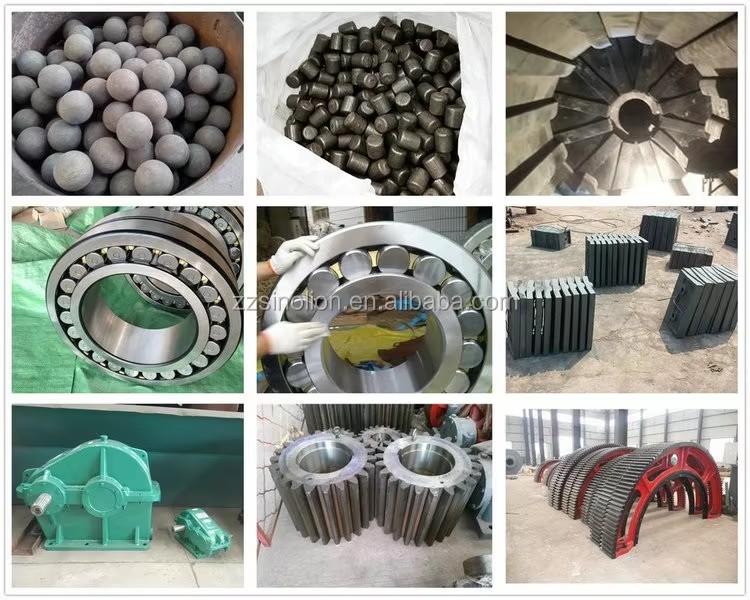

liner, grinding balls, grinding media

Grinding material

calcium carbonate, calcite, dolomite, bauxite, aragonite

Operation

automatic or manual

After sale service

the whole using life

Grinding way

wet type or dry type or batch type

Including

gearbox, gear, pinion, liner, manual, bearing, specifications

Color

White, Blue, Yellow, red, gray( or as client request)

Selling Units

Single item

Single package size

1232X221X223 cm

Single gross weight

3000.0 kg

Power (W) (Product option)

15-475kw

Model number

900x1800, 900x2100, 900x3000, 1200x400, 1200x3000, 1200x4500

Certifications & Compliance

Lead time

15 days

Minimum order

1 Units
